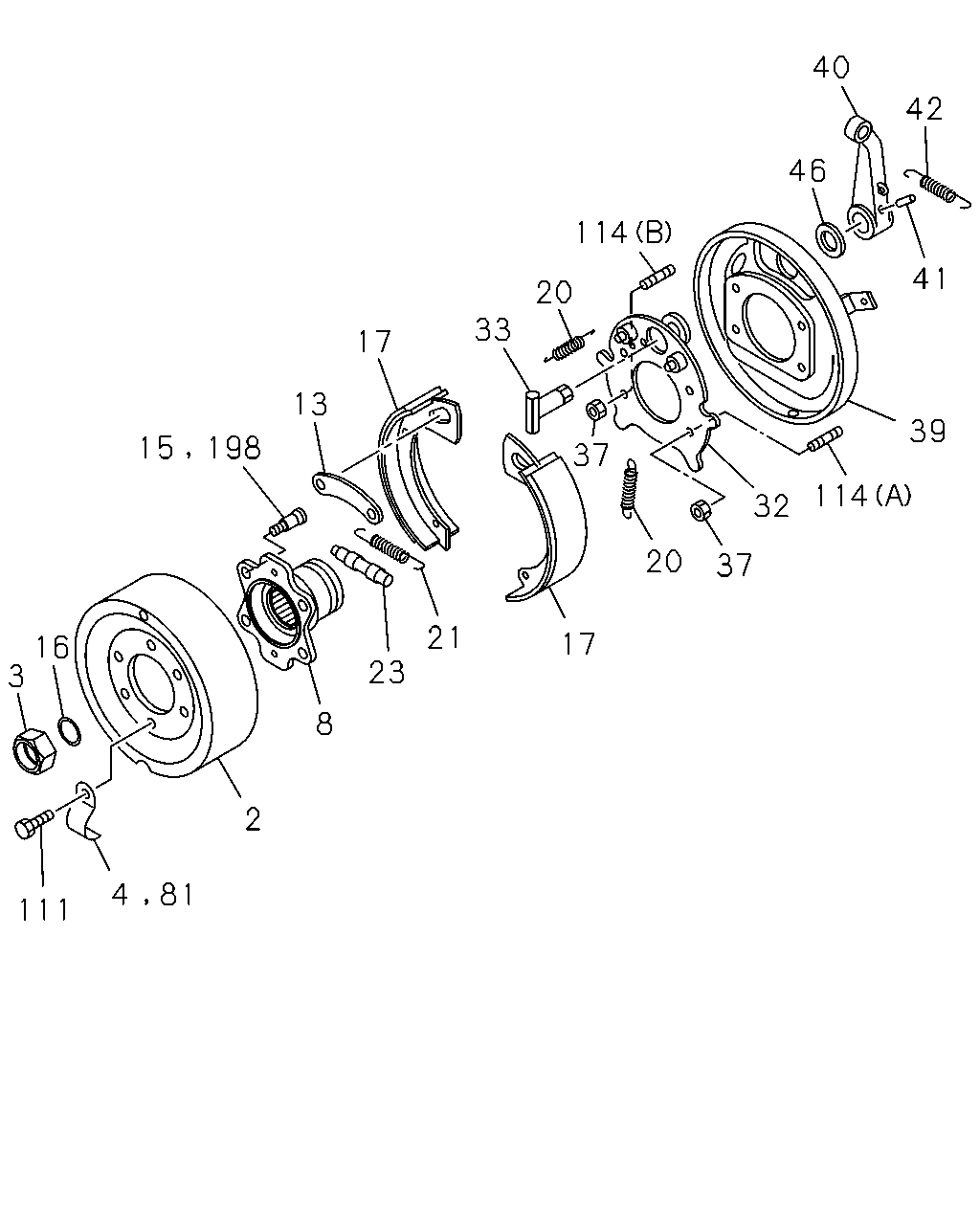

3-08 — PARKING BRAKE (#59828) — 34 parça

40 42 46 114 41 20 33 17 13 39 15 198 37 114 32 20 37 21 17 16 3 23 8 2 81 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	0906-	●	●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S) M36 FLANGE	8-98014-140-0	01	1	0906-		●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	0906-		●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1001-1002	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1003-	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-37243-236-0	01	1	0906-0912	●	●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-37243-236-0	01	1	1001-1002		●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	0906-	●	●
15	BOLT; FLANGE PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	0906-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 8.5"(B1S) ID=47 T=5	1-09623-380-0	01	1	0906-		●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	0906-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	0906-	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	0906-	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	0906-	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	0906-	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	0906-	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	8-97365-444-0	04	1	0906-	●	●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-019-0	01	1	0906-		●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	0906-	●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-043-0	01	1	0906-		●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	0906-	●
41	PIN; KNOCK,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	0906-	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	0906-	●	●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	0906-	●	●
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	0906-	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER	0-50040-820-0	02	1	0906-0906		●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER	0-50740-820-0	02	1	0906-1009	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-	●	●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0906-	●
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0906-	●
198	BOLT; KNURL PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	0906-	●

130 197

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	130	BOLT; BRKT PARKING BRAKE DRUM 8.5"(B1S) M10X25 FLANGE	0-28751-025-0	03	1	0906-	●
	197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 8.5"(B1S)	8-98020-897-1	01	1	0906-	●
