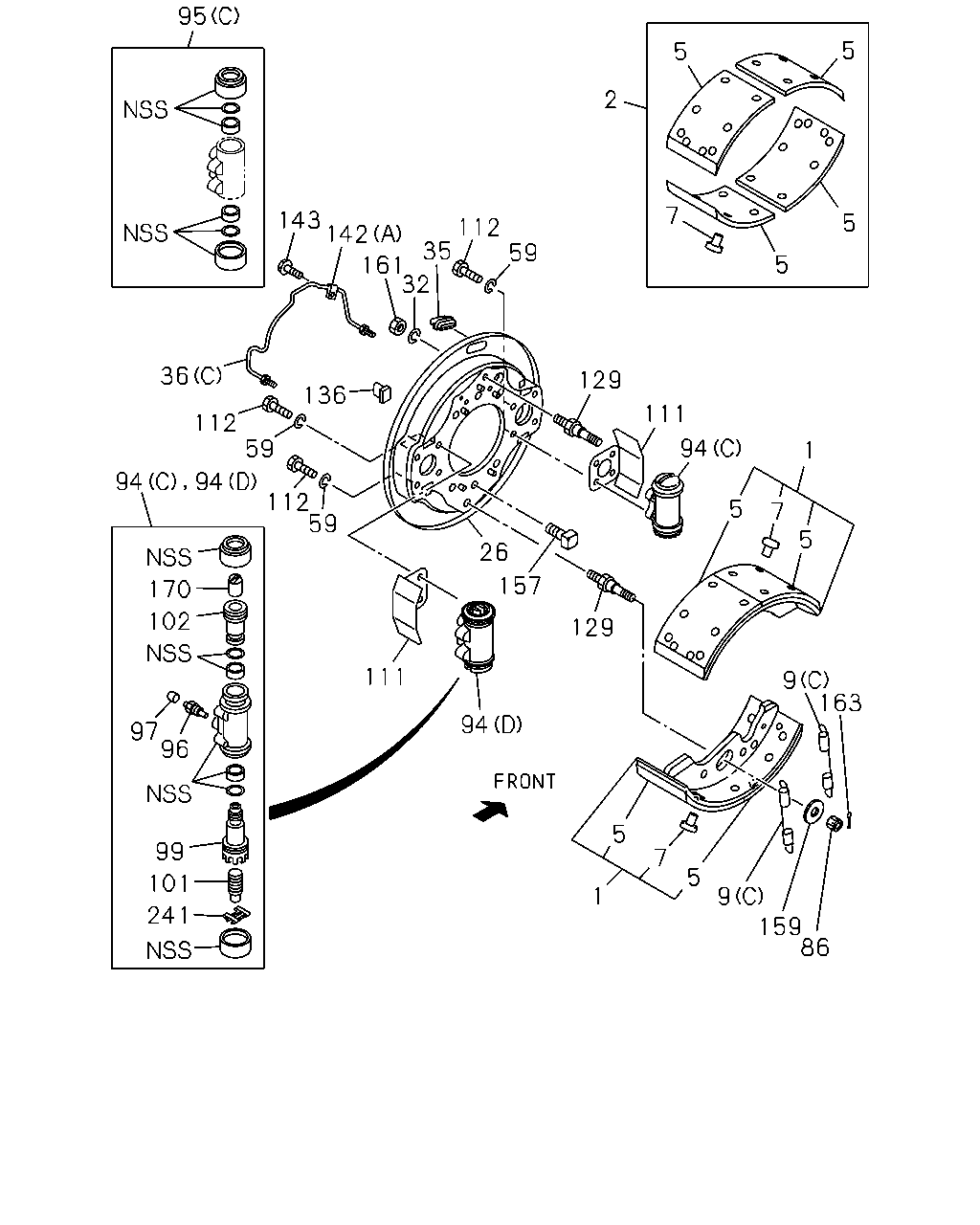

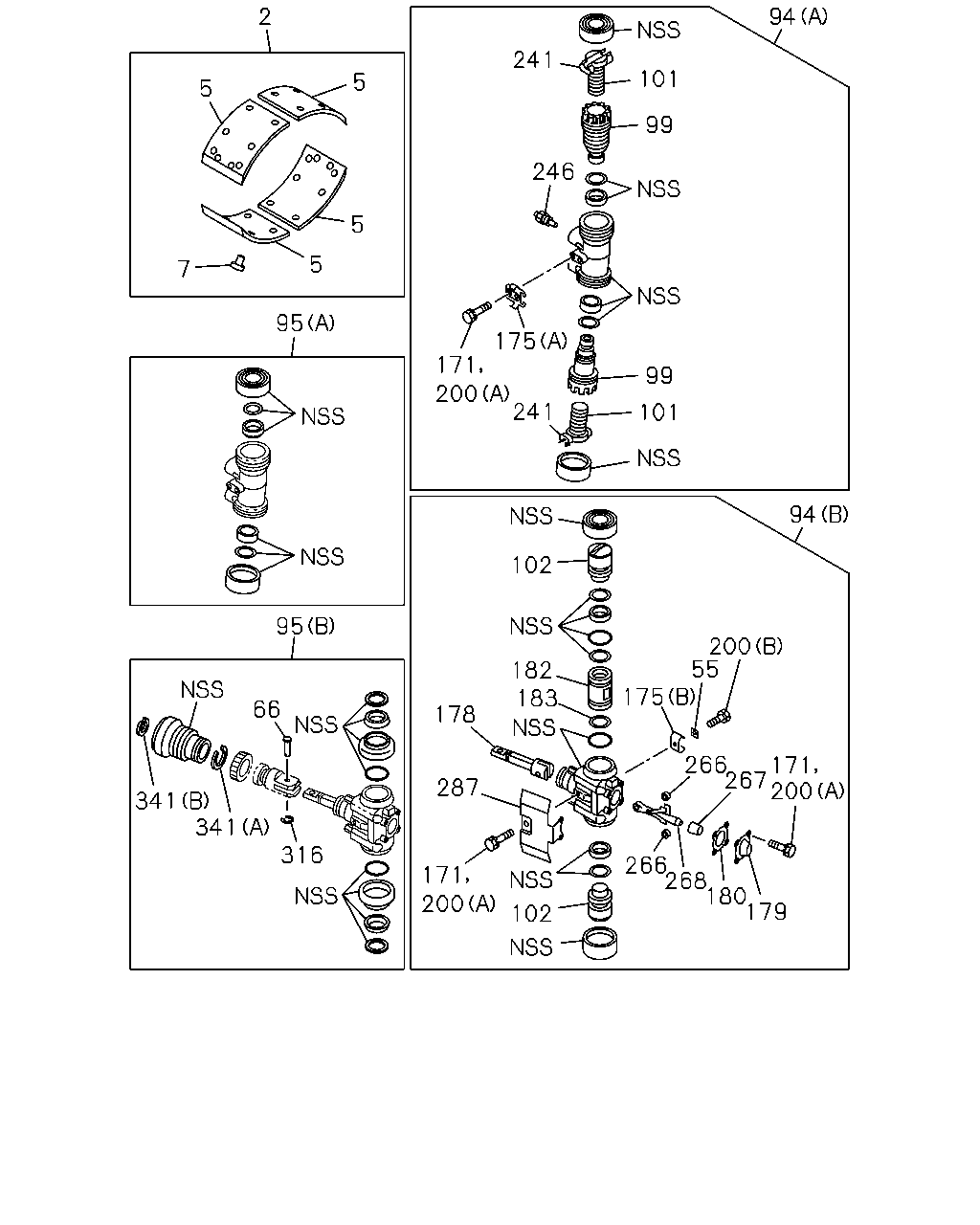

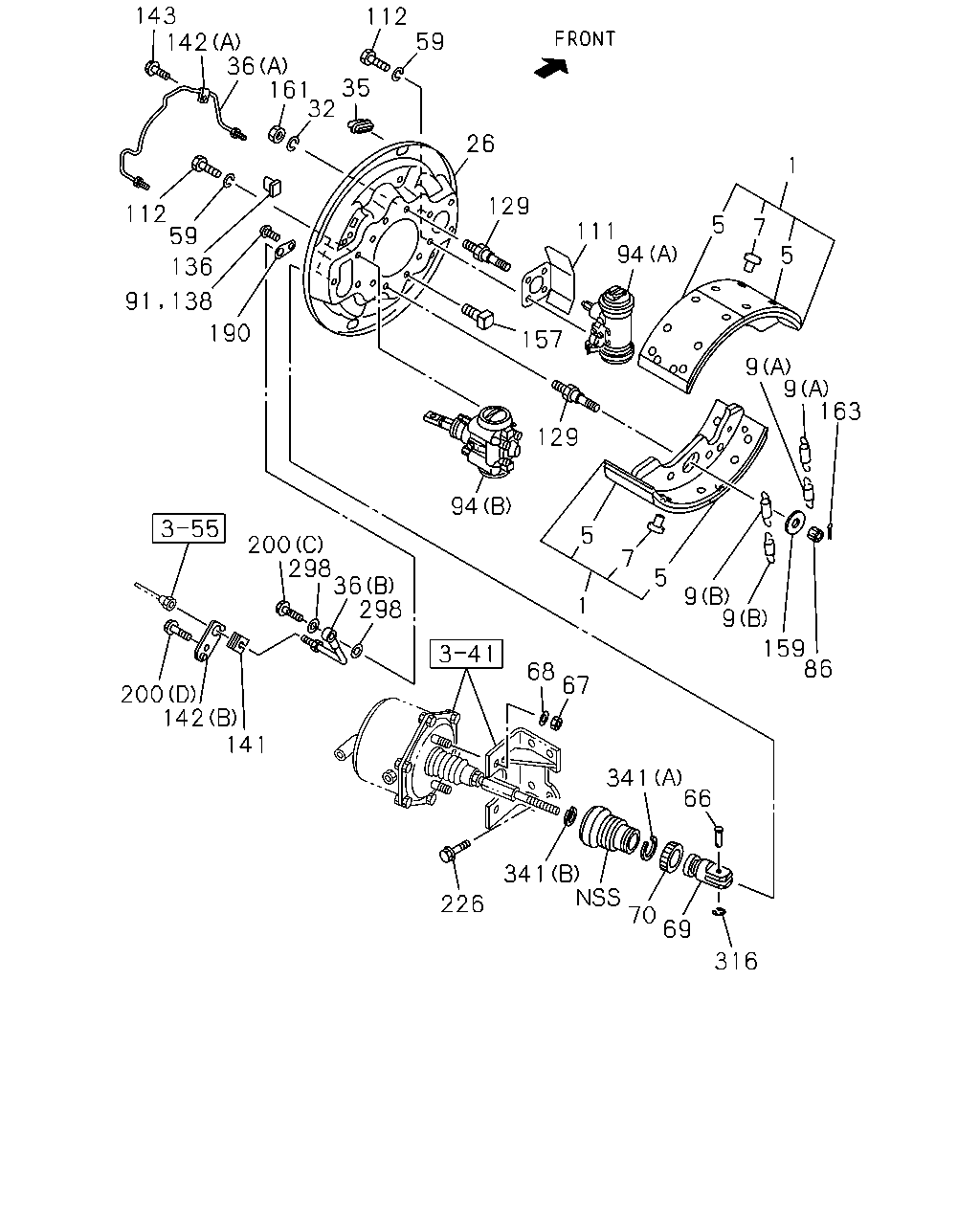

3-05 — REAR WHEEL BRAKE (#59827) — 158 parça

143 142 36 161 32 35 112 59 26 129 111 94 157 5 7 1 5 9 9 163 112 59 136 91 138 190 200 298 36 298 200 142 141 68 67 226 341 341 66 70 69 316 129 5 1 94 7 5 9 9 159 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-
32	WASHER; LK	1-47159-110-0	04	1	0906-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0906-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0906-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	0906-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	0906-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	0906-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	0906-
86	NUT; FLANGE	1-09440-101-0	04	1	0906-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-
136	GROMMET	1-09333-138-0	04	1	0906-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0906-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	0906-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	0906-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-

316 341 341 66 95 95 5 5 5 2 5 7 94 101 241 99 246 175 171 241 200 99 101 94 102 182 200 55 175 183 178 287 266 267 200 180 171 179 268 266 102 200 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	0906-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	0906-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	0906-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	0906-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0906-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	0906-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	0906-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0906-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0906-
241	HOLDER	1-47619-097-0	04	1	0906-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	0906-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	0906-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	0906-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0906-

143 142 112 35 161 59 32 2 5 5 5 5 7 136 36 112 112 59 94 94 59 111 26 157 129 94 5 7 5 9 1 159 86 163 9 1 94 5 7 5 111 129 170 102 96 97 99 101 241 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0906-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0906-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0906-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0906-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0906-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0906-
32	WASHER; LK	1-47159-110-0	04	1	0906-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0906-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0906-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0906-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0906-
86	NUT; FLANGE	1-09440-101-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0906-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0906-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0906-1406
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0906-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0906-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0906-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0906-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0906-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0906-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0906-
136	GROMMET	1-09333-138-0	04	1	0906-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0906-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0906-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0906-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0906-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0906-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0906-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	0906-
241	HOLDER	1-47619-097-0	04	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
