◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#5982) — 45 parça

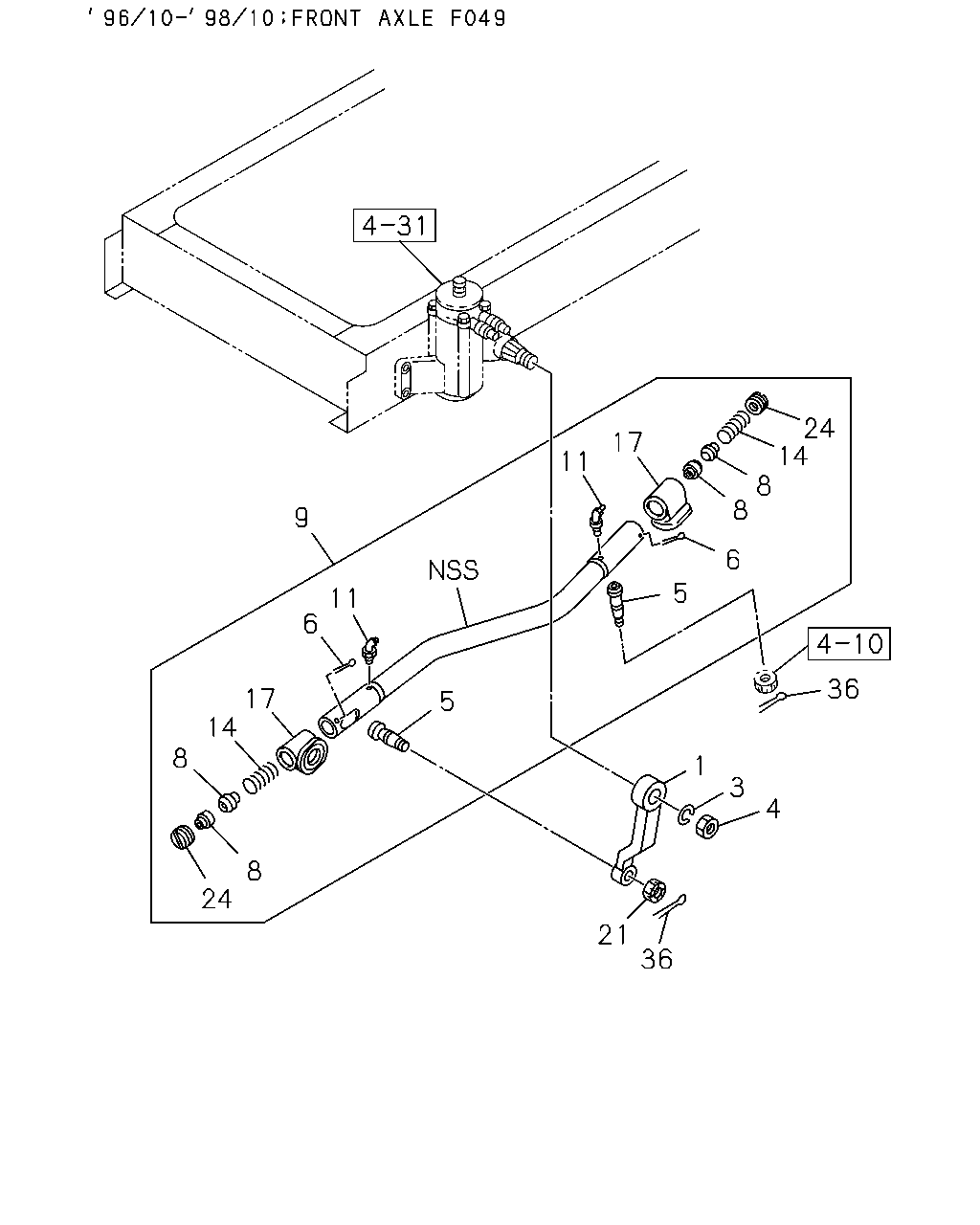

çizim 42400
24 14 8 8 17 11 9 6 5 11 6 36 17 14 5 8 1 3 4 8 24 21 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-405-0 01 1 9606-9609
1 ARM; PITMAN,STRG
EXC. FRONT AXLE F049<FS4> 		1-44341-405-0 01 1 9610-9810
1 ARM; PITMAN,STRG 1-44341-447-0 01 1 9811-0211
1 ARM; PITMAN,STRG 1-44341-481-0 01 1 0212-
1 ARM; PITMAN,STRG
FRONT AXLE F049<FS4> 		1-44341-413-0 01 1 9610-9810
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9606-
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9606-
5 BALL; JOINT,DRAG LINK
FRONT AXLE F049<FS4> 		1-44361-110-1 02 1 9610-9810
6 PIN; SPLIT,ADJ SCREW
FRONT AXLE F049<FS4> 		9-08115-065-0 03 1 9610-9810
8 SEAT; SPR,ROD END
FRONT AXLE F049<FS4> OD=36 		9-09881-340-0 04 1 9610-9810
9 LINK; DRAG 1-44380-038-1 01 1 9606-9609
9 LINK; DRAG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-44380-038-1 01 1 9610-9810
9 LINK; DRAG
FRONT AXLE F049<FS4> 		1-44380-159-0 01 1 9610-9810
9 LINK; DRAG 1-44380-134-0 01 1 9811-
11 NIPPLE; GREASE,DRAG LINK
FRONT AXLE F049<FS4> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9610-9810
14 SPRING; COIL,DRAG LINK
FRONT AXLE F049<FS4> 		9-09940-639-1 02 1 9610-9810
17 GUARD; MUD,DRAG LINK
FRONT AXLE F049<FS4> 		1-44365-020-0 02 1 9610-9810
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9606-9609
21 NUT; LK,JOINT BALL
EXC. FRONT AXLE F049<FS4> M16 SLOTTED 		1-09442-021-1 02 1 9610-9810
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9811-
21 NUT; LK,JOINT BALL
FRONT AXLE F049<FS4> M24 		9-09844-669-2 01 1 9610-9810
24 PLUG; ADJ,DRAG LINK
FRONT AXLE F049<FS4> 		9-44375-021-0 02 1 9610-9810
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 9606-0606
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0607-
çizim 42451
9 21 36 13 1 3 4 21 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG 1-44341-405-0 01 1 9606-9609
1 ARM; PITMAN,STRG
EXC. FRONT AXLE F049<FS4> 		1-44341-405-0 01 1 9610-9810
1 ARM; PITMAN,STRG 1-44341-447-0 01 1 9811-0211
1 ARM; PITMAN,STRG 1-44341-481-0 01 1 0212-
1 ARM; PITMAN,STRG
FRONT AXLE F049<FS4> 		1-44341-413-0 01 1 9610-9810
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9606-
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9606-
9 LINK; DRAG 1-44380-038-1 01 1 9606-9609
9 LINK; DRAG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-44380-038-1 01 1 9610-9810
9 LINK; DRAG
FRONT AXLE F049<FS4> 		1-44380-159-0 01 1 9610-9810
9 LINK; DRAG 1-44380-134-0 01 1 9811-
13 BOOT; DRAG LINK 1-85574-046-0 02 1 9606-9609
13 BOOT; DRAG LINK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-85574-046-0 02 1 9610-9810
13 BOOT; DRAG LINK 1-85574-046-0 02 1 9811-0203
13 BOOT; DRAG LINK 1-85574-046-0 02 1 0204-
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9606-9609
21 NUT; LK,JOINT BALL
EXC. FRONT AXLE F049<FS4> M16 SLOTTED 		1-09442-021-1 02 1 9610-9810
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9811-
21 NUT; LK,JOINT BALL
FRONT AXLE F049<FS4> M24 		9-09844-669-2 01 1 9610-9810
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 9606-0606
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0607-
