◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#59819) — 60 parça

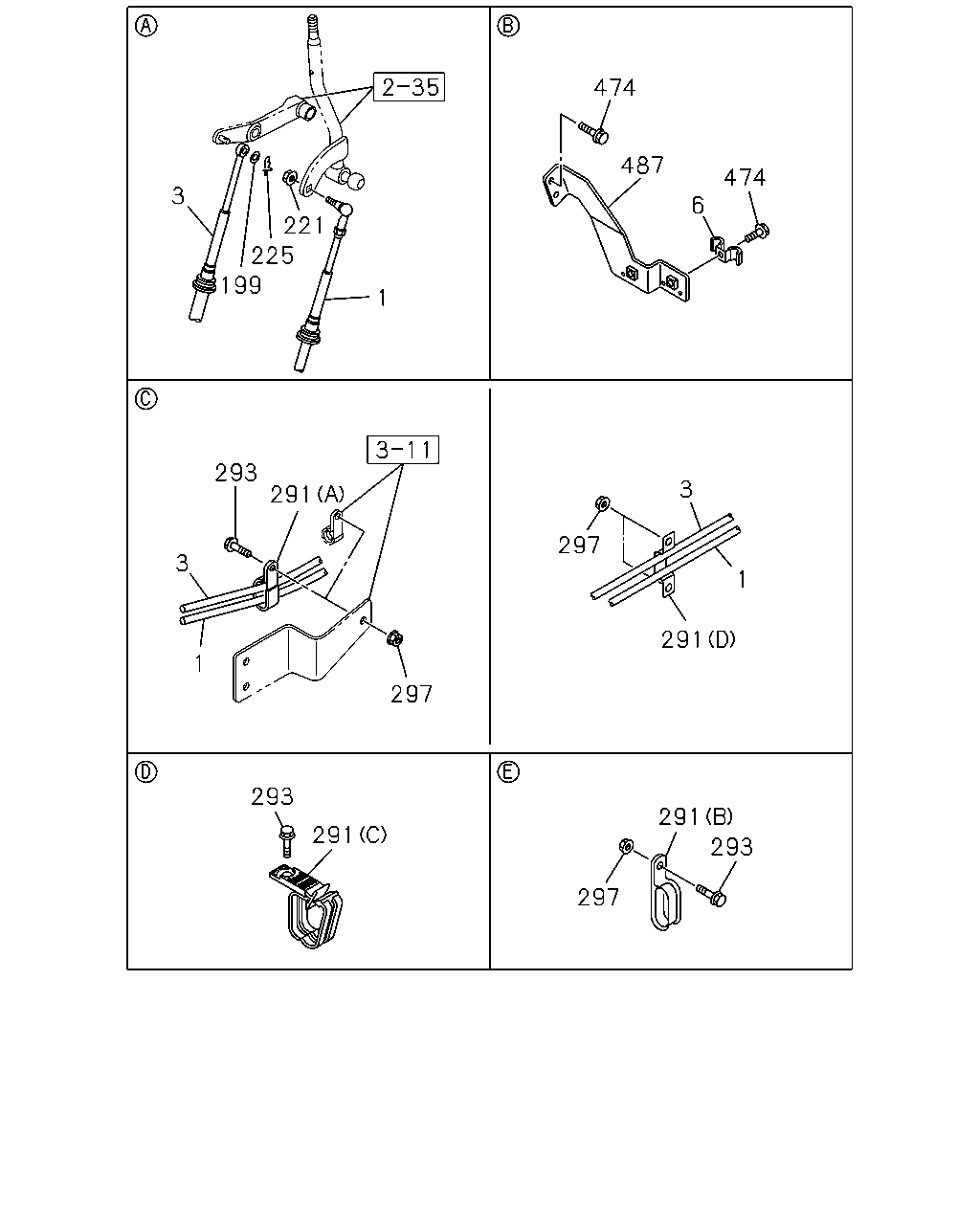

çizim 165086
474 487 474 3 6 221 225 199 1 293 3 291 297 3 1 291 1 297 293 291 291 293 297
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 1008-
1 CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98114-375-3 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-216-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 0906-1007
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1008-1009
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1008-1009
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 1010-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98133-214-3 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 1008-
3 CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-380-3 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-223-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 0906-1007
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1008-1009
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1008-1009
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 1010-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0906-
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906-
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0906-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0906-1011
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32 		8-97389-264-0 02 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906-1504
291 CLIP; SHIFT TO SELECT,FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 03 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X16 FLANGE 		0-28050-816-0 01 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
297 NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 0906-
297 NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0906-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0906-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0906-
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0906-
487 BRACKET; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98021-920-2 01 1 0906-1012
487 BRACKET; CONT CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0906-1012
487 BRACKET; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-009-0 01 1 1101-
487 BRACKET; CONT CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101-

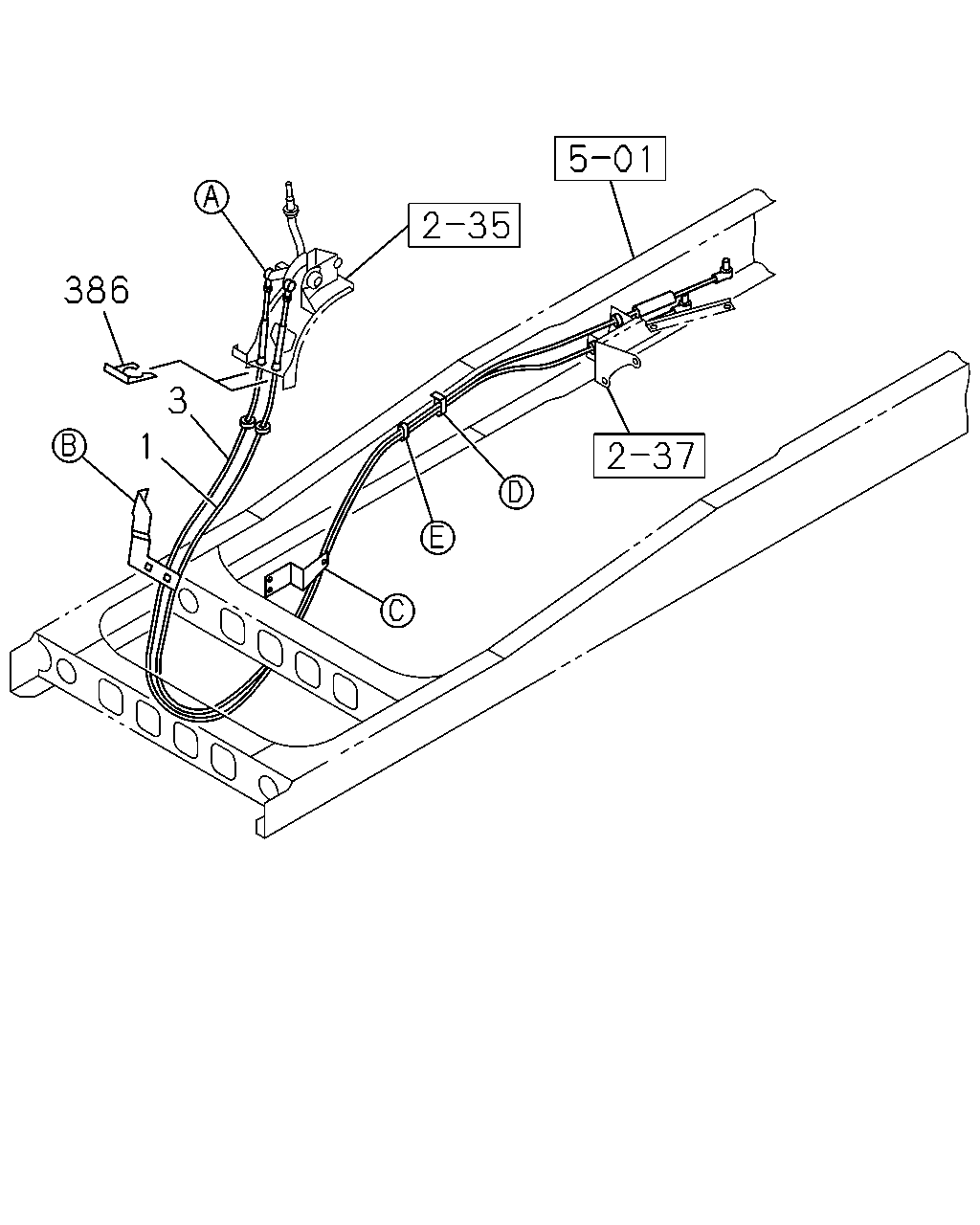

çizim 165095
386 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 1008-
1 CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98114-375-3 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-216-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 0906-1007
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1008-1009
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1008-1009
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 1010-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98133-214-3 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 1008-
3 CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-380-3 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-223-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 0906-1007
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1008-1009
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1008-1009
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 1010-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0906-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0906-
