2-05 — CLUTCH PIPING (#59810) — 65 parça

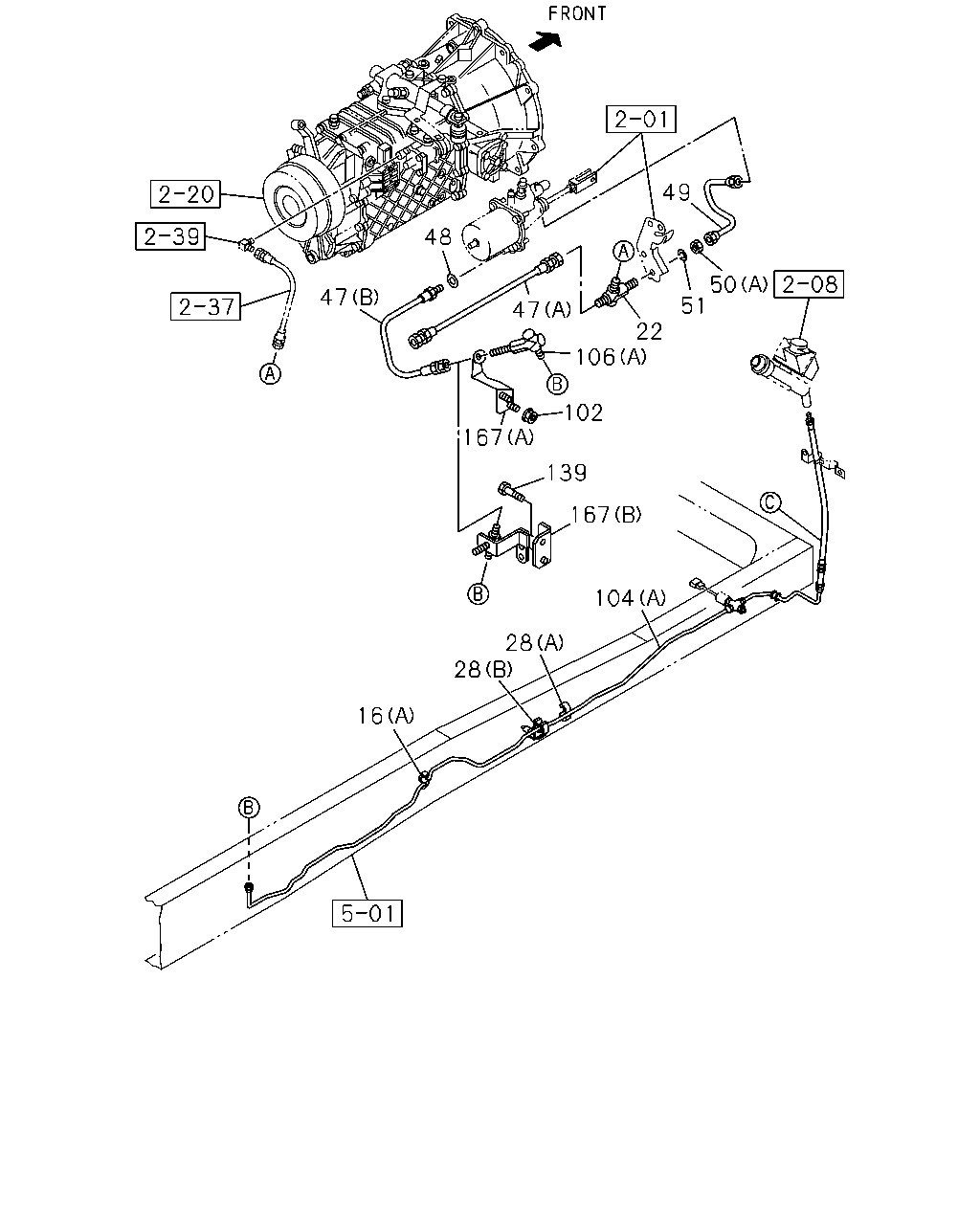

çizim 164956
49 48 50 51 47 47 22 106 102 167 139 167 104 28 28 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0906-
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=10 & 12 		1-09709-278-1 02 1 0906-
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0906-1005
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0906-
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0906-
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0906-
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) (B) L=550 		8-98122-509-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-612-1 01 1 0906-
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=620 		1-09363-770-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560 		1-09363-914-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640 		1-09363-974-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740 		1-09363-674-0 01 1 0906-
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 0906-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0906-
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0906-
102 NUT; FLEX HOSE,CLU CONT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0906-
106 UNION; OIL PIPE
MLD6S M/T(X7W) (A) M12 3WAY 		1-09654-137-2 01 1 0906-
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0906-
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0906-0910
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911-
139 BOLT; BRKT
MLD6S M/T(X7W) M10X30 FLANGE 		0-28051-030-0 01 1 0906-
167 BRACKET; UNION
MLD6S M/T(X7W) (B) 		8-98132-086-0 01 1 0906-
167 BRACKET; UNION
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0906-
çizim 164966
16 28 16 28 207 48 101 50 180 106 184 239 104 23 104 107
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0906-
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=10 & 12 		1-09709-278-1 02 1 0906-
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0906-1005
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1006-
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0906-
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0906-
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0906-
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0906-1005
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1006-1009
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0906-
106 UNION; OIL PIPE
MLD6S M/T(X7W) (A) M12 3WAY 		1-09654-137-2 01 1 0906-
106 UNION; OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0906-
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0906-0910
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911-
107 NUT; UNION,OIL PIPE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0906-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0906-0910
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911-
207 BOLT; CLIP
MLD6S M/T(X7W) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0906-
