◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#5981) — 134 parça

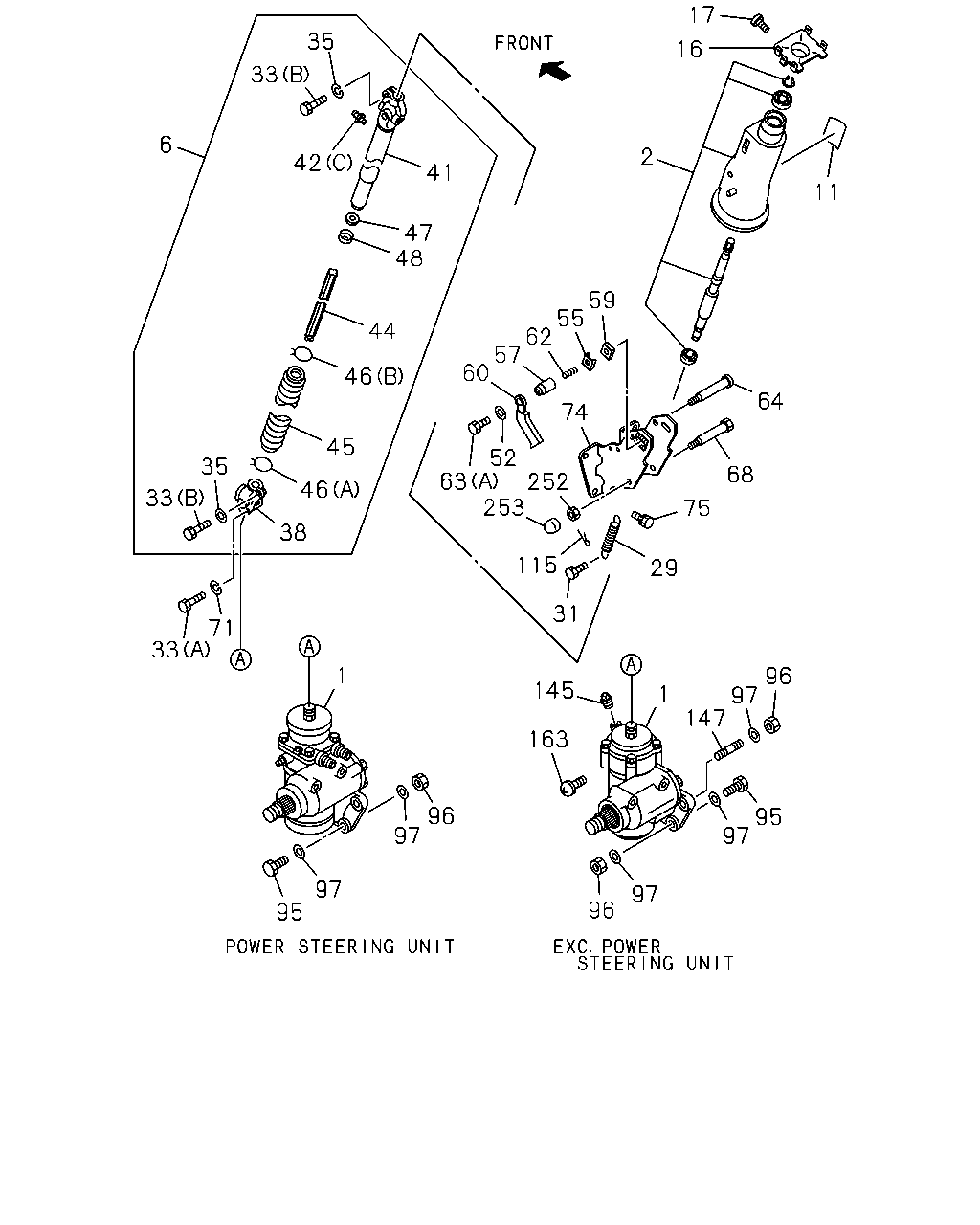

çizim 7773
17 35 16 33 6 2 42 41 11 47 48 59 55 62 57 60 44 46 64 74 45 52 63 252 253 35 68 46 33 75 38 115 29 31 71 33 1 96 97 147 145 1 163 96 97 95 97 97 97 96 95
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) 		1-44000-773-4 01 1 9606-9810
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-842-2 01 1 9811-0205
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-887-1 01 1 0206-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) 		1-44000-721-3 01 1 9606-9810
2 SHAFT ASM; STRG 1-44130-606-0 01 1 9606-9810
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9811-
6 SHAFT; STRG LWR 1-44135-257-0 01 1 9606-9810
11 SEAL; JOURNAL,STRG 1-44229-049-0 01 1 9606-9810
16 BRACKET; COMB SW 1-44227-123-0 01 1 9606-9810
17 SCREW; BRKT
M5X10 W/LK WASHER 		9-03910-510-0 03 1 9606-9810
29 SPRING; COLUMN 1-09583-274-0 02 1 9606-9810
31 SCREW; HOOK
M6X20 		0-20800-620-0 02 1 9606-9810
33 BOLT; STRG SHAFT TO UNIT
(A) M10X35 FLANGE 		0-28691-035-0 01 1 9606-9810
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 9811-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X35 		1-09009-126-1 02 1 9606-9810
33 BOLT; STRG SHAFT TO UNIT
(D) M10X50 		1-09000-489-0 01 1 9811-0709
33 BOLT; STRG SHAFT TO UNIT
(D) M10X50 		1-09000-786-0 01 1 0710-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 02 1 9606-9810
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9811-
38 JOURNAL; STRG SHAFT 1-44135-209-0 01 1 9606-9810
41 YOKE; SLEEVE,STRG 1-44135-261-0 01 1 9606-9810
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(C) M6 STRAIGHT 		9-09031-006-0 01 1 9606-9810
44 SHAFT; SPLINE,STRG 1-44135-228-0 01 1 9606-9810
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9606-9810
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9811-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9606-9810
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9811-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9606-9810
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9606-9810
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9606-9810
52 WASHER; PL,ADJ LEVER 1-09503-229-0 01 1 9606-9810
55 PLATE; GUIDE 1-44227-109-0 01 1 9606-9810
57 NUT; ADJ BOLT 1-44227-106-1 01 1 9606-9810
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9811-
59 COLLAR; DIST,ADJ BOLT 1-44227-107-0 01 1 9606-9810
60 LEVER; ADJ,STRG COLUMN 1-44227-121-0 01 1 9606-9810
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9811-
62 SPRING; LK,LEVER 1-09580-455-1 01 1 9606-9810
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9811-0111
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-108-0 01 1 9606-9810
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-145-0 01 1 9811-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-149-0 01 1 9811-
64 BOLT; ADJ,PROTECTOR 1-44227-104-0 01 1 9606-9810
68 PIN; TILT CENTER 1-44227-102-2 01 1 9606-9810
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9606-0603
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604-
74 BRACKET; SUPPORT,STRG 1-44220-026-1 01 1 9606-9810
75 BOLT; STRG COLUMN
M8X25 FLANGE 		0-28680-825-0 04 1 9606-9810
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
95 BOLT; STRG UNIT
POWER STEERING(N40) M14X45 FLANGE 		0-28891-445-0 04 1 9606-9609
95 BOLT; STRG UNIT
POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 FLANGE 		0-28891-445-0 04 1 9610-9810
95 BOLT; STRG UNIT
M14X45 		9-92061-445-0 04 1 9811-
95 BOLT; STRG UNIT
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> M14X60 FLANGE 		0-28891-460-0 04 1 9610-9810
95 BOLT; STRG UNIT
EXC. POWER STEERING(N40) M14X45 FLANGE 		0-28891-445-0 02 1 9606-9609
95 BOLT; STRG UNIT
EXC. POWER STEERING(N40),HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 FLANGE 		0-28891-445-0 02 1 9610-9810
96 NUT; STRG UNIT
M14 		9-99110-514-0 04 1 9606-9810
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9811-0512
96 NUT; STRG UNIT
M14 		0-91110-514-0 05 1 0601-
97 WASHER; PL,STRG UNIT
POWER STEERING(N40) ID=15 		9-09651-069-0 08 1 9606-9810
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9811-
97 WASHER; PL,STRG UNIT
EXC. POWER STEERING(N40) ID=15 		9-09651-069-0 06 1 9606-9810
115 PIN; SPLIT,TILT CENTER BOLT
OD=1.8 L=15 		9-08112-015-0 01 1 9606-9810
145 PLUG; AIR BREATHER
EXC. POWER STEERING(N40) 		1-09893-002-0 01 1 9606-9810
147 STUD; STRG UNIT
EXC. POWER STEERING(N40) M14X37 L=66 		1-09300-095-1 02 1 9606-9810
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9811-
163 BOLT; STOPPER
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9606-9810
252 NUT; TILT CENTER BOLT
M10 		9-09116-510-0 01 1 9606-9810
253 NUT; CAP 1-71736-199-0 01 1 9606-9810

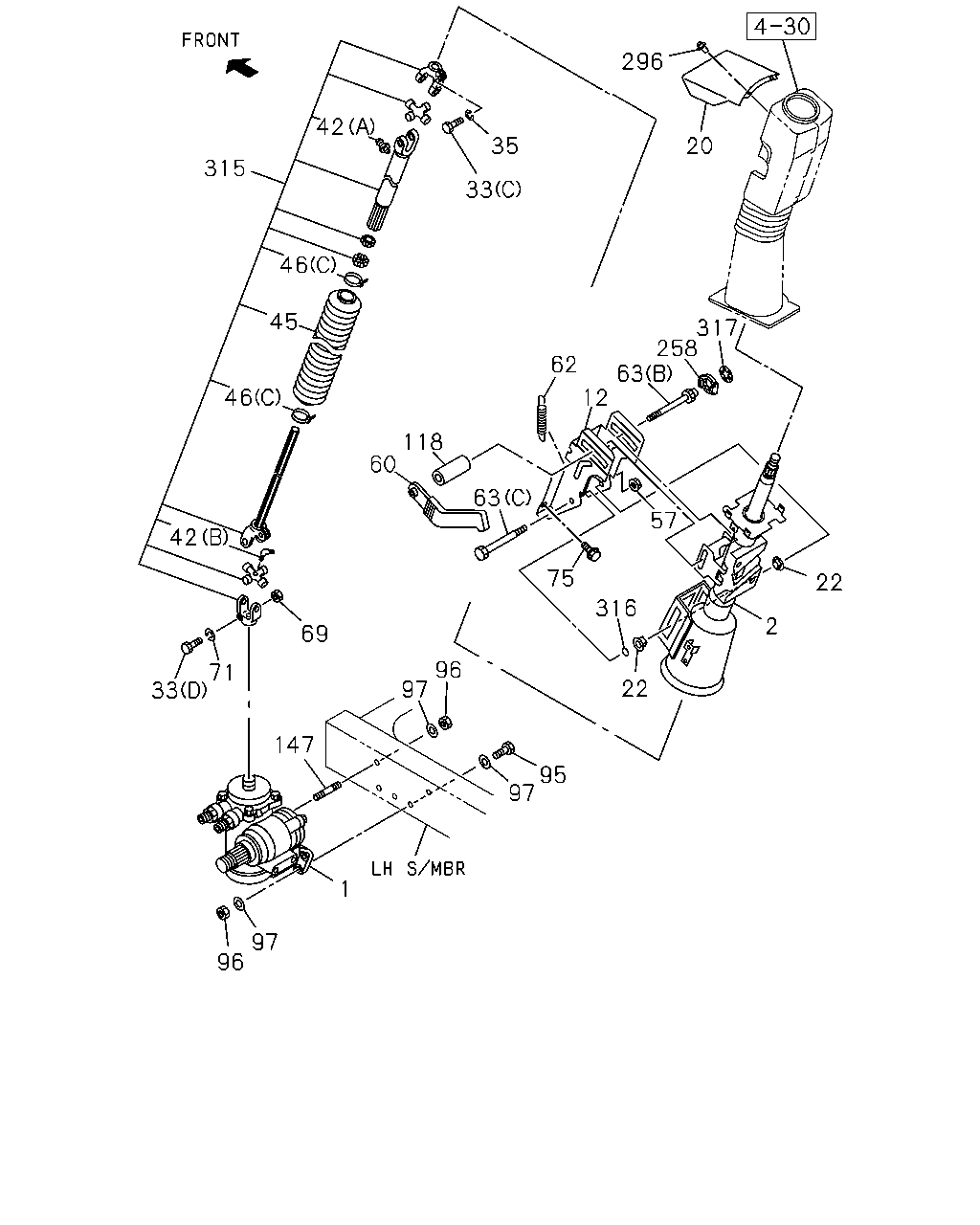

çizim 7778
296 42 35 20 315 33 46 317 258 63 12 45 62 46 118 60 63 57 42 75 22 316 2 69 96 97 71 33 22 147 95 97 1 97 96
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) 		1-44000-773-4 01 1 9606-9810
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-842-2 01 1 9811-0205
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-887-1 01 1 0206-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) 		1-44000-721-3 01 1 9606-9810
2 SHAFT ASM; STRG 1-44130-606-0 01 1 9606-9810
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9811-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9811-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9811-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9811-
33 BOLT; STRG SHAFT TO UNIT
(A) M10X35 FLANGE 		0-28691-035-0 01 1 9606-9810
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 9811-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X35 		1-09009-126-1 02 1 9606-9810
33 BOLT; STRG SHAFT TO UNIT
(D) M10X50 		1-09000-489-0 01 1 9811-0709
33 BOLT; STRG SHAFT TO UNIT
(D) M10X50 		1-09000-786-0 01 1 0710-
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 02 1 9606-9810
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9811-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0507-
42 NIPPLE; GREASE,SLEEVE YOKE
(C) M6 STRAIGHT 		9-09031-006-0 01 1 9606-9810
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9606-9810
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9811-
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9606-9810
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9811-
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9606-9810
57 NUT; ADJ BOLT 1-44227-106-1 01 1 9606-9810
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9811-
60 LEVER; ADJ,STRG COLUMN 1-44227-121-0 01 1 9606-9810
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9811-
62 SPRING; LK,LEVER 1-09580-455-1 01 1 9606-9810
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9811-0111
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-108-0 01 1 9606-9810
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-145-0 01 1 9811-
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-149-0 01 1 9811-
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9811-0512
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9606-0603
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604-
75 BOLT; STRG COLUMN
M8X25 FLANGE 		0-28680-825-0 04 1 9606-9810
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
95 BOLT; STRG UNIT
POWER STEERING(N40) M14X45 FLANGE 		0-28891-445-0 04 1 9606-9609
95 BOLT; STRG UNIT
POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 FLANGE 		0-28891-445-0 04 1 9610-9810
95 BOLT; STRG UNIT
M14X45 		9-92061-445-0 04 1 9811-
95 BOLT; STRG UNIT
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> M14X60 FLANGE 		0-28891-460-0 04 1 9610-9810
95 BOLT; STRG UNIT
EXC. POWER STEERING(N40) M14X45 FLANGE 		0-28891-445-0 02 1 9606-9609
95 BOLT; STRG UNIT
EXC. POWER STEERING(N40),HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 FLANGE 		0-28891-445-0 02 1 9610-9810
96 NUT; STRG UNIT
M14 		9-99110-514-0 04 1 9606-9810
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9811-0512
96 NUT; STRG UNIT
M14 		0-91110-514-0 05 1 0601-
97 WASHER; PL,STRG UNIT
POWER STEERING(N40) ID=15 		9-09651-069-0 08 1 9606-9810
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 09 1 9811-
97 WASHER; PL,STRG UNIT
EXC. POWER STEERING(N40) ID=15 		9-09651-069-0 06 1 9606-9810
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9811-0506
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-
147 STUD; STRG UNIT
EXC. POWER STEERING(N40) M14X37 L=66 		1-09300-095-1 02 1 9606-9810
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9811-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9811-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9811-
315 JOINT; SPLINE 1-44135-341-1 01 1 9811-
316 RING 1-44227-152-0 01 1 9811-
317 NUT; PUSH 1-44227-148-0 01 1 9811-
