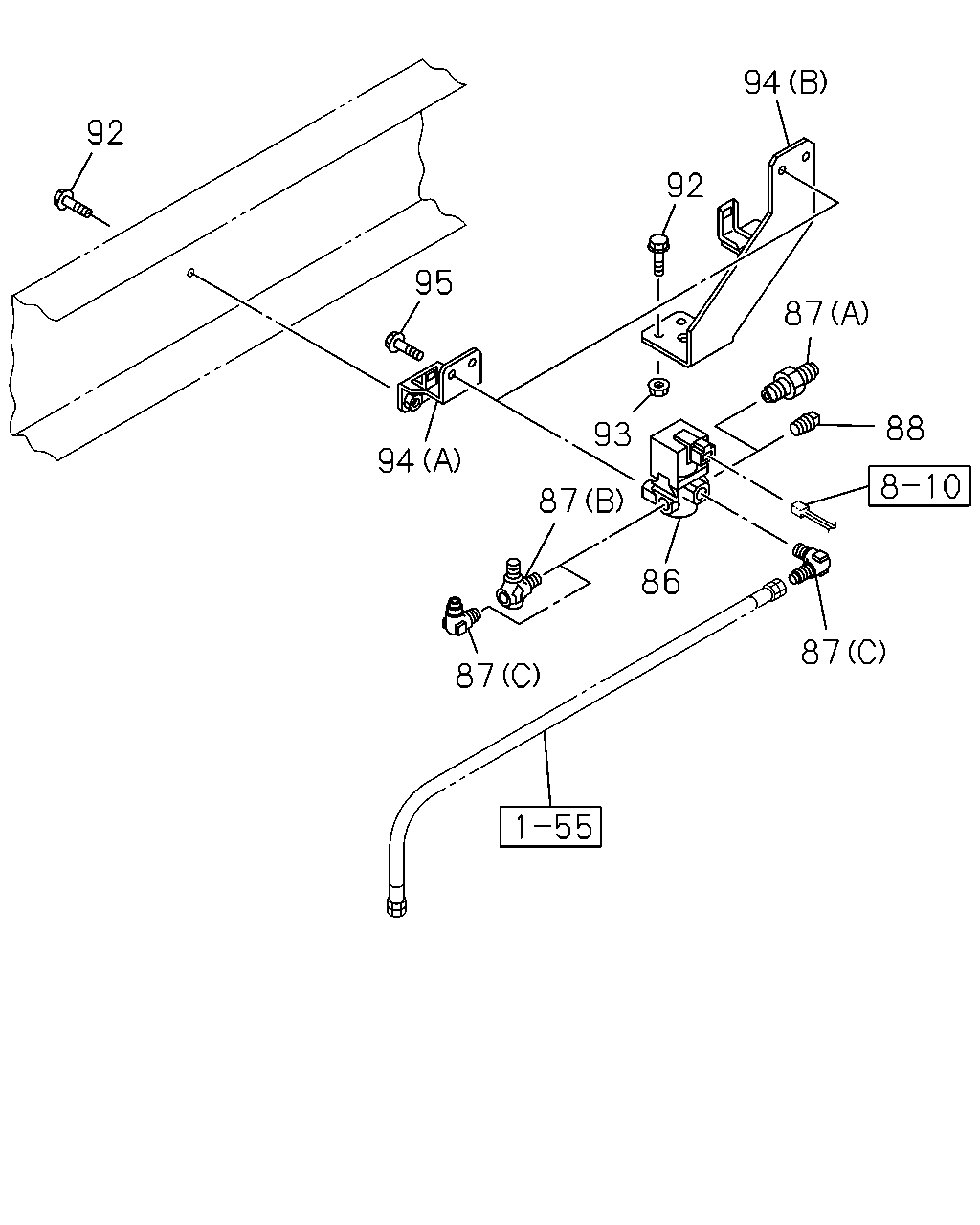

1-56 — EXHAUST BRAKE SYSTEM (#59807) — 15 parça

94 92 92 95 87 88 93 94 87 86 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	0906-
87	CONNECTOR (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0906-
87	CONNECTOR MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0906-
87	CONNECTOR MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-
87	CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-
88	PLUG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4	9-99204-513-0	01	1	0906-
92	BOLT; MAG VLV WHEEL BASE 3400MM(34W) M8X30 FLANGE	0-28650-830-0	02	1	0906-
92	BOLT; MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X25 FLANGE	0-28651-025-0	02	1	0906-1008
92	BOLT; MAG VLV WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	02	1	1009-
93	NUT; MAG VLV WHEEL BASE 3400MM(34W) M8 FLANGE	0-91180-108-0	02	1	0906-
94	BRACKET; MAG VLV,EXH BRAKE MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (B)	8-98115-469-0	01	1	0906-
94	BRACKET; MAG VLV,EXH BRAKE MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) (B)	8-98067-003-0	01	1	0906-
94	BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A)	8-98078-098-0	01	1	0906-
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	0906-
