11236 - FRR RHD EUROPE EURO5 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

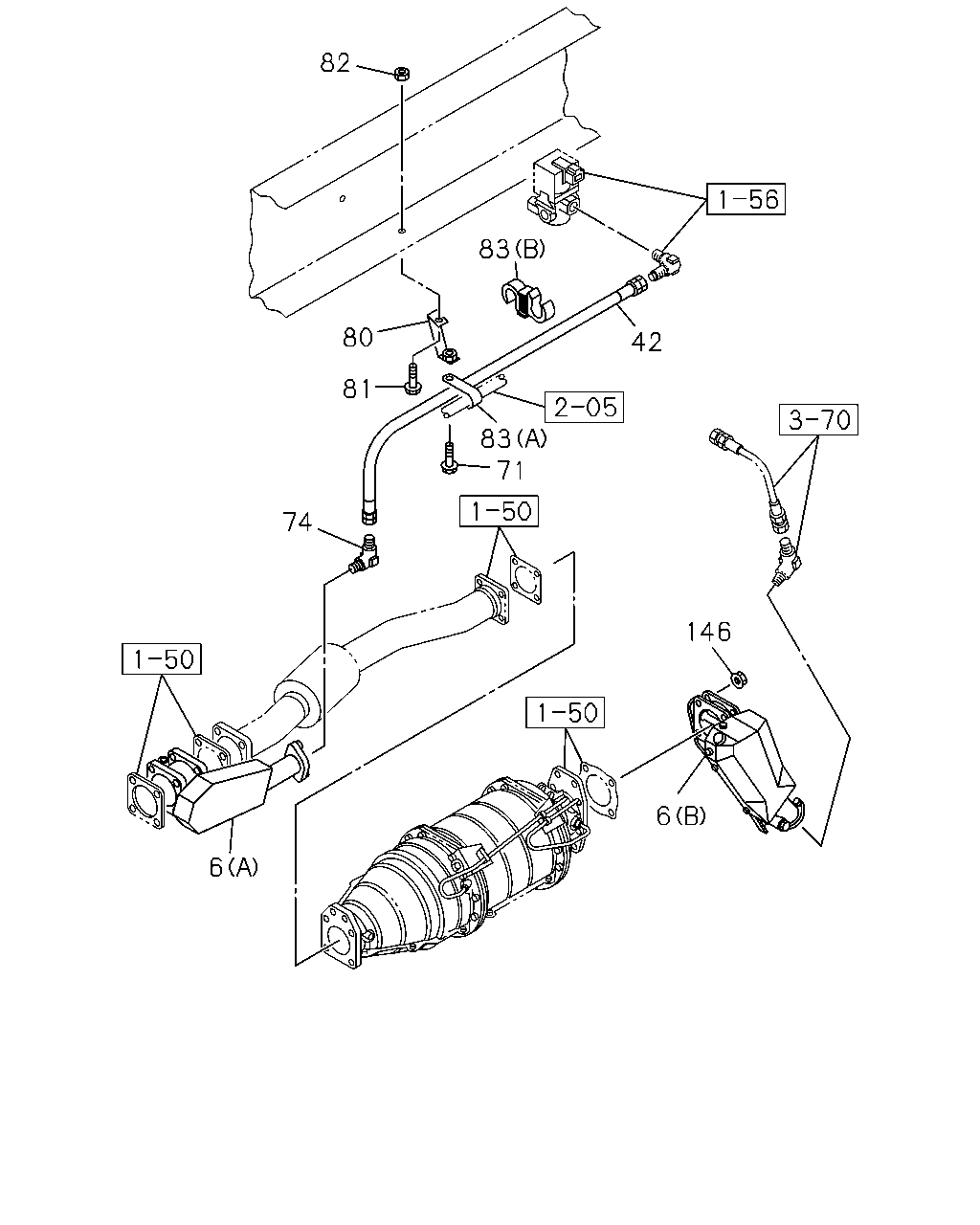

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#59806) — 17 parça
82
83
80
42
81
83
71
74
146
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
8-98054-172-6
01
1
0906-
6
VALVE; EXH BRAKE
WHEEL BASE 3400MM(34W) (B)
8-98054-189-6
01
1
0906-
6
VALVE; EXH BRAKE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B)
8-98054-188-6
01
1
0906-
42
HOSE; FLEX,EXH BRK
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) L=580
1-09363-613-1
01
1
0906-
42
HOSE; FLEX,EXH BRK
MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=660
1-09363-971-0
01
1
0906-
42
HOSE; FLEX,EXH BRK
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) L=540
1-09363-612-1
01
1
0906-
42
HOSE; FLEX,EXH BRK
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=600
1-09363-639-0
01
1
0906-
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0906-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0906-
80
BRACKET; FLEX HOSE
MZW6P M/T(RSZ)
8-98078-153-0
01
1
0906-
81
BOLT; HOSE BRKT
MZW6P M/T(RSZ) M10X25 FLANGE
0-28051-025-0
01
1
0906-
82
NUT; HOSE BRKT
MZW6P M/T(RSZ) M10 FLANGE
0-91180-210-0
01
1
0906-
83
CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=11 L=50
0-95235-085-0
01
1
0906-
83
CLIP; FLEX HOSE
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 L=50
0-95235-085-0
01
1
0906-
83
CLIP; FLEX HOSE
MZW6P M/T(RSZ) (A) ID=11X2 L=16
1-09700-820-0
01
1
0906-
83
CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10
1-09709-277-1
01
1
0906-
146
NUT; EXH BRK VLV
M8 W/LK WASHER
8-97581-234-0
04
1
0906-
