◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#5980) — 69 parça

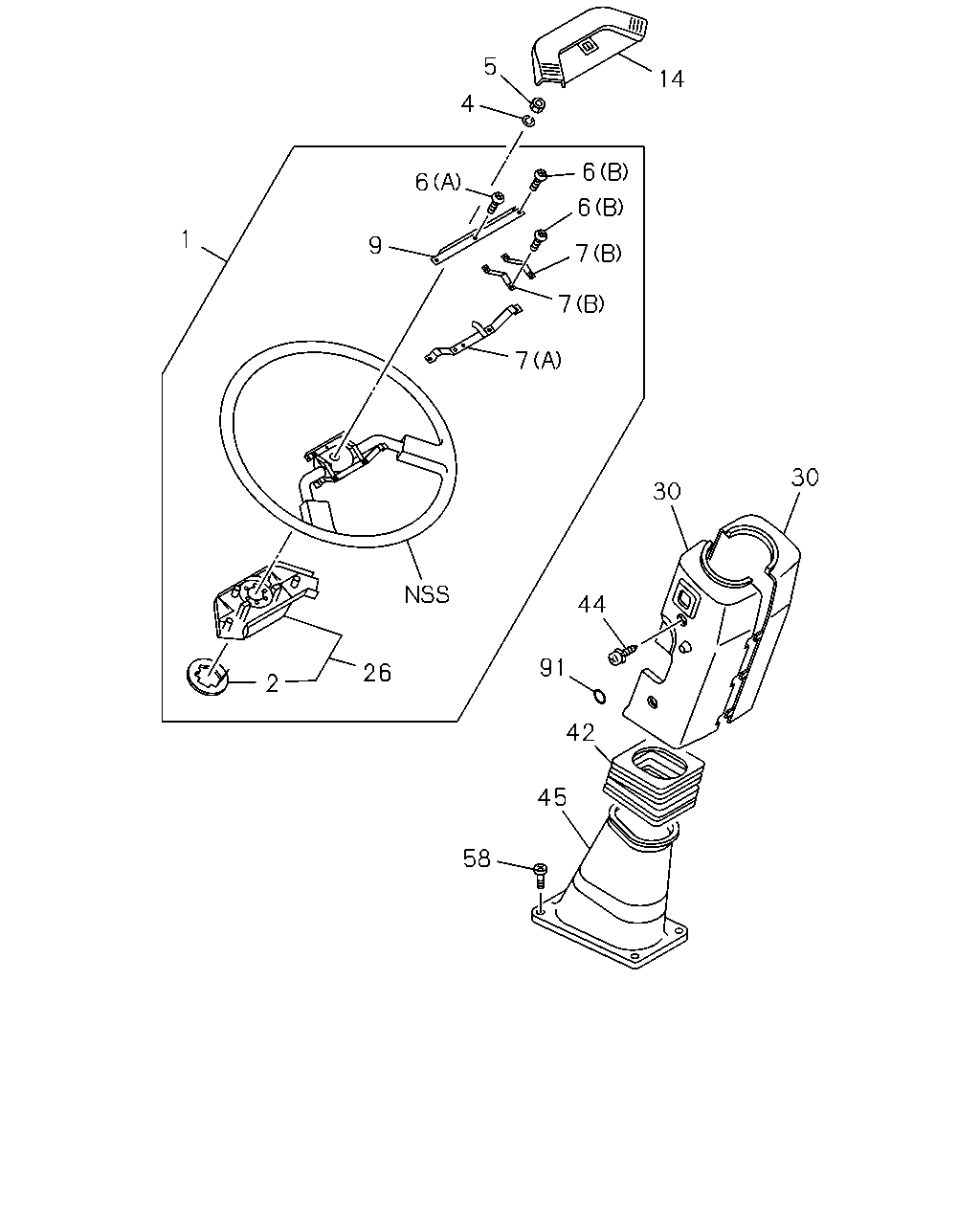

çizim 43084
14 4 6 6 6 1 9 7 7 7 30 30 44 91 26 2 42 45 58 5
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-121-1 01 1 9606-9810
1 WHEEL; STRG 1-44110-159-1 01 1 9811-
2 RING; HORN CONTACT 1-44129-020-2 01 1 9606-9810
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9606-0603
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9606-9608
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9609-0512
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601-
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9606-9810
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9811-
6 SCREW; HORN SPR CONTACT
(B) 		1-44129-035-0 06 1 9606-9810
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9811-
7 SPRING; HORN CONTACT
(A) 		1-44129-032-1 01 1 9606-9810
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9811-
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9606-
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9606-9810
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9811-
14 BUTTON; HORN,STRG WHEEL 1-44120-030-0 01 1 9606-9810
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9811-
26 COVER; STRG WHEEL,LWR 1-44120-033-0 01 1 9606-9810
26 COVER; STRG WHEEL,LWR 1-44129-039-1 01 1 9811-
30 COWL; STEERING 1-79997-288-1 01 1 9606-9810
30 COWL; STEERING 1-79997-282-0 01 1 9606-9810
30 COWL; STEERING 1-79997-342-3 01 1 9811-
42 BOOT; STEERING COLUMN 1-79997-184-0 01 1 9606-9810
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 9811-
44 SCREW; STRG COWL
M6X12 W/PL WASHER 		1-09981-380-0 04 1 9606-9810
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9811-0302
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303-
45 BOOT; STRG SHAFT 1-79998-184-1 01 1 9606-9810
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9811-
58 SCREW; SET
M6X16 W/PL WASHER 		1-09981-505-0 04 1 9606-9810
91 RUBBER 1-76798-029-0 01 1 9606-9810
çizim 45102
81 14 1 5 4 6 6 9 7 7 7 30 26 44 42 84 45 78 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-121-1 01 1 9606-9810
1 WHEEL; STRG 1-44110-159-1 01 1 9811-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9606-0603
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9606-9608
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9609-0512
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601-
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9606-9810
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9811-
6 SCREW; HORN SPR CONTACT
(B) 		1-44129-035-0 06 1 9606-9810
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9811-
7 SPRING; HORN CONTACT
(A) 		1-44129-032-1 01 1 9606-9810
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9811-
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9606-
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9606-9810
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9811-
14 BUTTON; HORN,STRG WHEEL 1-44120-030-0 01 1 9606-9810
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9811-
26 COVER; STRG WHEEL,LWR 1-44120-033-0 01 1 9606-9810
26 COVER; STRG WHEEL,LWR 1-44129-039-1 01 1 9811-
30 COWL; STEERING 1-79997-288-1 01 1 9606-9810
30 COWL; STEERING 1-79997-282-0 01 1 9606-9810
30 COWL; STEERING 1-79997-342-3 01 1 9811-
42 BOOT; STEERING COLUMN 1-79997-184-0 01 1 9606-9810
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 9811-
44 SCREW; STRG COWL
M6X12 W/PL WASHER 		1-09981-380-0 04 1 9606-9810
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9811-0302
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303-
45 BOOT; STRG SHAFT 1-79998-184-1 01 1 9606-9810
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9811-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9811-
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9811-9905
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9906-
81 EMBLEM; STRG WHEEL
CHEV BRAND PACKAGE(PS2) 		1-76210-666-0 01 1 9811-
81 EMBLEM; STRG WHEEL
EXC. CHEV BRAND PACKAGE(PS2) 		1-76210-638-1 01 1 9811-0203
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9811-
