Isuzu WW
▶
TRUCKS
▶
FRR
▶
11236 - FRR RHD EUROPE EURO5 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

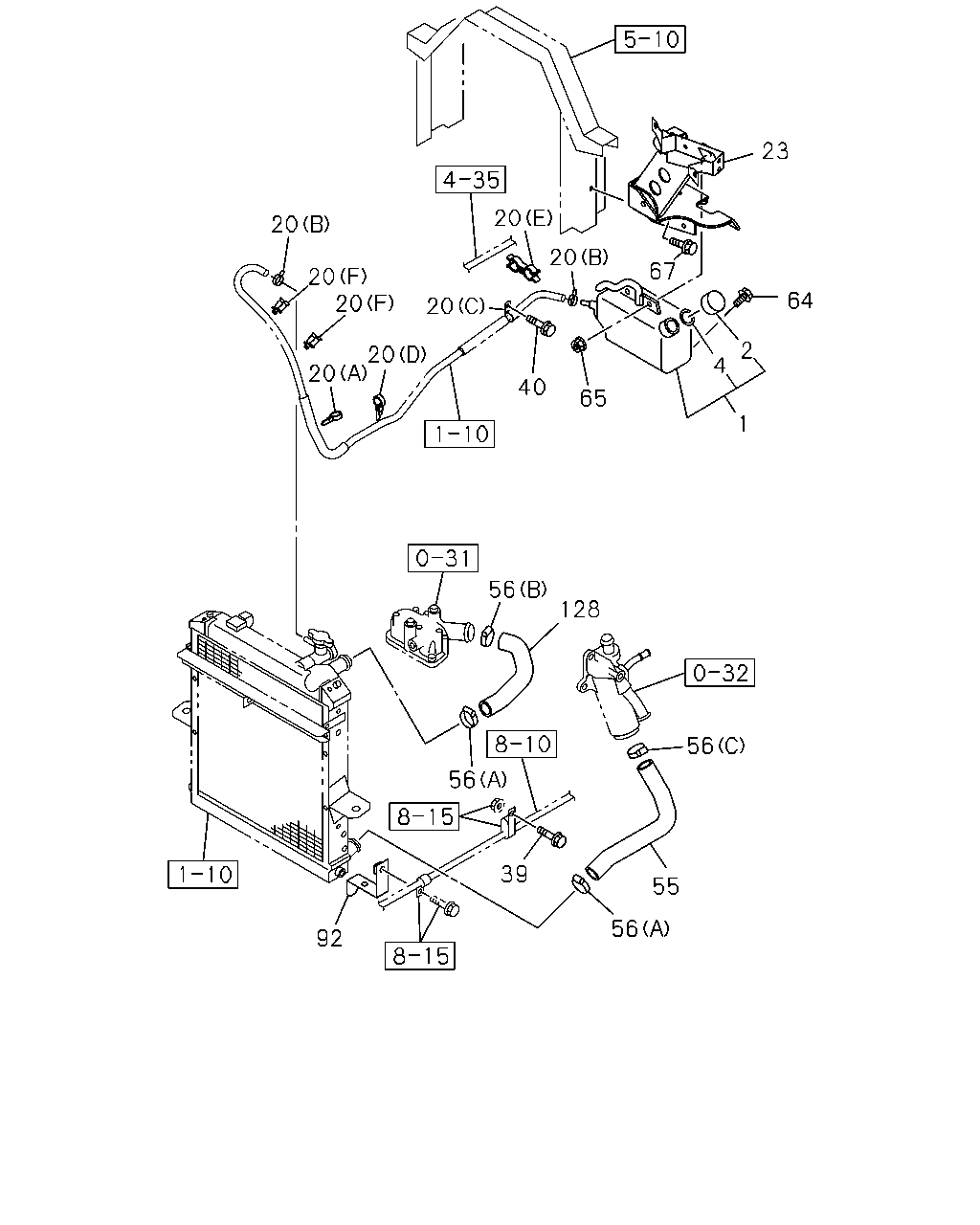

1-11 — RADIATOR HOSE AND SUB TANK
(#59798) — 26 parça
23
20
20
20
67
20
20
64
20
2
20
4
20
40
65
1
56
128
56
56
39
55
56
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98125-804-0
01
1
0906-1009
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-
2
CAP; SURGE TANK
8-98125-843-0
01
1
0906-1009
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
0906-1009
20
CLIP; HOSE,RAD
(C) ID=13 L=20
0-95235-235-0
01
1
0906-
20
CLIP; HOSE,RAD
(E) ID=10.5 & 18
8-94381-420-0
01
1
0906-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
0906-
20
CLIP; HOSE,RAD
(F) ID=12
8-98029-256-0
03
1
0906-
20
CLIP; HOSE,RAD
(D) ID=14 L=44
9-09917-427-0
01
1
0906-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
0906-
23
BRACKET; RESERVE TANK
8-98010-310-3
01
1
0906-
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
0906-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0906-
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
0906-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98036-282-0
02
1
0906-0912
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1001-
56
CLIP; WATER HOSE,RAD
(B) ID=52
8-98036-283-0
01
1
0906-0912
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1001-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98036-284-0
01
1
0906-0912
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1001-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
0906-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
01
1
0906-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0906-
92
BRACKET; CLIP,RUBBER HOSE
8-98055-051-0
01
1
0906-
128
HOSE; WATER,RAD INL
8-98010-572-1
01
1
0906-
