Sayfa 4-25 - Isuzu EPC

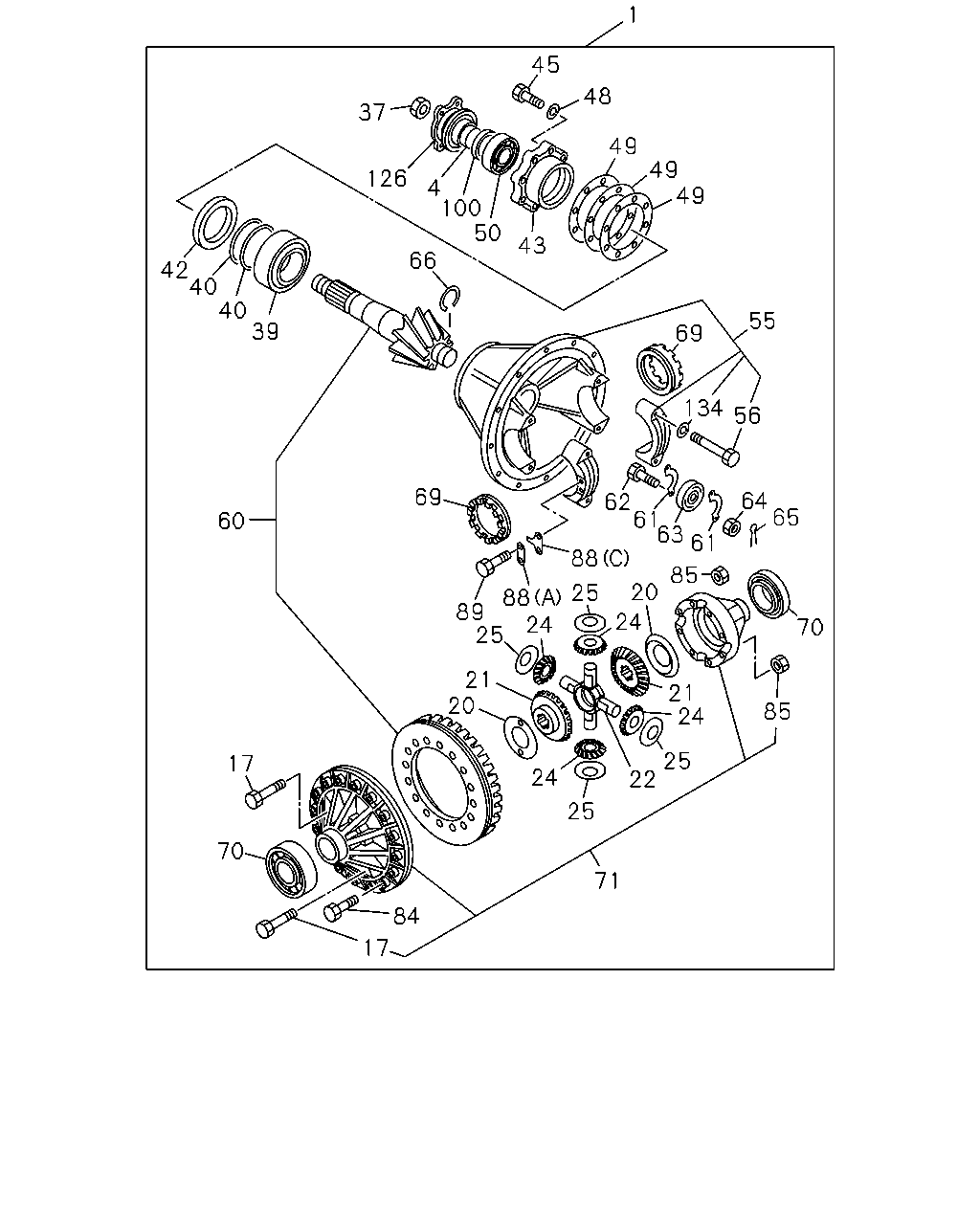

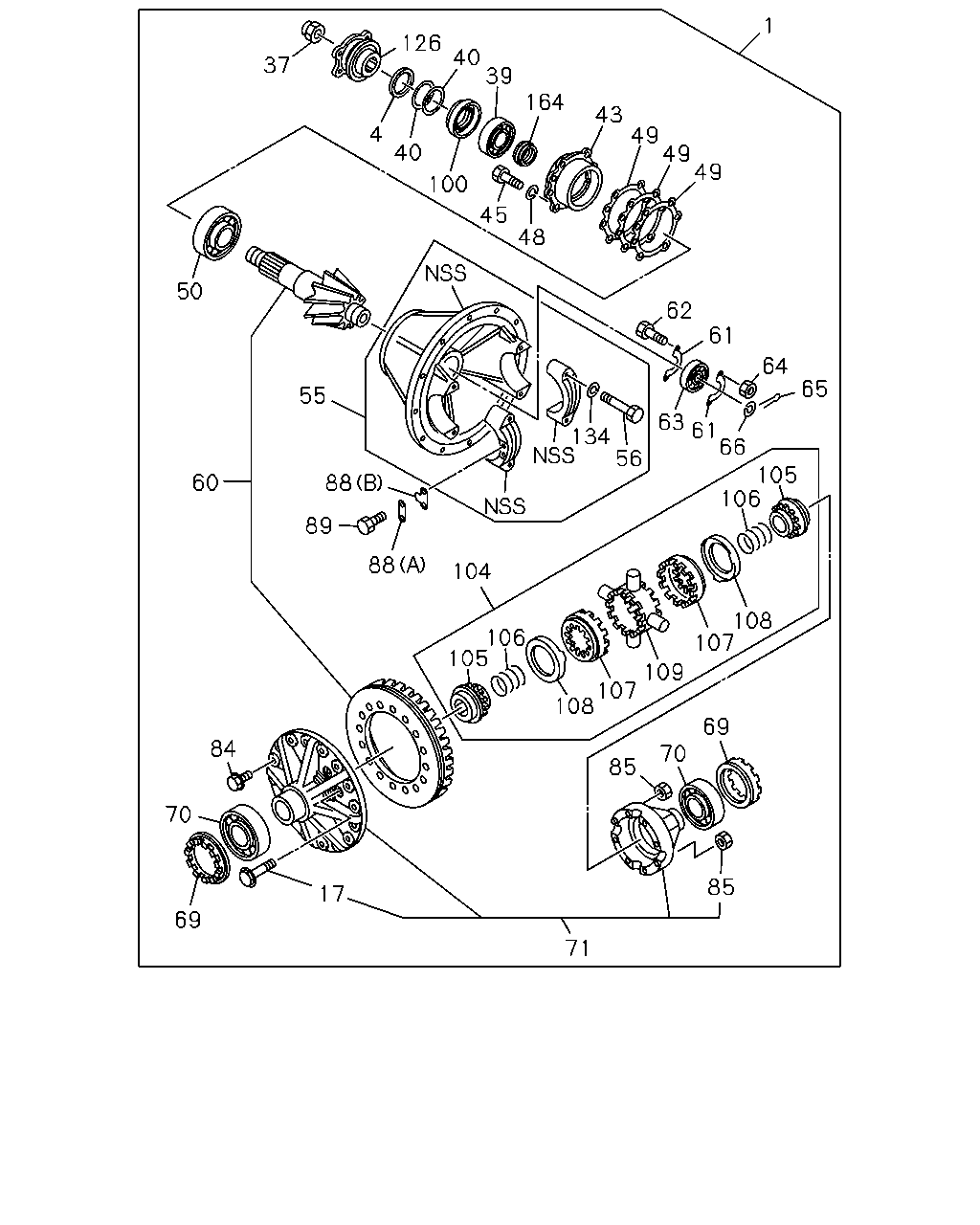

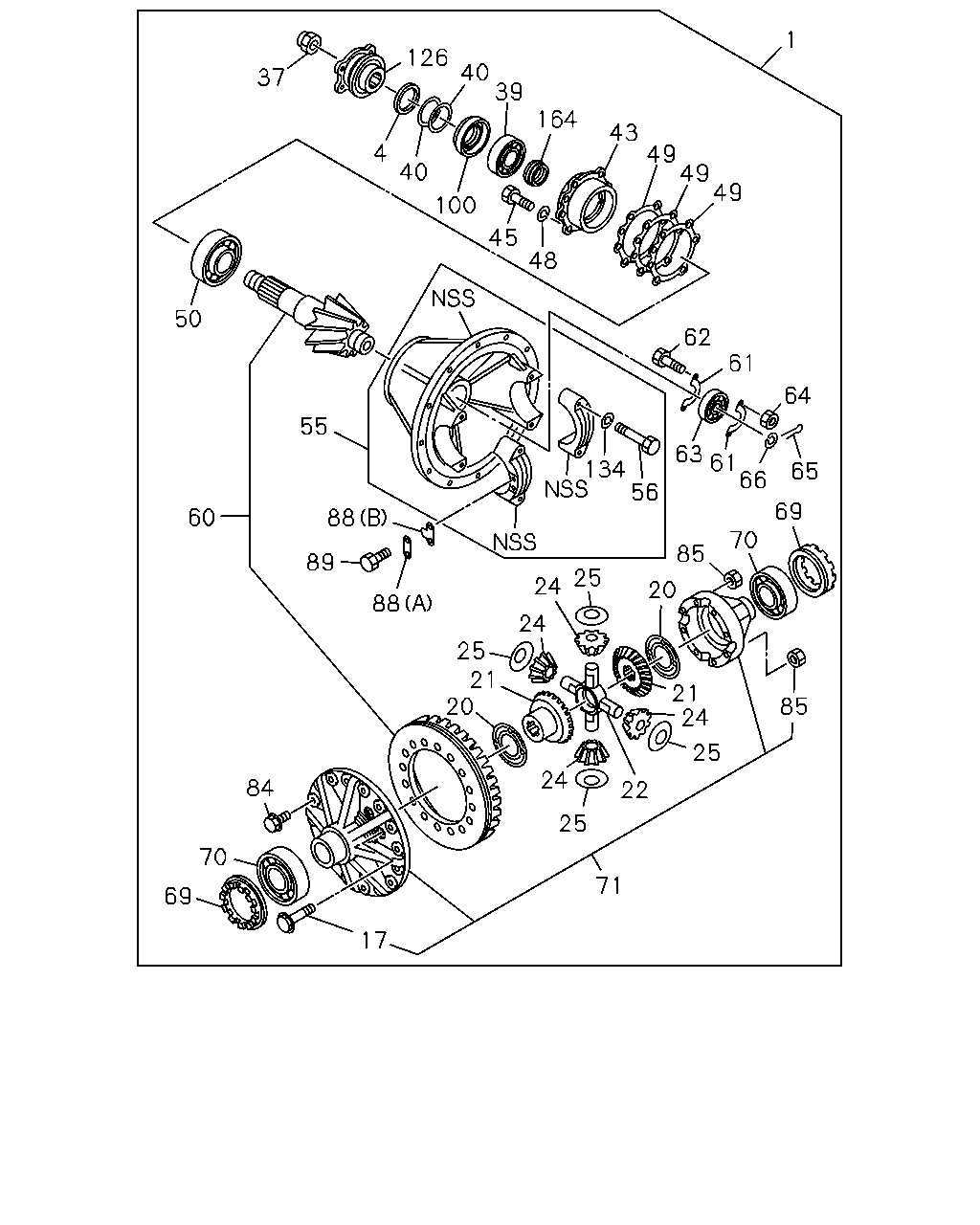

4-25 — REAR FINAL DRIVE (#5979) — 625 parça

1 126 40 39 164 37 43 49 49 49 4 40 100 45 48 50 62 61 64 65 55 63 61 66 105 106 134 56 60 88 89 88 104 108 107 109 107 108 106 105 69 84 70 85 70 85 17 69 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-585-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-133-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41001-586-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-683-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-608-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-682-0	01	1	9811-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-030-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 43/7	1-41001-307-0	01	1	9610-9810					●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-306-0	01	1	9610-9810						●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9606-9810	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9811-				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9610-9810					●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9610-9810					●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9606-9810	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9811-0804				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9610-9810					●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9606-9810	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9811-				●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9610-9612					●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9701-9810					●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9610-9810					●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9606-9810	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9811-				●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9610-9810					●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9606-9810	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9811-				●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9610-9810					●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9606-9810	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9811-0603				●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-				●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9610-9810					●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9606-9810	●	●	●		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9811-				●
55	CARRIER; DIFF	1-41110-048-0	01	1	9606-9810	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9811-				●
55	CARRIER; DIFF	1-41110-052-0	01	1	9610-9810					●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9606-9810	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9811-0104				●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-				●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9610-9810					●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9606-9810	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	9606-9810		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	9606-9810			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9610-9810					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	9811-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9610-9810						●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9606-9810	●	●	●		●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9811-				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9606-9810	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9811-0804				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-				●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9610-9810					●	●
64	NUT; RET M8	9-09117-408-0	02	1	9606-9707	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9810	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9811-0512				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-				●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9606-9810	●	●	●		●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9811-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-				●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9606-9810	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9811-				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9811-				●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9811-				●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0704				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	9911-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9606-9810	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9811-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9610-9810					●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-0	16	1	9606-9810	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9811-				●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9610-9804					●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9810					●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9606-9810	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9811-				●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9610-9810					●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9606-9810	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9606-9810	●	●	●		●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (C) T=2.3	1-41124-002-0	02	1	9610-9810					●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9606-9810	●	●	●		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9811-0512				●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9811-9908				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9811-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9610-9810					●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-025-0	01	1	9606-9810	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-018-0	02	1	9606-9810	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41539-006-0	02	1	9606-9810	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41539-003-0	02	1	9606-9810	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-004-0	02	1	9606-9810	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-014-0	01	1	9606-9810	●	●	●
126	COUPLING; DRIVING PINION	1-37245-069-5	01	1	9606-9810	●	●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9811-				●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9610-9810					●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9606-9810	●	●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9811-0104				●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9610-9810					●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9811-				●

1 126 40 39 164 37 43 49 49 49 4 40 100 45 48 50 62 61 64 55 63 61 66 69 134 56 65 60 88 70 85 89 25 24 20 88 24 21 24 25 25 21 20 85 24 84 22 25 70 71 69 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-585-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-133-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41001-586-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-683-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-608-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-682-0	01	1	9811-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-030-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 43/7	1-41001-307-0	01	1	9610-9810					●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-306-0	01	1	9610-9810						●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9606-9810	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9811-				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9610-9810					●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-061-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-062-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-063-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-064-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-080-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-081-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-082-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	9610-9810					●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-107-0	02	1	9606-9810	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-107-0	02	1	9811-0407				●
21	GEAR; SIDE,DIFF Z=16	1-41561-135-0	02	1	0408-				●
21	GEAR; SIDE,DIFF Z=16	1-41561-075-0	02	1	9610-9810					●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-050-0	01	1	9606-9810	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	9811-				●
22	SPIDER; DIFF PINION OD=30	1-41521-014-1	01	1	9610-9810					●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-032-0	04	1	9606-9810	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-032-0	04	1	9811-0407				●
24	GEAR; PINION,DIFF Z=10	1-41551-042-0	04	1	0408-				●
24	GEAR; PINION,DIFF Z=10	1-41551-010-2	04	1	9610-9810					●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60	1-41562-119-0	04	1	9606-9810	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	9811-				●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	9610-9810					●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9606-9810	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9811-0804				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9610-9810					●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9606-9810	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9811-				●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9610-9612					●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9701-9810					●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9610-9810					●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9606-9810	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9811-				●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9610-9810					●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9606-9810	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9811-				●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9610-9810					●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9606-9810	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9811-0603				●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-				●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9610-9810					●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9606-9810	●	●	●		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9811-				●
55	CARRIER; DIFF	1-41110-048-0	01	1	9606-9810	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9811-				●
55	CARRIER; DIFF	1-41110-052-0	01	1	9610-9810					●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9606-9810	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9811-0104				●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-				●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9610-9810					●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9606-9810	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	9606-9810		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	9606-9810			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9610-9810					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	9811-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9610-9810						●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9606-9810	●	●	●		●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9811-				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9606-9810	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9811-0804				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-				●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9610-9810					●	●
64	NUT; RET M8	9-09117-408-0	02	1	9606-9707	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9810	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9811-0512				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-				●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9606-9810	●	●	●		●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9811-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-				●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9606-9810	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9811-				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9811-				●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9811-				●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0704				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	9911-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9606-9810	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9811-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9610-9810					●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-0	16	1	9606-9810	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9811-				●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9610-9804					●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9810					●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9606-9810	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9811-				●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9610-9810					●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9606-9810	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9606-9810	●	●	●		●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (C) T=2.3	1-41124-002-0	02	1	9610-9810					●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9606-9810	●	●	●		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9811-0512				●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9811-9908				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9811-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9610-9810					●	●
126	COUPLING; DRIVING PINION	1-37245-069-5	01	1	9606-9810	●	●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9811-				●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9610-9810					●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9606-9810	●	●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9811-0104				●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9610-9810					●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9811-				●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9606-9810	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9811-				●

1 45 48 37 49 49 49 126 4 100 50 43 66 42 40 40 39 55 69 134 56 69 64 65 62 61 63 61 60 88 85 20 25 88 24 89 25 24 70 21 20 21 24 85 25 22 17 24 25 70 71 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-585-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-133-0	01	1	9606-9810	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41001-586-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-683-0	01	1	9606-9810		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-608-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-682-0	01	1	9811-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-030-0	01	1	9606-9810			●
1	DRIVE ASM; FINAL,RR 43/7	1-41001-307-0	01	1	9610-9810					●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-306-0	01	1	9610-9810						●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9606-9810	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9811-				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9610-9810					●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9606-9810	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9811-				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-061-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-062-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-063-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-064-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-080-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-081-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-082-0	AR	1	9606-9810	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9811-				●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	9610-9810					●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	9610-9810					●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-107-0	02	1	9606-9810	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-107-0	02	1	9811-0407				●
21	GEAR; SIDE,DIFF Z=16	1-41561-135-0	02	1	0408-				●
21	GEAR; SIDE,DIFF Z=16	1-41561-075-0	02	1	9610-9810					●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-050-0	01	1	9606-9810	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	9811-				●
22	SPIDER; DIFF PINION OD=30	1-41521-014-1	01	1	9610-9810					●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-032-0	04	1	9606-9810	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-032-0	04	1	9811-0407				●
24	GEAR; PINION,DIFF Z=10	1-41551-042-0	04	1	0408-				●
24	GEAR; PINION,DIFF Z=10	1-41551-010-2	04	1	9610-9810					●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60	1-41562-119-0	04	1	9606-9810	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	9811-				●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	9610-9810					●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9606-9810	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9811-0804				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	0805-				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9610-9810					●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9606-9810	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9811-				●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9610-9612					●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9701-9810					●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9606-9810	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9811-				●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9610-9810					●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9610-9810					●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9610-9810					●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9610-9810					●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9610-9810					●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9610-9810					●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9610-9810					●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9606-9810	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9811-				●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9610-9810					●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9606-9810	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9811-				●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9610-9810					●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9606-9810	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9811-0603				●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-				●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9606-9810	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9811-				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9610-9810					●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9610-9810					●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9606-9810	●	●	●		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9811-				●
55	CARRIER; DIFF	1-41110-048-0	01	1	9606-9810	●	●	●
55	CARRIER; DIFF	1-41110-048-1	01	1	9811-				●
55	CARRIER; DIFF	1-41110-052-0	01	1	9610-9810					●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9606-9810	●	●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9811-0104				●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-				●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9610-9810					●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9606-9810	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-454-0	01	1	9606-9810		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	9606-9810			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9610-9810					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	9811-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9610-9810						●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9606-9810	●	●	●		●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9811-				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9606-9810	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9811-0804				●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	0805-				●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9606-9810	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	9811-				●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9610-9810					●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9610-9810					●	●
64	NUT; RET M8	9-09117-408-0	02	1	9606-9707	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9810	●	●	●		●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9811-0512				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-				●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9606-9810	●	●	●		●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9811-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-				●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9606-9810	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9811-				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9606-9810	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9811-				●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9610-9810					●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9811-				●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-0	01	1	9606-9810	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9811-				●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9610-9810					●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-063-1	01	1	9911-0704				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	0705-				●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	9911-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9606-9810	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9811-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9610-9810					●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-0	16	1	9606-9810	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9811-				●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9610-9804					●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9810					●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9606-9810	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9811-				●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9610-9810					●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9606-9810	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9606-9810	●	●	●		●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9811-				●
88	PLATE; LK,ADJ NUT (C) T=2.3	1-41124-002-0	02	1	9610-9810					●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9606-9810	●	●	●		●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9811-0512				●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9811-9908				●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9606-9810	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9811-				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9610-9810					●	●
126	COUPLING; DRIVING PINION	1-37245-069-5	01	1	9606-9810	●	●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9811-				●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9610-9810					●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9606-9810	●	●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9811-0104				●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9610-9810					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
