Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#59786) — 237 parça

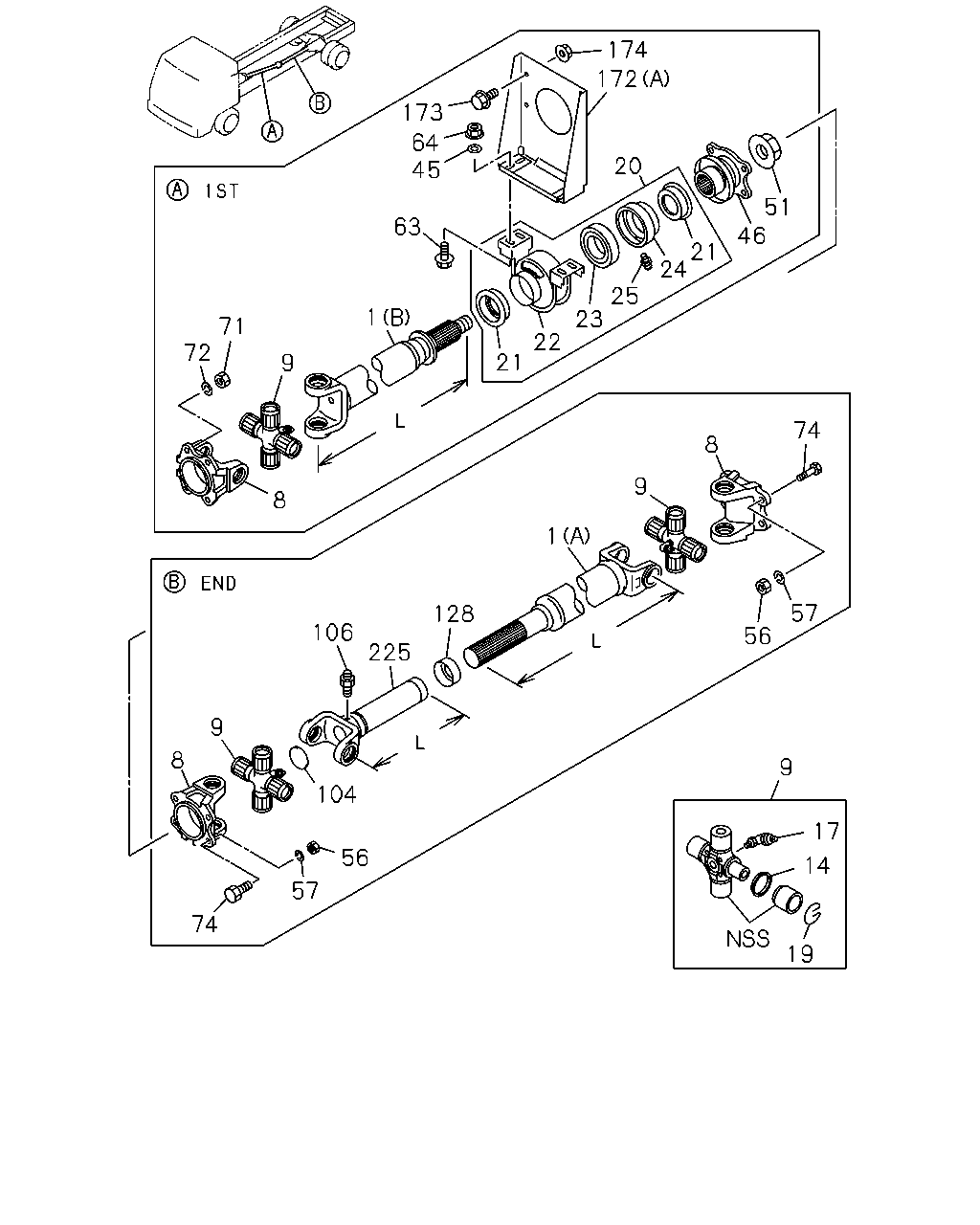

174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 21 177 172 173 20 9 64 60 8 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=969	8-98069-570-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519	8-98090-935-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439	8-98069-598-0	01	1	0906-	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	0906-		●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0906-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	0906-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C)	1-37211-056-3	01	1	0906-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C)	8-98048-925-1	01	1	0906-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0906-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	0906-	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0906-	●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	0906-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0906-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0906-	●	●
21	SEAL; OIL,CENTER BRG MLD6W M/T(Y2C) ID=54	1-09625-161-0	02	1	0906-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0906-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0906-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST MLD6W M/T(Y2C)	1-37516-059-0	01	1	0906-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0906-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0906-	●	●
23	BEARING; CENTER,PROP SHAFT MLD6W M/T(Y2C)	9-00090-071-0	01	1	0906-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0906-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0906-	●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	0906-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0906-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0906-	●	●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C)	8-98020-889-0	01	1	0906-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0906-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0906-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0906-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	0906-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0906-		●
49	NUT; YOKE MLD6W M/T(Y2C) M14	0-91110-514-0	04	1	0906-	●
49	NUT; YOKE M14	0-91110-514-0	04	1	0906-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0906-	●	●
51	NUT; FLANGE,SPLINED MLD6W M/T(Y2C) M30	8-97160-857-0	01	1	0906-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0906-		●
52	WASHER; LK,YOKE MLD6W M/T(Y2C) ID=14.2	0-91510-614-0	04	1	0906-1102	●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0906-1102		●
52	WASHER; LK,YOKE MLD6W M/T(Y2C) ID=14.2	0-91510-814-0	04	1	1103-1202	●
52	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	1103-1202		●
52	WASHER; LK,YOKE MLD6W M/T(Y2C) ID=14.2	0-91510-614-0	04	1	1203-	●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1203-		●
60	WASHER; PL,RET TO BRKT MLD6W M/T(Y2C) ID=10.5 OD=22	0-91614-610-0	04	1	0906-	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0906-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0906-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MLD6W M/T(Y2C) M10X35 FLANGE	0-28651-035-0	04	1	0906-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0906-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0906-	●	●
64	NUT; RET TO BRKT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0906-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0906-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	0906-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0906-1102	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	1103-1202	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1203-	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0906-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0906-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0906-	●	●
172	BRACKET; CENTER BRG (A)	1-37515-136-0	01	1	0906-	●
172	BRACKET; CENTER BRG MLD6W M/T(Y2C) (B)	8-98084-678-0	01	1	0906-	●
172	BRACKET; CENTER BRG (A)	1-37515-101-0	01	1	0906-		●
172	BRACKET; CENTER BRG (B)	1-37515-102-0	01	1	0906-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-	●	●
173	BOLT; BRKT MLD6W M/T(Y2C) M10X25 FLANGE	0-28651-025-0	04	1	0906-	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0906-	●	●
177	NUT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0906-	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	0906-		●

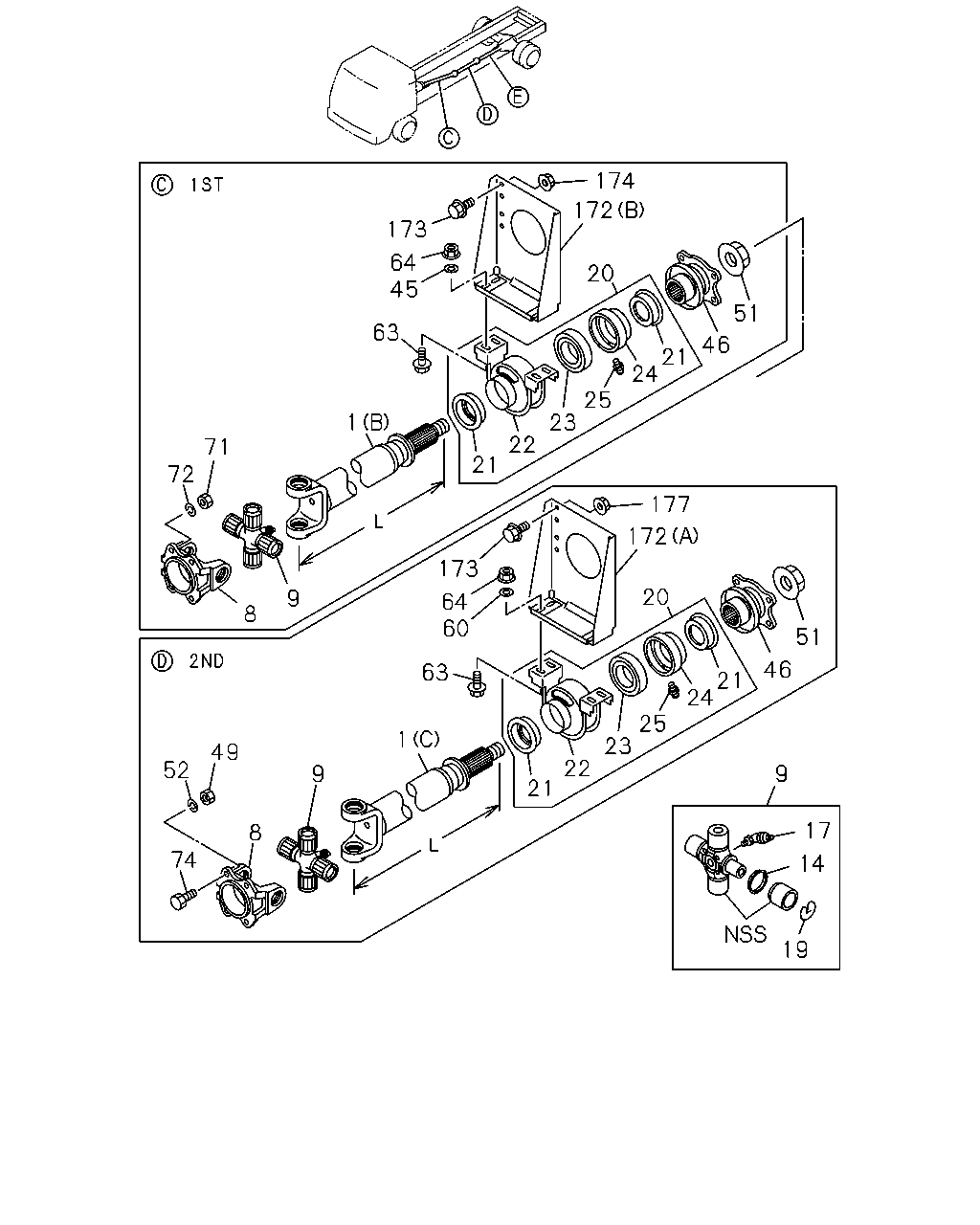

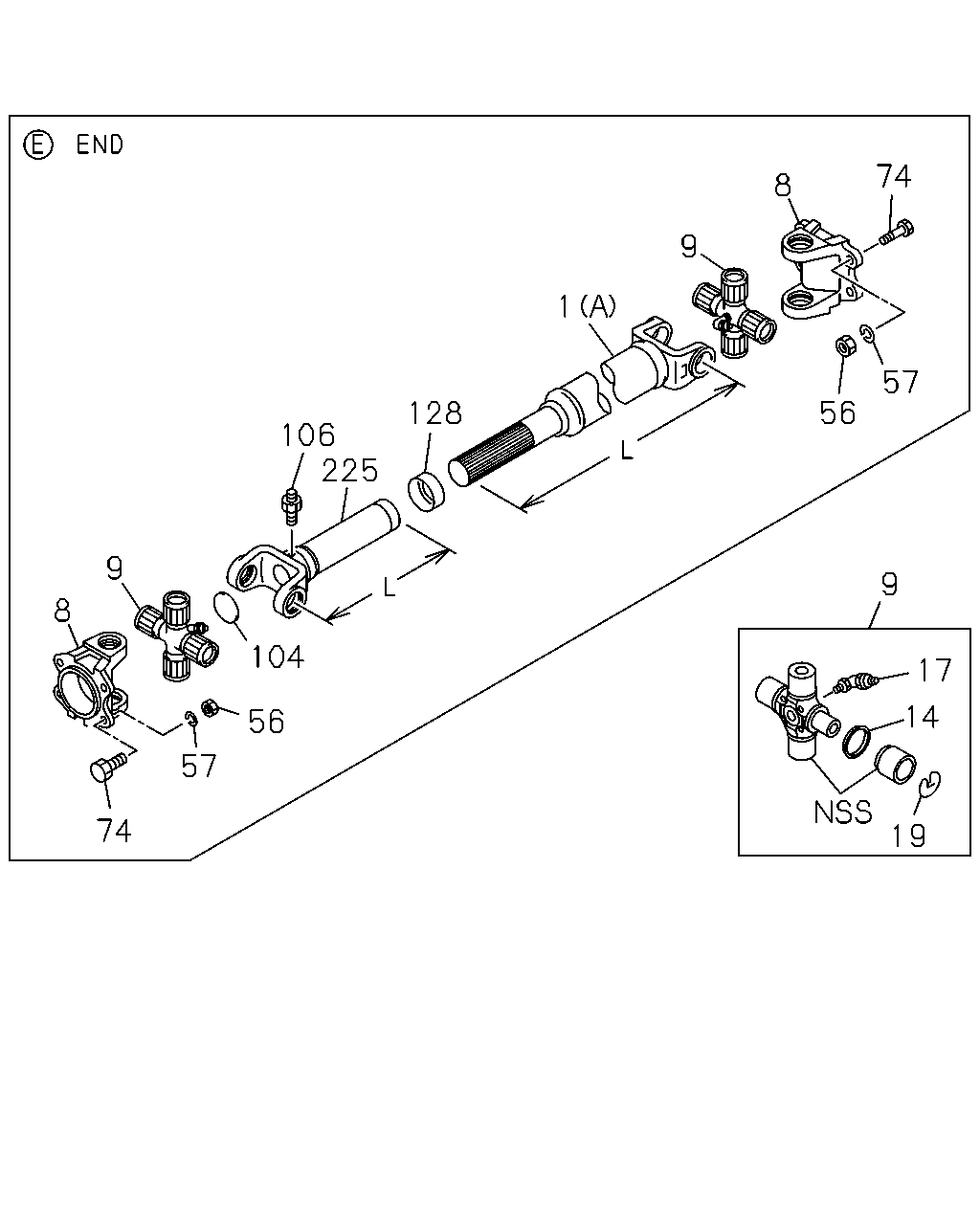

174 172 173 64 45 20 51 46 63 21 24 25 23 1 71 72 22 21 9 74 8 9 8 1 57 128 106 56 225 9 8 9 104 17 56 14 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=969	8-98069-570-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519	8-98090-935-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439	8-98069-598-0	01	1	0906-	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	0906-		●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0906-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	0906-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C)	1-37211-056-3	01	1	0906-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C)	8-98048-925-1	01	1	0906-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0906-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	0906-	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0906-	●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	0906-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	0906-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0906-	●	●
21	SEAL; OIL,CENTER BRG MLD6W M/T(Y2C) ID=54	1-09625-161-0	02	1	0906-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0906-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0906-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST MLD6W M/T(Y2C)	1-37516-059-0	01	1	0906-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0906-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0906-	●	●
23	BEARING; CENTER,PROP SHAFT MLD6W M/T(Y2C)	9-00090-071-0	01	1	0906-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0906-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0906-	●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	0906-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	0906-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0906-	●	●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C)	8-98020-889-0	01	1	0906-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	0906-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0906-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0906-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	0906-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	0906-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0906-	●	●
51	NUT; FLANGE,SPLINED MLD6W M/T(Y2C) M30	8-97160-857-0	01	1	0906-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0906-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0906-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0906-1102	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-814-0	08	1	1103-1202	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1203-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0906-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MLD6W M/T(Y2C) M10X35 FLANGE	0-28651-035-0	04	1	0906-	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0906-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0906-	●	●
64	NUT; RET TO BRKT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0906-	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0906-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	0906-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0906-1102	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-814-0	04	1	1103-1202	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1203-	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0906-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0906-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0906-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0906-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0906-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0906-	●	●
172	BRACKET; CENTER BRG (A)	1-37515-136-0	01	1	0906-	●
172	BRACKET; CENTER BRG MLD6W M/T(Y2C) (B)	8-98084-678-0	01	1	0906-	●
172	BRACKET; CENTER BRG (A)	1-37515-101-0	01	1	0906-		●
172	BRACKET; CENTER BRG (B)	1-37515-102-0	01	1	0906-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-	●	●
173	BOLT; BRKT MLD6W M/T(Y2C) M10X25 FLANGE	0-28651-025-0	04	1	0906-	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0906-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0906-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0906-	●	●

74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=969	8-98069-570-0	01	1	0906-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519	8-98090-935-0	01	1	0906-	●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1439	8-98069-598-0	01	1	0906-	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	0906-		●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0906-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	0906-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	0906-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-	●	●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C)	1-37211-056-3	01	1	0906-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0906-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-	●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C)	8-98048-925-1	01	1	0906-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	0906-		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	0906-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	0906-	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	0906-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0906-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0906-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0906-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	0906-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0906-1102	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-814-0	08	1	1103-1202	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1203-	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0906-	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0906-		●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0906-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0906-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0906-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0906-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
