◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#5978) — 93 parça

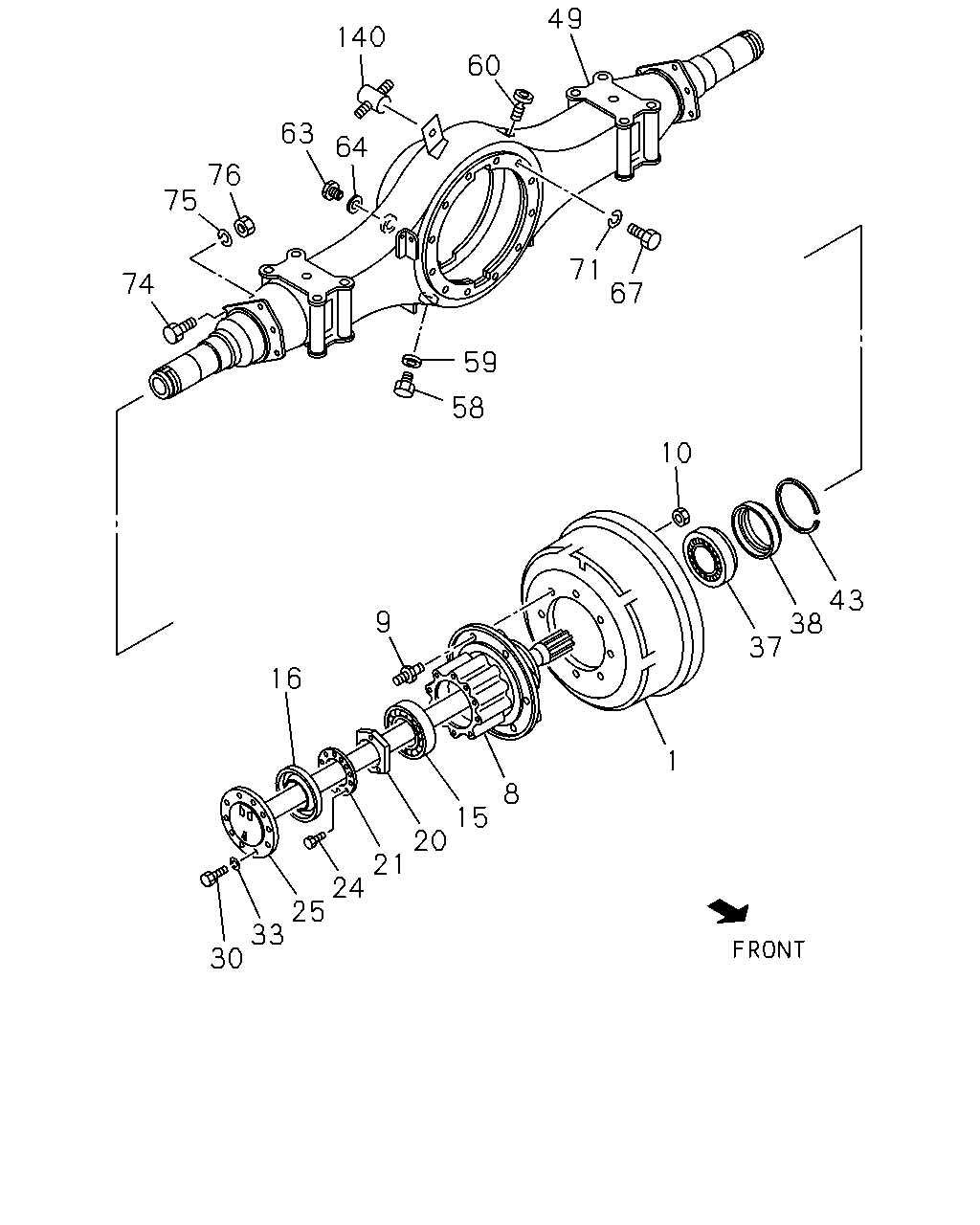

çizim 42448
49 140 60 63 64 76 75 71 74 67 59 58 10 43 38 37 9 16 1 8 15 20 21 24 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		1-42315-266-1 02 1 9606-9810
1 DRUM; BRK,RR 1-42315-266-1 02 1 9811-9902
1 DRUM; BRK,RR 1-42315-362-1 02 1 9903-
1 DRUM; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) H=195 		1-42315-208-2 02 1 9610-9810
8 HUB; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		1-42311-021-1 02 1 9606-9810
8 HUB; RR AXLE 1-42311-021-1 02 1 9811-
8 HUB; RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) H=208 		1-42311-041-2 02 1 9610-9611
8 HUB; RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-42311-092-0 02 1 9612-9810
9 PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 9606-
9 PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 9606-
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 16 1 9606-9609
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE 		1-09440-055-0 16 1 9610-9902
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE 		1-09440-065-0 16 1 9903-
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) JTEKT 		1-09812-049-0 02 1 9606-9810
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-049-0 02 1 9811-
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) NSK 		9-00093-159-0 02 1 9606-9810
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-159-0 02 1 9811-
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) NSK 		1-09812-153-0 02 1 9610-9810
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) JTEKT 		1-09812-154-0 02 1 9610-9810
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) TKK 		1-09625-331-0 02 1 9606-9810
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-331-1 02 1 9811-
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) NOK 		9-09924-468-0 02 1 9610-9810
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) TKK 		9-09924-470-0 02 1 9610-9810
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) JTEKT 		9-09924-499-0 02 1 9610-9810
20 NUT; BRG,RR HUB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M64 		9-09843-721-2 02 1 9606-9810
20 NUT; BRG,RR HUB
M64 		9-09843-721-2 02 1 9811-
20 NUT; BRG,RR HUB
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M74.6 		9-09843-064-2 02 1 9610-9810
21 WASHER; LK,BRG NUT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) ID=64 		9-09854-122-0 02 1 9606-9810
21 WASHER; LK,BRG NUT
ID=64 		9-09854-122-0 02 1 9811-
21 WASHER; LK,BRG NUT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=74.6 		1-09533-008-0 02 1 9610-9810
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9606-9701
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 9702-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
25 SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		1-42171-260-0 02 1 9606-9607
25 SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		1-42171-496-0 02 1 9608-9810
25 SHAFT; AXLE,RR
L=921.5 		1-42171-484-0 02 1 9811-
25 SHAFT; AXLE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-42171-498-0 02 1 9610-9810
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M12X45 		9-09804-239-1 20 1 9606-9810
30 BOLT; HUB TO AXLE SHAFT
M12X45 		9-09804-239-1 20 1 9811-
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14X58 		1-09020-095-1 20 1 9610-9611
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14X58 		1-09000-582-0 20 1 9612-9810
33 WASHER; AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) ID=12.2 		9-09150-812-0 20 1 9606-9810
33 WASHER; AXLE SHAFT
ID=12.2 		9-09150-812-0 20 1 9811-0603
33 WASHER; AXLE SHAFT
ID=12.2 		0-91510-812-0 20 1 0604-
33 WASHER; AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=14.2 		9-09150-814-0 20 1 9610-9810
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) JTEKT 		1-09812-044-0 02 1 9606-9810
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-044-0 02 1 9811-
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) NACHI 		1-09812-053-0 02 1 9606-9810
37 BEARING; HUB INNER,RR AXLE
NACHI 		1-09812-053-0 02 1 9811-
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) NSK 		9-00093-161-0 02 1 9606-9810
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-161-0 02 1 9811-
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) NSK 		1-09812-150-0 02 1 9610-9810
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) NACHI 		1-09812-151-0 02 1 9610-9810
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) TKK 		1-09625-569-0 02 1 9606-9810
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-569-0 02 1 9811-
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) TKK 		9-09924-415-0 02 1 9610-9810
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) NOK 		9-09924-416-0 02 1 9610-9810
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) JTEKT 		9-09924-417-0 02 1 9610-9810
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		9-09950-201-0 02 1 9606-9810
43 RING; SNAP,HUB SEAL,RR AXLE 9-09950-201-0 02 1 9811-
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) OD=150 		9-09950-147-0 02 1 9610-9810
49 CASE; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) 		1-42150-579-2 01 1 9606-9810
49 CASE; RR AXLE 1-42150-960-0 01 1 9811-
49 CASE; RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) 		1-42150-160-4 01 1 9610-9810
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9606-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9606-
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 9606-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 9606-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9606-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M12X55 		9-91066-255-0 04 1 9606-9810
67 BOLT; FINAL DRIVE SETTING
M12X55 		9-91066-255-0 04 1 9811-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) M12X35 		9-92061-235-0 08 1 9606-9810
67 BOLT; FINAL DRIVE SETTING
M12X35 		9-92061-235-0 08 1 9811-0512
67 BOLT; FINAL DRIVE SETTING
M12X35 		0-20951-235-0 08 1 0601-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14X65 		9-91066-465-0 04 1 9610-9810
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14X40 		9-92061-440-0 08 1 9610-9810
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) ID=12.2 		9-09150-812-0 12 1 9606-9810
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		9-09150-812-0 12 1 9811-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		0-91510-812-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) ID=14.2 		9-09150-814-0 12 1 9610-9810
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56 		1-09060-004-0 04 1 9606-9810
74 BOLT; RR BRK ASM SETTING
M14X56 		1-09060-004-0 04 1 9811-
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50 		9-92061-450-0 12 1 9606-9810
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14X50 		1-09040-066-0 16 1 9610-9810
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 9606-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-514-0 10 1 9606-9810
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 9811-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-514-0 16 1 9606-9609
76 NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99110-514-0 16 1 9610-9810
76 NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) M14 		9-99110-514-0 16 1 9610-9810
140 CONNECTOR; AXLE CASE 1-09656-239-3 01 1 9606-
