4-11 — FRONT HUB AND DRUM OR ROTOR (#5977) — 165 parça

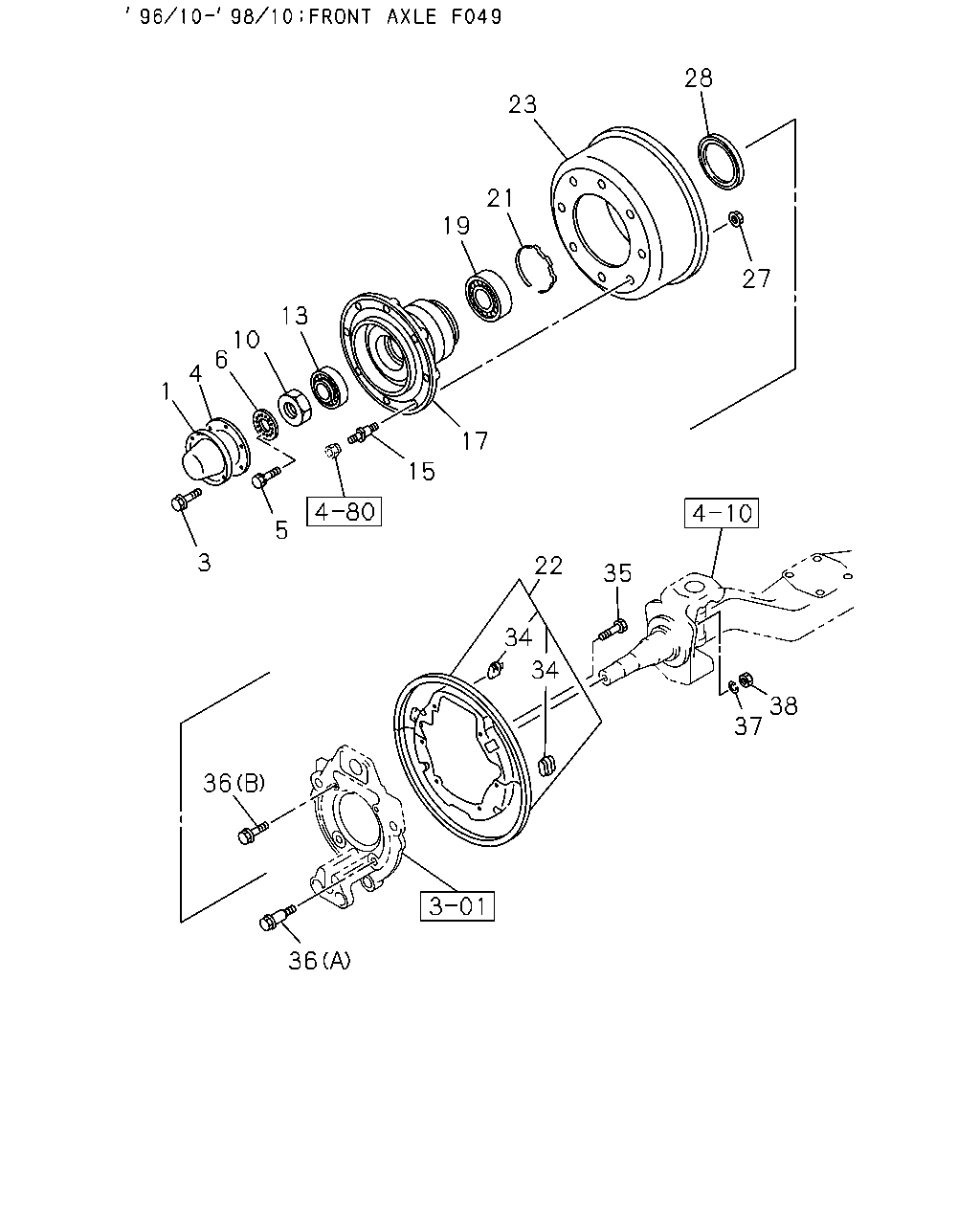

28 23 21 19 27 13 10 6 4 1 17 15 5 3 22 35 34 34 38 37 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9606-9609
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42313-019-1	02	1	9610-9810
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9811-0507
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-
1	CAP; HUB,FRT AXLE FRONT AXLE F049<FS4> OD=136	1-42313-007-1	02	1	9610-9810
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049<FS4> M8X12 FLANGE	0-28080-812-0	12	1	9610-9810
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049<FS4>	1-42319-028-0	02	1	9610-9810
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9606-9609
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK WASHER	0-50040-616-0	04	1	9610-9701
5	BOLT; LK WASHER FRONT AXLE F049<FS4> M6X16 W/LK WASHER	0-50040-616-0	04	1	9610-9701
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 FLANGE	0-28680-616-0	04	1	9702-9810
5	BOLT; LK WASHER FRONT AXLE F049<FS4> M6X16 FLANGE	0-28680-616-0	04	1	9702-9810
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9811-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9606-9609
6	WASHER; LK,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=39	1-09841-003-0	02	1	9610-9810
6	WASHER; LK,FRT HUB FRONT AXLE F049<FS4> ID=39	1-09841-003-0	02	1	9610-9810
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9811-
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9606-9609
10	NUT; FRT HUB BRG EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M39	1-09840-019-1	02	1	9610-9810
10	NUT; FRT HUB BRG FRONT AXLE F049<FS4> M39	1-09840-019-1	02	1	9610-9810
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9606-9609
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK	1-09812-064-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-065-0	02	1	9606-9609
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> JTEKT	1-09812-065-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-065-0	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> NSK	9-00093-146-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> JTEKT	9-00093-147-1	02	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-0	08	1	9606-9609
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9811-
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X55.5 RH THREAD	1-42331-132-0	08	1	9606-9609
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5,M22X55.5 RH THREAD	1-42331-132-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9811-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9610-9810
17	HUB; FRT AXLE	1-42312-036-1	02	1	9606-9609
17	HUB; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42312-036-1	02	1	9610-9810
17	HUB; FRT AXLE	1-42312-036-2	02	1	9811-
17	HUB; FRT AXLE FRONT AXLE F049<FS4>	1-42312-113-0	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9606-9609
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK	9-00093-031-1	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9811-
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-205-1	02	1	9606-9609
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> JTEKT	9-00093-205-1	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-205-1	02	1	9811-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> JTEKT	9-00093-114-0	02	1	9610-9810
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9606-9609
21	RING; SNAP,HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=117	1-09587-001-0	02	1	9610-9810
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9811-
21	RING; SNAP,HUB FRONT AXLE F049<FS4> OD=132	9-09950-164-0	02	1	9610-9810
22	COVER SET; FRT BRK DRUM FRONT AXLE F049<FS4>	1-47151-458-1	02	1	9610-9810
23	DRUM; BRK,FRT	1-42315-278-1	02	1	9606-9609
23	DRUM; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-278-1	02	1	9610-9810
23	DRUM; BRK,FRT	1-42315-278-1	02	1	9811-
23	DRUM; BRK,FRT FRONT AXLE F049<FS4> H=195	1-42315-208-2	02	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9606-9609
27	NUT; WHEEL PIN,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 FLANGE	1-09440-055-0	16	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE FRONT AXLE F049<FS4> M22 FLANGE	1-09440-055-0	16	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9606-9609
28	SEAL; OIL,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09625-568-0	02	1	9610-9810
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9811-
28	SEAL; OIL,FRT HUB FRONT AXLE F049<FS4> OD=128	1-09625-129-0	02	1	9610-9810
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE F049<FS4>	1-09333-151-0	04	1	9610-9810
35	BOLT; DRUM COVER FRONT AXLE F049<FS4> M10X16 W/LK WASHER	0-50041-016-0	12	1	9610-9810
36	BOLT; BACK PLATE (C) M14X45	9-92061-445-0	08	1	9606-9609
36	BOLT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M14X45	9-92061-445-0	08	1	9610-9810
36	BOLT; BACK PLATE (C) M14X45	9-92061-445-0	08	1	9811-
36	BOLT; BACK PLATE FRONT AXLE F049<FS4> (A) M16X61	1-09040-058-1	04	1	9610-9810
36	BOLT; BACK PLATE FRONT AXLE F049<FS4> (B) M16X52	1-09044-001-1	04	1	9610-9810
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9606-9609
37	WASHER; LK,BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-814-0	08	1	9610-9810
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9811-0603
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-
37	WASHER; LK,BACK PLATE FRONT AXLE F049<FS4> ID=16.2	9-09150-816-0	08	1	9610-9810
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9606-9609
38	NUT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-514-0	08	1	9610-9810
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9811-0512
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-
38	NUT; BACK PLATE FRONT AXLE F049<FS4> M16	9-99110-416-0	08	1	9610-9810

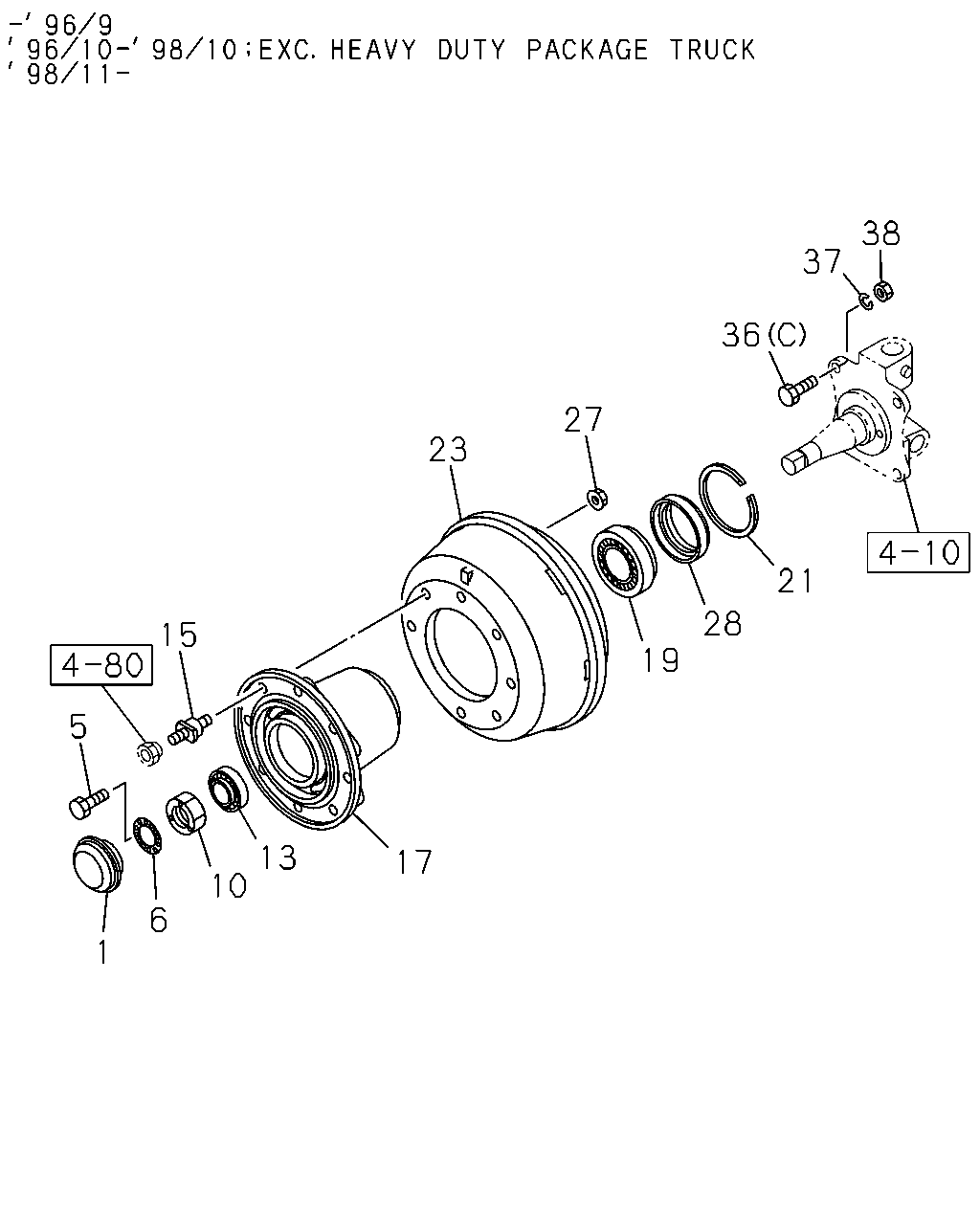

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9606-9609
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42313-019-1	02	1	9610-9810
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9811-0507
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-
1	CAP; HUB,FRT AXLE FRONT AXLE F049<FS4> OD=136	1-42313-007-1	02	1	9610-9810
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9606-9609
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK WASHER	0-50040-616-0	04	1	9610-9701
5	BOLT; LK WASHER FRONT AXLE F049<FS4> M6X16 W/LK WASHER	0-50040-616-0	04	1	9610-9701
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 FLANGE	0-28680-616-0	04	1	9702-9810
5	BOLT; LK WASHER FRONT AXLE F049<FS4> M6X16 FLANGE	0-28680-616-0	04	1	9702-9810
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9811-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9606-9609
6	WASHER; LK,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=39	1-09841-003-0	02	1	9610-9810
6	WASHER; LK,FRT HUB FRONT AXLE F049<FS4> ID=39	1-09841-003-0	02	1	9610-9810
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9811-
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9606-9609
10	NUT; FRT HUB BRG EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M39	1-09840-019-1	02	1	9610-9810
10	NUT; FRT HUB BRG FRONT AXLE F049<FS4> M39	1-09840-019-1	02	1	9610-9810
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9606-9609
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK	1-09812-064-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-065-0	02	1	9606-9609
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> JTEKT	1-09812-065-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-065-0	02	1	9811-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> NSK	9-00093-146-0	02	1	9610-9810
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> JTEKT	9-00093-147-1	02	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-0	08	1	9606-9609
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9811-
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X55.5 RH THREAD	1-42331-132-0	08	1	9606-9609
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5,M22X55.5 RH THREAD	1-42331-132-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9811-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	08	1	9610-9810
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	08	1	9610-9810
17	HUB; FRT AXLE	1-42312-036-1	02	1	9606-9609
17	HUB; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42312-036-1	02	1	9610-9810
17	HUB; FRT AXLE	1-42312-036-2	02	1	9811-
17	HUB; FRT AXLE FRONT AXLE F049<FS4>	1-42312-113-0	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9606-9609
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK	9-00093-031-1	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9811-
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-205-1	02	1	9606-9609
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> JTEKT	9-00093-205-1	02	1	9610-9810
19	BEARING; HUB INNER,FRT AXLE JTEKT	9-00093-205-1	02	1	9811-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> JTEKT	9-00093-114-0	02	1	9610-9810
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9606-9609
21	RING; SNAP,HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=117	1-09587-001-0	02	1	9610-9810
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9811-
21	RING; SNAP,HUB FRONT AXLE F049<FS4> OD=132	9-09950-164-0	02	1	9610-9810
23	DRUM; BRK,FRT	1-42315-278-1	02	1	9606-9609
23	DRUM; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-278-1	02	1	9610-9810
23	DRUM; BRK,FRT	1-42315-278-1	02	1	9811-
23	DRUM; BRK,FRT FRONT AXLE F049<FS4> H=195	1-42315-208-2	02	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9606-9609
27	NUT; WHEEL PIN,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 FLANGE	1-09440-055-0	16	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE FRONT AXLE F049<FS4> M22 FLANGE	1-09440-055-0	16	1	9610-9810
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9606-9609
28	SEAL; OIL,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09625-568-0	02	1	9610-9810
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9811-
28	SEAL; OIL,FRT HUB FRONT AXLE F049<FS4> OD=128	1-09625-129-0	02	1	9610-9810
36	BOLT; BACK PLATE (C) M14X45	9-92061-445-0	08	1	9606-9609
36	BOLT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M14X45	9-92061-445-0	08	1	9610-9810
36	BOLT; BACK PLATE (C) M14X45	9-92061-445-0	08	1	9811-
36	BOLT; BACK PLATE FRONT AXLE F049<FS4> (A) M16X61	1-09040-058-1	04	1	9610-9810
36	BOLT; BACK PLATE FRONT AXLE F049<FS4> (B) M16X52	1-09044-001-1	04	1	9610-9810
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9606-9609
37	WASHER; LK,BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-814-0	08	1	9610-9810
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9811-0603
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-
37	WASHER; LK,BACK PLATE FRONT AXLE F049<FS4> ID=16.2	9-09150-816-0	08	1	9610-9810
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9606-9609
38	NUT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-514-0	08	1	9610-9810
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9811-0512
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-
38	NUT; BACK PLATE FRONT AXLE F049<FS4> M16	9-99110-416-0	08	1	9610-9810
