2-85 — POWER TAKE OFF CONTROL (#59768) — 8 parça

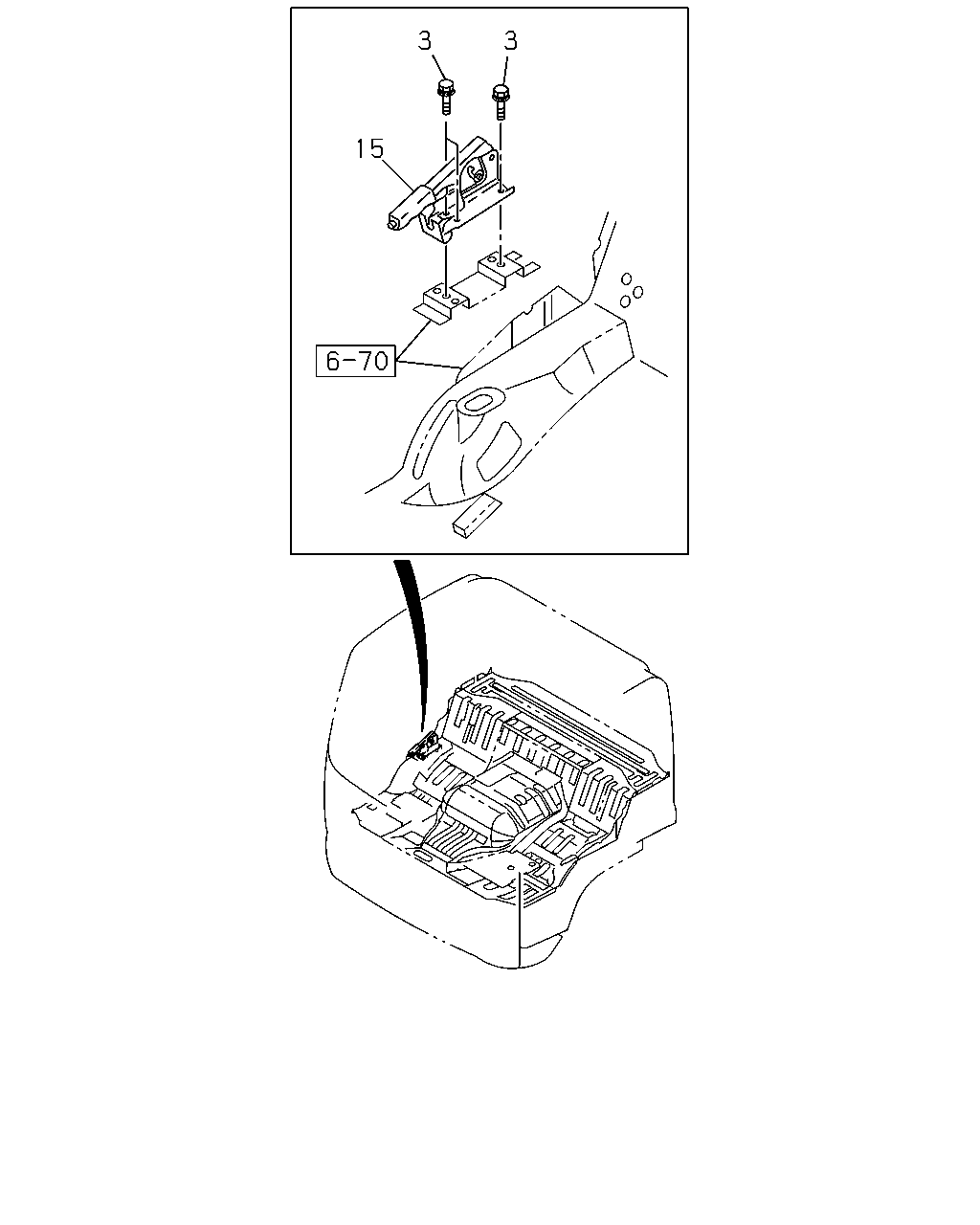

çizim 164253

3 3 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0906-
	15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	0906-

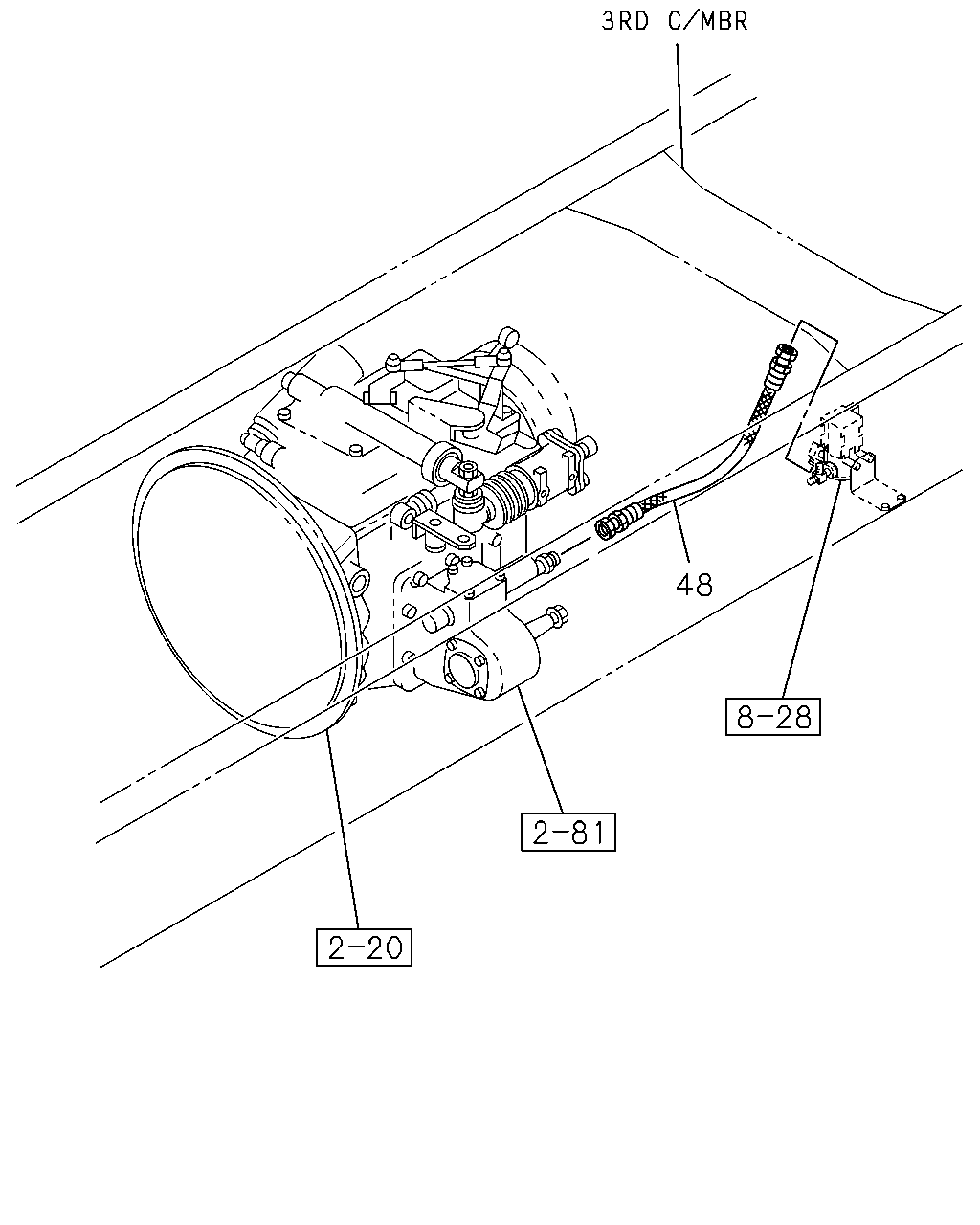

çizim 164262

48

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=380	1-09363-919-0	01	1	0908-1004
	48	HOSE; FLEX,PTO MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	1-09363-677-0	01	1	0906-
	48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=340	1-09363-617-0	01	1	0906-1004
	48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=380	1-09363-919-0	01	1	1005-
	48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=420	1-09363-615-0	01	1	0906-1004
	48	HOSE; FLEX,PTO MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=450	1-09363-965-0	01	1	1005-
