Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#59760) — 592 parça

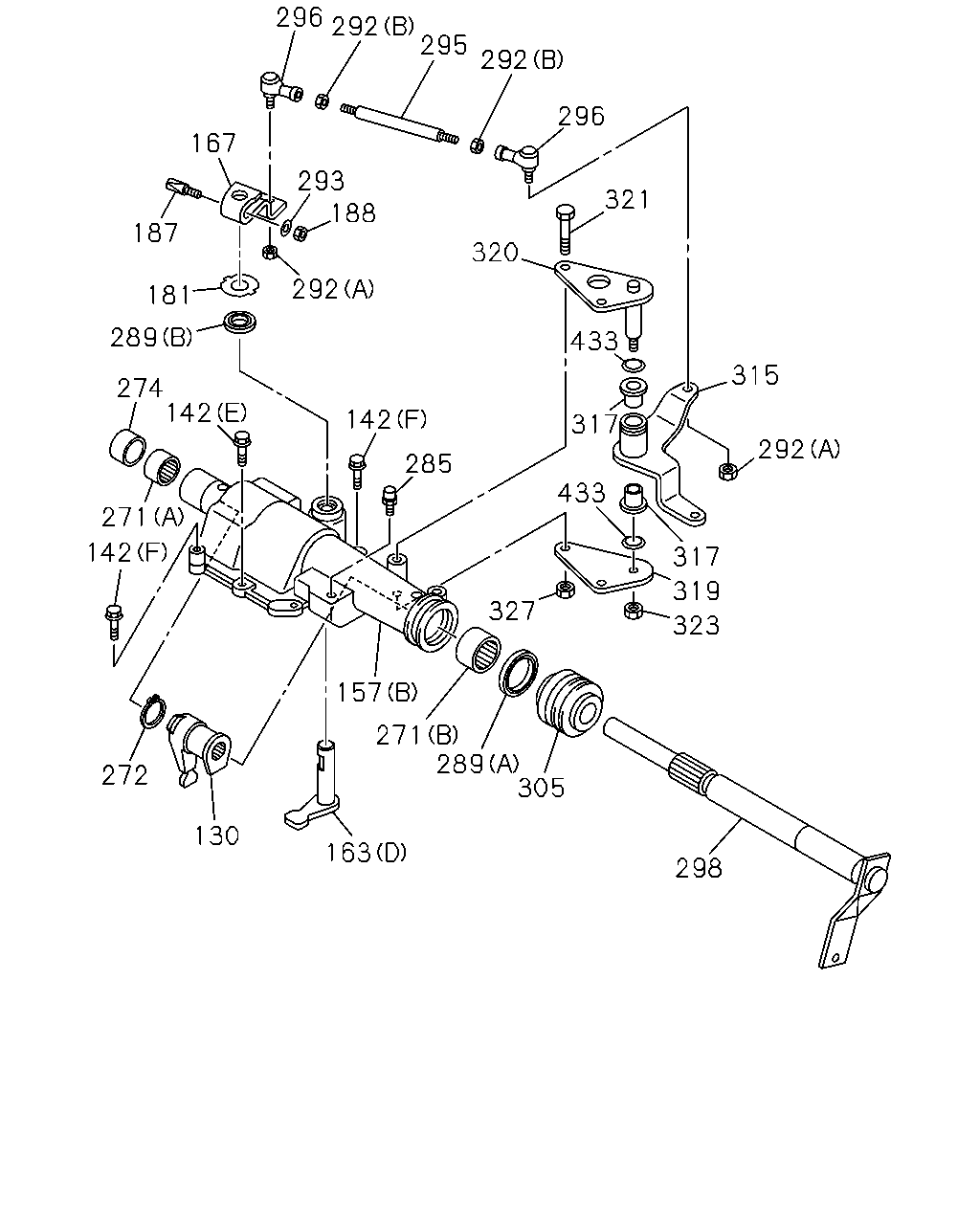

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 142 317 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0906-1004	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0906-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0906-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-041-4	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0906-1004	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0906-		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0906-1004	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0906-		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0906-1004	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0906-1004	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0906-1004	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0906-1004	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0906-1004	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0906-1004	●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33149-003-0	01	1	1208-1404	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0906-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0906-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0906-1004	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0906-1004	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0906-1004	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0906-1004	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0906-1004	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0906-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0906-1004	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0906-1004	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	0906-1004	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0906-		●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0906-1004	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-704-0	01	1	0906-1004	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0906-1411		●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-98296-526-0	01	1	1412-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-1004	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0906-1004		●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1005-	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0906-		●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0906-1004	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0906-1004	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0906-		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0906-1004	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0906-1004	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0906-1004	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0906-1004	●

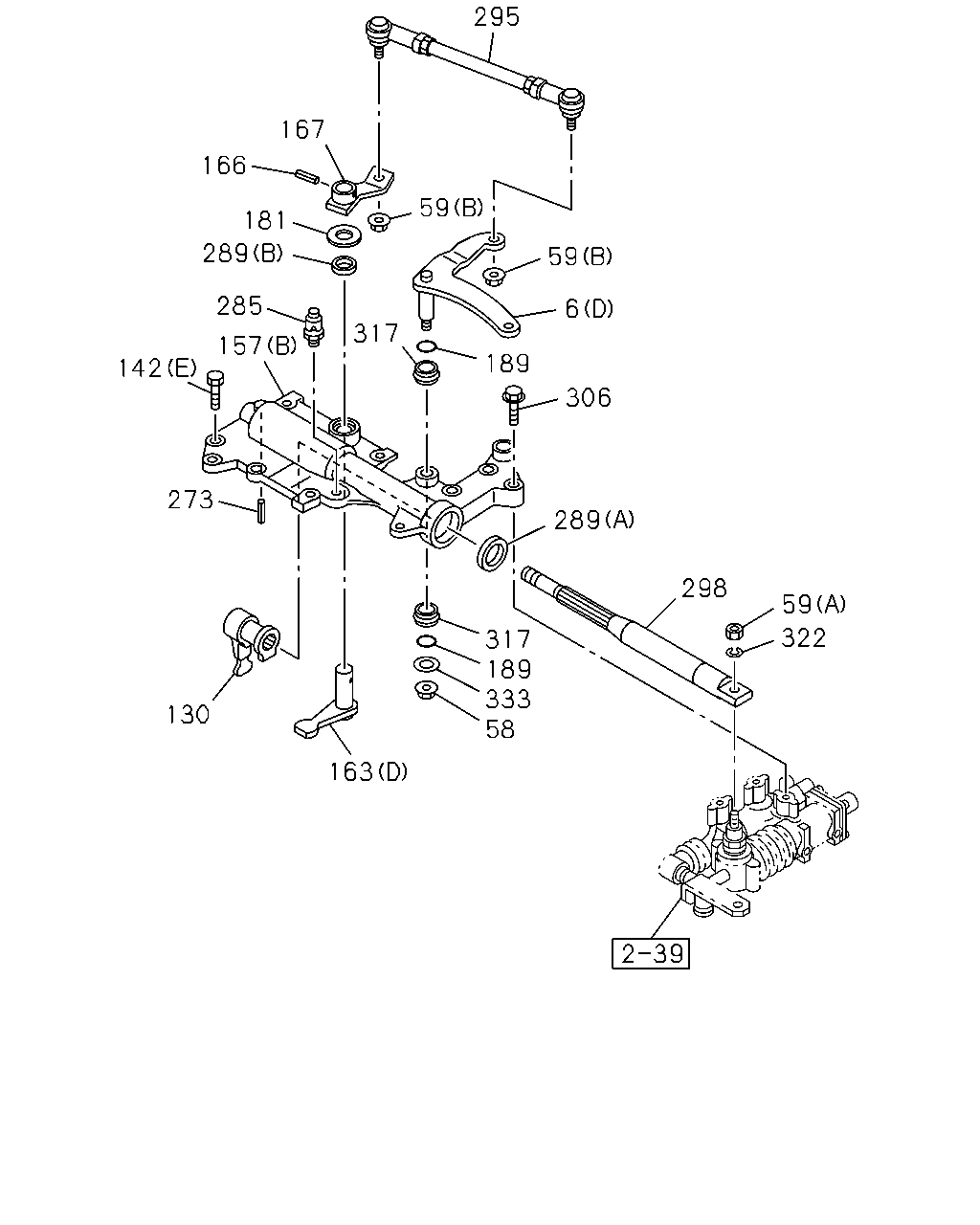

295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0906-		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0906-		●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0906-1004	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0906-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0906-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-041-4	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0906-		●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0906-1004	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0906-		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0906-1004	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0906-	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0906-1204	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33149-003-0	01	1	1208-1404	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0906-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0906-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0906-1004	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0906-1004	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0906-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0906-1004	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	0906-1004	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0906-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0906-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-1004	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0906-1004		●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1005-	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0906-		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0906-	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0906-	●	●

78 551 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0906-		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0906-		●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0906-1307		●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0906-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0906-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0906-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0906-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0906-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0906-	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0906-		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0906-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0906-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0906-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0906-		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0906-1506		●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-		●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0906-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0906-		●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0906-		●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0906-1004	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0906-		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0906-		●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0906-		●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0906-		●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0906-		●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0906-		●

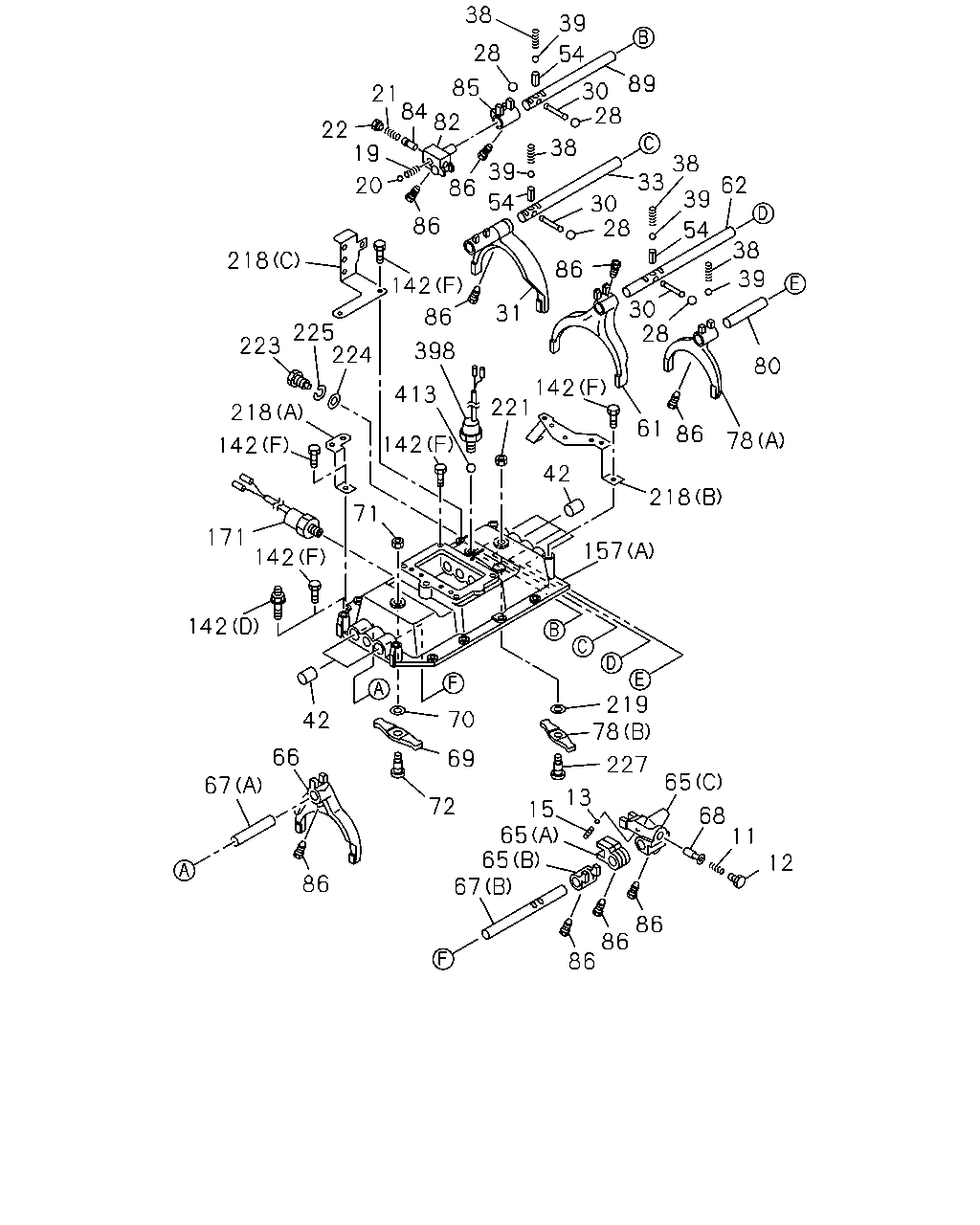

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 218 86 39 142 30 28 31 86 225 224 223 398 80 142 221 413 218 61 86 78 142 142 42 218 71 171 157 142 142 219 78 70 42 66 69 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0906-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0906-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0906-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0906-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0906-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0906-	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0906-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0906-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0906-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0906-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0906-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0906-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0906-	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0906-1004	●
39	BALL; DETENT	1-09843-012-0	04	1	0906-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0906-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0906-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0906-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0906-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0906-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0906-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0906-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0906-		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0906-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0906-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0906-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0906-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0906-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0906-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0906-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0906-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0906-	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0906-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0906-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0906-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0906-		●
84	SLEEVE; REV	1-33516-025-0	01	1	0906-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0906-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0906-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0906-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0906-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0906-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0906-1004	●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0906-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0906-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	0906-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0906-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0906-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0906-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0906-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0906-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0906-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0906-	●

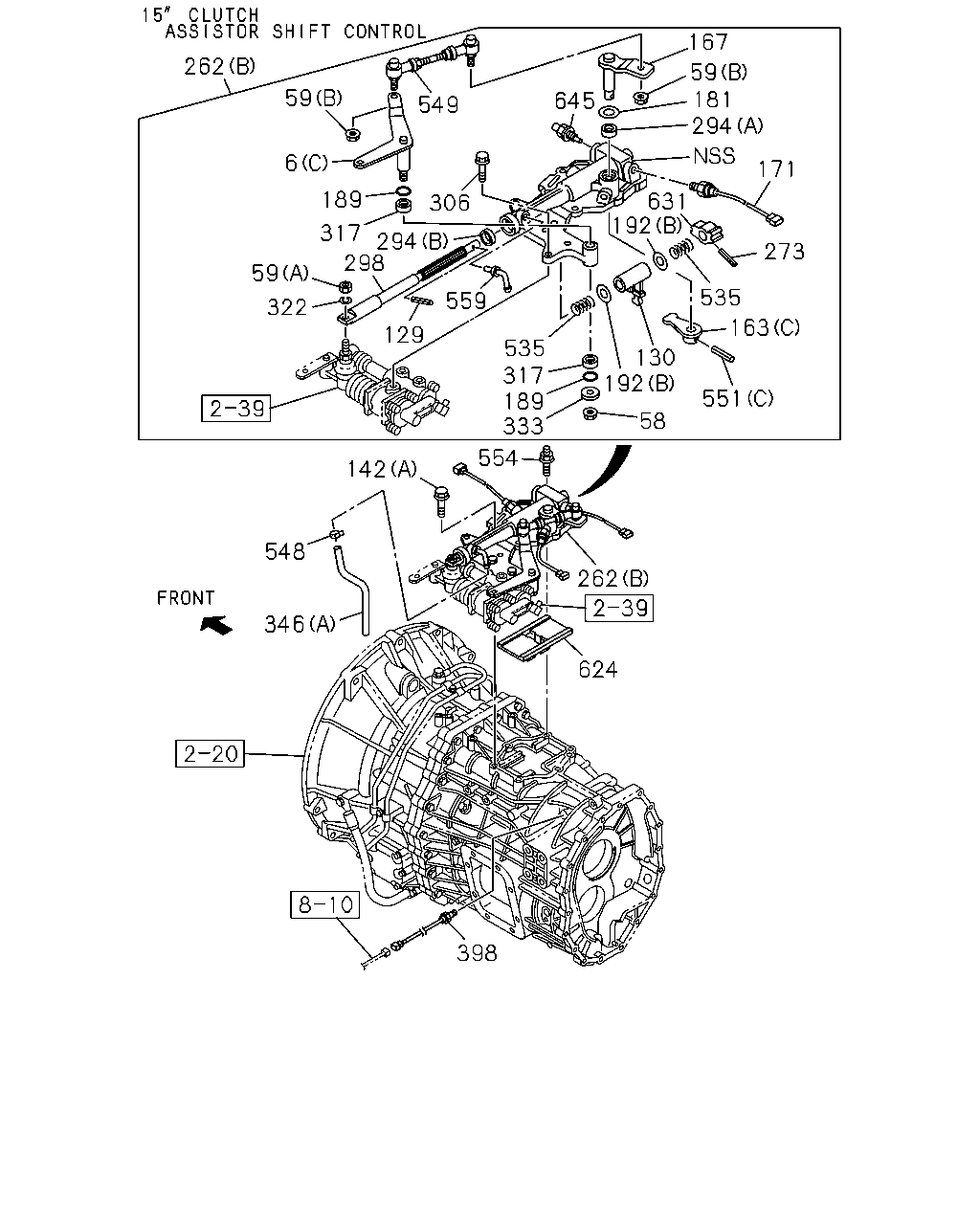

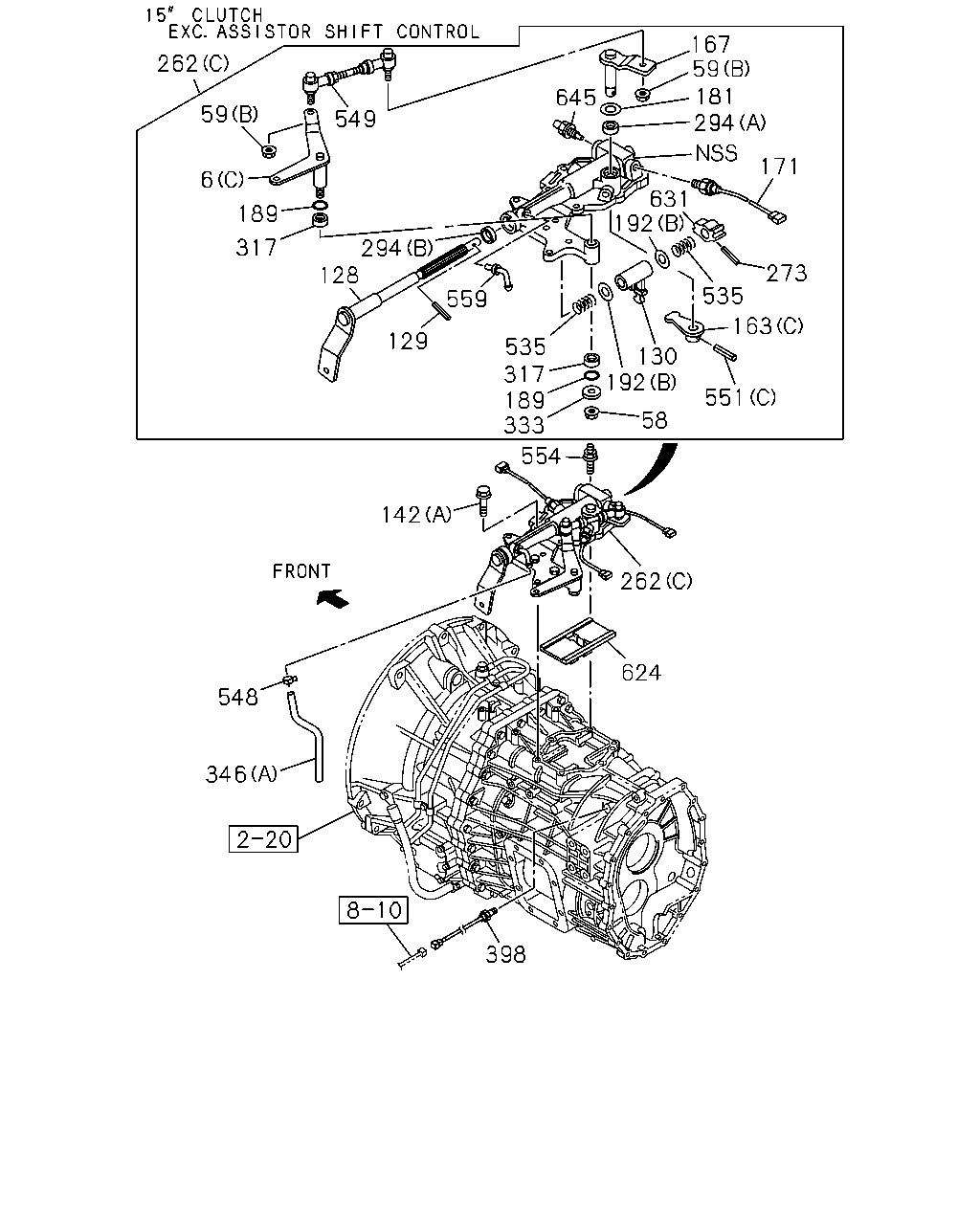

167 59 181 294 262 645 59 549 171 6 631 192 189 317 294 128 273 535 559 163 129 535 317 189 333 130 192 551 58 554 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0906-		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0906-		●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1103-1507		●
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-		●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0906-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0906-1004	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-041-4	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0906-1004	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0906-1004	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0906-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0906-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0906-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-1004	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0906-1004		●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1005-	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0906-		●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0906-	●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1207-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0906-		●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0906-		●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0906-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0906-		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0906-		●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0906-		●

167 262 59 181 294 59 645 549 6 171 189 631 192 306 317 294 298 273 59 535 559 322 163 129 535 317 189 333 130 192 551 58 554 142 548 262 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0906-		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0906-		●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0906-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	0906-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0906-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0906-1004	●
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-041-4	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0906-1004	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0906-	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0906-1004	●
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	0906-		●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0906-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0906-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0906-	●
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0906-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	0906-1004	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0906-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0906-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-1004	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0906-1004		●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1005-	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0906-		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0906-	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0906-	●	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1207-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	0906-		●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	0906-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0906-		●
554	STUD; CONT BOX 15" CLUTCH(RE9) M8X15,M8X25 L=49	8-97365-378-0	02	1	0906-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0906-		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0906-		●
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	0906-		●

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 346 624 548 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	1-33651-686-2	01	1	0906-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0906-		●
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	0906-		●
6	LEVER; RELAY EXC. 15" CLUTCH(RE9) (B)	8-97379-995-0	01	1	0906-		●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (A)	8-97379-988-0	01	1	0906-		●
133	SEAT; SPR EXC. 15" CLUTCH(RE9) (B)	8-97379-989-0	01	1	0906-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0906-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE	8-98044-944-0	12	1	0906-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	04	1	0906-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (F) M10X60 FLANGE	0-28151-060-0	03	1	0906-1004	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0906-1004	●
142	BOLT; QUAD BOX 15" CLUTCH(RE9) (A) M8X22 FLANGE	8-97365-376-0	04	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE	8-98020-384-0	03	1	0906-		●
142	BOLT; QUAD BOX EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE	8-98020-385-0	03	1	0906-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0906-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-041-4	01	1	0906-1004	●
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (A)	8-97379-979-0	01	1	0906-		●
163	LEVER; SELECT,INTERNAL EXC. 15" CLUTCH(RE9) (B)	8-97379-990-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0906-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0906-1004	●
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	0906-		●
167	LEVER; SELECT,EXTERNAL EXC. 15" CLUTCH(RE9)	8-97379-994-0	01	1	0906-		●
171	SWITCH; NEUTRAL EXC. 15" CLUTCH(RE9)	8-98242-172-0	01	1	1307-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0906-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0906-1306		●
171	SWITCH; NEUTRAL 15" CLUTCH(RE9)	8-98023-050-0	01	1	1307-1312		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0906-		●
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	0906-		●
192	WASHER; PL EXC. 15" CLUTCH(RE9) (C)	1-09503-280-0	01	1	0906-		●
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	0-28050-612-0	11	1	0906-0906		●
243	BOLT; COVER EXC. 15" CLUTCH(RE9) M6X12 FLANGE	1-33739-842-0	11	1	0907-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	0906-1204		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98048-495-4	01	1	0906-1010		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98107-814-1	01	1	1011-1306		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98241-122-1	01	1	1307-1411		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98296-530-0	01	1	1412-1509		●
262	BOX ASM; SHIFT CONT EXC. 15" CLUTCH(RE9) (A)	8-98331-686-0	01	1	1510-		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97363-225-0	01	1	0906-		●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97379-981-0	01	1	0906-		●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0906-1004	●
274	COVER; SHAFT,QUAD BOX EXC. 15" CLUTCH(RE9)	8-98020-711-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	0906-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C)	1-09625-600-0	01	1	0906-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0906-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	0906-1004	●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	0906-1507		●
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
298	SHAFT; SHIFT LEVER EXC. 15" CLUTCH(RE9)	8-97379-978-0	01	1	0906-		●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-704-0	01	1	0906-1004	●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-97379-998-0	01	1	0906-1411		●
315	LEVER; SELECT EXC. 15" CLUTCH(RE9)	8-98296-526-0	01	1	1412-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0906-1004	●
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	0906-1004		●
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1005-	●	●
317	BUSHING; LEVER EXC. 15" CLUTCH(RE9)	8-97379-997-0	02	1	0906-		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1207-1404		●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0906-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A)	8-97349-571-0	03	1	0906-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B)	8-97349-573-0	01	1	0906-		●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0906-0906		●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-		●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0906-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0906-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
530	SHAFT; SELECT EXC. 15" CLUTCH(RE9)	8-97379-996-0	01	1	0906-		●
548	CLIP; HOSE EXC. 15" CLUTCH(RE9)	8-97031-674-0	01	1	1208-1404		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE	8-97031-674-0	01	1	0906-1204		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0906-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0906-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (D) L=30 OD=4	1-09748-031-0	02	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (E) OD=5	8-97184-905-0	03	1	0906-		●
551	PIN; SPRING EXC. 15" CLUTCH(RE9) (F)	8-97379-991-0	01	1	0906-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1405-		●
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	0906-1204		●
559	PIPE; BREATHER EXC. 15" CLUTCH(RE9)	8-98020-710-0	01	1	0906-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0906-		●
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	0906-		●
631	STOPPER; SPRING EXC. 15" CLUTCH(RE9)	8-97379-984-0	01	1	0906-		●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0906-		●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0906-		●
652	BOLT; SORENOID EXC. 15" CLUTCH(RE9) M10X25 FLANGE	0-28151-025-0	06	1	0906-		●
653	SOLENOID ASM; SELECT EXC. 15" CLUTCH(RE9)	8-98002-761-0	01	1	0906-		●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (A)	8-97349-473-0	02	1	0906-		●
654	JOINT; SOLENOID,CASE EXC. 15" CLUTCH(RE9) (B)	8-97380-419-0	01	1	0906-		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-97324-826-0	01	1	0906-1010		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (A)	8-98107-823-0	01	1	1011-		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-97324-827-0	01	1	0906-1010		●
655	SENSOR; STROKE EXC. 15" CLUTCH(RE9) (B)	8-98107-824-0	01	1	1011-		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (A)	8-97379-985-0	01	1	0906-		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (B)	8-97379-986-0	01	1	0906-		●
656	SPRING; SHAFT EXC. 15" CLUTCH(RE9) (C)	8-97379-987-0	01	1	0906-		●
657	PLATE; SIDE EXC. 15" CLUTCH(RE9)	8-98020-712-0	01	1	0906-		●

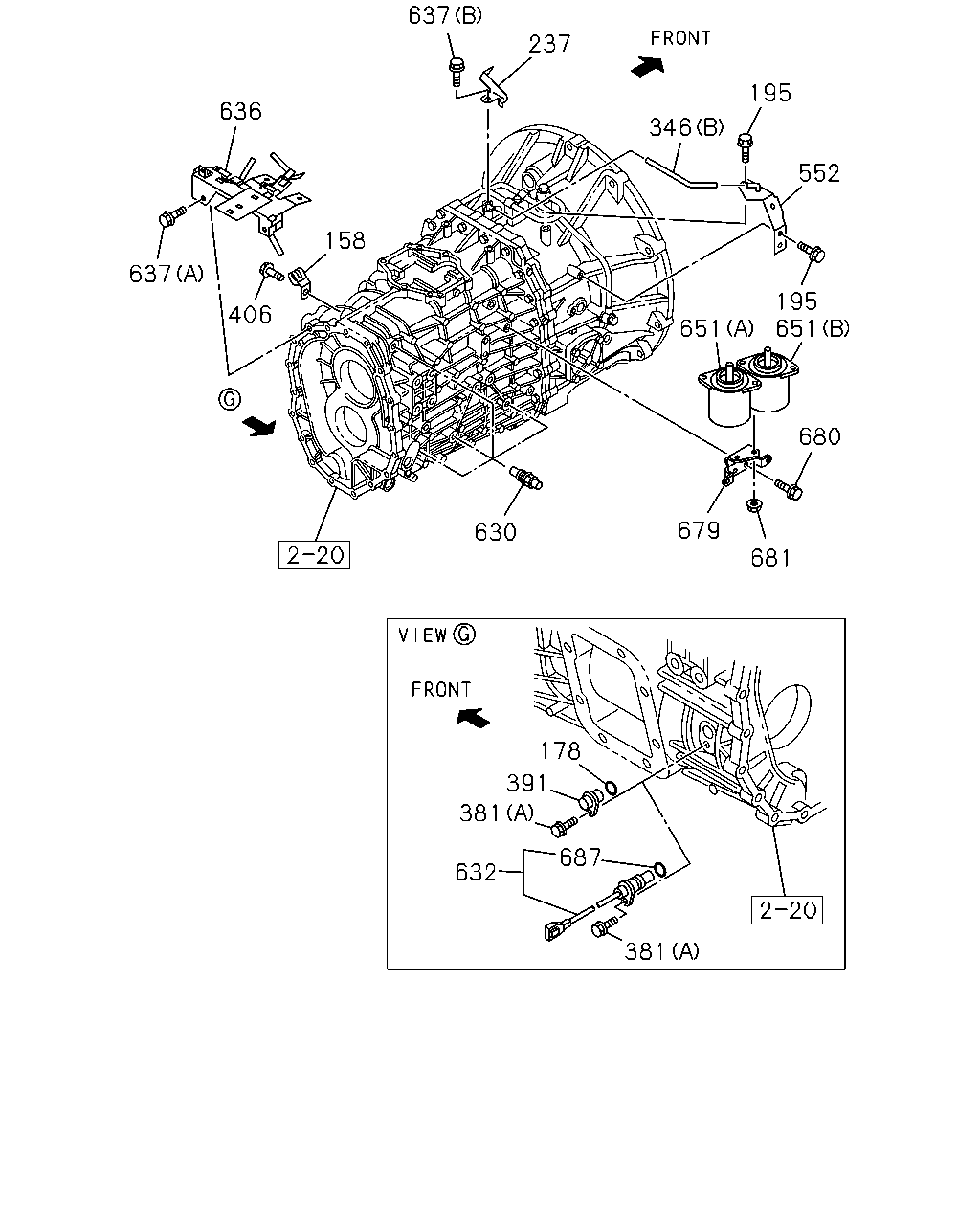

637 237 195 636 346 552 158 637 195 651 406 651 680 679 630 681 178 391 381 687 632 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0906-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9)	9-09567-113-0	01	1	0906-	●
195	BOLT EXC. 15" CLUTCH(RE9) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●
237	BRACKET; CABLE,TRANS EXC. 15" CLUTCH(RE9)	8-98009-307-1	01	1	0906-	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0906-1204	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (A)	8-97309-855-0	01	1	1207-1404	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR EXC. 15" CLUTCH(RE9) (B)	8-97373-381-0	01	1	0906-	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	0-28050-612-0	04	1	0906-0906	●
381	BOLT EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-	●
391	PLUG; SW HOLE 15" CLUTCH(RE9)	8-97300-273-1	01	1	0906-	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
552	BRACKET EXC. 15" CLUTCH(RE9)	8-98005-329-1	01	1	0906-	●
630	DETENT ASM	8-98019-536-0	04	1	0906-	●
632	SENSOR; TRANS,REV EXC. 15" CLUTCH(RE9)	8-97315-604-1	01	1	0906-	●
636	BRACKET; CLIP	8-97610-096-2	01	1	0906-	●
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
637	BOLT; BRACKET EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (A)	8-98048-497-1	01	1	0906-	●
651	SOLENOID ASM; SHIFT EXC. 15" CLUTCH(RE9) (B)	8-98048-498-1	01	1	0906-	●
679	BRACKET; HEAT PROTECTOR EXC. 15" CLUTCH(RE9)	8-98005-332-0	01	1	0906-	●
680	BOLT; FLANGE EXC. 15" CLUTCH(RE9) M10X20 FLANGE	0-28761-020-0	02	1	0906-	●
681	NUT; FLANGE EXC. 15" CLUTCH(RE9) M10 FLANGE	0-91180-210-0	02	1	0906-	●
687	GASKET; SENSOR EXC. 15" CLUTCH(RE9)	9-09567-113-0	01	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
