◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#59751) — 165 parça

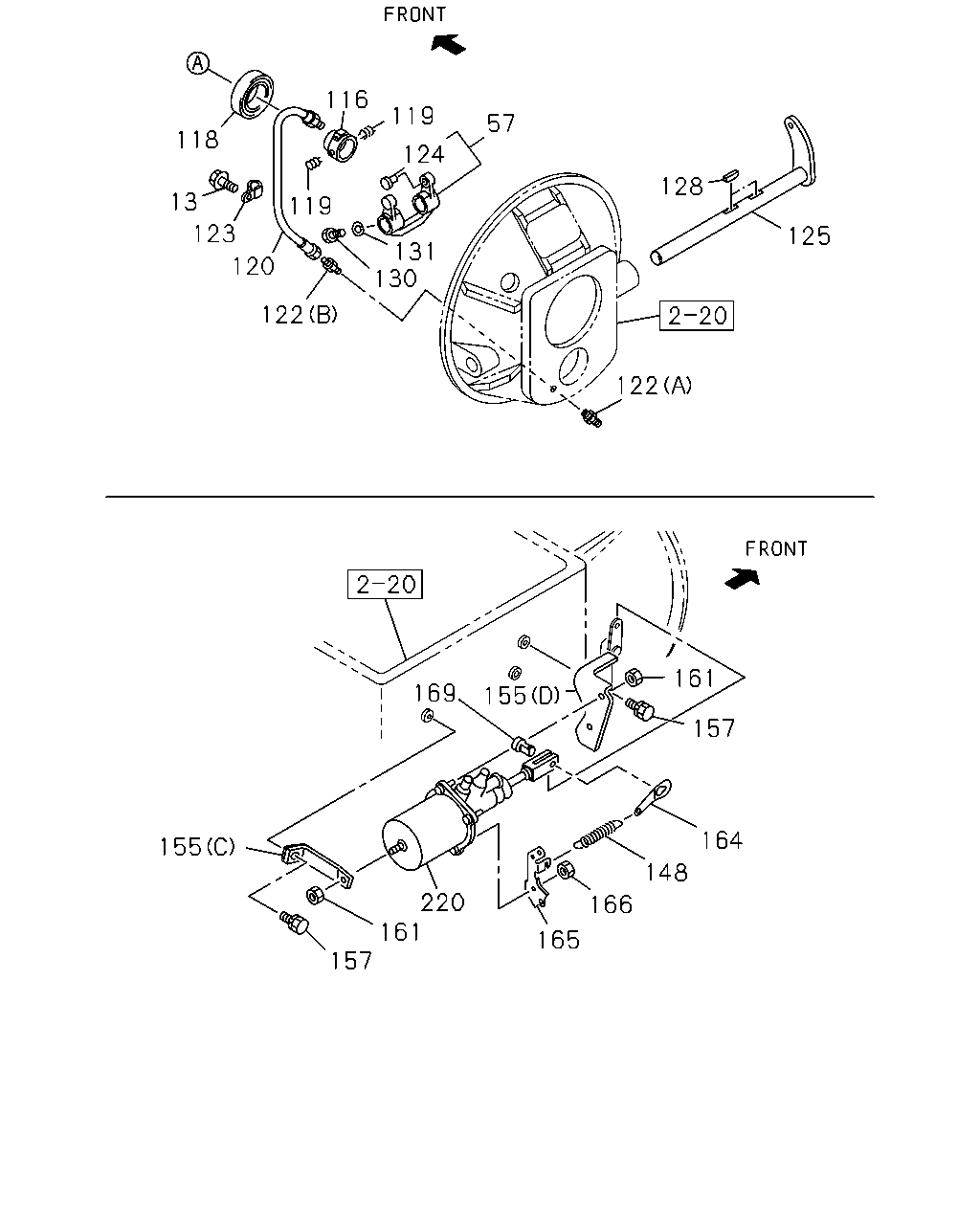

çizim 164209
116 119 57 118 124 128 13 119 131 130 123 125 120 122 122 161 155 169 157 164 155 148 220 161 157 166 165
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0906-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
57 FORK; SHIFT,CLU
15" CLUTCH(RE9) 		1-31341-048-2 01 1 0906- ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 0906-1204 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1205-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0906- ●
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) 		1-31310-026-0 01 1 0906- ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0906- ●
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-109-0 01 1 0906- ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0906- ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0906- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0906- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0906- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0906- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0906- ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0906- ●
125 SHAFT; CLU 1-31342-343-0 01 1 0906- ●
125 SHAFT; CLU
15" CLUTCH(RE9) 		1-31342-335-0 01 1 0906- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0906- ●
128 KEY; FEATHER,CLU SHAFT
15" CLUTCH(RE9) 		9-09867-008-0 02 1 0906- ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0906- ●
130 SCREW; SHIFT FORK
15" CLUTCH(RE9) M8X14 		0-61200-814-0 01 1 0906- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0906- ●
131 WASHER; LK,SHIFT FORK
15" CLUTCH(RE9) ID=8.2 		0-91510-508-0 01 1 0906- ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0906- ●
148 SPRING; CLU RETURN
15" CLUTCH(RE9) L=135 		1-09583-305-0 01 1 0906- ●
155 BRACKET; MINIPACK
(C) 		1-31429-507-0 01 1 0906- ●
155 BRACKET; MINIPACK
(D) 		1-31429-508-0 01 1 0906- ●
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 0906- ●
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 0906- ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 0906- ●
157 BOLT; BRKT
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 03 1 0906- ●
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0906- ●
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 0906- ●
164 EYE; SPRING 1-31426-041-0 01 1 0906- ●
164 EYE; SPRING
15" CLUTCH(RE9) 		1-31426-041-0 01 1 0906- ●
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 0906- ●
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
15" CLUTCH(RE9) 		1-47477-789-0 01 1 0906- ●
166 NUT; SPRING EYE
M10 FLANGE 		0-91180-210-0 02 1 0906- ●
169 PIN; JOINT,MINIPACK 1-31424-009-0 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-87610-089-0 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 0906- ●

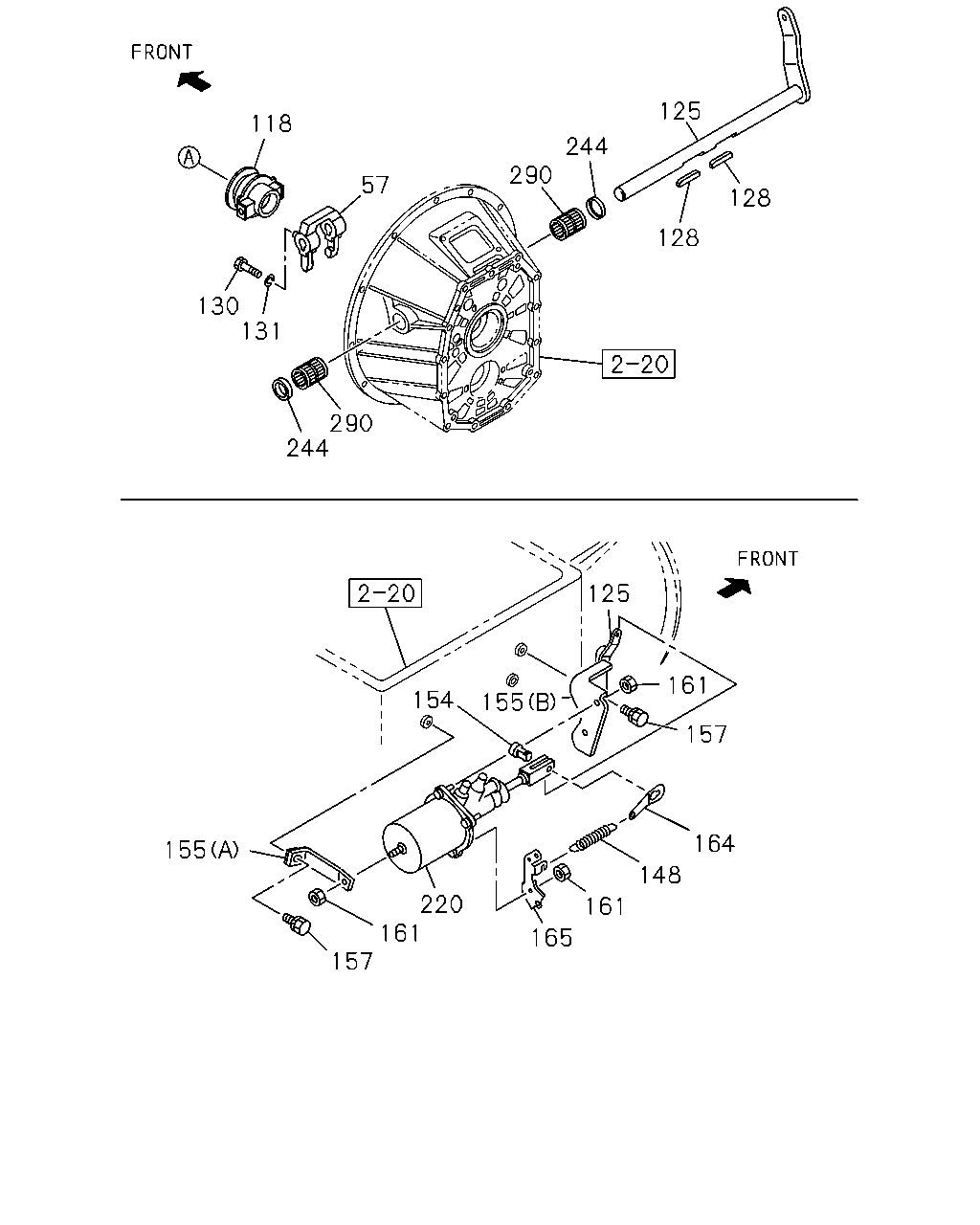

çizim 164215
125 118 244 290 57 128 128 130 131 290 244 125 161 155 154 157 164 155 148 220 161 157 161 165
BalonParca AdiParca NoAdetTipApplied Date A B
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0906-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
57 FORK; SHIFT,CLU
15" CLUTCH(RE9) 		1-31341-048-2 01 1 0906- ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0906- ●
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) 		1-31310-026-0 01 1 0906- ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0906- ●
118 BEARING; CLU RELEASE
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-109-0 01 1 0906- ●
125 SHAFT; CLU 1-31342-343-0 01 1 0906- ●
125 SHAFT; CLU
15" CLUTCH(RE9) 		1-31342-335-0 01 1 0906- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0906- ●
128 KEY; FEATHER,CLU SHAFT
15" CLUTCH(RE9) 		9-09867-008-0 02 1 0906- ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0906- ●
130 SCREW; SHIFT FORK
15" CLUTCH(RE9) M8X14 		0-61200-814-0 01 1 0906- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0906- ●
131 WASHER; LK,SHIFT FORK
15" CLUTCH(RE9) ID=8.2 		0-91510-508-0 01 1 0906- ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0906- ●
148 SPRING; CLU RETURN
15" CLUTCH(RE9) L=135 		1-09583-305-0 01 1 0906- ●
154 PIN; JAW JOINT
15" CLUTCH(RE9) 		1-31424-009-0 01 1 0906- ●
155 BRACKET; MINIPACK
(C) 		1-31429-507-0 01 1 0906- ●
155 BRACKET; MINIPACK
(D) 		1-31429-508-0 01 1 0906- ●
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 0906- ●
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 0906- ●
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 0906- ●
157 BOLT; BRKT
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 03 1 0906- ●
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0906- ●
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 0906- ●
164 EYE; SPRING 1-31426-041-0 01 1 0906- ●
164 EYE; SPRING
15" CLUTCH(RE9) 		1-31426-041-0 01 1 0906- ●
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 0906- ●
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
15" CLUTCH(RE9) 		1-47477-789-0 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-87610-089-0 01 1 0906- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 0906- ●
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) 		1-09625-002-0 02 1 0906- ●
290 BEARING; NEEDLE
15" CLUTCH(RE9) NTN 		1-09811-002-1 02 1 0906- ●

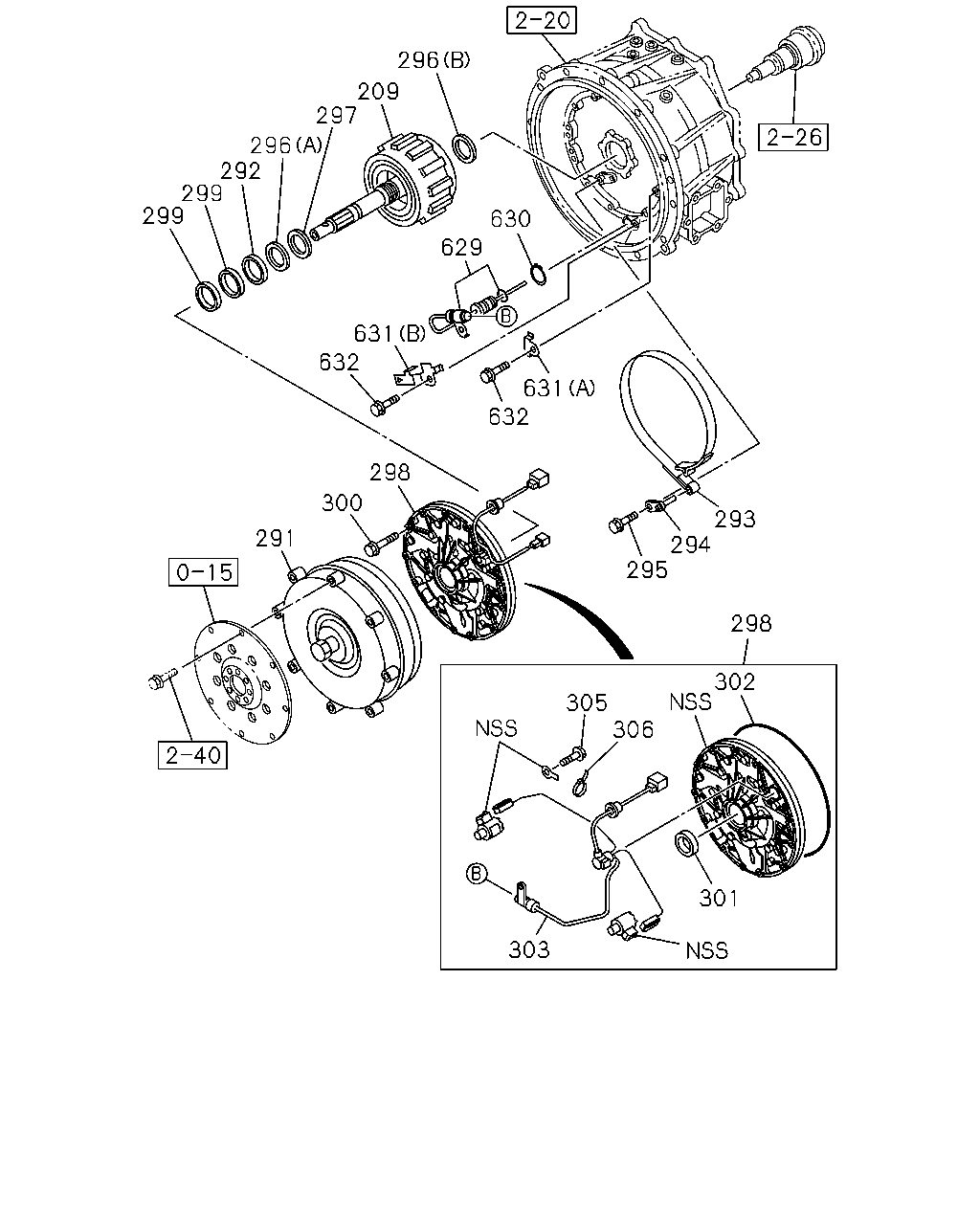

çizim 164220
296 209 297 296 292 299 299 630 629 631 632 631 632 298 300 293 294 295 291 298 302 305 306 301 303
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLUTCH ASM
EXC. 15" CLUTCH(RE9) 		8-98044-527-3 01 1 0906-1412 ●
209 CLUTCH ASM
EXC. 15" CLUTCH(RE9) 		8-98275-315-0 01 1 1501- ●
291 COUPLING; FLUID
EXC. 15" CLUTCH(RE9) 		8-97371-295-3 01 1 0906-1308 ●
291 COUPLING; FLUID
EXC. 15" CLUTCH(RE9) 		8-98248-560-1 01 1 1309- ●
292 RING; SEAL
EXC. 15" CLUTCH(RE9) 		8-97255-329-0 01 1 0906- ●
293 BAND; BRAKE
EXC. 15" CLUTCH(RE9) 		8-97254-651-0 01 1 0906- ●
294 PIN; ANCHOR
EXC. 15" CLUTCH(RE9) 		8-97255-703-0 01 1 0906- ●
295 BOLT; ANCHOR PIN
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
296 BEARING; THRUST
EXC. 15" CLUTCH(RE9) (A) 		8-97255-688-0 01 1 0906- ●
296 BEARING; THRUST
EXC. 15" CLUTCH(RE9) (B) 		8-97255-689-0 01 1 0906- ●
297 WASHER; THRUST
EXC. 15" CLUTCH(RE9) 		8-97300-070-0 01 1 0906- ●
298 PUMP ASM; OIL
EXC. 15" CLUTCH(RE9) 		8-98107-925-2 01 1 0906- ●
299 RING; SEAL
EXC. 15" CLUTCH(RE9) 		8-97255-330-0 02 1 0906- ●
300 BOLT; OIL PUMP
EXC. 15" CLUTCH(RE9) M8X45 FLANGE 		0-28050-845-0 11 1 0906- ●
301 SEAL; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-97289-811-0 01 1 0906- ●
302 RING; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-97255-188-0 01 1 0906- ●
303 HARNESS ASM; OIL PUMP
EXC. 15" CLUTCH(RE9) 		8-98020-613-1 01 1 0906- ●
305 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) M6X12 FLANGE 		0-28050-612-0 01 1 0906- ●
305 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) M6X16 FLANGE 		0-28650-616-0 01 1 0906- ●
306 CLIP; BAND
EXC. 15" CLUTCH(RE9) L=100 		8-94279-939-0 02 1 0906- ●
629 SENSOR; OIL TEMP
EXC. 15" CLUTCH(RE9) 		8-98021-895-0 01 1 0906- ●
630 RING; SNAP
EXC. 15" CLUTCH(RE9) ID=17.5 		9-09180-019-0 01 1 0906- ●
631 PLATE; HARNESS
EXC. 15" CLUTCH(RE9) (A) 		8-98021-285-0 02 1 0906- ●
631 PLATE; HARNESS
EXC. 15" CLUTCH(RE9) (B) 		8-98023-254-0 01 1 0906- ●
632 BOLT; HARNESS
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 03 1 0906- ●

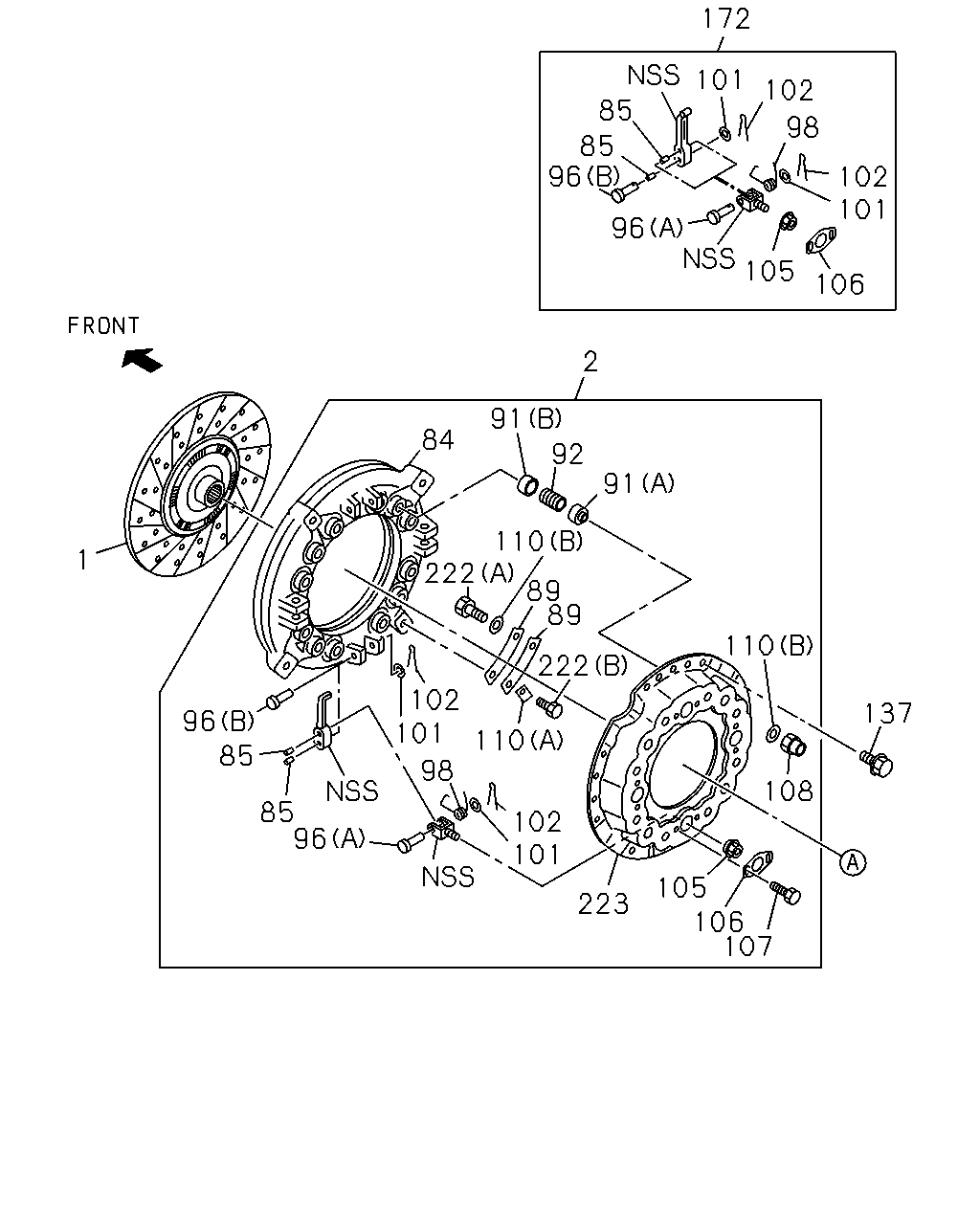

çizim 164222
172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 107 223
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-119-0 01 1 1411- ●
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1411- ●
1 DISC; CLUTCH
15" 		1-31240-851-2 01 1 0906- ●
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 0906- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0906-1007 ●
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) 		1-31220-377-2 01 1 0906-1007 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-374-2 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) 		1-31220-374-2 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 0906-1007 ●
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-146-0 01 1 0906-1007 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-120-0 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-120-0 01 1 1008- ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0906- ●
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 0906- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0906- ●
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9) 		9-31239-116-0 08 1 0906- ●
89 PLATE; STRAP 1-31229-050-0 16 1 0906- ●
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 0906- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0906- ●
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 0906- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0906- ●
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 0906- ●
92 SPRING; CLU 1-31214-066-0 12 1 0906-1007 ●
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-066-0 12 1 0906-1007 ●
92 SPRING; CLU 1-31214-086-0 12 1 1008- ●
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-086-0 12 1 1008- ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0906- ●
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (A) L=49.0 		1-31232-005-0 04 1 0906- ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0906- ●
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (B) L=57.0 		1-31232-014-0 04 1 0906- ●
98 SPRING; RETURN 1-31233-003-0 04 1 0906- ●
98 SPRING; RETURN
15" CLUTCH(RE9) 		1-31233-003-0 04 1 0906- ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0906- ●
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9) 		1-31239-058-0 08 1 0906- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0906- ●
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 0906- ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0906- ●
105 NUT; SUPPORT
15" CLUTCH(RE9) 		1-31235-014-0 04 1 0906- ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0906- ●
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9) 		1-31239-019-0 04 1 0906- ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0906- ●
107 BOLT; LK PLATE
15" CLUTCH(RE9) 		1-31239-061-0 08 1 0906- ●
108 NUT; STRAP 1-09449-036-0 04 1 0906- ●
108 NUT; STRAP
15" CLUTCH(RE9) 		1-09449-036-0 04 1 0906- ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0906- ●
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (A) T=1.2 		1-31229-009-0 04 1 0906- ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0906- ●
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (B) T=3.2 		8-97374-512-0 08 1 0906- ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0906- ●
137 BOLT; CLU COVER
15" CLUTCH(RE9) M10X20 FLANGE 		0-28151-020-0 12 1 0906- ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0906- ●
172 LEVER KIT; RELEASE,CLU
15" CLUTCH(RE9) 		1-87831-170-1 01 1 0906- ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0906- ●
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 0906- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0906- ●
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0906- ●
223 COVER; CLU 1-31211-019-1 01 1 0906- ●
223 COVER; CLU
15" CLUTCH(RE9) 		1-31211-019-1 01 1 0906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
