1-56 — EXHAUST BRAKE SYSTEM (#59750) — 26 parça

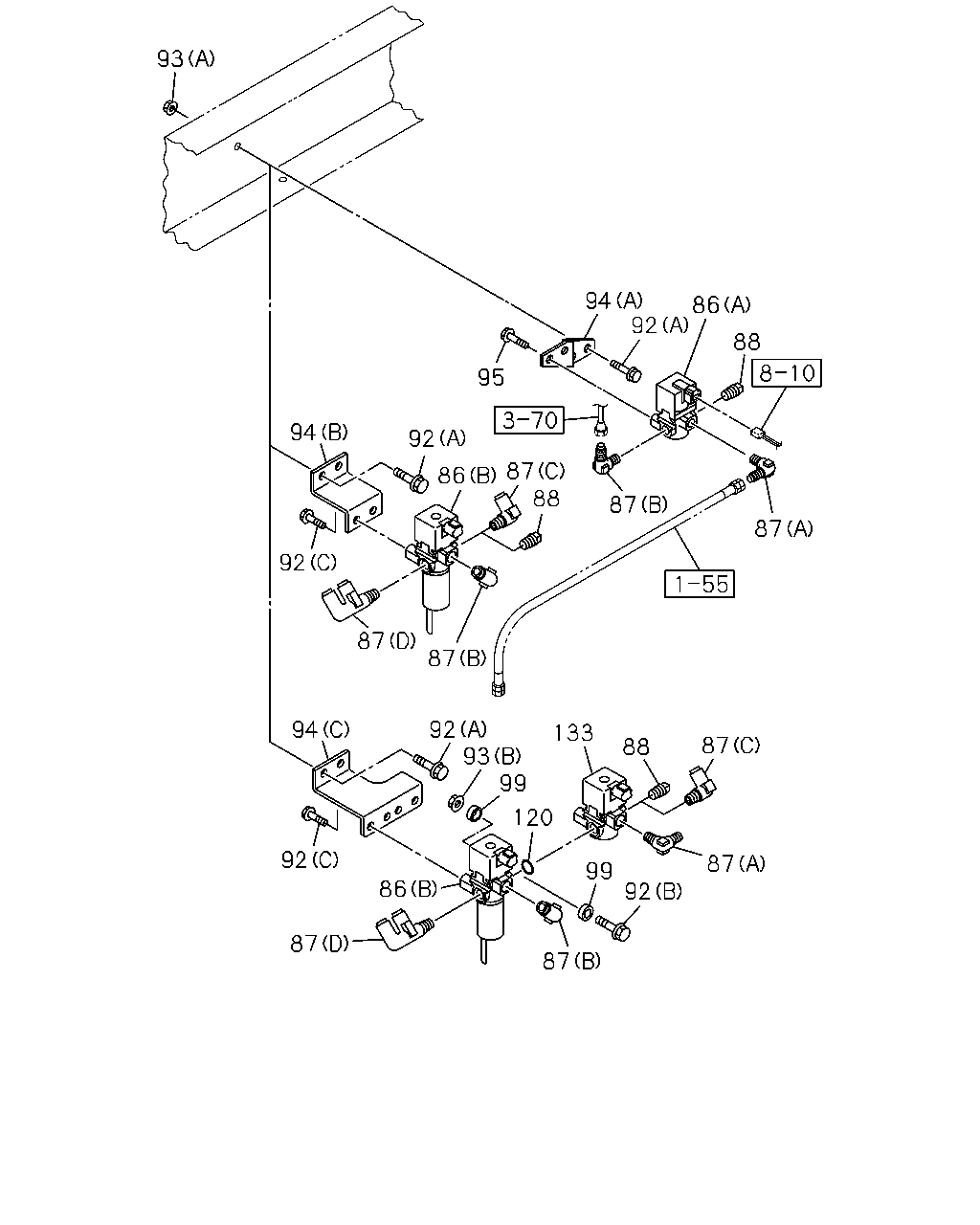

çizim 164217
93 94 92 86 88 95 94 92 87 88 86 87 87 92 87 87 92 93 99 94 133 87 88 120 92 87 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906-
87 CONNECTOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1111
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1111
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
88 PLUG
PT1/4 		9-99204-513-0 01 1 0906-1111
88 PLUG
PT1/4 		9-99204-513-0 01 1 1112-
88 PLUG
RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-
92 BOLT; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1112-
92 BOLT; MAG VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906-
93 NUT; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M6 FLANGE 		0-91180-106-0 01 1 1112-
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-
94 BRACKET; MAG VLV,EXH BRAKE
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98101-296-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98057-863-0 01 1 0906-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
99 WASHER; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82569-266-0 02 1 1112-
120 GASKET; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=16.8 		9-09565-117-0 01 1 1112-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82563-871-2 01 1 1112-
