4-01 — PROPELLER SHAFT (#5975) — 242 parça

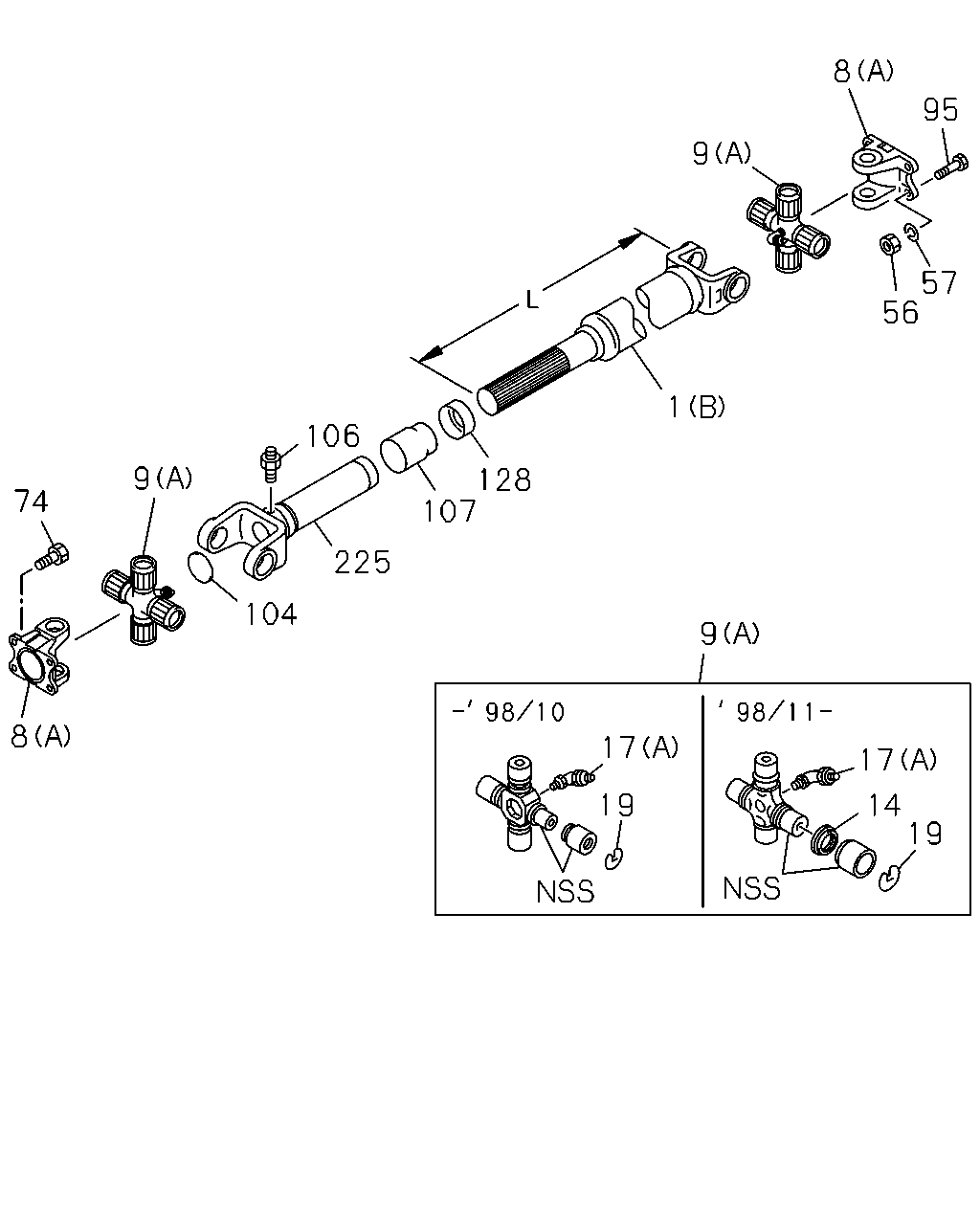

çizim 41402
8 95 9 57 56 1 106 9 128 107 74 225 104 9 8 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=911 		1-37123-509-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=569 		1-37117-105-2 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=569 		1-37117-704-0 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1156 		1-37123-630-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=889 		1-37151-242-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=789 		1-37117-096-2 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1251 		1-37123-426-2 01 1 9606-9606 ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> (B) END L=1251 		1-37123-426-2 01 1 9607-9810 ●
1 SHAFT; PROP
(B) END L=1256 		1-37123-393-3 01 1 9811- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (B) END L=1216 		1-37123-465-0 01 1 9610-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=1404 		1-37117-709-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=1299 		1-37151-240-0 01 1 9606-9810 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (C) 1ST L=1281 		1-37151-251-0 01 1 9610-9810 ●
1 SHAFT; PROP
(A) 1ST L=1286 		1-37151-583-1 01 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-056-3 01 1 9606-9810 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5 M/T<X9W>,MBG6 M/T<X9X> (A) 1ST 		1-37211-056-3 01 1 9606-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9606-9810 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		1-37211-041-0 01 1 9610-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9811- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5 M/T<X9W>,MLD6 M/T<X9Y> (A) 		1-37300-069-0 AR 1 9606-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9811-0512 ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 		1-37300-083-0 AR 1 9610-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-129-0 AR 1 0601- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9812- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9606-9810 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9811-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6 M/T<X9Y> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9610-9810 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9811- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9811- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9811- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9606-9810 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9811-0512 ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9606-9810 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9811-0603 ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ●
74 BOLT; YOKE,TRANS
M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9811- ●
95 BOLT; YOKE,FINAL
M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9811- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9606-9810 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9811- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606-9810 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9606-9810 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9811- ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9606-9810 ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9811-9811 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812- ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-079-1 01 1 9606-9810 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9811-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903- ●

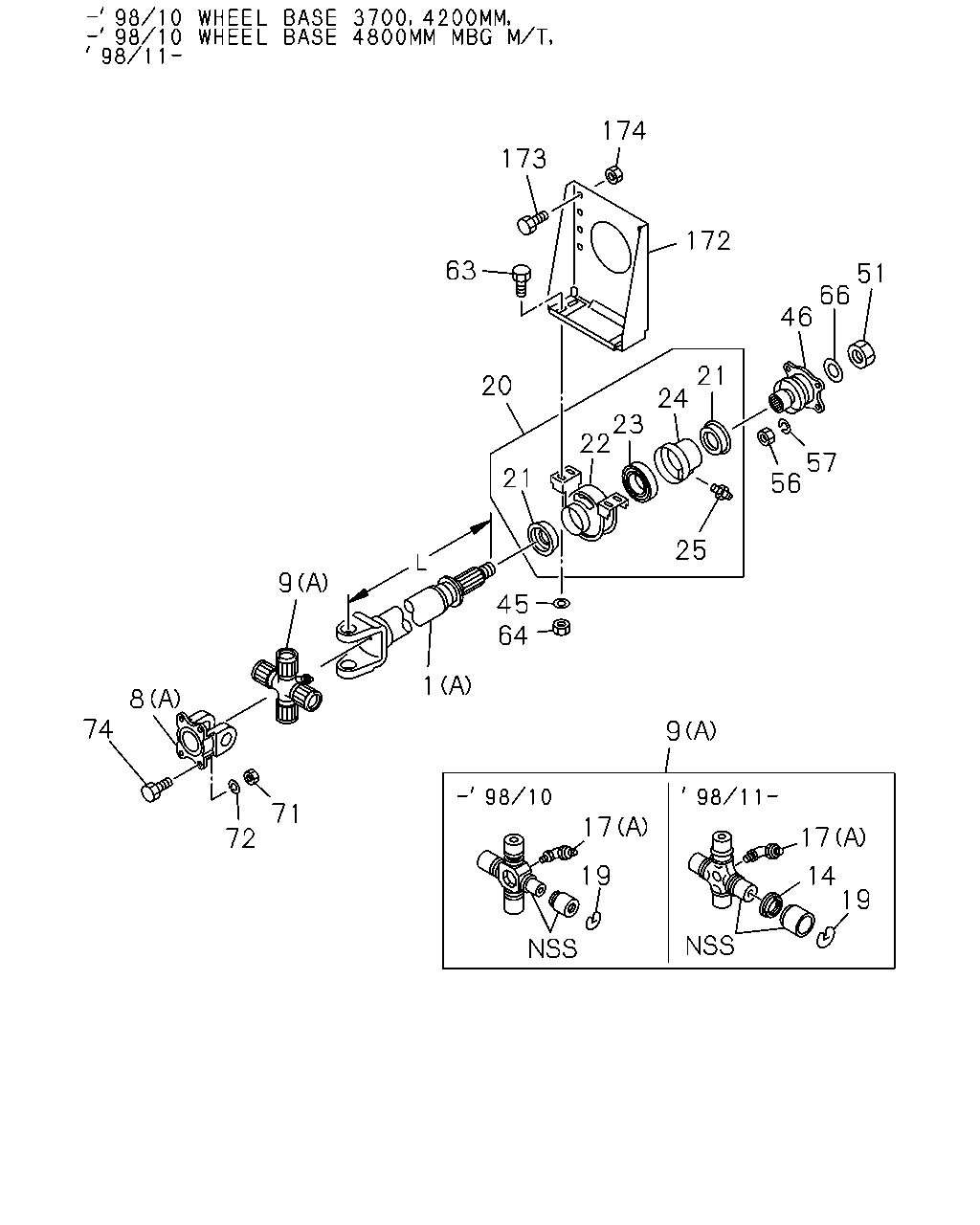

çizim 42395
174 173 172 63 51 66 46 21 24 20 23 22 57 56 21 25 9 45 64 1 8 74 9 71 17 17 72 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=911 		1-37123-509-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=569 		1-37117-105-2 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=569 		1-37117-704-0 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1156 		1-37123-630-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=889 		1-37151-242-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=789 		1-37117-096-2 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1251 		1-37123-426-2 01 1 9606-9606 ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> (B) END L=1251 		1-37123-426-2 01 1 9607-9810 ●
1 SHAFT; PROP
(B) END L=1256 		1-37123-393-3 01 1 9811- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (B) END L=1216 		1-37123-465-0 01 1 9610-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=1404 		1-37117-709-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=1299 		1-37151-240-0 01 1 9606-9810 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (C) 1ST L=1281 		1-37151-251-0 01 1 9610-9810 ●
1 SHAFT; PROP
(A) 1ST L=1286 		1-37151-583-1 01 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-056-3 01 1 9606-9810 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5 M/T<X9W>,MBG6 M/T<X9X> (A) 1ST 		1-37211-056-3 01 1 9606-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9606-9810 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		1-37211-041-0 01 1 9610-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9811- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5 M/T<X9W>,MLD6 M/T<X9Y> (A) 		1-37300-069-0 AR 1 9606-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9811-0512 ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 		1-37300-083-0 AR 1 9610-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-129-0 AR 1 0601- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9812- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9606-9810 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9811-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6 M/T<X9Y> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9610-9810 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9811- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9811- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9606-9810 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9811- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9606-9810 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9811- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9606-9810 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9811- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9606-9810 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9811- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9606-9810 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9811- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9606-9810 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9811- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9811- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9606-9810 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9811-0605 ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9606-9810 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9811- ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9606-9810 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9811- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9606-9810 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9811-0512 ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9606-9810 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9811-0603 ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9606-9810 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9606-9608 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9810 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9606-9810 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9606-9810 ● ●
71 NUT; YOKE
MBG5 M/T<X9W>,MBG6 M/T<X9X> M14 		9-99110-514-0 04 1 9606-9810 ●
71 NUT; YOKE
MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 9610-9810 ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9811- ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9606-9810 ● ●
72 WASHER; LK,YOKE
MBG5 M/T<X9W>,MBG6 M/T<X9X> ID=14.2 		9-09150-614-0 04 1 9606-9810 ●
74 BOLT; YOKE,TRANS
M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9811- ●
172 BRACKET; CENTER BRG 1-37515-105-0 01 1 9606-9609 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-105-0 01 1 9610-9810 ●
172 BRACKET; CENTER BRG 1-37515-067-1 01 1 9606-9609 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-067-1 01 1 9610-9810 ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-103-0 01 1 9610-9810 ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 9811- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9606-9810 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9811-0512 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9606-9810 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
çizim 43871
174 173 172 63 51 66 46 21 24 20 23 22 57 56 21 25 45 64 8 1 9 9 17 71 10 74 14 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=911 		1-37123-509-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=569 		1-37117-105-2 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=569 		1-37117-704-0 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1156 		1-37123-630-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=889 		1-37151-242-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=789 		1-37117-096-2 01 1 9606-9810 ●
1 SHAFT; PROP
(B) END L=1251 		1-37123-426-2 01 1 9606-9606 ●
1 SHAFT; PROP
FINAL GEAR 14.5"<B2V> (B) END L=1251 		1-37123-426-2 01 1 9607-9810 ●
1 SHAFT; PROP
(B) END L=1256 		1-37123-393-3 01 1 9811- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (B) END L=1216 		1-37123-465-0 01 1 9610-9810 ●
1 SHAFT; PROP
MBG5 M/T<X9W> (A) 1ST L=1404 		1-37117-709-0 01 1 9606-9810 ●
1 SHAFT; PROP
MBG6 M/T<X9X> (A) 1ST L=1299 		1-37151-240-0 01 1 9606-9810 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (C) 1ST L=1281 		1-37151-251-0 01 1 9610-9810 ●
1 SHAFT; PROP
(A) 1ST L=1286 		1-37151-583-1 01 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-056-3 01 1 9606-9810 ● ●
8 YOKE; FLANGE,PROP SHAFT
MBG5 M/T<X9W>,MBG6 M/T<X9X> (A) 1ST 		1-37211-056-3 01 1 9606-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9811- ●
8 YOKE; FLANGE,PROP SHAFT
(A) END 		1-37211-056-3 02 1 9606-9810 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (B) 1ST 		1-37211-041-0 01 1 9610-9810 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9811- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9606-9810 ● ●
9 JOURNAL ASM; PROP SHAFT
MBG5 M/T<X9W>,MLD6 M/T<X9Y> (A) 		1-37300-069-0 AR 1 9606-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9811-0512 ●
9 JOURNAL ASM; PROP SHAFT
MLD6 M/T<X9Y> (B) 		1-37300-083-0 AR 1 9610-9810 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-129-0 AR 1 0601- ●
10 BOLT; UJT
MLD6 M/T<X9Y> M8X20 		9-09802-702-0 AR 1 9610-9810 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD6 M/T<X9Y> 		1-37356-004-0 AR 1 9610-9810 ●
13 COVER; FRT UJT,PROP SHAFT
MLD6 M/T<X9Y> 		1-37355-002-1 AR 1 9610-9810 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9812- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9606-9810 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9811-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6 M/T<X9Y> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9610-9810 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9606-9810 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9811- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9606-9810 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9811- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9606-9810 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9811- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9606-9810 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9811- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9606-9810 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9811- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9606-9810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9811- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9606-9810 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9811-0605 ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9606-9810 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9811- ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 9606-9810 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9811- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9606-9810 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9811-0512 ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9606-9810 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9811-0603 ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9606-9810 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9606-9608 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9810 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9606-9810 ● ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9606-9810 ● ●
71 NUT; YOKE
MBG5 M/T<X9W>,MBG6 M/T<X9X> M14 		9-99110-514-0 04 1 9606-9810 ●
71 NUT; YOKE
MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 9610-9810 ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9811- ●
74 BOLT; YOKE,TRANS
M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X40 FLANGE 		0-28691-440-0 04 1 9606-9810 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9811- ●
172 BRACKET; CENTER BRG 1-37515-105-0 01 1 9606-9609 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-105-0 01 1 9610-9810 ●
172 BRACKET; CENTER BRG 1-37515-067-1 01 1 9606-9609 ●
172 BRACKET; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-067-1 01 1 9610-9810 ●
172 BRACKET; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-103-0 01 1 9610-9810 ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 9811- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9606-9810 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9811-0512 ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9606-9810 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
