Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#59748) — 312 parça

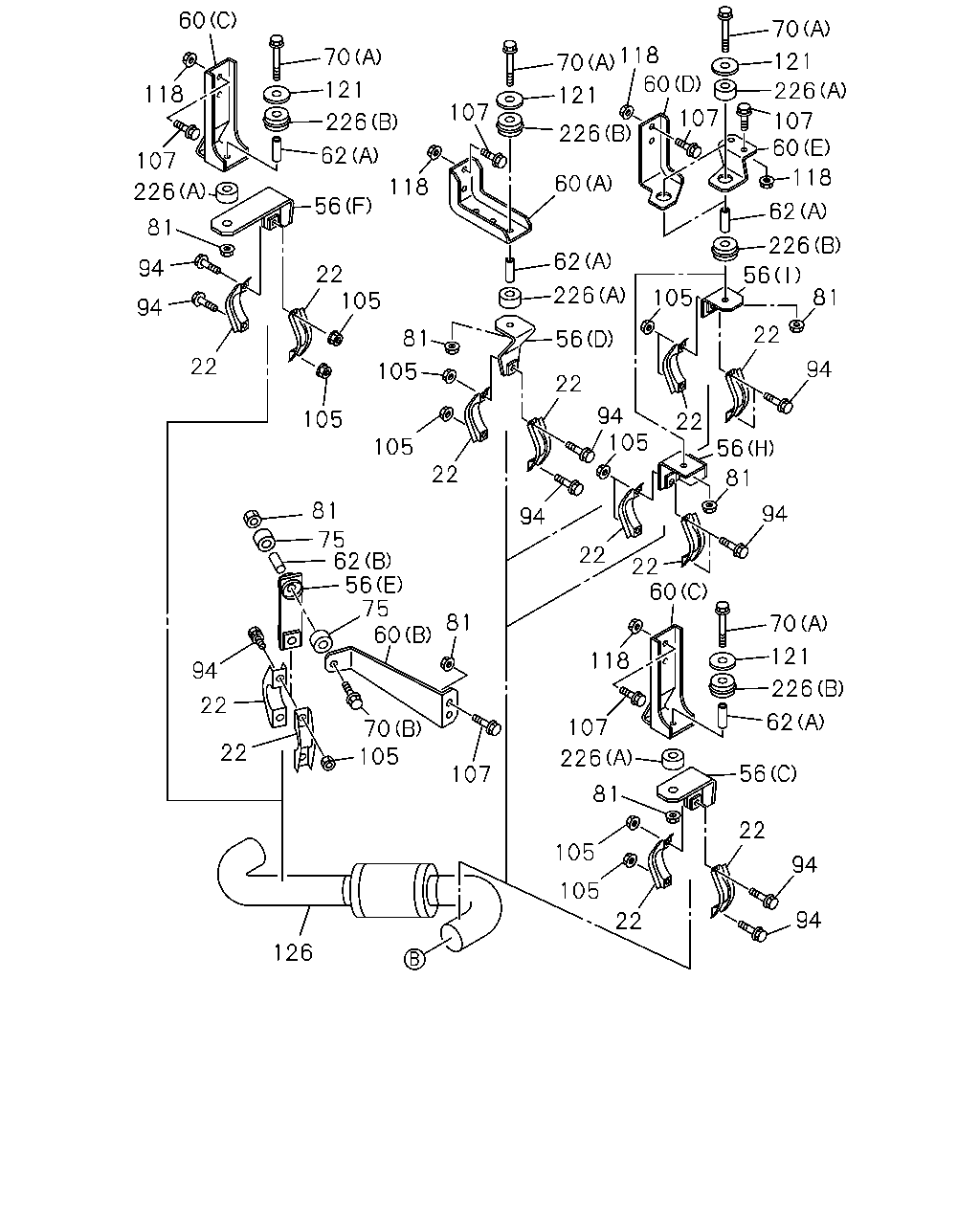

126 22 105 105 94 94 22 81 226 118 107 56 62 70 121 226 60 22 22 107 105 22 22 94 60 70 81 75 56 62 75 81 94 22 105 105 105 22 105 56 94 81 94 81 56 226 56 105 22 94 22 81 226 62 62 105 22 22 118 60 107 226 121 70 118 107 60 121 70 226 60 118 107 56 62 226 121 70 60 118 107 81 226 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0906-1011
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0906-1011
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1012-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (E) L=180	1-22131-521-1	01	1	0906-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (D)	8-98071-312-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (D)	8-98071-312-0	01	1	1012-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (I)	8-98234-013-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (A)	8-98078-088-1	01	1	0906-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	8-98078-089-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	8-98078-089-0	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (E) L=204	1-22131-520-1	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (E) L=204	1-22131-520-1	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	1-22152-324-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	1-22152-324-0	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	1012-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (H)	8-98233-450-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (G)	8-98072-104-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (G)	8-98072-104-0	01	1	1012-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (E)	8-98234-012-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	8-98070-640-0	01	1	0906-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	02	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	02	1	1012-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (B)	8-98070-641-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (B)	8-98070-641-0	01	1	1012-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1011
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W) (A) L=39	8-98060-852-0	02	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W) (A) L=39	8-98060-852-0	02	1	1012-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1011
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0906-1011
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-1005
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1011
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0906-1011
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1012-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1012-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1011
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0906-1011
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1012-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1012-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
107	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0906-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0906-
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W) ID=11 OD=54	1-09503-154-2	02	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W) ID=11 OD=54	1-09503-154-2	02	1	1012-
126	PIPE; EXH,RR WHEEL BASE 5000MM(50W)	8-98105-813-0	01	1	0906-1011
126	PIPE; EXH,RR WHEEL BASE 5000MM(50W)	8-98105-813-0	01	1	1012-1301
126	PIPE; EXH,RR WHEEL BASE 5000MM(50W)	8-98234-298-0	01	1	1302-
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W)	1-22126-646-2	01	1	0906-1011
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W)	1-22126-646-2	01	1	1012-1301
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W)	8-98233-519-0	01	1	1302-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (A)	8-94457-277-1	02	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (A)	8-94457-277-1	02	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (B)	8-94457-278-1	02	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (B)	8-94457-278-1	02	1	1012-

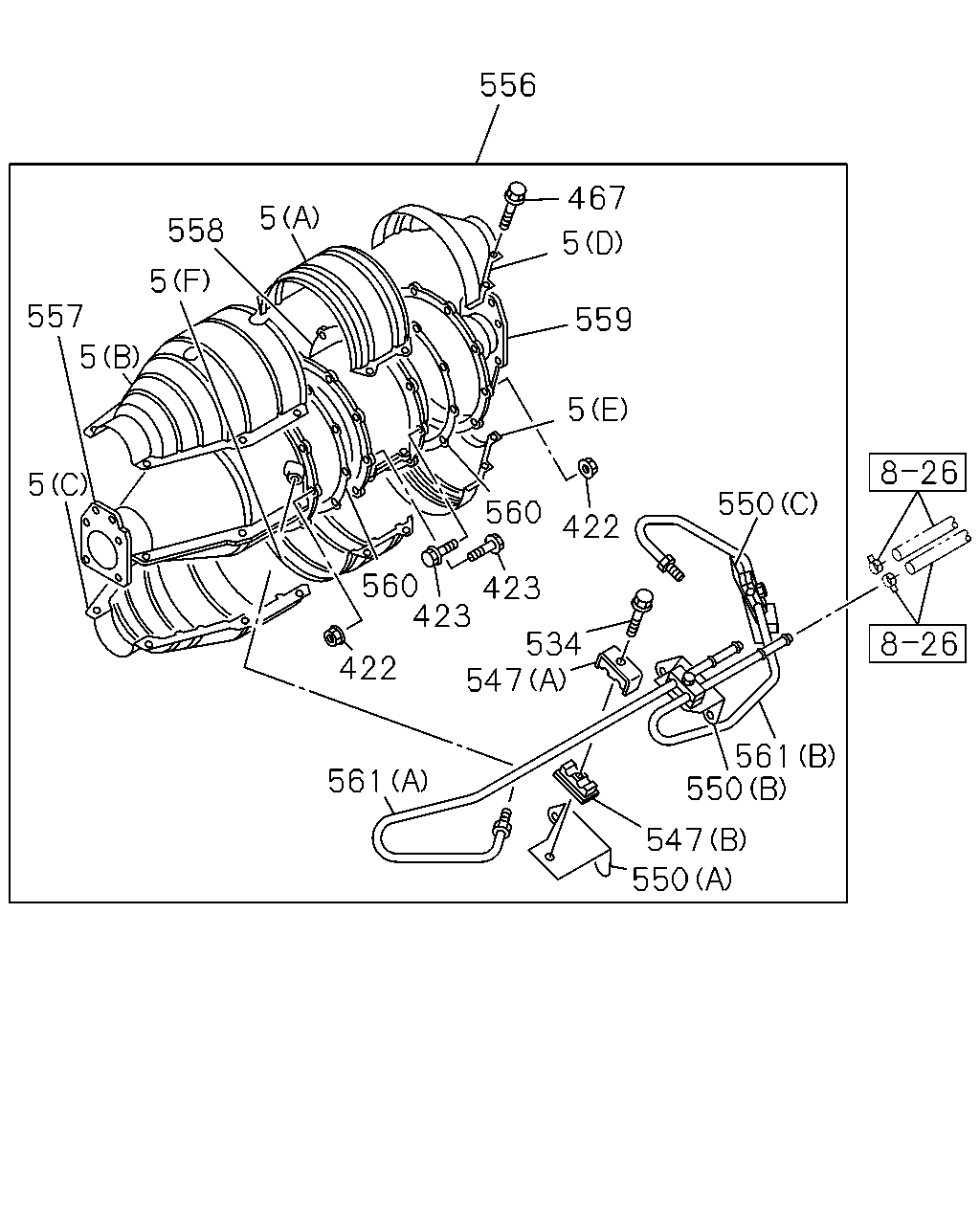

556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0906-
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0906-
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0906-
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0906-
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0906-
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0906-
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0906-1406
5	PROTECTOR; HEAT (G)	8-98255-001-0	01	1	1407-
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0906-
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0906-
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0906-
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0906-
547	CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	0906-
547	CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	0906-
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0906-
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0906-
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0906-
556	DPD ASM	8-97613-331-6	01	1	0906-1010
556	DPD ASM	8-97622-883-4	01	1	1011-
557	CATALYST ASM	8-97608-055-8	01	1	0906-
558	FILTER ASM	8-97608-057-3	01	1	0906-
559	COVER; RR	8-97611-078-0	01	1	0906-1010
559	COVER; RR	8-97622-887-0	01	1	1011-
560	GASKET; DPD	8-97611-080-0	02	1	0906-
561	PIPE; DPD (A)	8-97611-081-0	01	1	0906-1010
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-
561	PIPE; DPD (B)	8-97611-082-0	01	1	0906-1010
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-

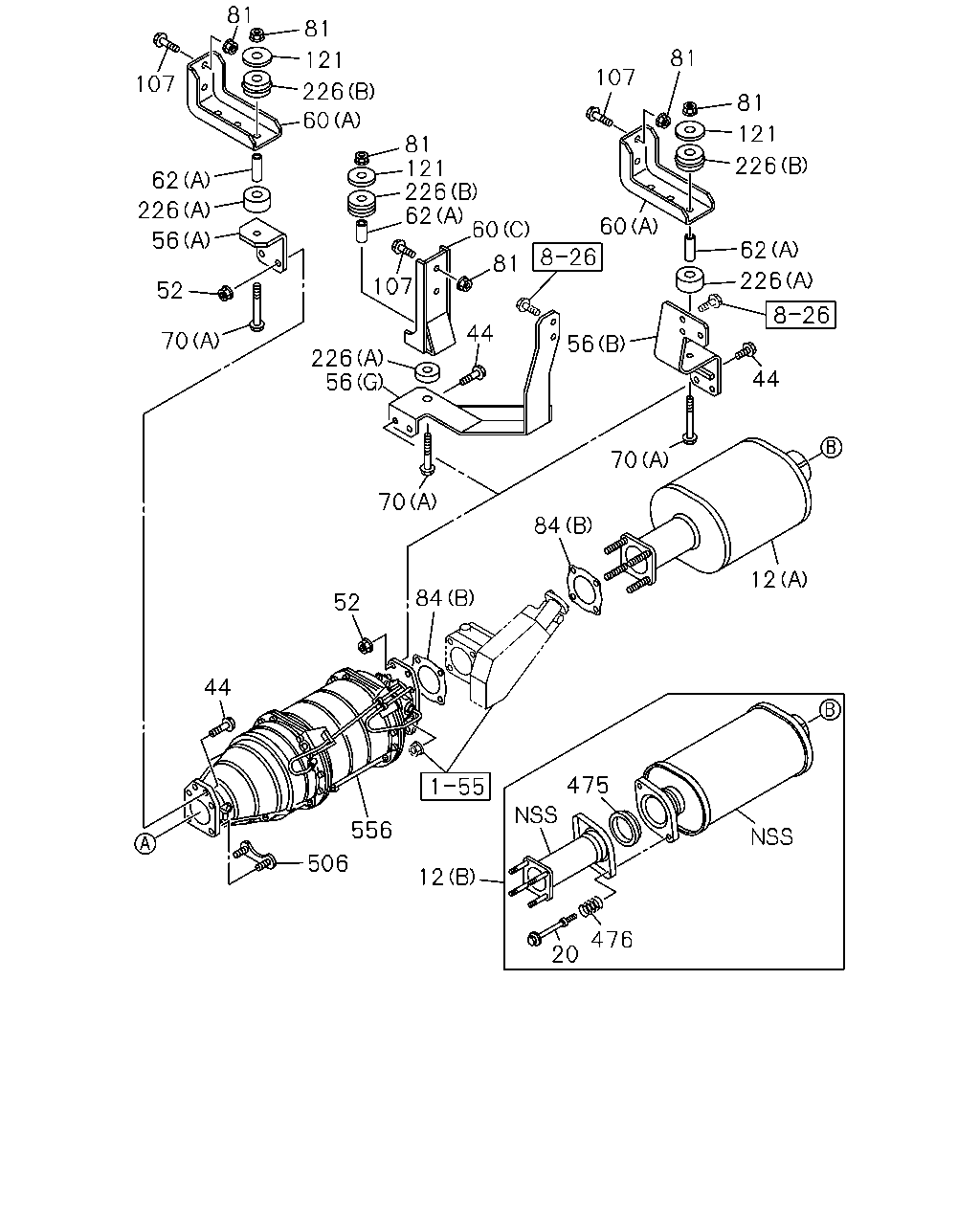

81 107 62 226 52 56 70 81 226 121 60 81 121 226 62 107 60 81 44 226 56 70 52 44 556 506 12 84 475 476 20 12 84 70 44 56 226 62 226 121 81 81 107 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0906-1301
12	SILENCER ASM; EXH (B)	8-98234-507-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0906-
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0906-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (E) L=180	1-22131-521-1	01	1	0906-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (D)	8-98071-312-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (D)	8-98071-312-0	01	1	1012-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (I)	8-98234-013-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (A)	8-98078-088-1	01	1	0906-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	8-98078-089-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (B)	8-98078-089-0	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (E) L=204	1-22131-520-1	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (E) L=204	1-22131-520-1	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	1-22152-324-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	1-22152-324-0	01	1	1012-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	1012-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (H)	8-98233-450-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (G)	8-98072-104-0	01	1	0906-1011
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (G)	8-98072-104-0	01	1	1012-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (E)	8-98234-012-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (A)	8-98070-622-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98070-622-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98245-531-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	8-98070-640-0	01	1	0906-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	8-98245-521-0	01	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	01	1	1012-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	02	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98070-628-0	02	1	1012-1309
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (C)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (B)	8-98070-641-0	01	1	0906-1011
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (B)	8-98070-641-0	01	1	1012-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0906-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1011
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1012-
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W) (A) L=39	8-98060-852-0	02	1	0906-1011
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W) (A) L=39	8-98060-852-0	02	1	1012-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0906-1011
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1012-
70	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE	0-28051-070-0	02	1	0906-1011
70	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0906-1005
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1006-1011
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1005
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1006-1011
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	02	1	1012-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
107	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	0906-
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1012-
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W) ID=11 OD=54	1-09503-154-2	02	1	0906-1011
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W) ID=11 OD=54	1-09503-154-2	02	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5000MM(50W) (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (A)	8-94457-277-1	02	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (A)	8-94457-277-1	02	1	1012-
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (B)	8-94457-278-1	02	1	0906-1011
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W) (B)	8-94457-278-1	02	1	1012-
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0906-
556	DPD ASM	8-97613-331-6	01	1	0906-1010
556	DPD ASM	8-97622-883-4	01	1	1011-

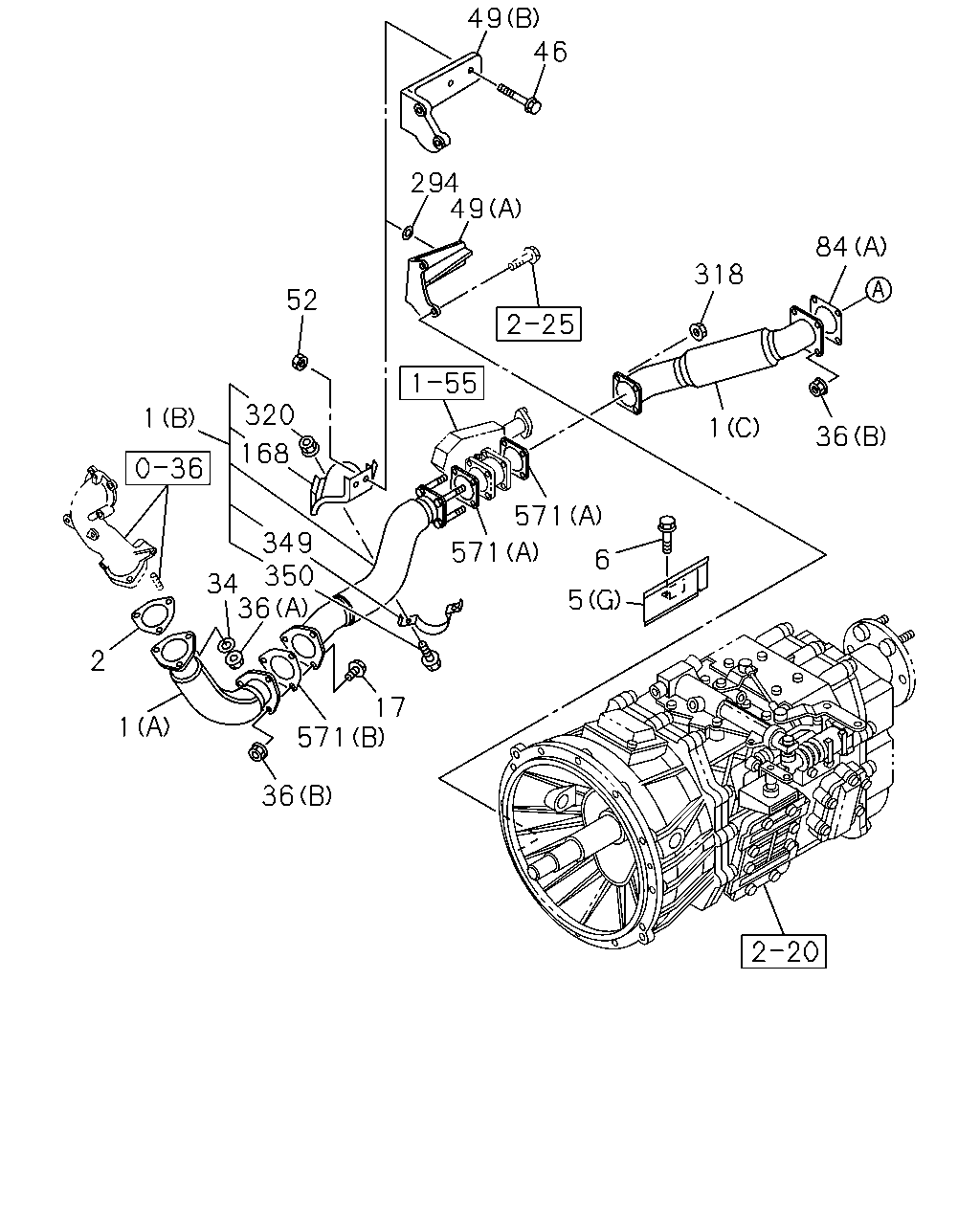

49 46 294 49 84 318 52 320 168 1 1 36 571 349 350 34 36 571 6 5 2 17 571 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (B)	8-98115-164-0	01	1	0906-1209
1	PIPE; EXH (B)	8-98220-351-0	01	1	1210-
1	PIPE; EXH (A)	8-98120-560-0	01	1	0906-1209
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-
1	PIPE; EXH WHEEL BASE 5000MM(50W) (C)	1-22123-892-1	01	1	0906-
1	PIPE; EXH WHEEL BASE 5500MM(55W) (C)	1-22123-984-1	01	1	0906-1011
1	PIPE; EXH WHEEL BASE 5500MM(55W) (C)	1-22123-984-1	01	1	1012-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	0906-
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0906-
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0906-
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0906-
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0906-
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0906-
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0906-
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0906-1406
5	PROTECTOR; HEAT (G)	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0906-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	0906-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0906-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0906-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0906-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0906-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (B)	8-98113-012-0	01	1	0906-
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98120-495-0	01	1	0906-
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98120-493-0	01	1	0906-
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0906-
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0906-
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	0906-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0906-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0906-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0906-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0906-
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	0906-
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0906-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0906-
571	GASKET (B) ID=81	8-98043-481-0	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
