Isuzu WW
▶
TRUCKS
▶
FTR
▶
11234 - FTR-RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#59746) — 37 parça
◀

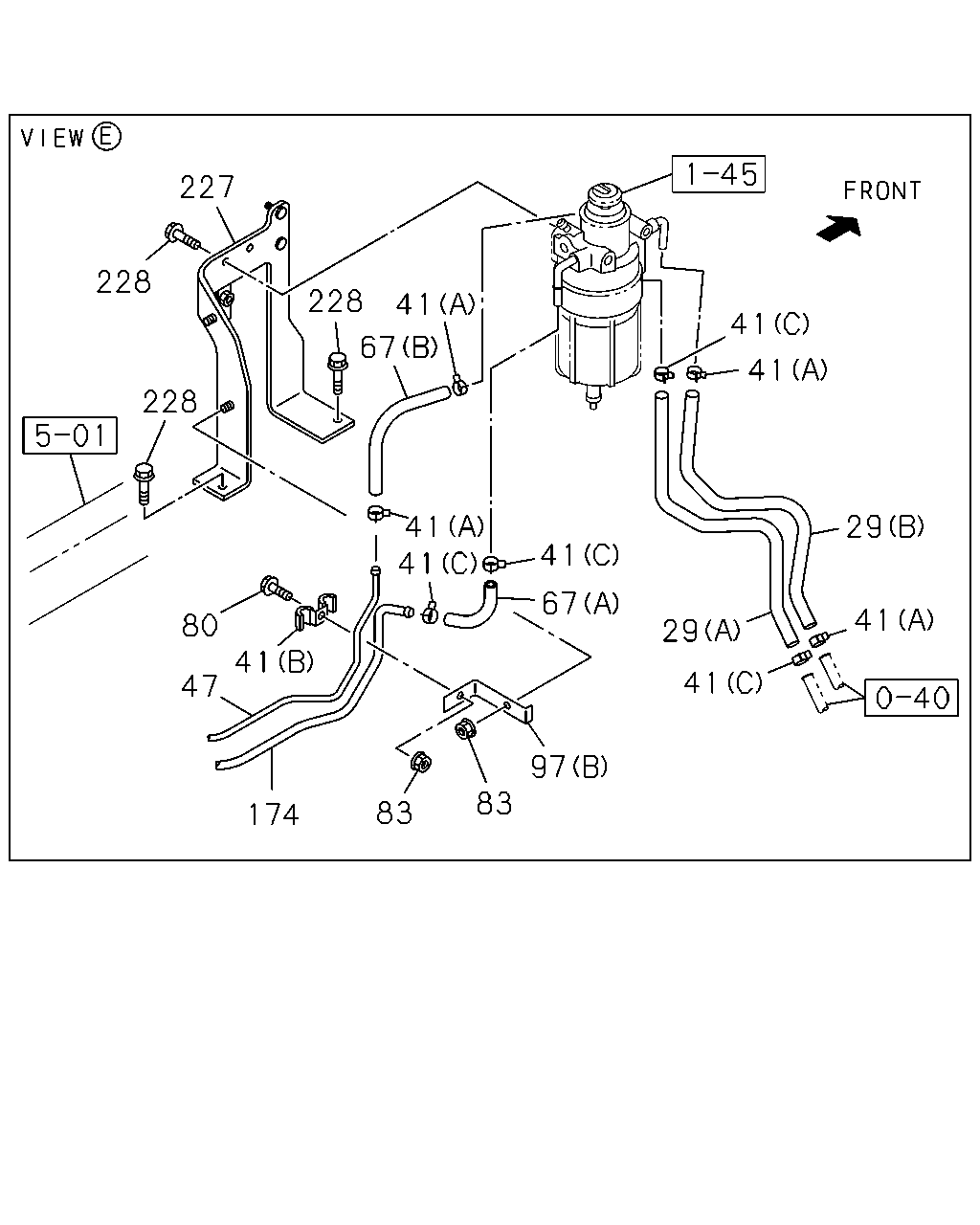

[141A] FUEL SEDIMENTER FIXING (19 parça)

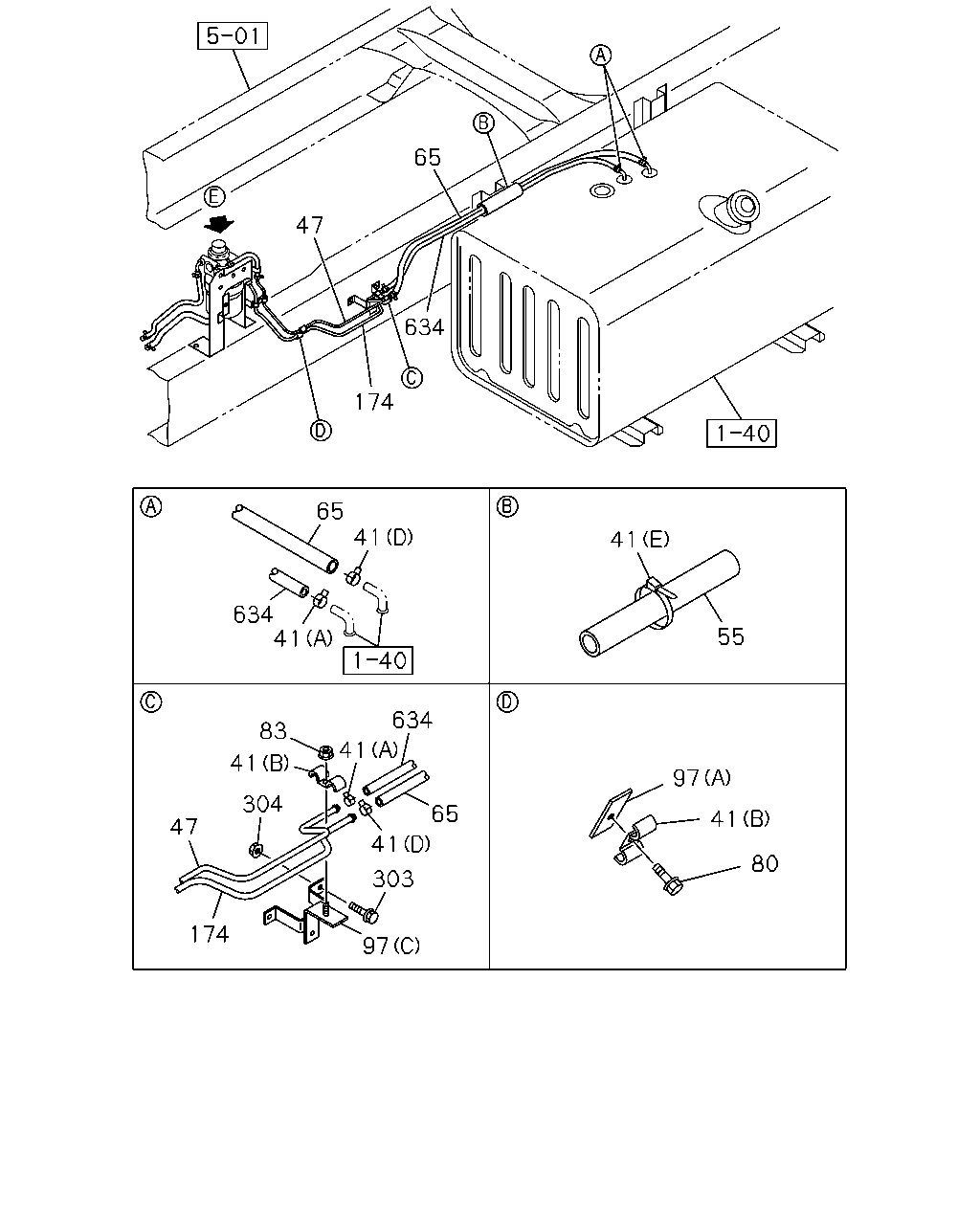

[141A] PIPING (18 parça)
▶
227
228
228
80
41
47
174
83
83
97
41
41
228
41
67
41
67
29
41
41
41
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(A)
8-98078-196-2
01
1
0906-
29
HOSE; FUEL
(B)
8-98078-197-1
01
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
03
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14
1-09704-102-0
04
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250
5-09707-030-1
03
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16
8-94238-568-0
02
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13
8-94238-571-0
06
1
0906-
47
PIPE; FUEL,RETURN
L=717
8-98086-241-0
01
1
0906-
67
HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
0906-
67
HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
0906-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
0906-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
03
1
0906-
97
BRACKET; CLIP
(A) L=50
1-47475-299-2
01
1
0906-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
0906-
97
BRACKET; CLIP
(C)
8-98076-024-0
01
1
0906-
174
PIPE; FUEL,FEED,FRT
L=724
8-98086-240-0
01
1
0906-
227
BRACKET; FUEL SEDIMENTER
8-98044-366-3
01
1
0906-
228
BOLT; BRKT,SEDIMENTER
M8X25 FLANGE
0-28050-825-0
02
1
0906-
228
BOLT; BRKT,SEDIMENTER
M8X20 FLANGE
0-28650-820-0
02
1
0906-
65
47
634
174
65
41
41
634
41
55
634
83
41
41
97
304
65
41
47
41
80
303
174
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
03
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14
1-09704-102-0
04
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250
5-09707-030-1
03
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16
8-94238-568-0
02
1
0906-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13
8-94238-571-0
06
1
0906-
47
PIPE; FUEL,RETURN
L=717
8-98086-241-0
01
1
0906-
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
03
1
0906-
65
HOSE; FUEL,DELIVERY PIPE
L=860 SERVICED BY L=3000
0-01260-300-0
01
1
0906-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
0906-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
03
1
0906-
97
BRACKET; CLIP
(A) L=50
1-47475-299-2
01
1
0906-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
0906-
97
BRACKET; CLIP
(C)
8-98076-024-0
01
1
0906-
174
PIPE; FUEL,FEED,FRT
L=724
8-98086-240-0
01
1
0906-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0906-1008
303
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1009-
304
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0906-
634
HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000
0-01558-300-0
01
1
0906-
