◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11408 - FVR(LHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#59736) — 122 parça

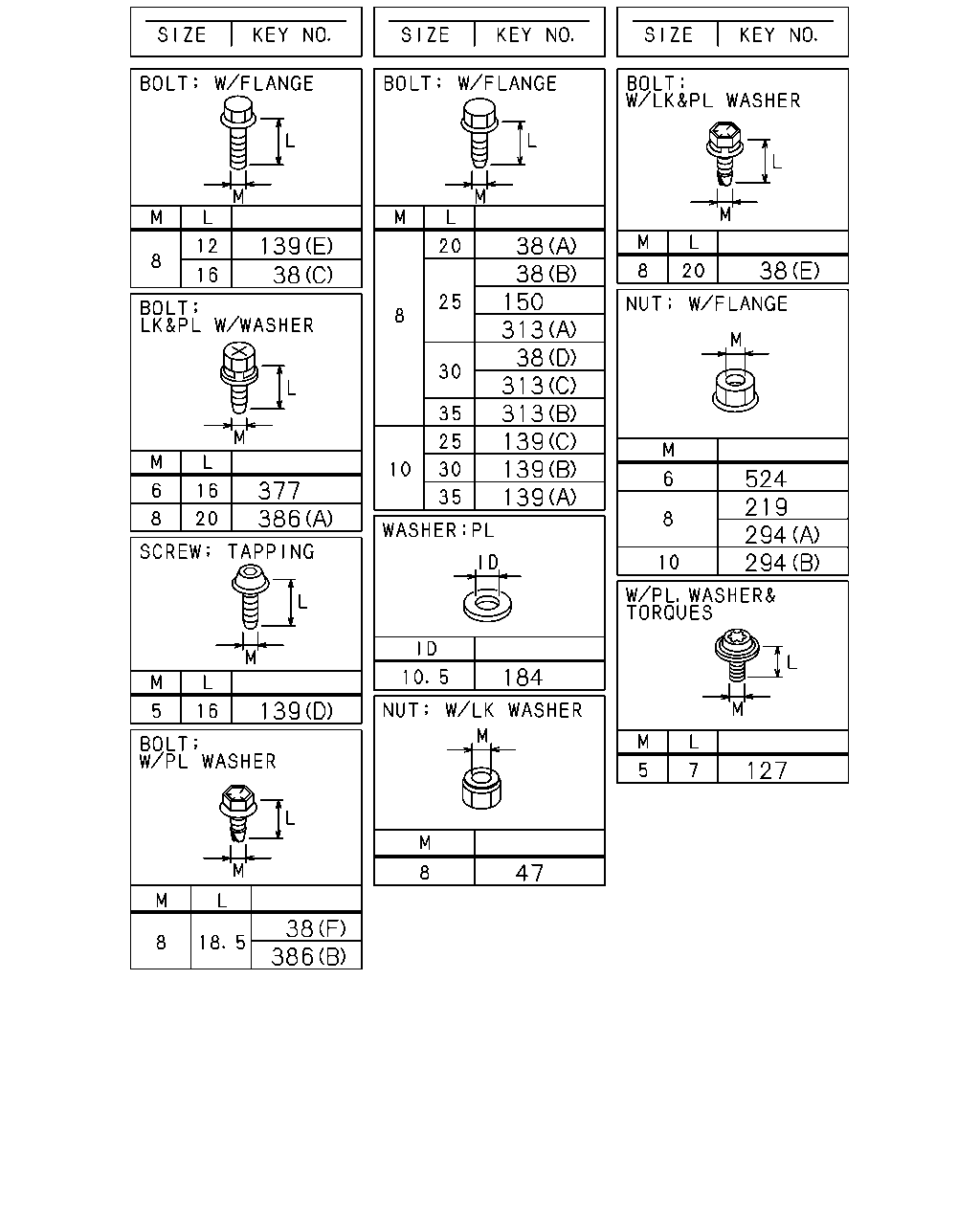

çizim 148420
139 38 377 386 139 38 386 38 38 150 313 38 313 313 39 139 139 184 47 38 524 219 294 294 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1510-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1110-1509
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1510-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1110-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1110-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1110-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1110-
139 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1110-
139 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 1110-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1110-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1110-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1110-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1110-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1110-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1110-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1110-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1110-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1110-

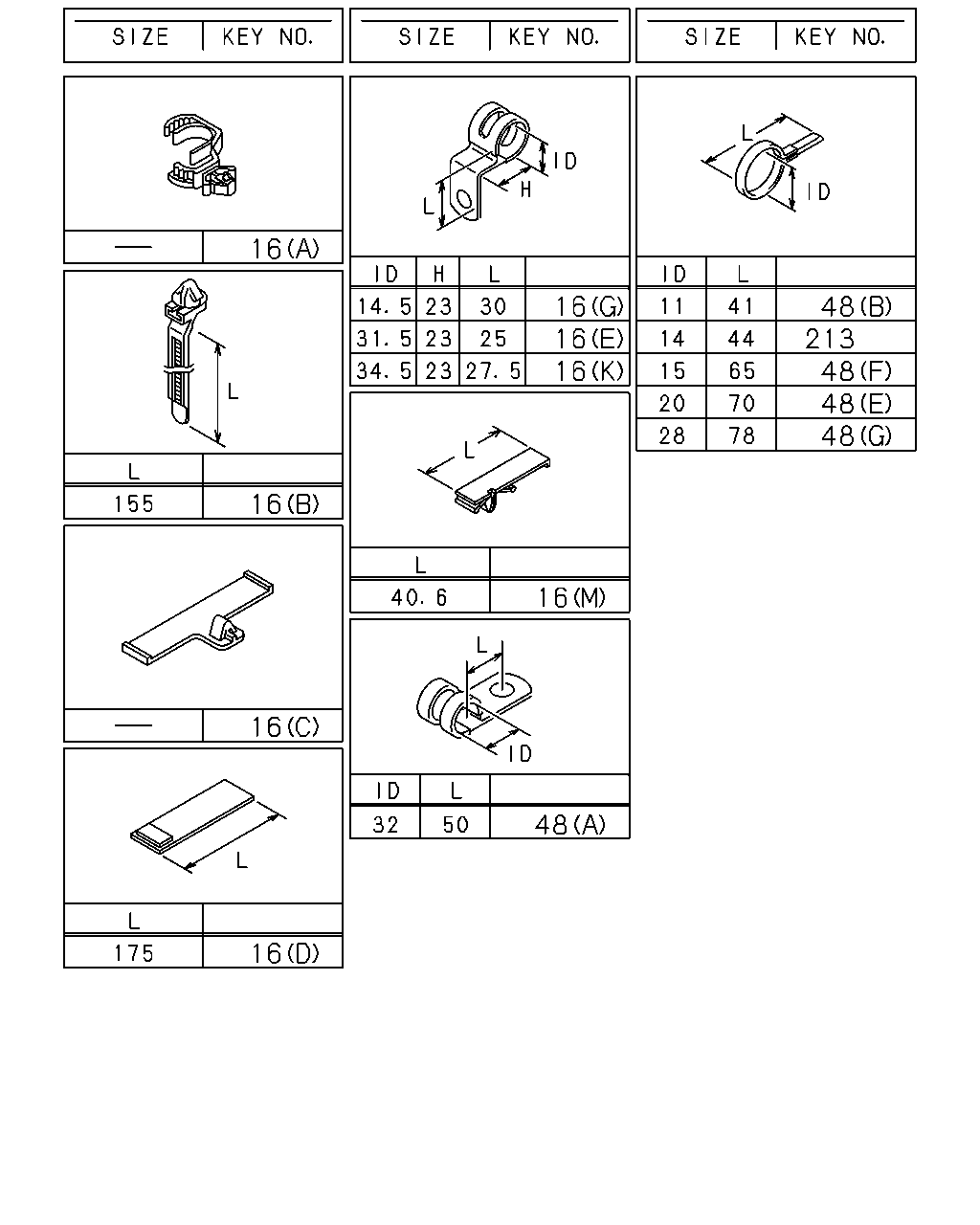

çizim 148437
16 16 16 16 48 213 48 48 48 16 16 16 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(L) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 1110-
16 CLIP; HARNESS
(I) ID=15 H=30 L=30 		1-09700-832-0 02 1 1110-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1110-
16 CLIP; HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1110-
16 CLIP; HARNESS
(D) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (M) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (M) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 01 1 1110-
48 CLIP; FRAME HARNESS
(A) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 01 1 1110-
48 CLIP; FRAME HARNESS
(E) ID=20 L=70 		1-09700-485-0 02 1 1110-1201
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (F) ID=15 L=65 		1-09700-466-0 04 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (E) ID=20 L=70 		1-09700-485-0 05 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (E) ID=20 L=70 		1-09700-485-0 06 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (F) ID=15 L=65 		1-09700-466-0 05 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (E) ID=20 L=70 		1-09700-485-0 08 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=15 L=65 		1-09700-466-0 06 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (E) ID=20 L=70 		1-09700-485-0 09 1 1110-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1110-

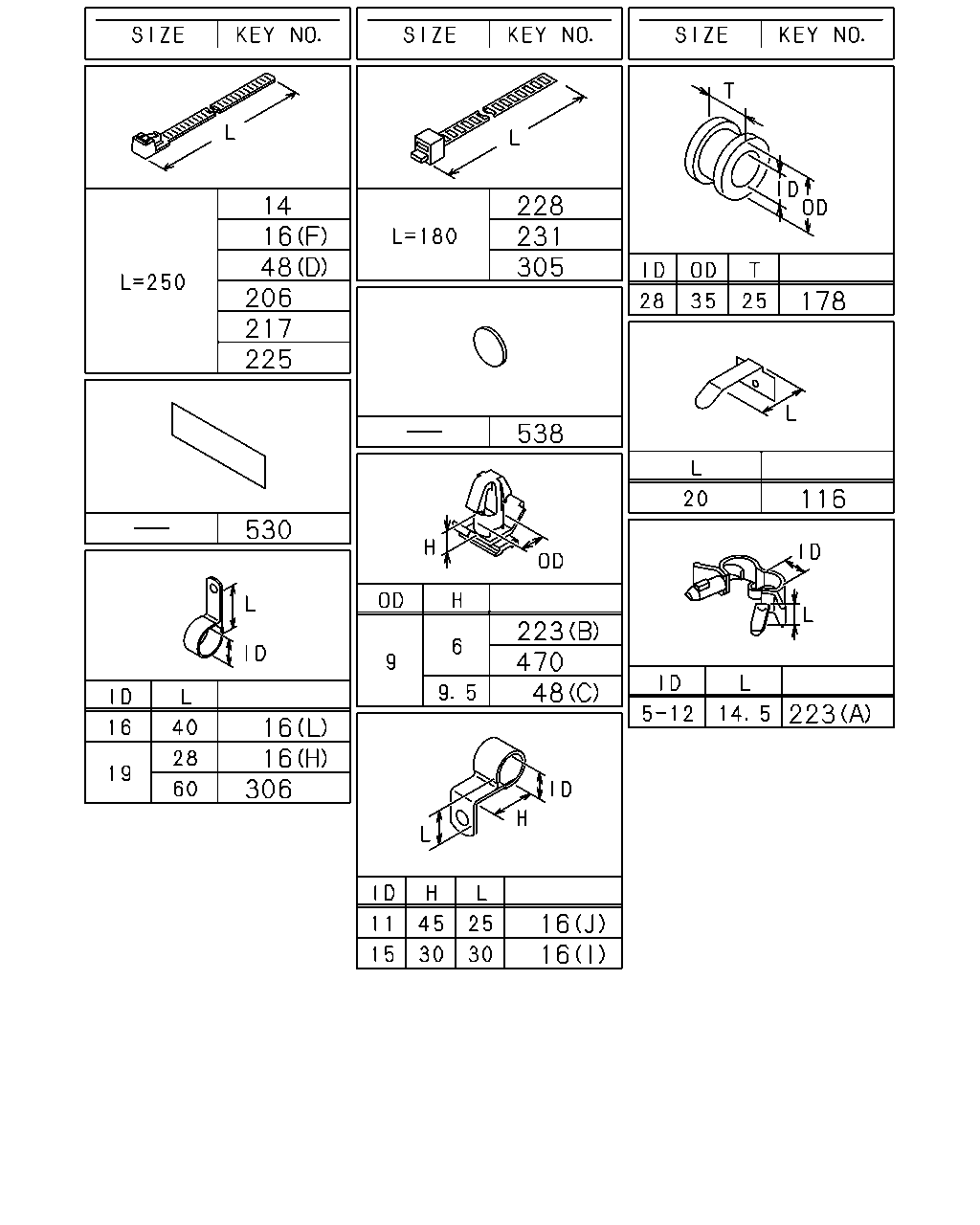

çizim 148443
228 231 305 14 16 48 206 217 225 178 538 116 530 223 470 48 223 16 16 306 16 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 1110-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(L) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 1110-
16 CLIP; HARNESS
(I) ID=15 H=30 L=30 		1-09700-832-0 02 1 1110-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1110-
16 CLIP; HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1110-
16 CLIP; HARNESS
(D) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (M) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (M) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 01 1 1110-
48 CLIP; FRAME HARNESS
(A) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 01 1 1110-
48 CLIP; FRAME HARNESS
(E) ID=20 L=70 		1-09700-485-0 02 1 1110-1201
48 CLIP; FRAME HARNESS
(F) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (F) ID=15 L=65 		1-09700-466-0 04 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (E) ID=20 L=70 		1-09700-485-0 05 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (E) ID=20 L=70 		1-09700-485-0 06 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (F) ID=15 L=65 		1-09700-466-0 05 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (E) ID=20 L=70 		1-09700-485-0 08 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=15 L=65 		1-09700-466-0 06 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (E) ID=20 L=70 		1-09700-485-0 09 1 1110-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1110-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 04 1 1110-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1110-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1110-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1110-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1110-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1110-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1110-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1110-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 1110-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 1110-
306 CLIP; HARNESS,ELEC GOV
ID=19 L=60 		0-95235-896-0 01 1 1110-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1110-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1110-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1110-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1110-

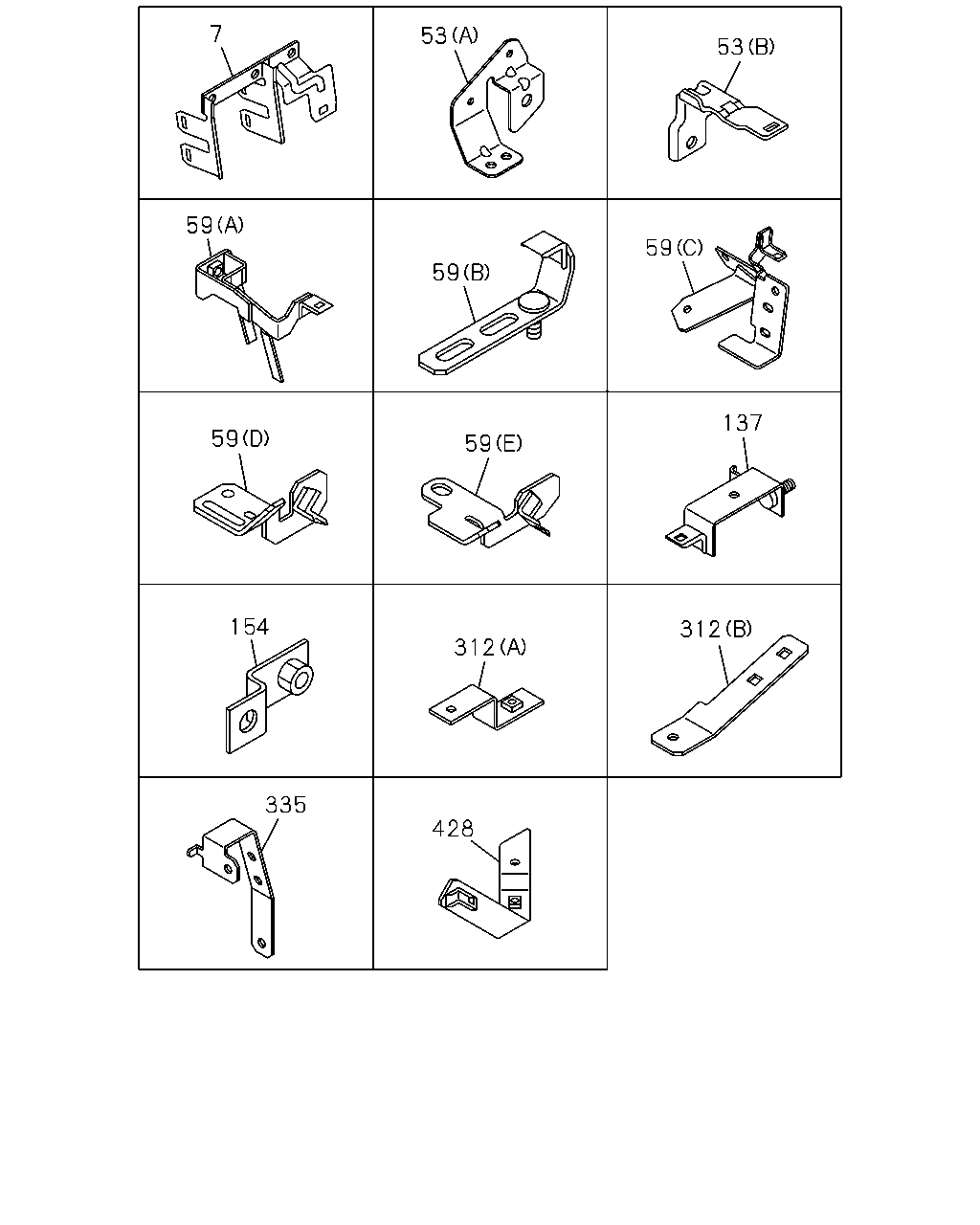

çizim 148446
137 312 59 53 53 59 59 312 428 335 154 59 59 7
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1110-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1110-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1110-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1110-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(B) 		8-98047-730-0 02 1 1110-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1110-
137 BRACKET; HARNESS CLAMP 8-98018-251-1 01 1 1110-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1110-
312 BRACKET; CLIP HARNESS
(B) 		8-98097-366-0 01 1 1110-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1110-
428 BRACKET 8-97620-514-0 01 1 1110-
