◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11408 - FVR(LHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#59735) — 81 parça

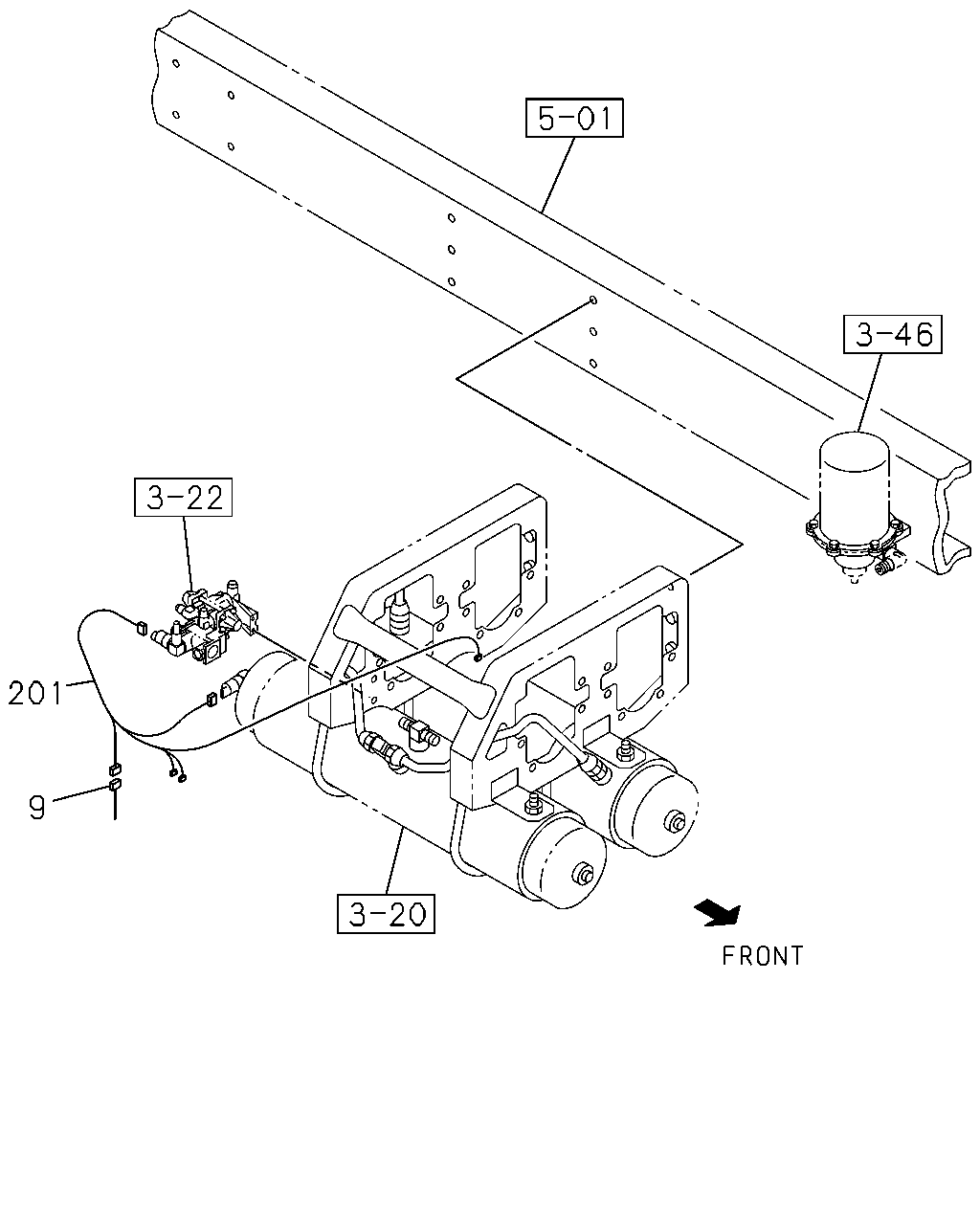

çizim 148414
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98168-653-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98168-654-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-655-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-656-0 01 1 1110-
201 HARNESS; AIR TANK 8-98178-658-2 01 1 1110-

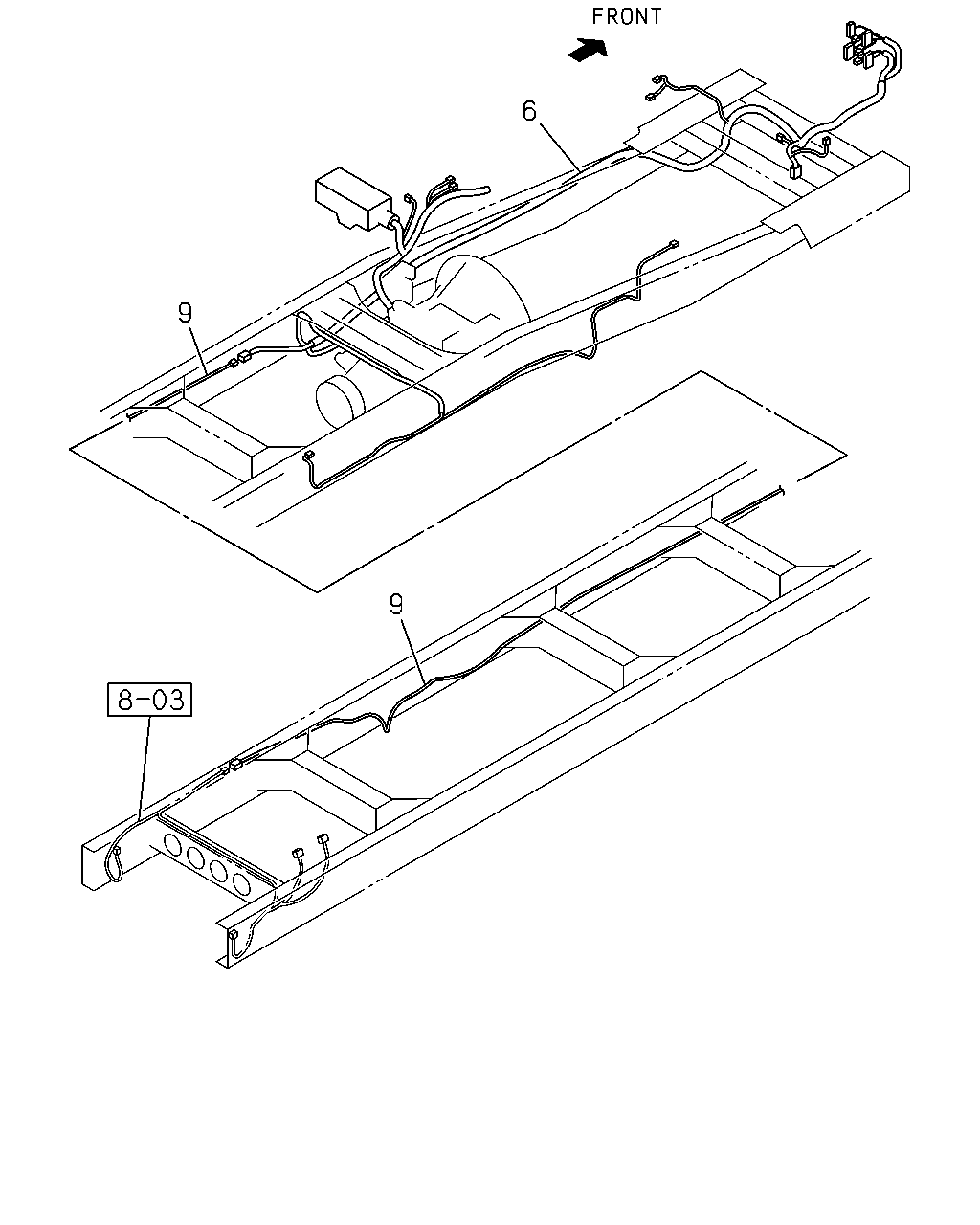

çizim 148415
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-647-2 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98168-653-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98168-654-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-655-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-656-0 01 1 1110-

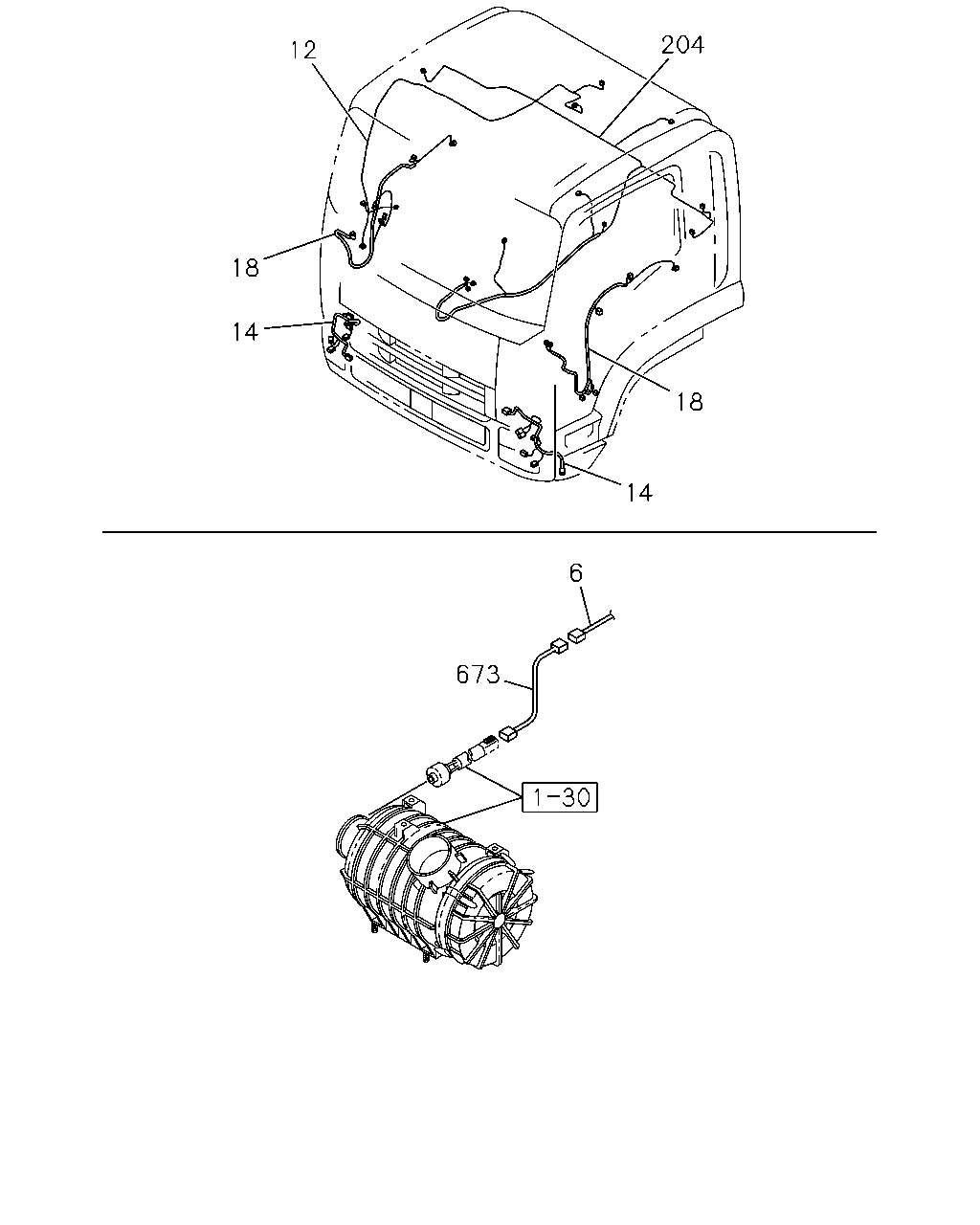

çizim 148417
204 12 18 14 18 14 6 673
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-647-2 01 1 1110-
12 HARNESS; ROOF 8-98085-335-1 01 1 1110-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1110-1306
14 HARNESS; HEADLAMP 8-94270-986-0 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-803-0 01 1 1110-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-804-0 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-801-0 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-802-0 01 1 1110-
204 HARNESS; CABLE,FLOOR 8-98085-307-1 01 1 1110-
673 HARNESS; EXT,SENSOR 8-98133-452-0 01 1 1110-

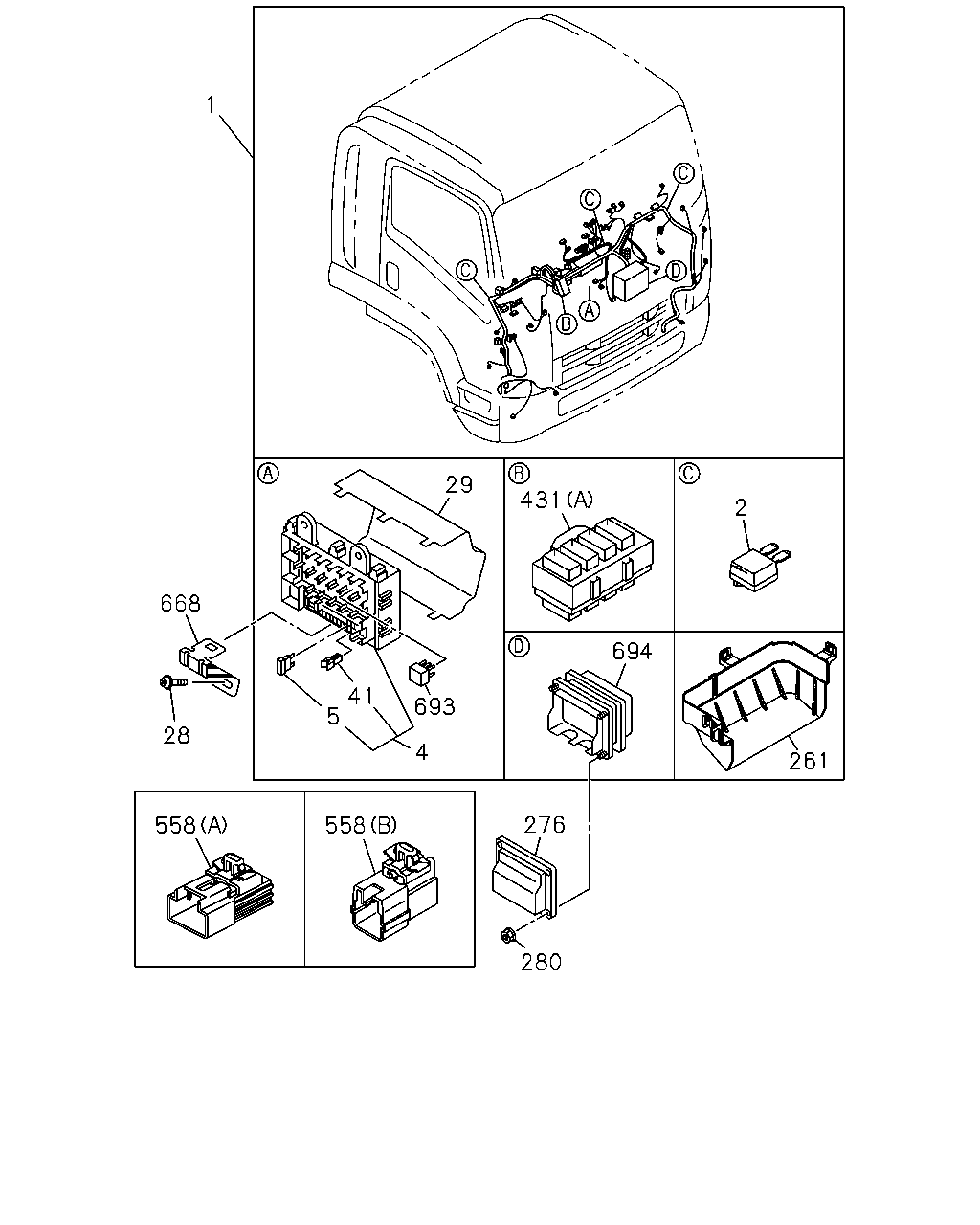

çizim 148422
1 431 29 2 668 694 41 5 693 28 4 261 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> 		8-98186-710-1 01 1 1110-1203
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98186-710-1 01 1 1110-1203
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98186-710-1 01 1 1110-1203
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> 		8-98186-710-1 01 1 1204-1504
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98186-710-1 01 1 1204-1504
1 HARNESS; CAB
FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98186-710-1 01 1 1204-1504
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> 		8-98220-288-0 01 1 1505-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98220-288-0 01 1 1505-
1 HARNESS; CAB
FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98220-288-0 01 1 1505-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98186-709-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98186-709-1 01 1 1204-1504
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98220-287-0 01 1 1505-
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1110-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1110-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1110-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1110-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1110-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1110-
41 PULLER; FUSE 8-98054-260-0 01 1 1110-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1110-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1110-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1110-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1110-
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1110-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1110-

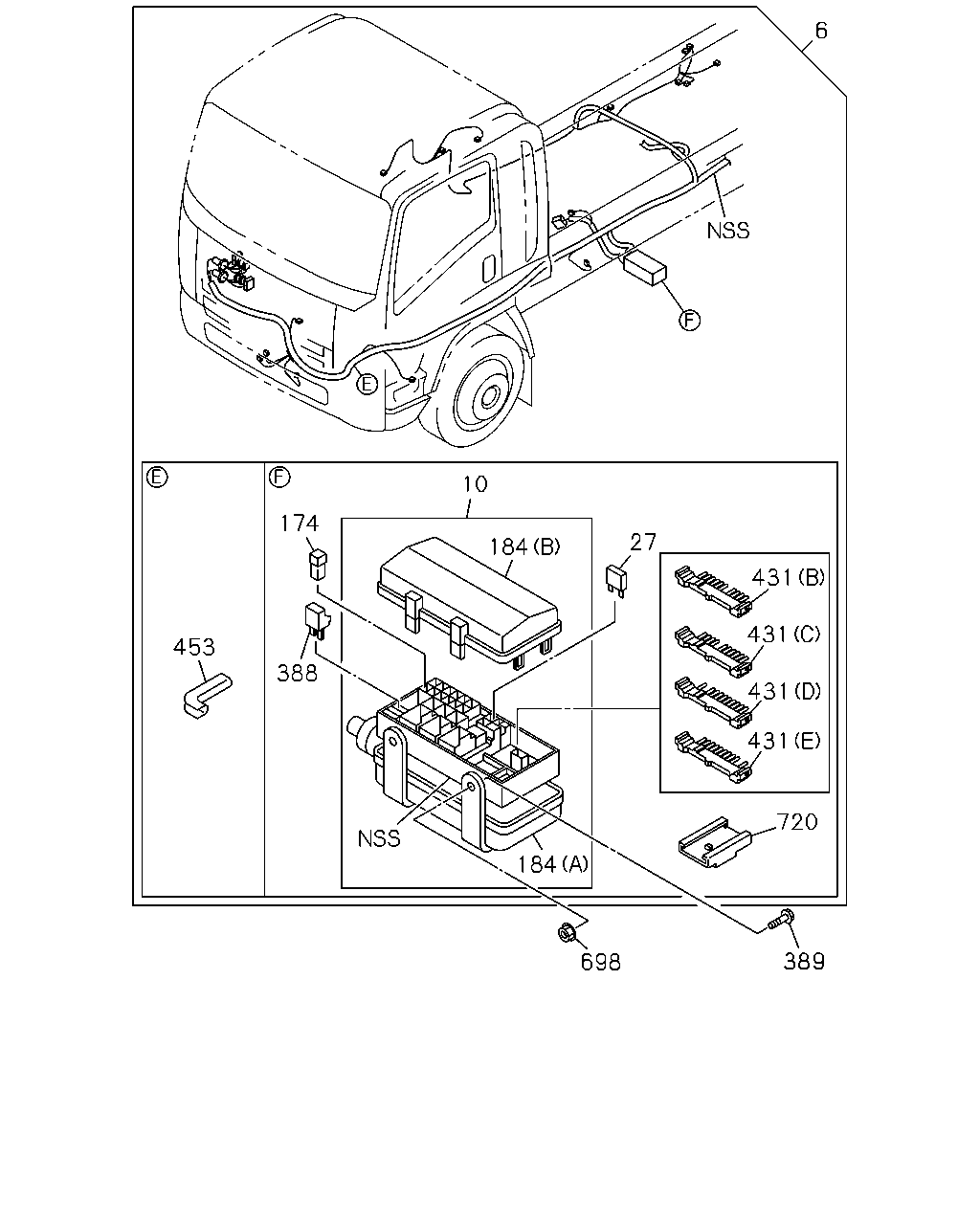

çizim 148425
6 10 174 27 184 431 431 453 388 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-647-2 01 1 1110-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1110-
27 FUSE UNIT
10A RED 		8-98054-257-0 02 1 1110-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1110-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1110-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1110-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1110-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1110-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1110-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1110-
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1110-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1110-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 02 1 1110-

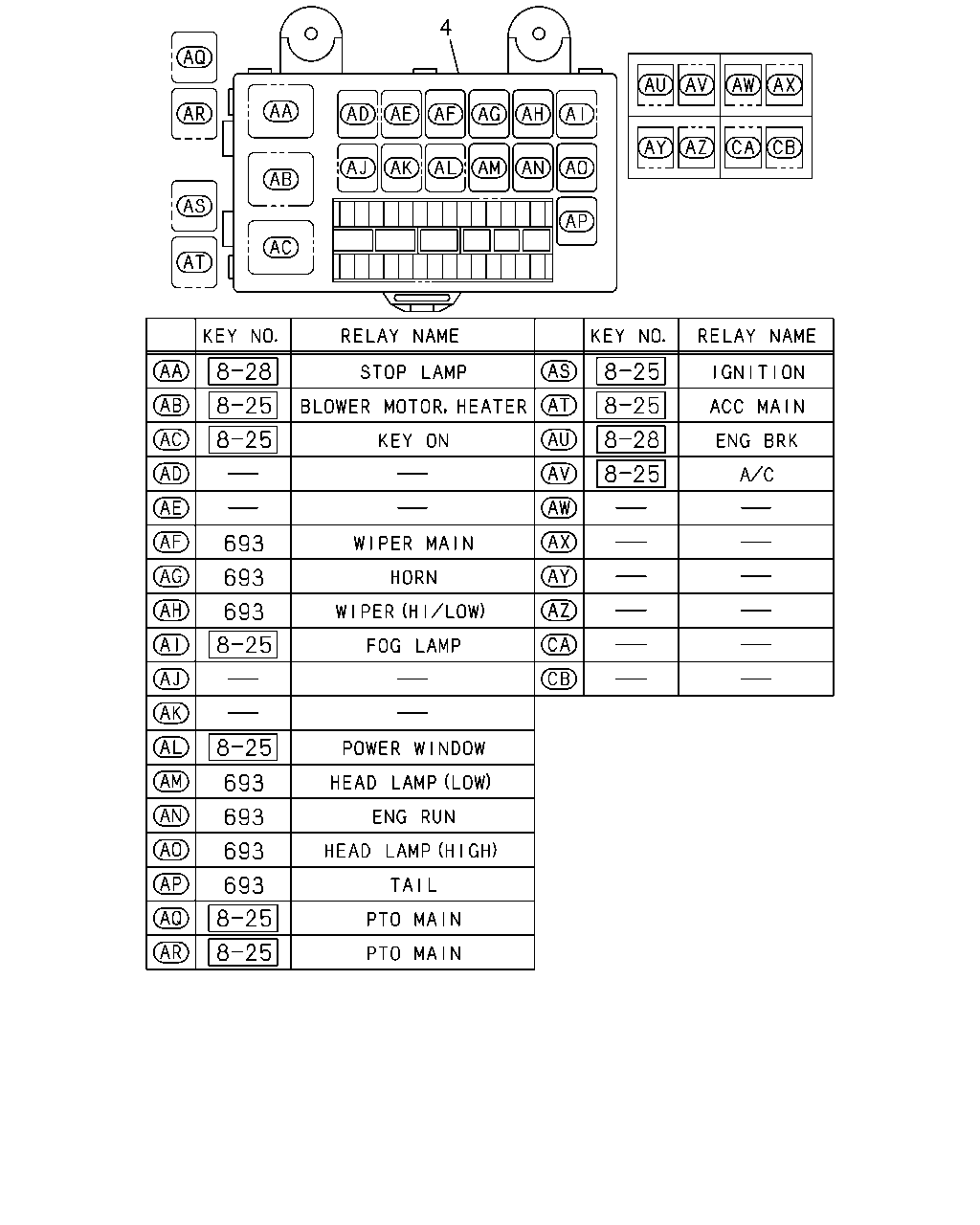

çizim 148442
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-

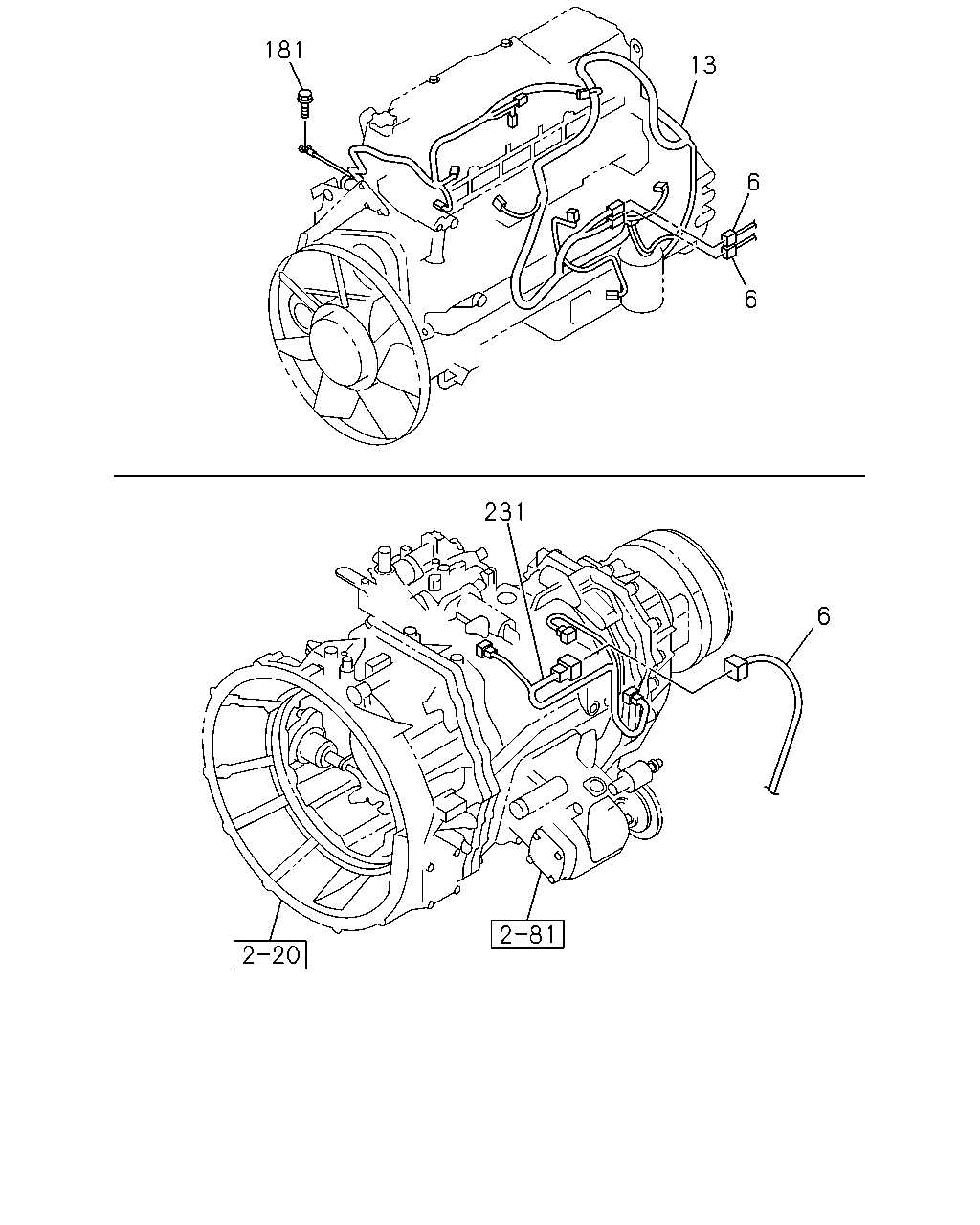

çizim 148462
181 13 6 6 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-647-2 01 1 1110-
13 HARNESS; ENG 8-98165-469-1 01 1 1110-
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 1110-
231 HARNESS; TRANS 8-98133-261-3 01 1 1110-1410
231 HARNESS; TRANS 8-98286-174-0 01 1 1411-
