Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#5973) — 275 parça

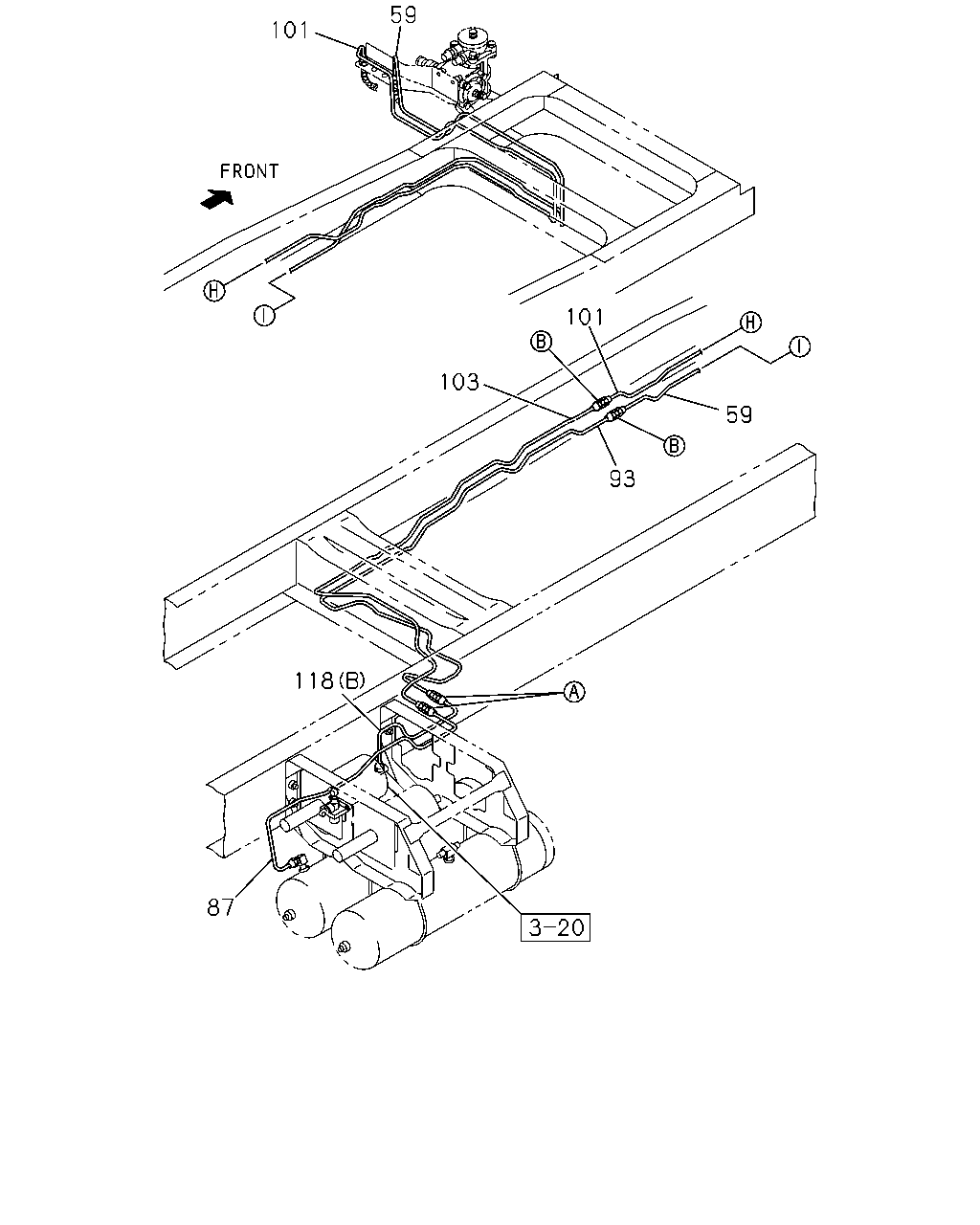

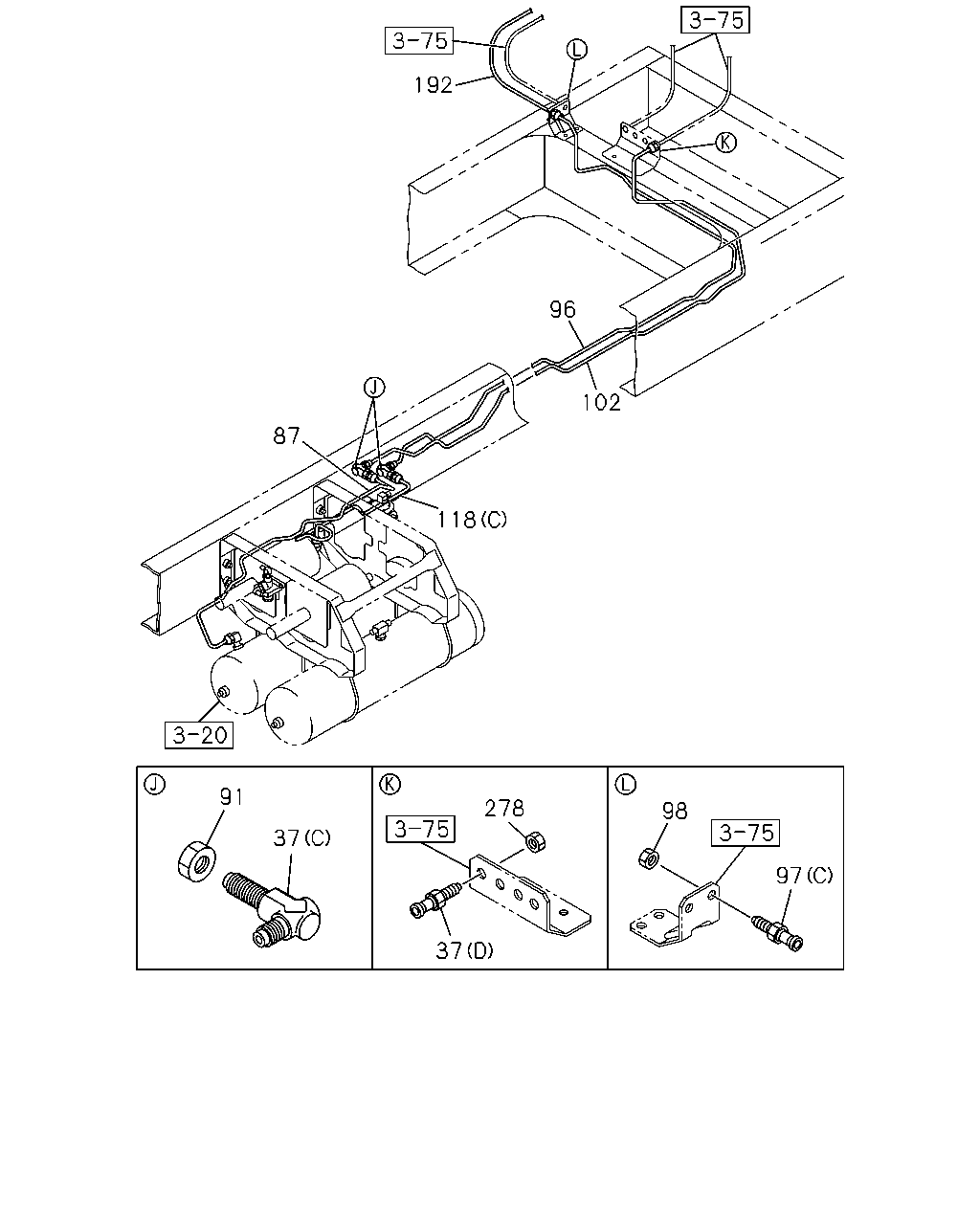

192 96 102 87 118 91 278 98 37 97 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-9609
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-9609
37	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16 L=42	9-09233-010-1	01	1	9610-9810
37	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16 L=42	9-09233-010-1	01	1	9610-9810
37	UNION; AIR PIPE (A) M16 L=74	9-09233-310-1	02	1	9606-9810
37	UNION; AIR PIPE (D)	1-09660-807-2	01	1	9811-
37	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-09660-807-2	02	1	9610-9810
37	UNION; AIR PIPE (C) M16 ELBOW	9-09235-210-1	02	1	9811-0607
37	UNION; AIR PIPE (C) M16 ELBOW	0-92135-210-0	02	1	0608-
87	PIPE; AIR,AIR TANK TO UNION L=1142 SERVICED BY L=1250	1-47426-416-0	01	1	9606-9810
87	PIPE; AIR,AIR TANK TO UNION	1-49116-275-0	01	1	9811-
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9606-0512
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-
96	PIPE; AIR,UNION TO UNION L=2978 SERVICED BY L=3300	1-47426-426-0	01	1	9811-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 2WAY	1-09654-176-2	01	1	9606-9810
97	UNION; AIR PIPE (C)	1-09660-807-2	01	1	9811-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	02	1	9606-9810
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-0512
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
102	PIPE; AIR,UNION TO UNION L=2701 SERVICED BY L=2900	1-47426-425-0	01	1	9811-
118	PIPE; AIR,UNION TO AIR MASTER (B) L=465 SERVICED BY L=600	1-47426-408-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (C)	1-49114-966-0	01	1	9811-
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
118	PIPE; AIR,UNION TO AIR MASTER EXC. DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
192	TUBE; NYLON HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	9610-9810
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
278	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9606-9810
278	NUT; UNION M16	9-99111-416-0	01	1	9811-0512
278	NUT; UNION M16	0-91111-516-0	01	1	0601-

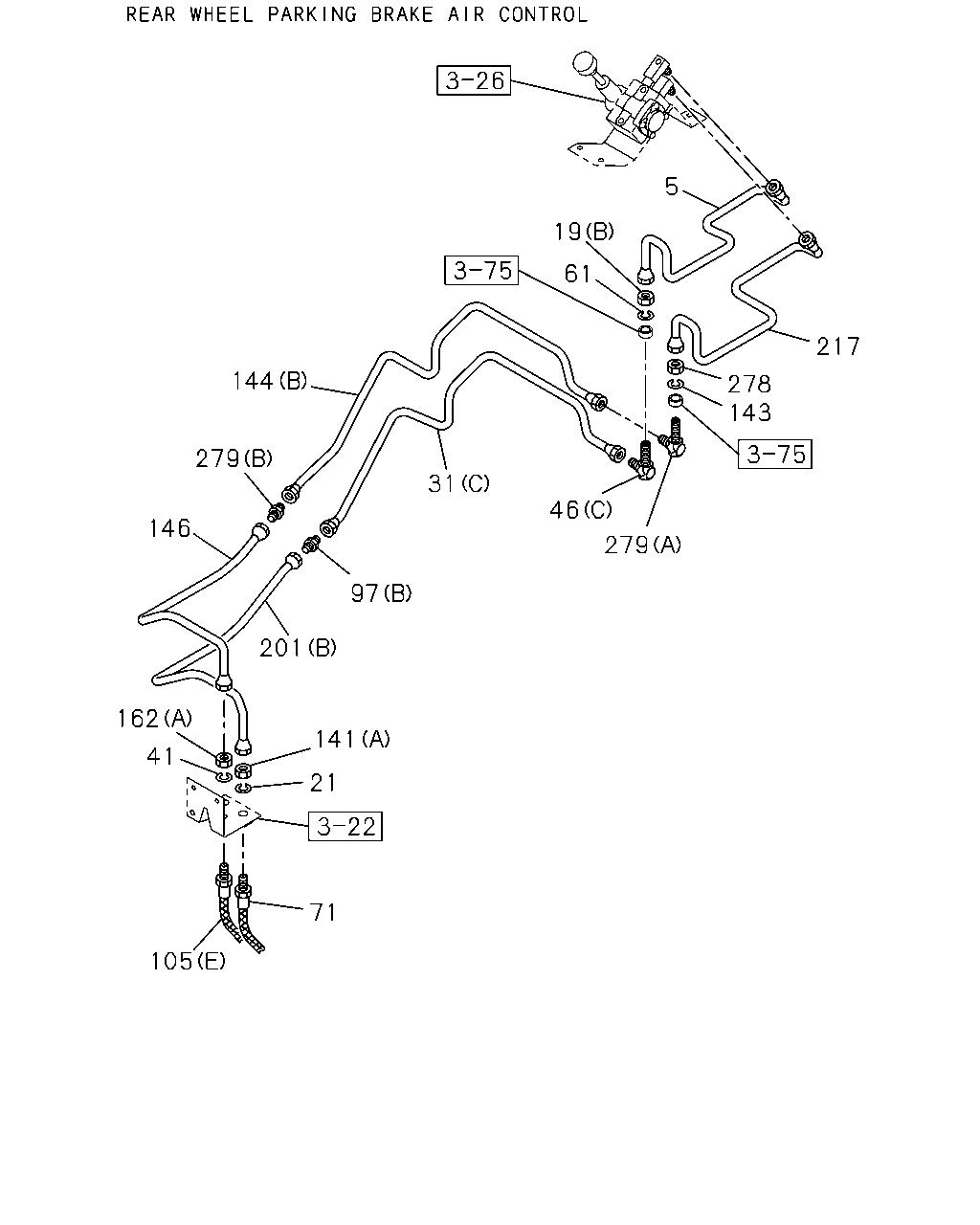

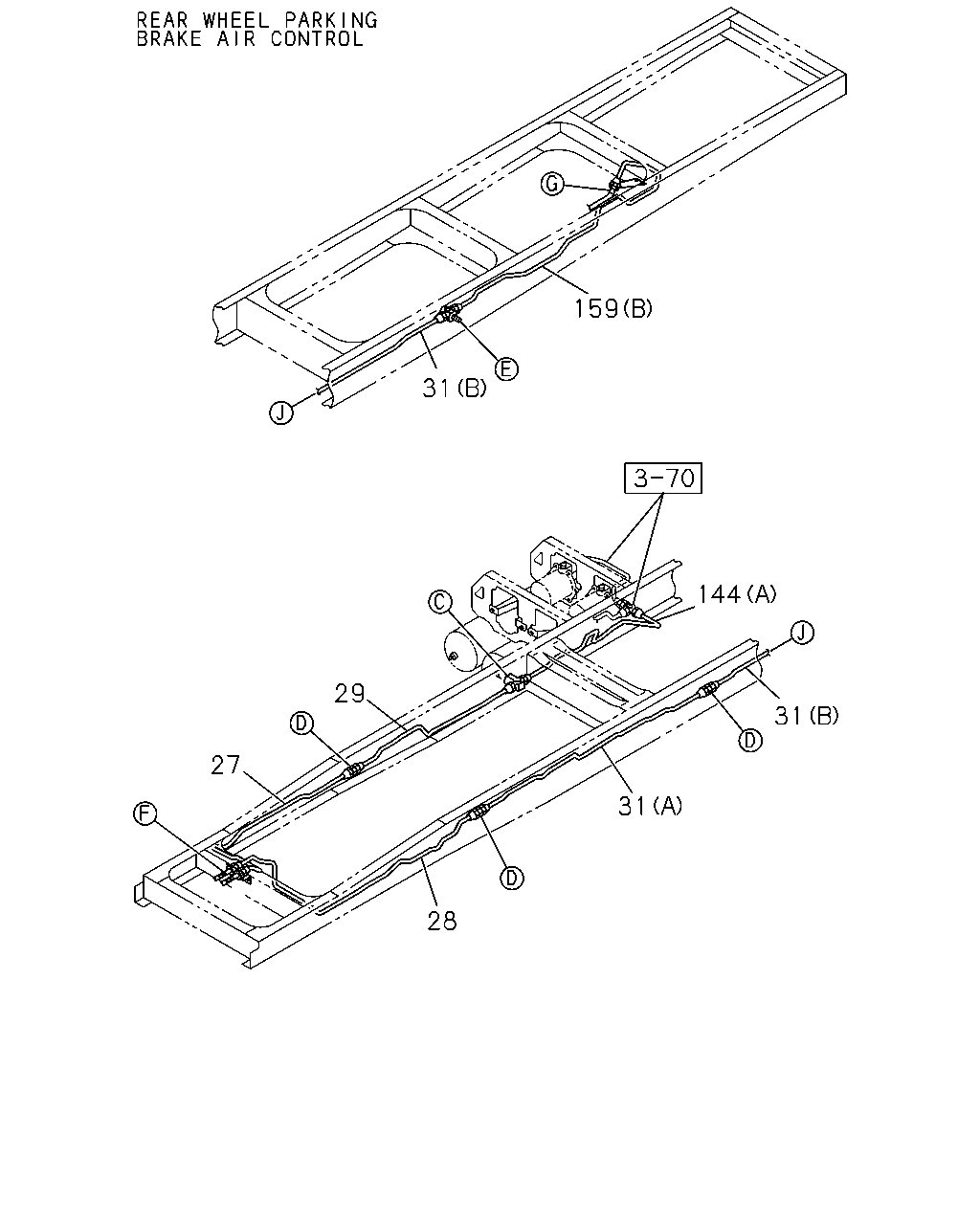

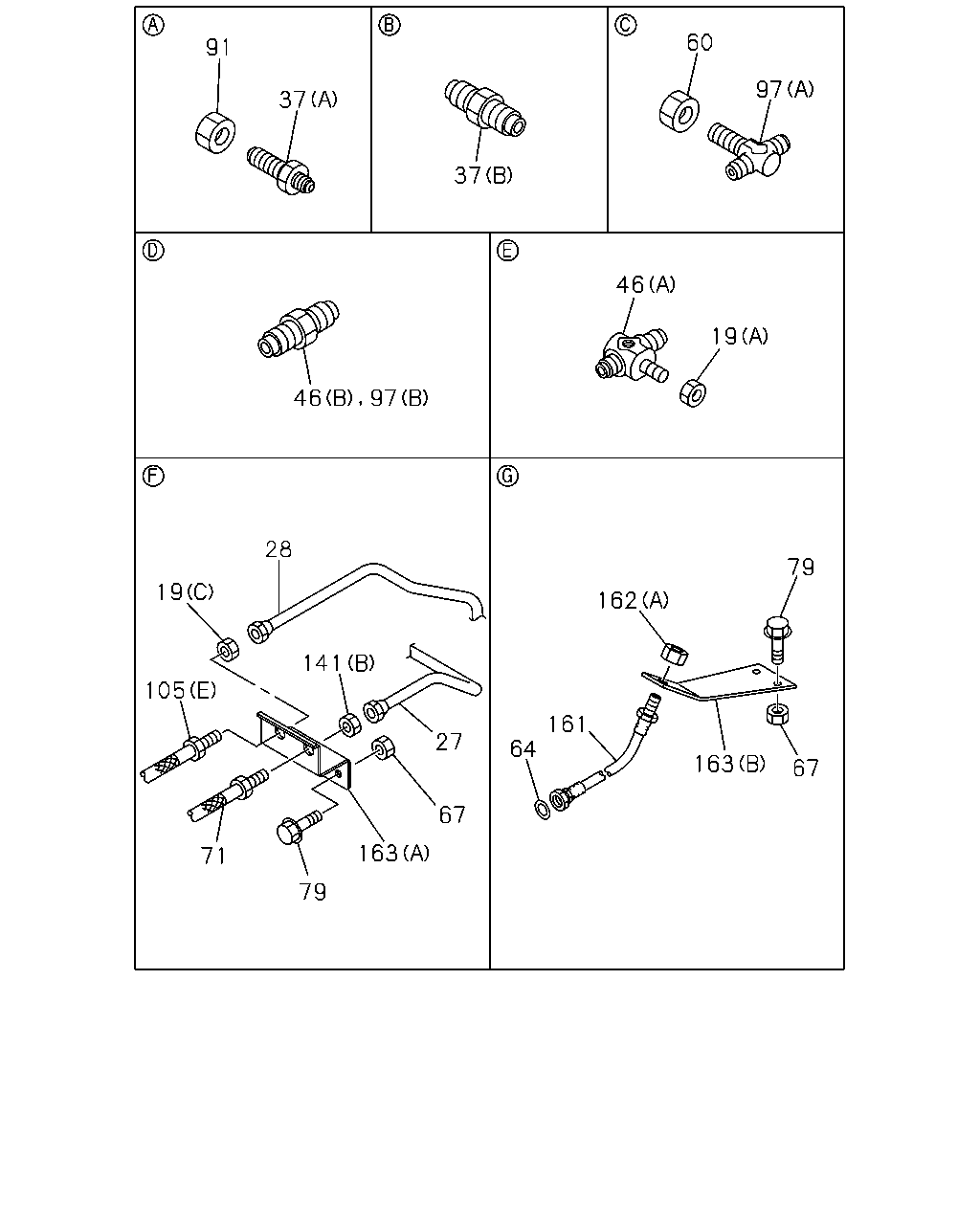

60 91 97 37 37 46 19 28 79 19 162 141 105 161 27 64 163 67 67 163 71 79 46 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14	9-99110-414-0	01	1	9606-9810
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12	9-99111-412-0	01	1	9606-9810
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99111-414-0	01	1	9606-9810
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1457 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9810
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-9609
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-9609
37	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16 L=42	9-09233-010-1	01	1	9610-9810
37	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16 L=42	9-09233-010-1	01	1	9610-9810
37	UNION; AIR PIPE (A) M16 L=74	9-09233-310-1	02	1	9606-9810
37	UNION; AIR PIPE (D)	1-09660-807-2	01	1	9811-
37	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-09660-807-2	02	1	9610-9810
37	UNION; AIR PIPE (C) M16 ELBOW	9-09235-210-1	02	1	9811-0607
37	UNION; AIR PIPE (C) M16 ELBOW	0-92135-210-0	02	1	0608-
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9606-9810
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9606-9810
46	NIPPLE; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9606-9810
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14	9-09225-208-1	01	1	9606-9810
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9606-9810
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9606-9810
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9606-9810
71	HOSE; FLEX,RWD RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	01	1	9606-9810
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	04	1	9606-9810
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9606-0512
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0601-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 2WAY	1-09654-176-2	01	1	9606-9810
97	UNION; AIR PIPE (C)	1-09660-807-2	01	1	9811-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	02	1	9606-9810
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (B) L=810	0-07210-810-0	01	1	9606-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (C) L=850	0-07210-850-0	01	1	9606-9810
105	HOSE; FLEX EXC. DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9610-9810
105	HOSE; FLEX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=380	0-07402-380-0	01	1	9606-9810
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99110-414-0	01	1	9606-9810
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9606-9810
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9606-9810
162	NUT; FLEX HOSE (B) M16	9-99111-416-0	02	1	9606-9609
162	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16	9-99111-416-0	02	1	9610-9810
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9606-9810
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47475-464-0	01	1	9606-9810
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-725-0	01	1	9606-9810

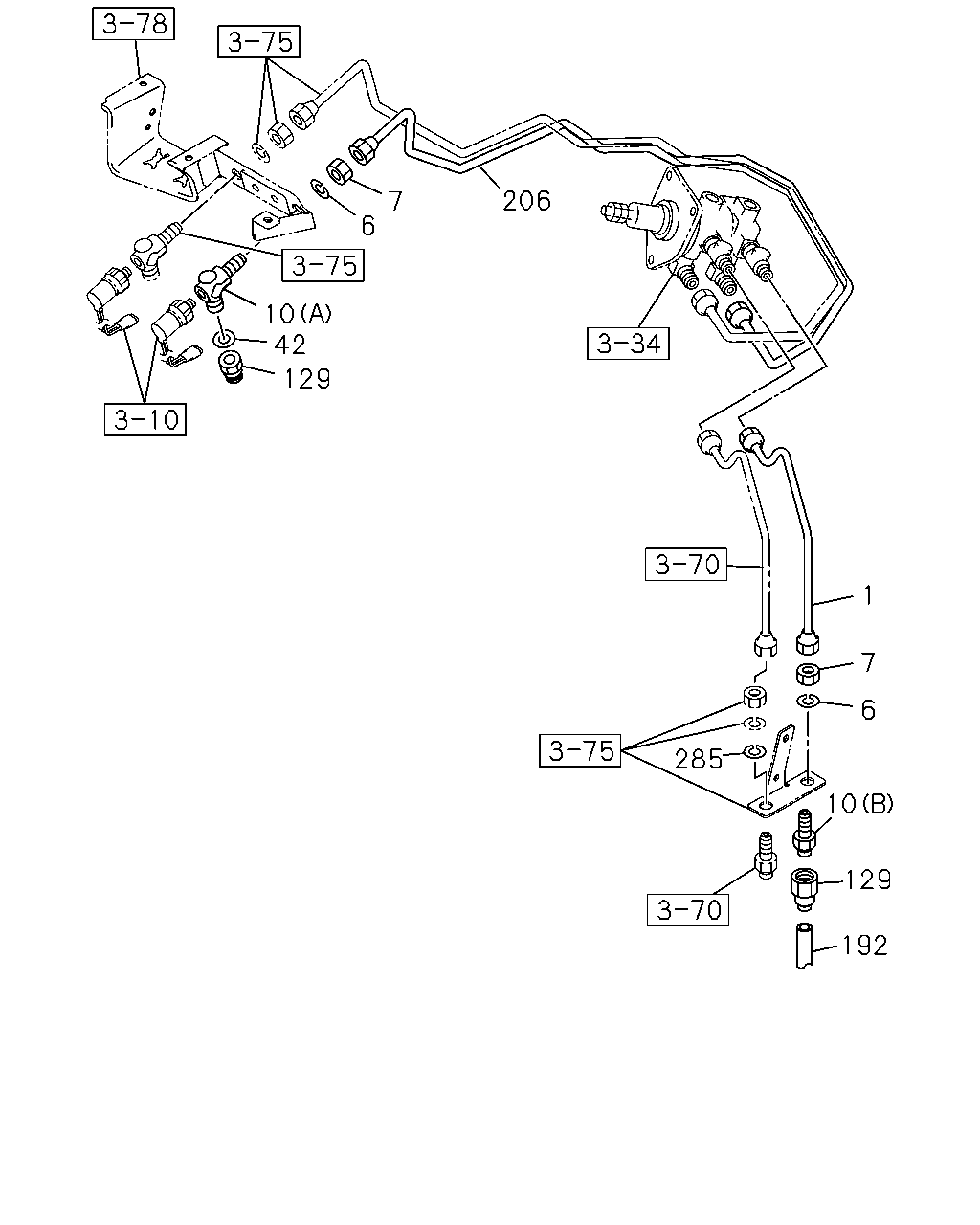

206 7 6 10 42 129 1 7 6 285 10 129 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-49116-436-1	01	1	9811-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9606-9609
6	WASHER; LK,FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9606-9609
7	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	9-99111-416-0	02	1	9610-9810
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9811-0512
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9811-
10	CONNECTOR; FLEX HOSE (A)	1-09656-700-0	01	1	9811-
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9811-
129	CONNECTOR; NYLON TUBE	1-09660-728-1	02	1	9811-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
192	TUBE; NYLON HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	9610-9810
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1145	1-49116-438-0	01	1	9811-
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9811-0605
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-

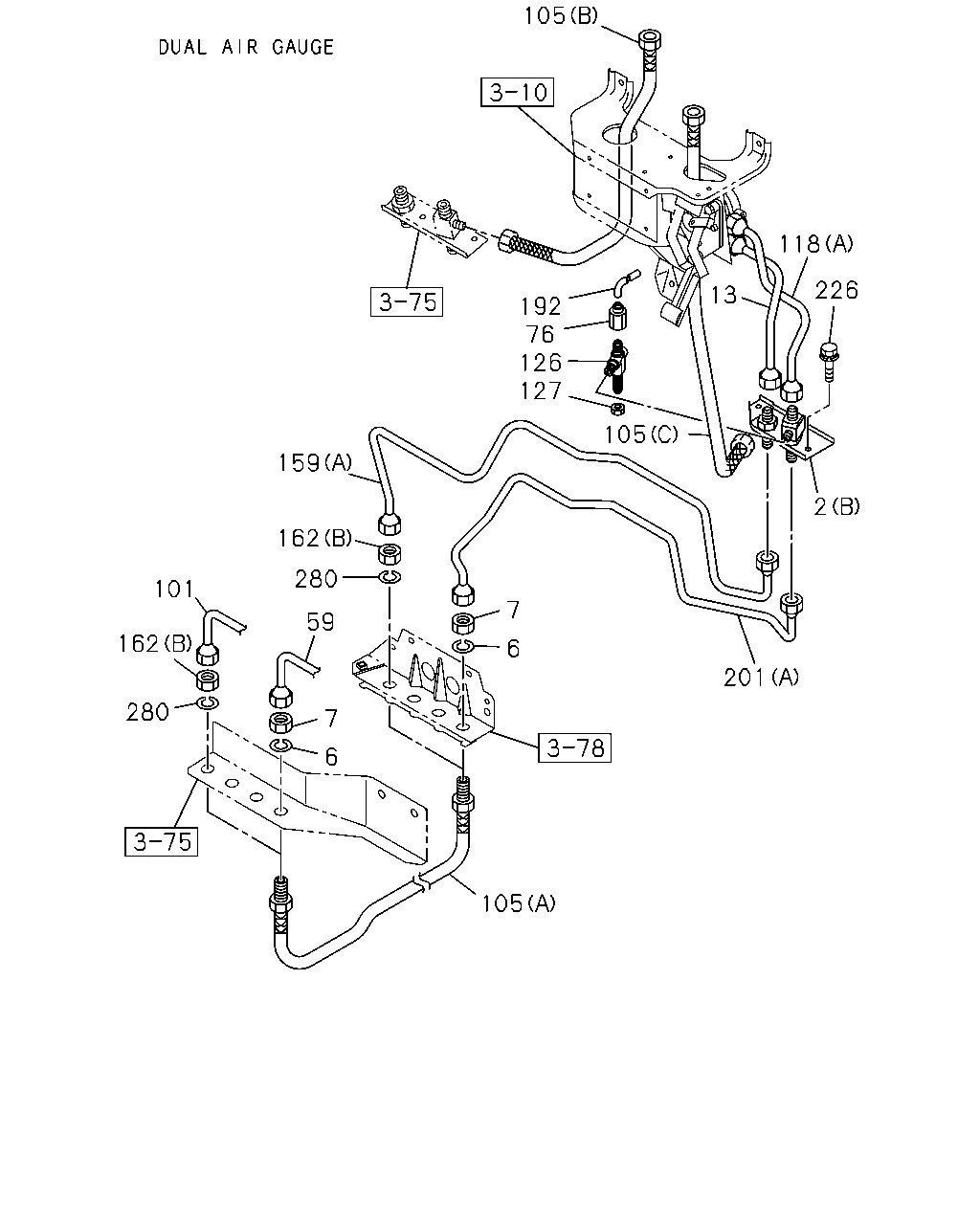

105 118 226 13 192 76 126 127 105 159 2 162 280 101 7 59 162 6 201 280 7 6 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-219-1	01	1	9606-9609
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47470-219-1	01	1	9610-9810
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9606-9609
2	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9610-9810
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9606-9609
6	WASHER; LK,FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9606-9609
7	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	9-99111-416-0	02	1	9610-9810
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9811-0512
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
13	PIPE; AIR,BRK VLV TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=261 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
59	PIPE; AIR,UNION TO FLEX HOSE L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
59	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
76	ADAPTER; NYLON TUBE HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2> DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9610-9810
101	PIPE; AIR,FLEX HOSE TO UNION L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
101	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (B) L=810	0-07210-810-0	01	1	9606-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (C) L=850	0-07210-850-0	01	1	9606-9810
105	HOSE; FLEX EXC. DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9610-9810
105	HOSE; FLEX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=380	0-07402-380-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (B) L=465 SERVICED BY L=600	1-47426-408-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (C)	1-49114-966-0	01	1	9811-
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
118	PIPE; AIR,UNION TO AIR MASTER EXC. DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
126	UNION; NYLON TUBE HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2>	1-09656-482-2	01	1	9610-9810
127	NUT; UNION HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2> M16	9-99111-516-0	01	1	9610-9810
159	PIPE; AIR,UNION TO FLEX HOSE (A) L=954	1-47497-064-0	01	1	9606-9609
159	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=954	1-47497-064-0	01	1	9610-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1861 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1790 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
162	NUT; FLEX HOSE (B) M16	9-99111-416-0	02	1	9606-9609
162	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16	9-99111-416-0	02	1	9610-9810
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9606-9810
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
192	TUBE; NYLON HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=6000 OD=8	1-87410-075-0	01	1	9610-9810
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
201	PIPE; AIR,FLEX HOSE TO UNION (A) L=805	1-47497-058-0	01	1	9606-9609
201	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=805	1-47497-058-0	01	1	9610-9810
201	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=776	1-47497-113-0	01	1	9606-9810
226	BOLT; UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9606-9609
226	BOLT; UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9610-9810
280	WASHER; LK ID=16.2	9-09150-516-0	02	1	9606-9609
280	WASHER; LK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810

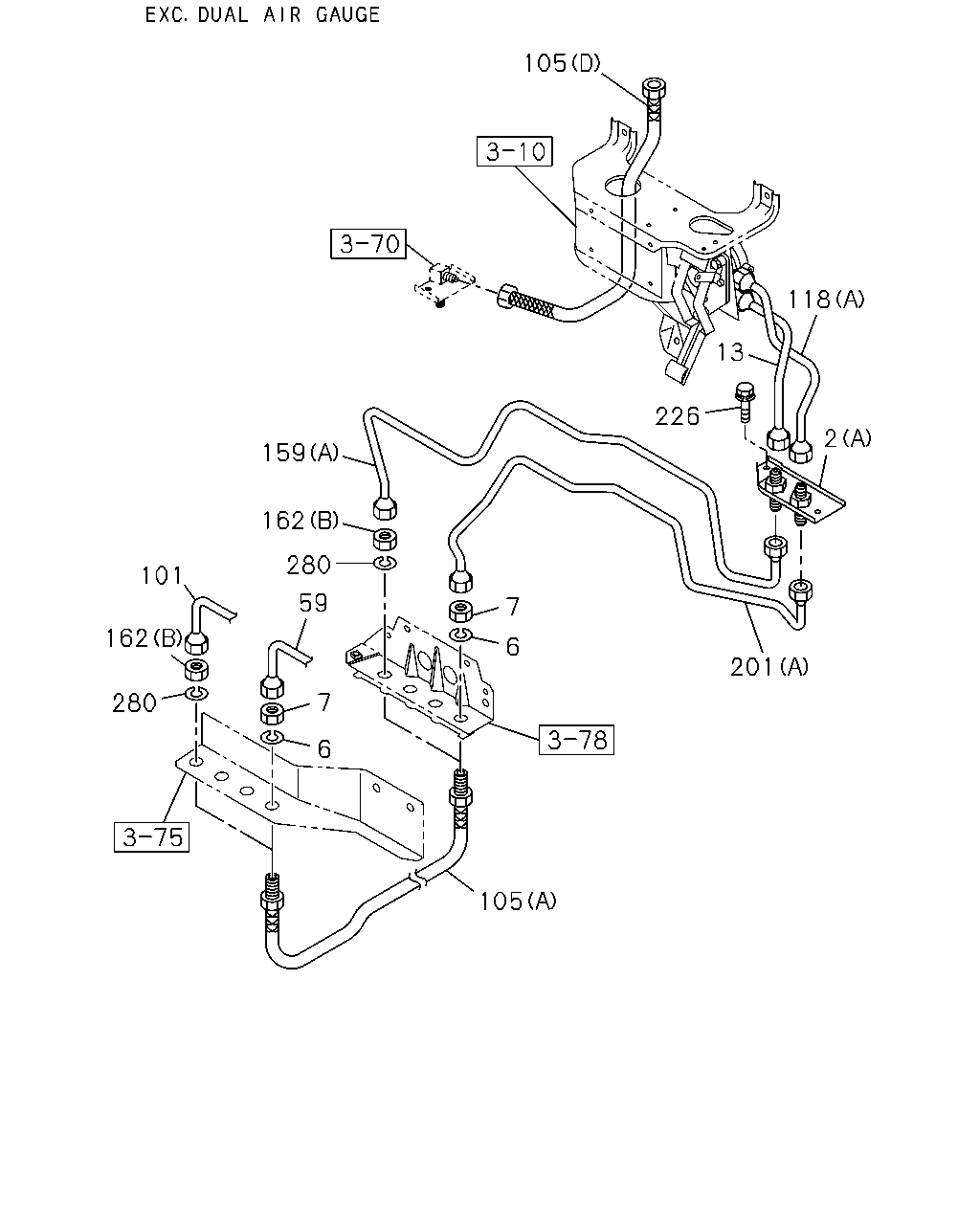

105 118 13 226 2 159 162 280 101 59 7 162 6 201 280 7 6 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-219-1	01	1	9606-9609
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47470-219-1	01	1	9610-9810
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9606-9609
2	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9610-9810
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9606-9609
6	WASHER; LK,FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9606-9609
7	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	9-99111-416-0	02	1	9610-9810
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9811-0512
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
13	PIPE; AIR,BRK VLV TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=261 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
59	PIPE; AIR,UNION TO FLEX HOSE L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
59	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
101	PIPE; AIR,FLEX HOSE TO UNION L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
101	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (B) L=810	0-07210-810-0	01	1	9606-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (C) L=850	0-07210-850-0	01	1	9606-9810
105	HOSE; FLEX EXC. DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9610-9810
105	HOSE; FLEX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=380	0-07402-380-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (B) L=465 SERVICED BY L=600	1-47426-408-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (C)	1-49114-966-0	01	1	9811-
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
118	PIPE; AIR,UNION TO AIR MASTER EXC. DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
159	PIPE; AIR,UNION TO FLEX HOSE (A) L=954	1-47497-064-0	01	1	9606-9609
159	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=954	1-47497-064-0	01	1	9610-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1861 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1790 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
162	NUT; FLEX HOSE (B) M16	9-99111-416-0	02	1	9606-9609
162	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16	9-99111-416-0	02	1	9610-9810
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9606-9810
201	PIPE; AIR,FLEX HOSE TO UNION (A) L=805	1-47497-058-0	01	1	9606-9609
201	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=805	1-47497-058-0	01	1	9610-9810
201	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=776	1-47497-113-0	01	1	9606-9810
226	BOLT; UNION M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9606-9609
226	BOLT; UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9610-9810
280	WASHER; LK ID=16.2	9-09150-516-0	02	1	9606-9609
280	WASHER; LK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810

159 31 144 29 31 27 31 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1457 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9810
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1262 SERVICED BY L=1400	1-47426-389-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=952 SERVICED BY L=1000	1-47426-386-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2457 SERVICED BY L=2700	1-47426-396-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1203 SERVICED BY L=1250	1-47426-388-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1566 SERVICED BY L=1700	1-47426-391-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1803 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9810
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9810
159	PIPE; AIR,UNION TO FLEX HOSE (A) L=954	1-47497-064-0	01	1	9606-9609
159	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=954	1-47497-064-0	01	1	9610-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1861 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1790 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810

59 101 101 103 59 93 118 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	PIPE; AIR,UNION TO FLEX HOSE L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
59	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2823 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
87	PIPE; AIR,AIR TANK TO UNION L=1142 SERVICED BY L=1250	1-47426-416-0	01	1	9606-9810
87	PIPE; AIR,AIR TANK TO UNION	1-49116-275-0	01	1	9811-
93	PIPE; AIR,UNION TO UNION L=2466 SERVICED BY L=2900	1-47426-425-0	01	1	9606-9609
93	PIPE; AIR,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2466 SERVICED BY L=2900	1-47426-425-0	01	1	9610-9810
93	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> L=2477 SERVICED BY L=2600	1-47426-424-0	01	1	9610-9810
101	PIPE; AIR,FLEX HOSE TO UNION L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9609
101	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2906 SERVICED BY L=3300	1-47426-426-0	01	1	9610-9810
103	PIPE; AIR,UNION TO UNION L=2509 SERVICED BY L=2600	1-47426-424-0	01	1	9606-9609
103	PIPE; AIR,UNION TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2509 SERVICED BY L=2600	1-47426-424-0	01	1	9610-9810
103	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> L=2433 SERVICED BY L=2600	1-47426-424-0	01	1	9610-9810
118	PIPE; AIR,UNION TO AIR MASTER (B) L=465 SERVICED BY L=600	1-47426-408-0	01	1	9606-9810
118	PIPE; AIR,UNION TO AIR MASTER (C)	1-49114-966-0	01	1	9811-
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=294 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
118	PIPE; AIR,UNION TO AIR MASTER EXC. DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
118	PIPE; AIR,UNION TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=318 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810

5 19 61 217 144 278 143 279 31 46 146 279 97 201 162 141 41 21 71 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=688	1-47497-612-0	01	1	9606-9810
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14	9-99110-414-0	01	1	9606-9810
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12	9-99111-412-0	01	1	9606-9810
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99111-414-0	01	1	9606-9810
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=952 SERVICED BY L=1000	1-47426-386-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2457 SERVICED BY L=2700	1-47426-396-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1203 SERVICED BY L=1250	1-47426-388-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1566 SERVICED BY L=1700	1-47426-391-0	01	1	9606-9810
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1803 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9810
41	WASHER; LK,FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9606-9810
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9606-9810
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9606-9810
46	NIPPLE; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9606-9810
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14	9-09225-208-1	01	1	9606-9810
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9606-9810
71	HOSE; FLEX,RWD RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	01	1	9606-9810
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 2WAY	1-09654-176-2	01	1	9606-9810
97	UNION; AIR PIPE (C)	1-09660-807-2	01	1	9811-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	02	1	9606-9810
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX (A) L=630	0-07424-630-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=630	0-07424-630-0	01	1	9610-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (B) L=810	0-07210-810-0	01	1	9606-9810
105	HOSE; FLEX DUAL AIR GAUGE<UG2> (C) L=850	0-07210-850-0	01	1	9606-9810
105	HOSE; FLEX EXC. DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9606-9609
105	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (D) L=720	0-07210-720-0	01	1	9610-9810
105	HOSE; FLEX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=380	0-07402-380-0	01	1	9606-9810
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	9-99110-414-0	01	1	9606-9810
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	01	1	9606-9810
143	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9606-9810
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9810
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9810
146	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=620	1-47497-690-0	01	1	9606-9810
162	NUT; FLEX HOSE (B) M16	9-99111-416-0	02	1	9606-9609
162	NUT; FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16	9-99111-416-0	02	1	9610-9810
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9606-9810
201	PIPE; AIR,FLEX HOSE TO UNION (A) L=805	1-47497-058-0	01	1	9606-9609
201	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=805	1-47497-058-0	01	1	9610-9810
201	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=776	1-47497-113-0	01	1	9606-9810
217	PIPE; AIR,PARKING BRK VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=759	1-47497-613-0	01	1	9606-9810
278	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9606-9810
278	NUT; UNION M16	9-99111-416-0	01	1	9811-0512
278	NUT; UNION M16	0-91111-516-0	01	1	0601-
279	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9606-9810
279	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-09225-208-1	01	1	9606-9810

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
