3-75 — BRAKE PIPING; AIR,FRONT (#5972) — 134 parça

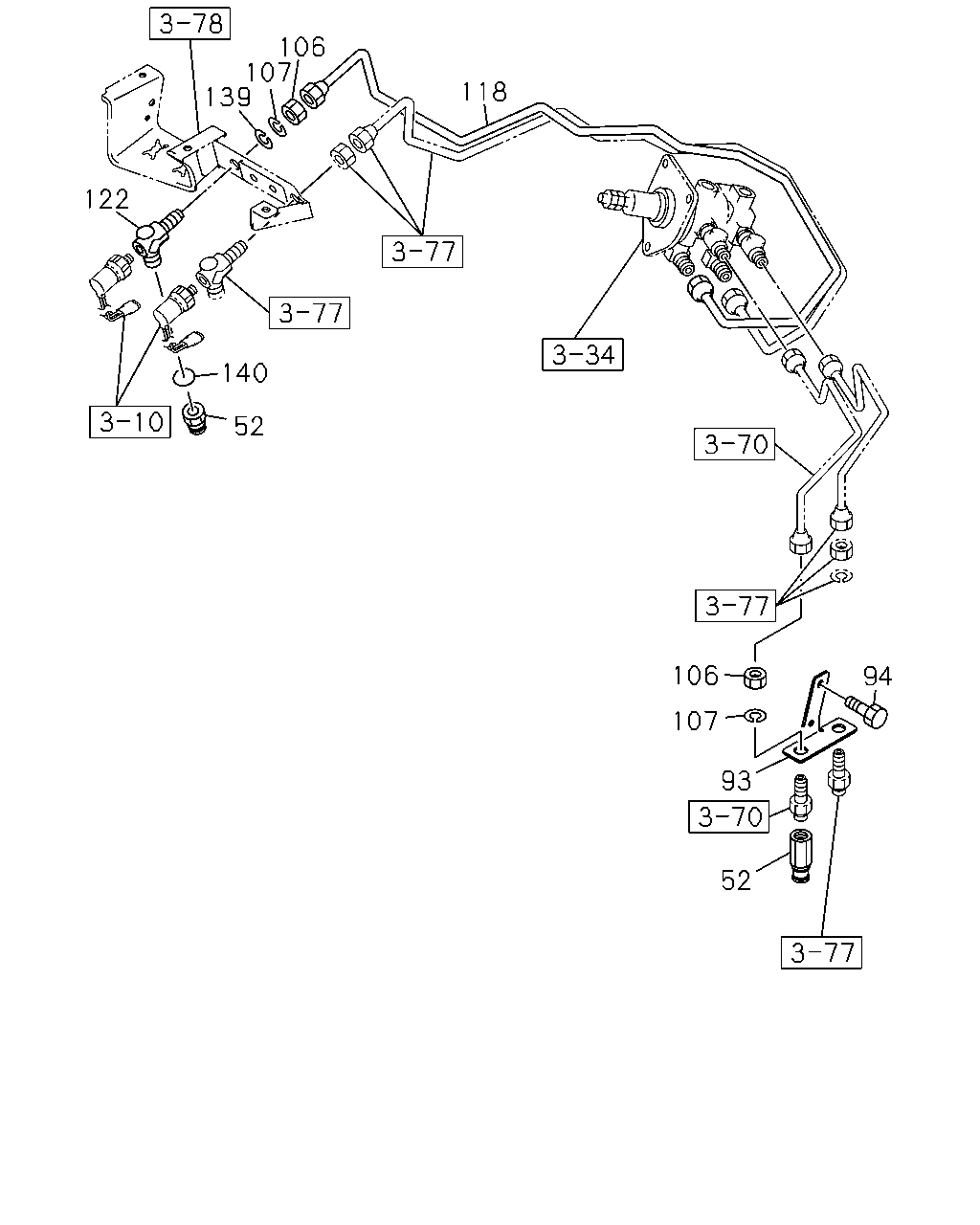

106 107 139 118 122 140 52 106 94 107 93 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE	1-09660-728-1	02	1	9811-
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-
94	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9811-0512
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9606-9609
107	WASHER; LK,FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=455	1-47497-060-0	01	1	9606-9609
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=455	1-47497-060-0	01	1	9610-9810
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9811-
122	CONNECTOR; FLEX HOSE	1-09656-700-0	01	1	9811-
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9811-0605
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9811-

118 25 56 25 70 115 107 70 115 107 62 65 137 79 67 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-220-1	01	1	9606-9609
25	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47470-220-1	01	1	9610-9810
25	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-218-1	01	1	9606-9609
25	UNION; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A)	1-47470-218-1	01	1	9610-9810
36	NUT; HOSE BRKT M10	9-09110-510-0	02	1	9606-9609
36	NUT; HOSE BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
56	BOLT; UNION BRKT M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9606-9609
56	BOLT; UNION BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9610-9810
62	PIPE; AIR,UNION TO FLEX HOSE L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9609
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9610-9810
65	BRACKET; FLEX HOSE POWER STEERING(N40)	1-47476-455-0	01	1	9606-9609
65	BRACKET; FLEX HOSE POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47476-455-0	01	1	9610-9810
65	BRACKET; FLEX HOSE EXC. POWER STEERING(N40)	1-47475-778-1	01	1	9606-9609
65	BRACKET; FLEX HOSE EXC. POWER STEERING(N40),HEAVY DUTY PACKAGE TRUCK<RD2>	1-47475-778-1	01	1	9610-9810
67	WASHER; LK,HOSE BRKT ID=10.2	9-09150-510-0	02	1	9606-9810
70	PIPE; AIR,FLEX HOSE TO UNION (A) L=489 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=489 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
70	PIPE; AIR,FLEX HOSE TO UNION (B) L=1321 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9609
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=1321 SERVICED BY L=1550	1-47426-419-0	01	1	9610-9810
79	HOSE; FLEX L=630	0-07424-630-0	01	1	9606-9609
79	HOSE; FLEX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=630	0-07424-630-0	01	1	9610-9810
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9606-9609
107	WASHER; LK,FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	9-09150-516-0	02	1	9610-9810
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
115	NUT; TUBE UNION M16	9-99111-416-0	02	1	9606-9609
115	NUT; TUBE UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	9-99111-416-0	02	1	9610-9810
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=455	1-47497-060-0	01	1	9606-9609
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=455	1-47497-060-0	01	1	9610-9810
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9811-
137	STUD; BRKT M10X25 L=40	9-04411-025-0	02	1	9606-9609
137	STUD; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 L=40	9-04411-025-0	02	1	9610-9810

62 70 59 5 76 76 5 76 87 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=362 SERVICED BY L=400	1-47426-404-0	01	1	9606-9810
1	PIPE; AIR,AIR TANK TO UNION	1-49114-940-0	01	1	9811-
5	PIPE; AIR,UNION TO UNION L=1442 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9810
5	PIPE; AIR,UNION TO UNION L=2824 SERVICED BY L=2900	1-47426-425-0	01	1	9811-
59	PIPE; AIR,UNION TO UNION L=1304 SERVICED BY L=1400	1-47426-418-0	01	1	9606-9810
62	PIPE; AIR,UNION TO FLEX HOSE L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9609
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9610-9810
70	PIPE; AIR,FLEX HOSE TO UNION (A) L=489 SERVICED BY L=550	1-47426-407-0	01	1	9606-9609
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=489 SERVICED BY L=550	1-47426-407-0	01	1	9610-9810
70	PIPE; AIR,FLEX HOSE TO UNION (B) L=1321 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9609
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=1321 SERVICED BY L=1550	1-47426-419-0	01	1	9610-9810
76	PIPE; AIR,UNION TO UNION (A) L=1481 SERVICED BY L=1700	1-47426-420-0	01	1	9606-9810
76	PIPE; AIR,UNION TO UNION (C) L=2690 SERVICED BY L=2900	1-47426-425-0	01	1	9811-
76	PIPE; AIR,UNION TO UNION (B) L=1561 SERVICED BY L=1700	1-47426-420-0	01	1	9606-9810
87	PIPE; AIR,UNION TO AIR MASTER L=726 SERVICED BY L=730	1-47426-411-0	01	1	9606-9810
87	PIPE; AIR,UNION TO AIR MASTER L=1166 SERVICED BY L=1250	1-47426-416-0	01	1	9811-

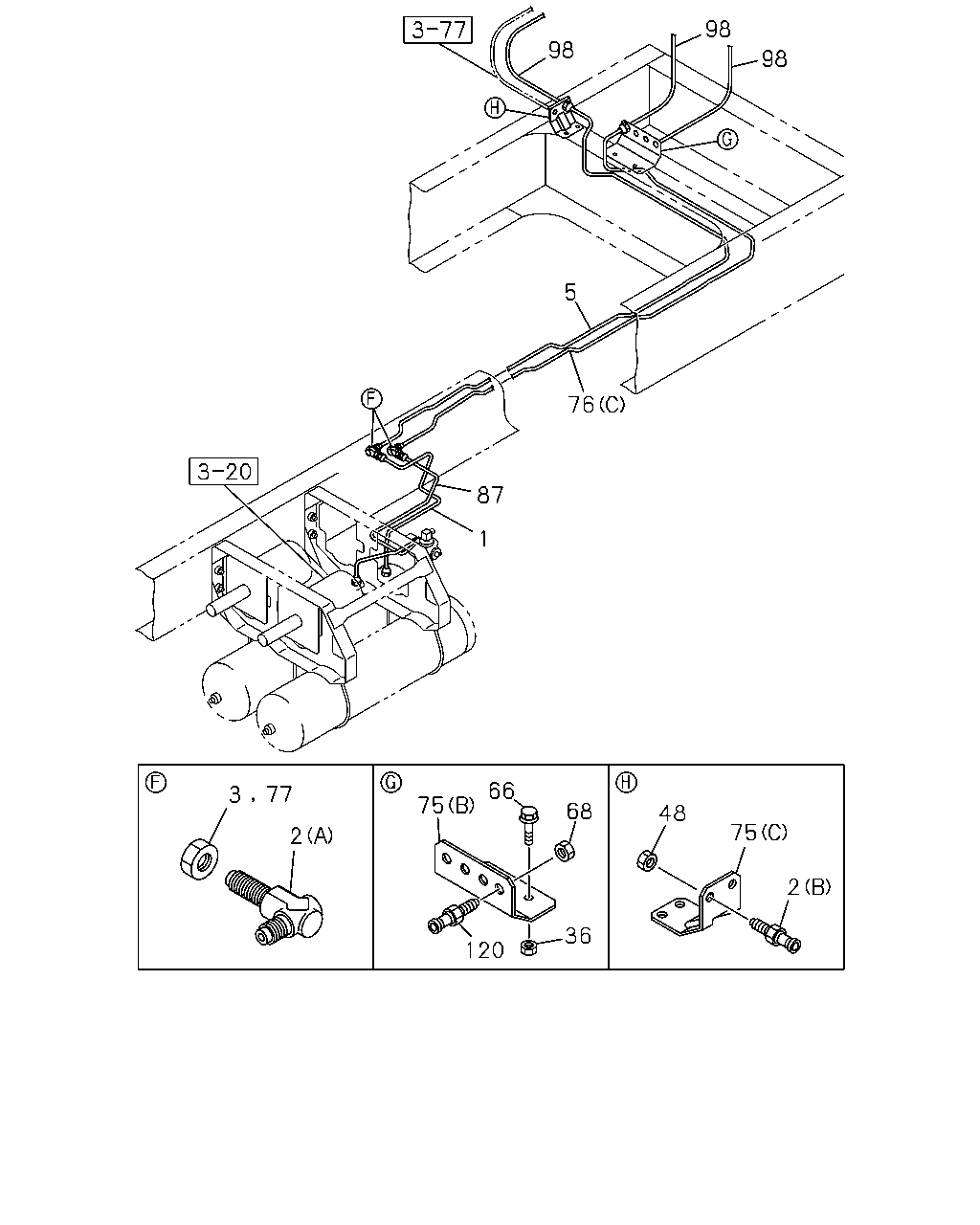

98 98 98 5 76 87 1 66 77 3 75 68 48 75 2 2 36 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=362 SERVICED BY L=400	1-47426-404-0	01	1	9606-9810
1	PIPE; AIR,AIR TANK TO UNION	1-49114-940-0	01	1	9811-
2	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-9810
2	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-9810
2	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9811-
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9606-0607
2	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0608-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-0512
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
5	PIPE; AIR,UNION TO UNION L=1442 SERVICED BY L=1550	1-47426-419-0	01	1	9606-9810
5	PIPE; AIR,UNION TO UNION L=2824 SERVICED BY L=2900	1-47426-425-0	01	1	9811-
36	NUT; HOSE BRKT M10	9-09110-510-0	02	1	9606-9609
36	NUT; HOSE BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
48	NUT; UNION BRKT M8	9-09110-408-0	02	1	9606-9810
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9811-0512
48	NUT; UNION BRKT M16	0-91111-516-0	01	1	0601-
48	NUT; UNION BRKT HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2> M16	9-99111-516-0	01	1	9610-9810
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
68	NUT; UNION M16	9-99111-416-0	01	1	9606-0512
68	NUT; UNION M16	0-91111-516-0	01	1	0601-
75	BRACKET; UNION (A)	1-47476-292-0	01	1	9606-9810
75	BRACKET; UNION (C)	1-47477-487-2	01	1	9811-
75	BRACKET; UNION (B)	1-47477-642-2	01	1	9811-
76	PIPE; AIR,UNION TO UNION (A) L=1481 SERVICED BY L=1700	1-47426-420-0	01	1	9606-9810
76	PIPE; AIR,UNION TO UNION (C) L=2690 SERVICED BY L=2900	1-47426-425-0	01	1	9811-
76	PIPE; AIR,UNION TO UNION (B) L=1561 SERVICED BY L=1700	1-47426-420-0	01	1	9606-9810
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-0512
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
87	PIPE; AIR,UNION TO AIR MASTER L=726 SERVICED BY L=730	1-47426-411-0	01	1	9606-9810
87	PIPE; AIR,UNION TO AIR MASTER L=1166 SERVICED BY L=1250	1-47426-416-0	01	1	9811-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9811-
98	TUBE; NYLON HEAVY DUTY PACKAGE TRUCK<RD2>	1-09376-220-0	01	1	9610-9810
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
120	UNION; AIR PIPE	1-09660-807-2	01	1	9811-

39 73 94 2 3 68 75 48 2 72 60 48 38 105 95 98 58 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-9810
2	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-9810
2	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9811-
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9606-0607
2	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0608-
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-0512
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-
38	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2>	1-09656-482-2	01	1	9610-9810
39	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-9810
48	NUT; UNION BRKT M8	9-09110-408-0	02	1	9606-9810
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9811-0512
48	NUT; UNION BRKT M16	0-91111-516-0	01	1	0601-
48	NUT; UNION BRKT HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2> M16	9-99111-516-0	01	1	9610-9810
58	SPACER; BRKT,UNION HEAVY DUTY PACKAGE TRUCK<RD2>	1-22151-204-1	01	1	9610-9810
60	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	01	1	9606-9810
68	NUT; UNION M16	9-99111-416-0	01	1	9606-0512
68	NUT; UNION M16	0-91111-516-0	01	1	0601-
72	UNION; AIR PIPE M16 L=74	9-09233-310-1	01	1	9606-9810
73	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-9810
75	BRACKET; UNION (A)	1-47476-292-0	01	1	9606-9810
75	BRACKET; UNION (C)	1-47477-487-2	01	1	9811-
75	BRACKET; UNION (B)	1-47477-642-2	01	1	9811-
94	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-
95	ADAPTER; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9610-9810
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	9811-
98	TUBE; NYLON HEAVY DUTY PACKAGE TRUCK<RD2>	1-09376-220-0	01	1	9610-9810
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9811-
105	CONNECTOR; AIR PIPE HEAVY DUTY PACKAGE TRUCK<RD2> DUAL AIR GAUGE<UG2> DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9610-9810
126	SPACER; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09503-191-0	02	1	9606-9810
