◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11408 - FVR(LHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#59711) — 12 parça

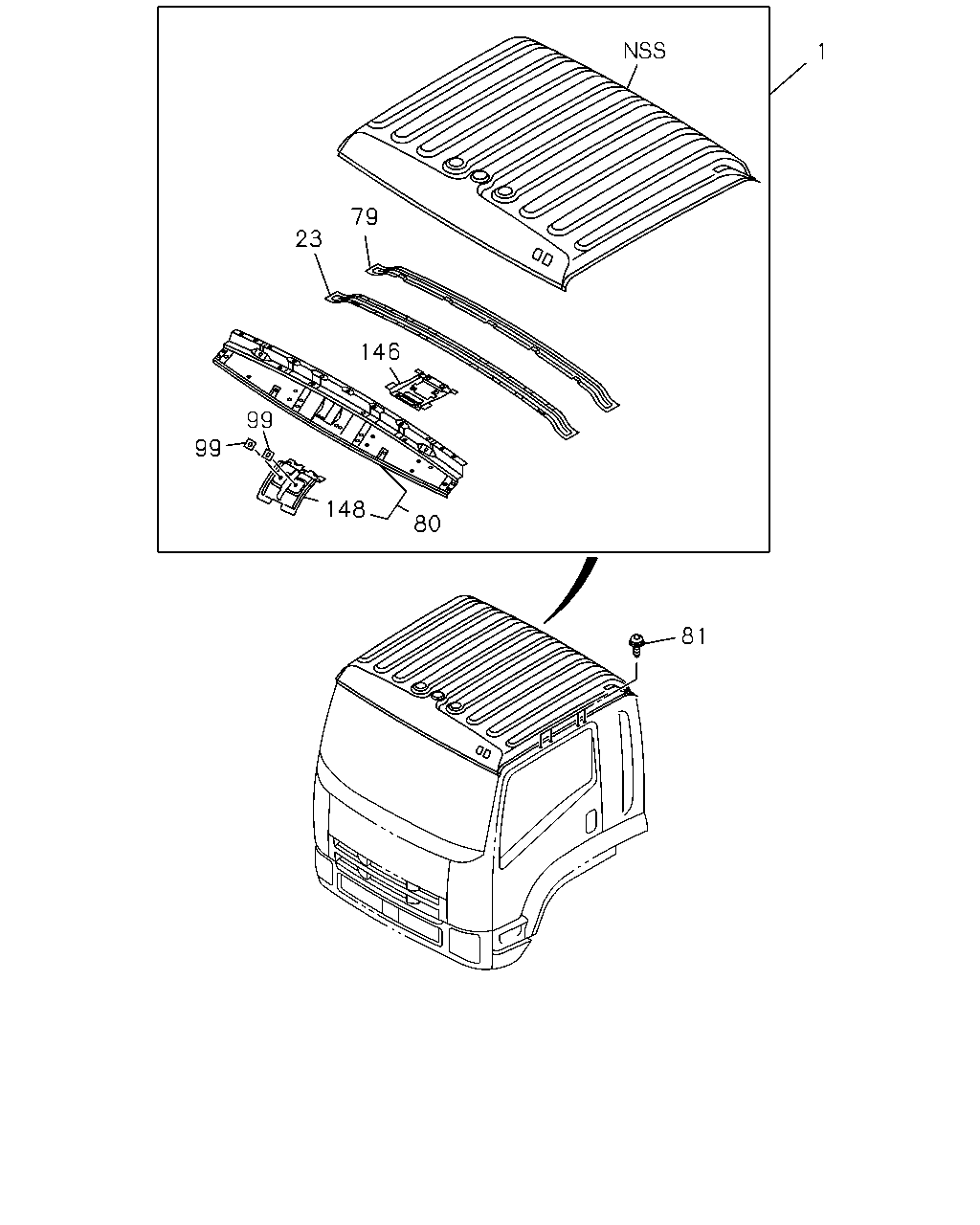

çizim 148397
1 79 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98152-807-0 01 1 1110-1308
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-482-0 01 1 1309-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98152-808-0 01 1 1110-1308
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-483-0 01 1 1309-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1110-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1110-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98047-271-1 01 1 1110-1308
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-472-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1110-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1110-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1110-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 1110-
