3-70 — BRAKE PIPING; AIR,AIR MASTER (#5971) — 253 parça

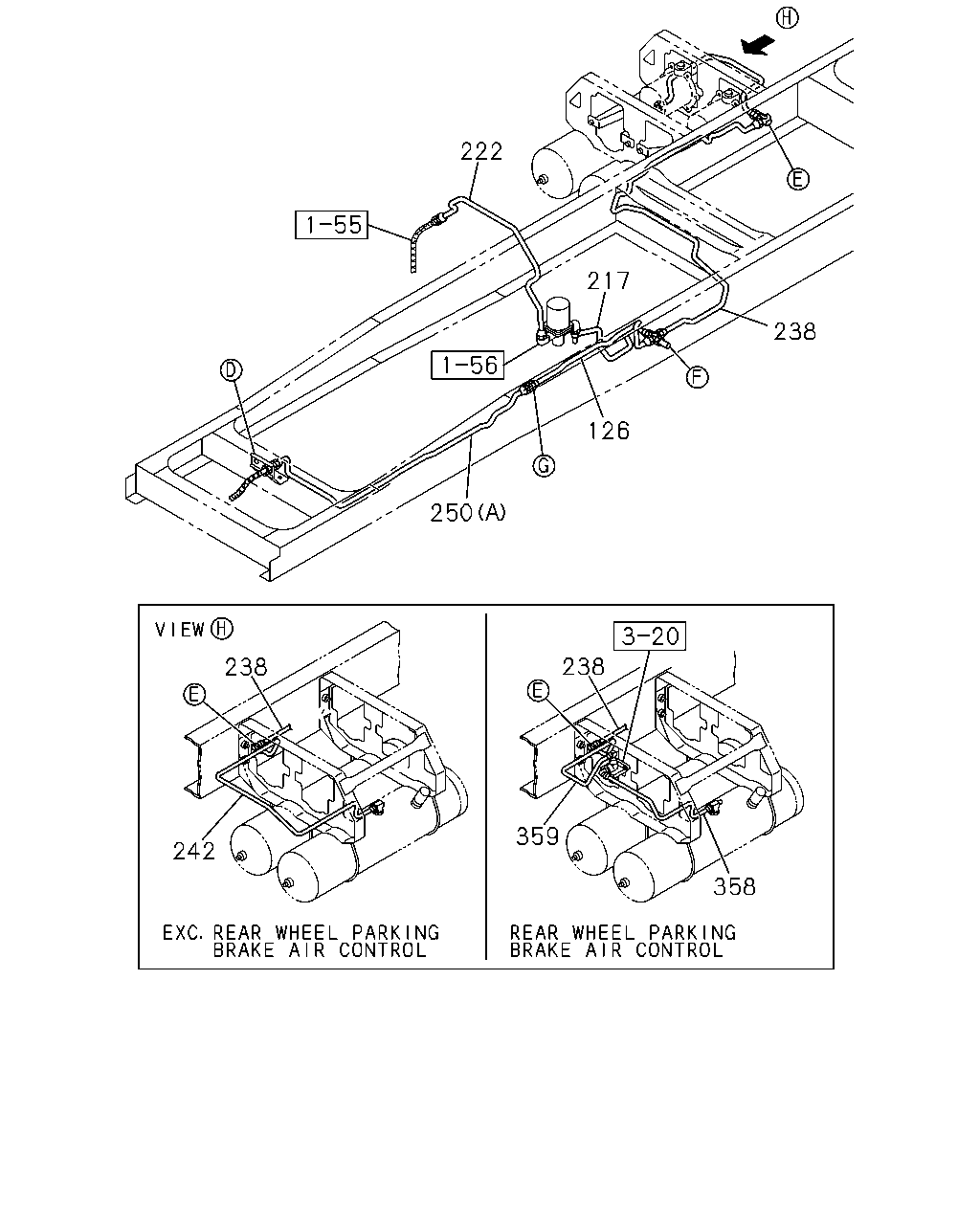

çizim 10822
222 217 238 126 250 238 238 359 242 358
BalonParca AdiParca NoAdetTipApplied Date
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800 		1-47434-384-0 01 1 9606-9609
126 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800 		1-47434-384-0 01 1 9610-9810
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE(NF8) 		1-47495-776-0 01 1 9606-9608
217 PIPE; VAC,UNION TO MAG VLV 1-47495-776-0 01 1 9609-9609
217 PIPE; VAC,UNION TO MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47495-776-0 01 1 9610-9810
217 PIPE; VAC,UNION TO MAG VLV 1-49114-871-0 01 1 9811-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE(NF8) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9606-9608
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9609-9609
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9610-9810
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9811-9902
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9903-0203
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0204-
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9608
238 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9608
238 PIPE; AIR,UNION TO UNION
L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9609-9609
238 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9610-9810
238 PIPE; AIR,UNION TO UNION
L=1328 SERVICED BY L=1370 		1-47426-354-0 01 1 9811-
242 PIPE; AIR,AIR TANK TO UNION
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9606-9608
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9606-9608
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9609-9810
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9610-9810
250 PIPE; AIR,UNION TO FLEX HOSE
(C) L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9610-9810
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9606-9810
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9606-9810

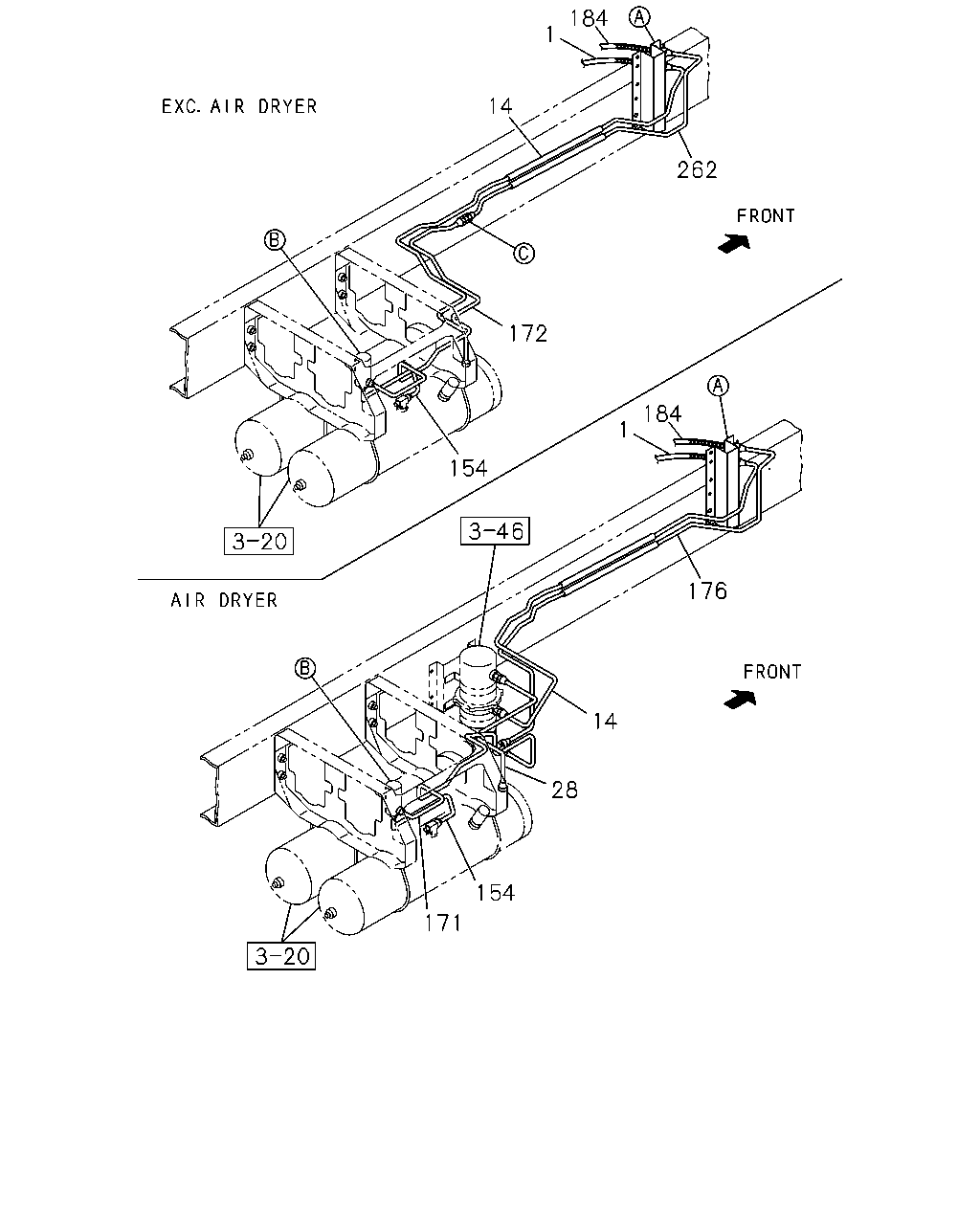

çizim 38721
184 1 14 262 172 184 1 154 176 14 28 154 171
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9606-9810
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=350 		1-09363-558-0 01 1 9811-9902
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=350 		1-09363-558-0 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0204-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER(PS7) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER(PS7) 		1-47496-332-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9811-
28 PIPE; AIR,AIR DRYER
AIR DRYER(PS7) 		1-47499-570-0 01 1 9606-9810
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9606-9810
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9811-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER(PS7) 		1-47496-369-0 01 1 9606-9810
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER(PS7) 		1-47495-514-0 01 1 9606-9810
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER(PS7) 		1-47496-370-0 01 1 9606-9810
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9606-9810
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9811-9902
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9903-0203
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0204-
262 PIPE; AIR,UNION TO FLEX
EXC. AIR DRYER(PS7) 		1-47496-373-0 01 1 9606-9810

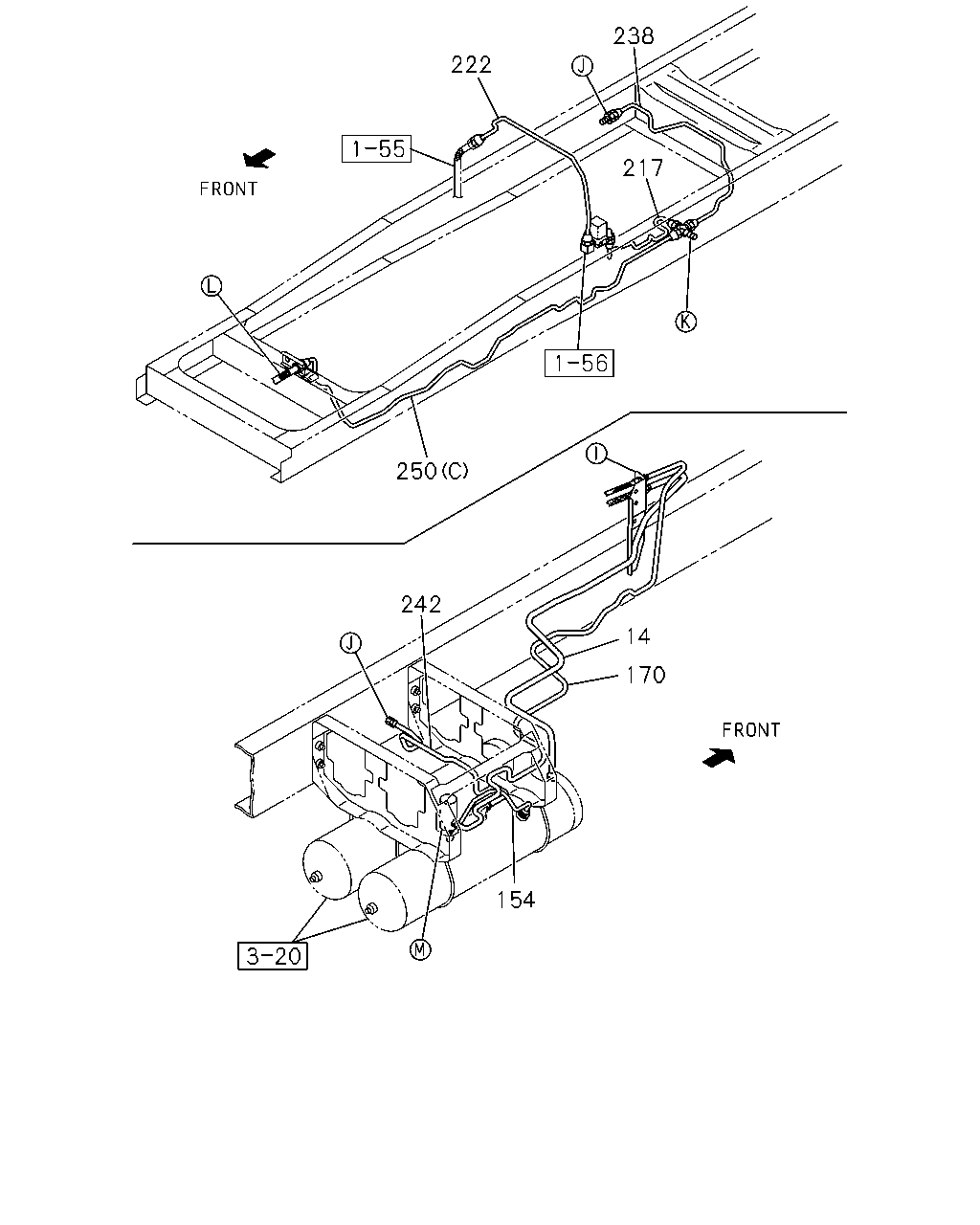

çizim 39237
238 222 217 250 242 14 170 154
BalonParca AdiParca NoAdetTipApplied Date
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER(PS7) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER(PS7) 		1-47496-332-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9811-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9606-9810
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9811-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-969-0 01 1 9811-
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE(NF8) 		1-47495-776-0 01 1 9606-9608
217 PIPE; VAC,UNION TO MAG VLV 1-47495-776-0 01 1 9609-9609
217 PIPE; VAC,UNION TO MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-47495-776-0 01 1 9610-9810
217 PIPE; VAC,UNION TO MAG VLV 1-49114-871-0 01 1 9811-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE(NF8) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9606-9608
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9609-9609
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9610-9810
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9811-9902
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9903-0203
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0204-
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9608
238 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9608
238 PIPE; AIR,UNION TO UNION
L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9609-9609
238 PIPE; AIR,UNION TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9610-9810
238 PIPE; AIR,UNION TO UNION
L=1328 SERVICED BY L=1370 		1-47426-354-0 01 1 9811-
242 PIPE; AIR,AIR TANK TO UNION
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9606-9608
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9606-9608
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9609-9810
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9610-9810
250 PIPE; AIR,UNION TO FLEX HOSE
(C) L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9610-9810
çizim 39241
184 1 6 186 185 3 170 2 7 14 243 243 244 244 250 138 139 155 140 170 155 137 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9606-9810
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=350 		1-09363-558-0 01 1 9811-9902
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=350 		1-09363-558-0 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0204-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9606-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9811-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-22196-295-1 01 1 9606-9810
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9811-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M12X35 FLANGE 		0-28681-235-0 04 1 9606-9810
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER(PS7) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER(PS7) 		1-47496-332-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9811-
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9606-9609
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9610-9810
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 9811-
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
(C) M12 		9-09840-280-0 01 1 9811-
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9606-9609
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9610-9810
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9811-0603
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
140 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9811-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9606-9810
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9811-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9606-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-969-0 01 1 9811-
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9606-9810
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9811-9902
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9903-0203
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0204-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9606-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9811-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
243 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-47470-194-1 01 1 9606-9609
243 UNION; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) 		1-47470-194-1 01 1 9610-9810
243 UNION; AIR PIPE
(C) M12 		9-09228-306-1 01 1 9811-0607
243 UNION; AIR PIPE
(C) M12 		0-92138-306-0 01 1 0608-
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9810
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9811-0607
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608-
244 NUT; UNION,AIR PIPE
(B) M12 		9-09840-280-0 01 1 9811-
244 NUT; UNION,AIR PIPE
(A) M12 		9-99111-412-0 01 1 9811-0512
244 NUT; UNION,AIR PIPE
(A) M12 		0-91111-512-0 01 1 0601-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9610-9810
250 PIPE; AIR,UNION TO FLEX HOSE
(C) L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9610-9810

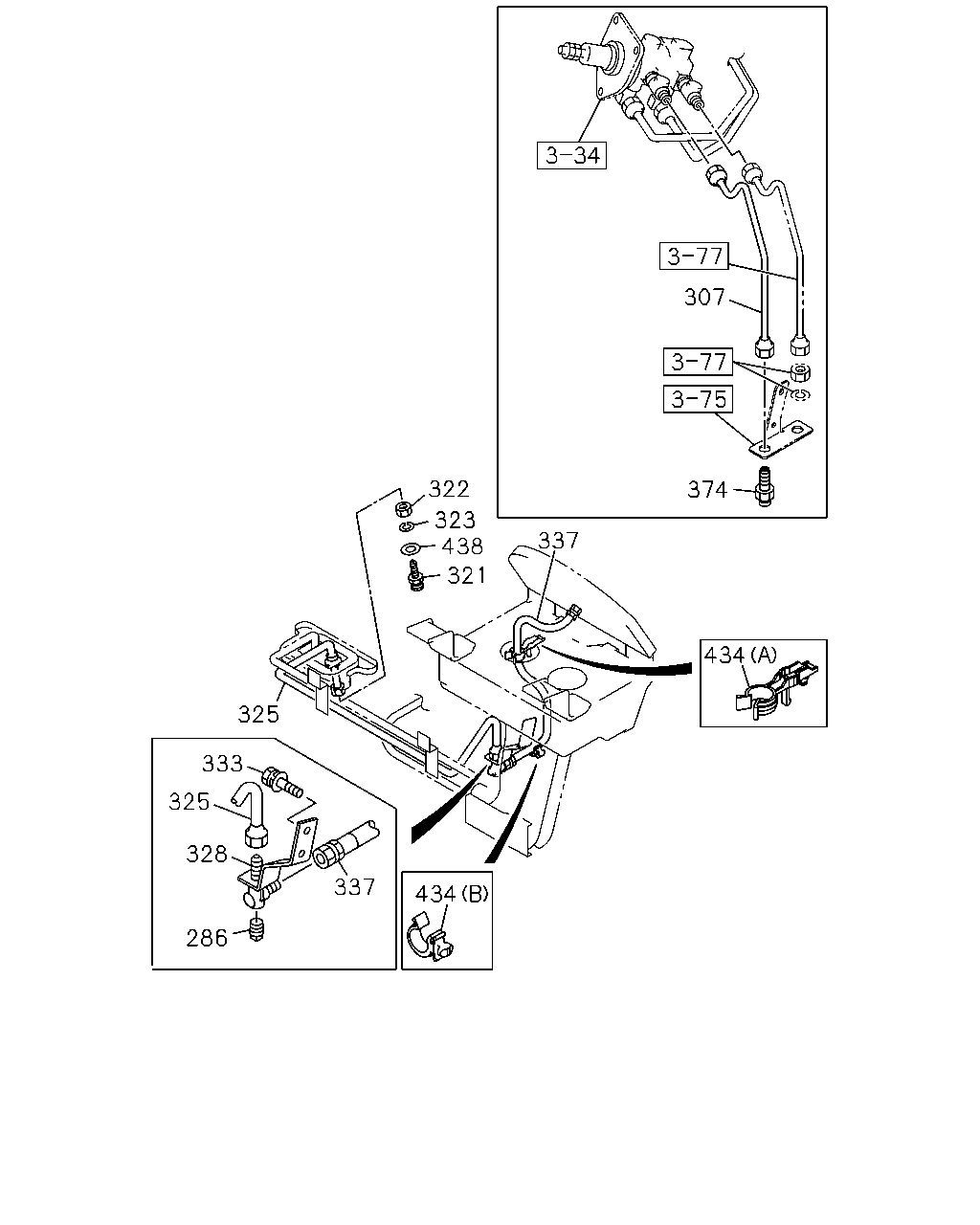

çizim 39271
307 322 374 323 438 337 321 434 325 333 325 328 337 434 286
BalonParca AdiParca NoAdetTipApplied Date
286 PLUG; AIR PIPE 9-09204-510-0 01 1 9812-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=434 		1-49116-435-1 01 1 9811-
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9812-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 9812-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9812-0603
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 		1-49116-077-0 01 1 9812-
328 UNION; AIR PIPE 1-47470-473-0 01 1 9812-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 9812-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR 1-09654-324-0 01 1 9811-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 9812-
434 CLIP
(B) 		8-94297-486-0 02 1 9812-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9812-
çizim 40548
184 1 6 185 176 262 2 14 7 155 171 172 155 266 154 118 250 118 138 118 137 117 117 117
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9606-9810
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=350 		1-09363-558-0 01 1 9811-9902
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=350 		1-09363-558-0 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9903-0203
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0204-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9606-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
6 BRACKET; FLEX HOSE,AIR TANK 1-22196-295-1 01 1 9606-9810
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9811-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M12X35 FLANGE 		0-28681-235-0 04 1 9606-9810
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER(PS7) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER(PS7) 		1-47496-332-0 01 1 9606-9810
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-924-0 01 1 9811-
117 UNION; AIR PIPE
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09654-293-1 01 1 9606-9608
117 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> (A) 		1-09654-293-1 01 1 9606-9608
117 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09654-293-1 01 1 9609-9810
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE(NF8) (B) 		1-09654-315-1 01 1 9606-9608
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09654-315-1 01 1 9609-9810
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE(NF8) (C) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9606-9608
118 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		9-99111-416-0 01 1 9606-9608
118 NUT; UNION
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		9-99111-416-0 01 1 9606-9608
118 NUT; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> M16 		9-99111-416-0 01 1 9606-9608
118 NUT; UNION
M16 		9-99111-416-0 01 1 9609-9810
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9606-9609
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9610-9810
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 9811-
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
(C) M12 		9-09840-280-0 01 1 9811-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9606-9810
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9811-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9606-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER(PS7) 		1-47496-369-0 01 1 9606-9810
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER(PS7) 		1-47495-514-0 01 1 9606-9810
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER(PS7) 		1-47496-370-0 01 1 9606-9810
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9606-9810
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9811-9902
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9903-0203
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0204-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9606-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9610-9810
250 PIPE; AIR,UNION TO FLEX HOSE
(C) L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9610-9810
262 PIPE; AIR,UNION TO FLEX
EXC. AIR DRYER(PS7) 		1-47496-373-0 01 1 9606-9810
266 UNION; AIR PIPE
EXC. AIR DRYER(PS7) M12 L=40 		9-09223-006-1 01 1 9606-9810

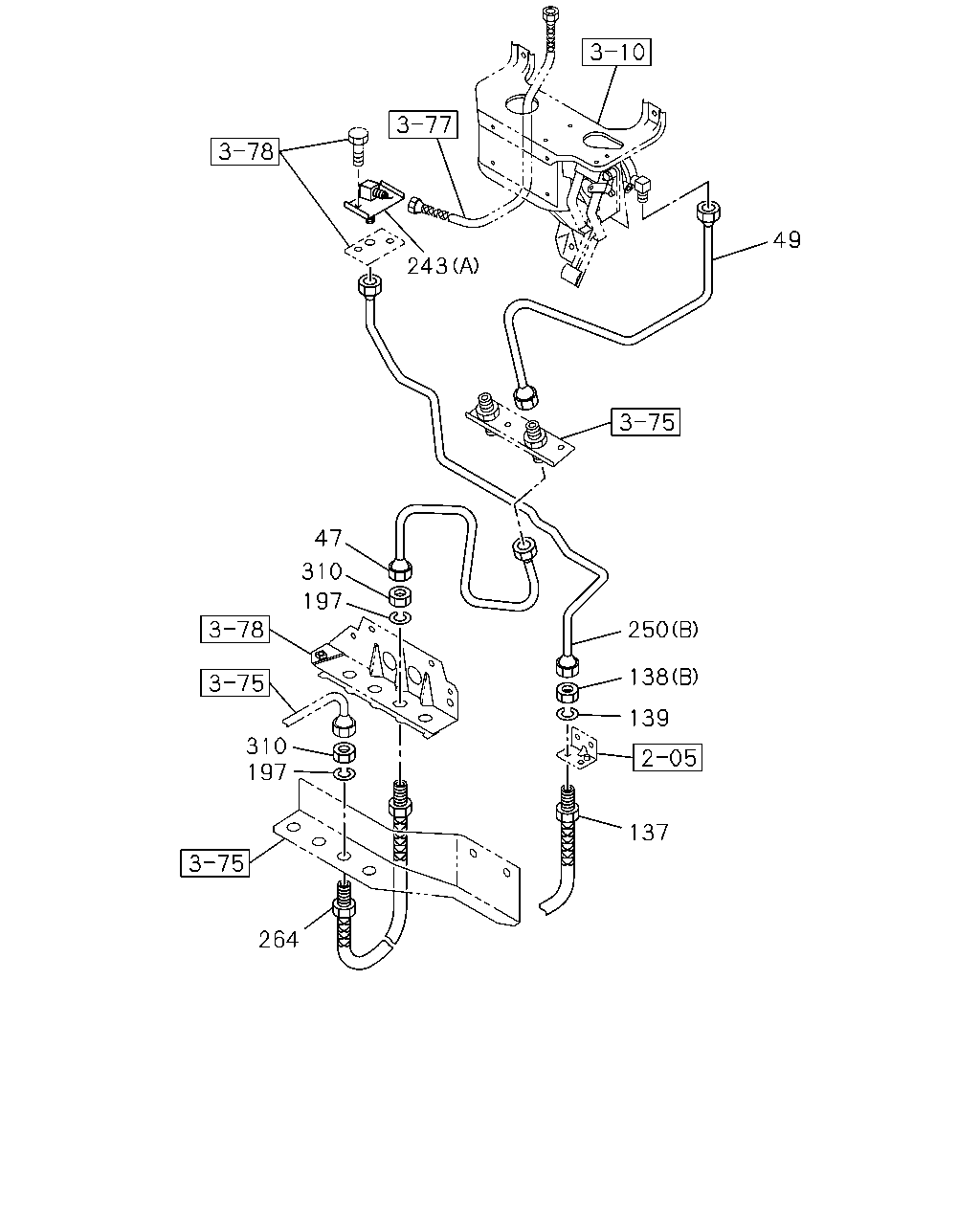

çizim 43149
243 49 47 310 197 250 138 139 310 197 137 264
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR
L=495 SERVICED BY L=550 		1-47426-407-0 01 1 9606-9609
47 PIPE; AIR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=495 SERVICED BY L=550 		1-47426-407-0 01 1 9610-9810
49 PIPE; AIR
DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9606-9609
49 PIPE; AIR
DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9610-9810
49 PIPE; AIR
EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550 		1-47426-407-0 01 1 9606-9609
49 PIPE; AIR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550 		1-47426-407-0 01 1 9610-9810
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9606-9609
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9610-9810
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 9811-
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9606-9609
138 NUT; FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) M12 		9-09840-280-0 01 1 9610-9810
138 NUT; FLEX HOSE,AIR GOV
(C) M12 		9-09840-280-0 01 1 9811-
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9606-9609
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9610-9810
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9811-0603
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
197 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9606-9609
197 WASHER; LK,FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2 		9-09150-516-0 02 1 9610-9810
243 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-47470-194-1 01 1 9606-9609
243 UNION; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) 		1-47470-194-1 01 1 9610-9810
243 UNION; AIR PIPE
(C) M12 		9-09228-306-1 01 1 9811-0607
243 UNION; AIR PIPE
(C) M12 		0-92138-306-0 01 1 0608-
243 UNION; AIR PIPE
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9810
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9811-0607
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (A) L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9610-9810
250 PIPE; AIR,UNION TO FLEX HOSE
(C) L=2629 SERVICED BY L=2650 		1-47426-363-0 01 1 9811-
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9606-9609
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9610-9810
264 HOSE; FLEX
L=630 		0-07424-630-0 01 1 9606-9609
264 HOSE; FLEX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=630 		0-07424-630-0 01 1 9610-9810
310 WASHER; LK,FLEX HOSE
M16 		9-99111-416-0 02 1 9606-9609
310 WASHER; LK,FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16 		9-99111-416-0 02 1 9610-9810

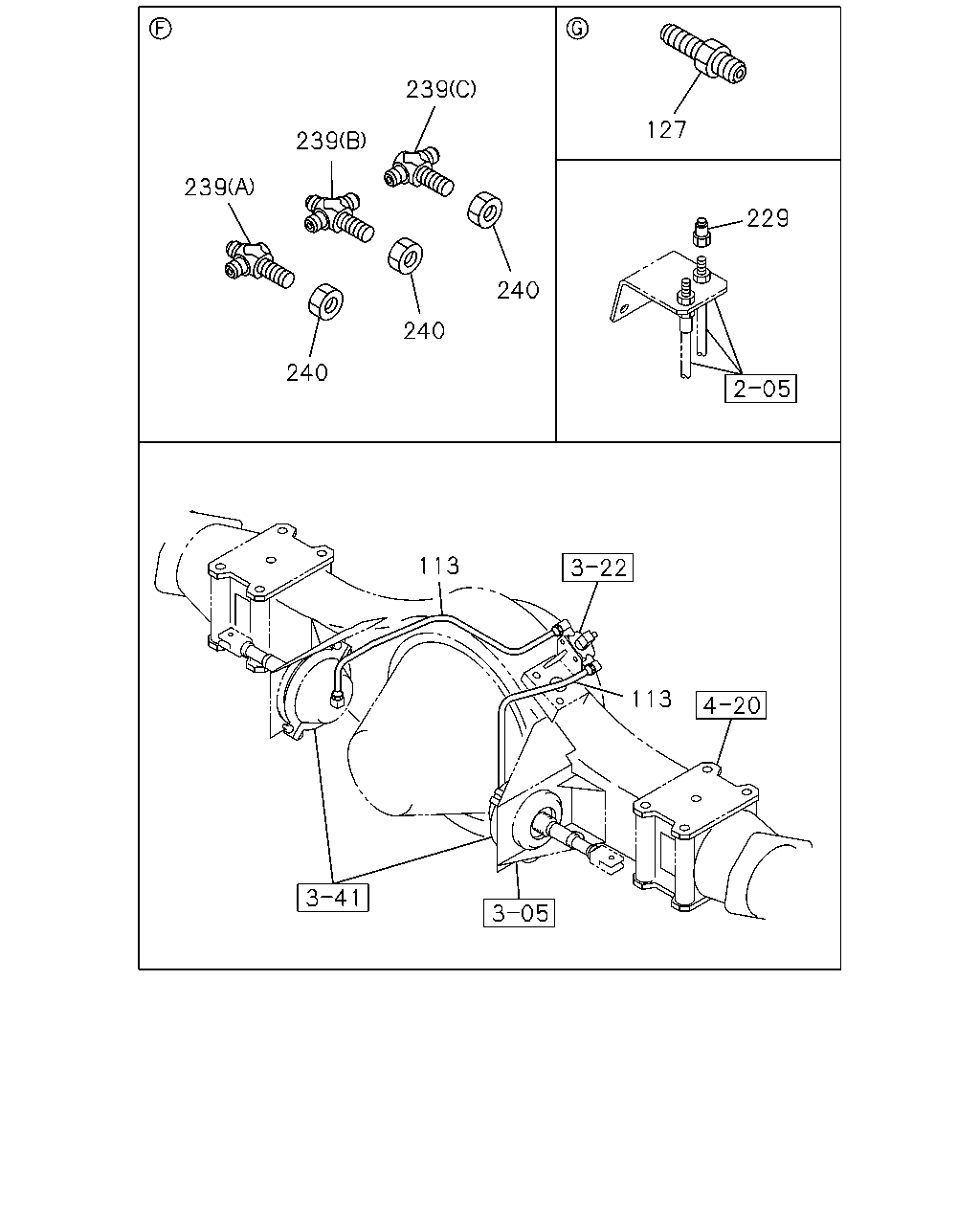

çizim 43150
239 127 239 239 229 240 240 240 113 113
BalonParca AdiParca NoAdetTipApplied Date
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9606-9810
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9606-9810
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9606-9609
127 UNION; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9610-9810
229 ADAPTER; NYLON TUBE
HEAVY DUTY PACKAGE TRUCK<RD2> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9610-9810
239 UNION; AIR PIPE
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> (A) M12 2WAY 		1-09654-059-2 01 1 9606-9608
239 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (A) M12 2WAY 		1-09654-059-2 01 1 9609-9609
239 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M12 2WAY 		1-09654-059-2 01 1 9610-9810
239 UNION; AIR PIPE
EXHAUST BRAKE(NF8) EXC. DUAL AIR GAUGE<UG2> (B) M12 		9-09228-306-1 01 1 9606-9608
239 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (B) M12 		9-09228-306-1 01 1 9609-9609
239 UNION; AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,DUAL AIR GAUGE<UG2> (B) M12 		9-09228-306-1 01 1 9610-9810
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE(NF8),DUAL AIR GAUGE<UG2> (C) M12 2WAY 		1-09654-234-2 01 1 9606-9608
240 NUT; UNION,AIR PIPE
EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9606-9608
240 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9606-9608
240 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 9609-9609
240 NUT; UNION,AIR PIPE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12 		9-99111-412-0 01 1 9610-9810
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
