8-40 — HEATER SYSTEM (#597) — 42 parça

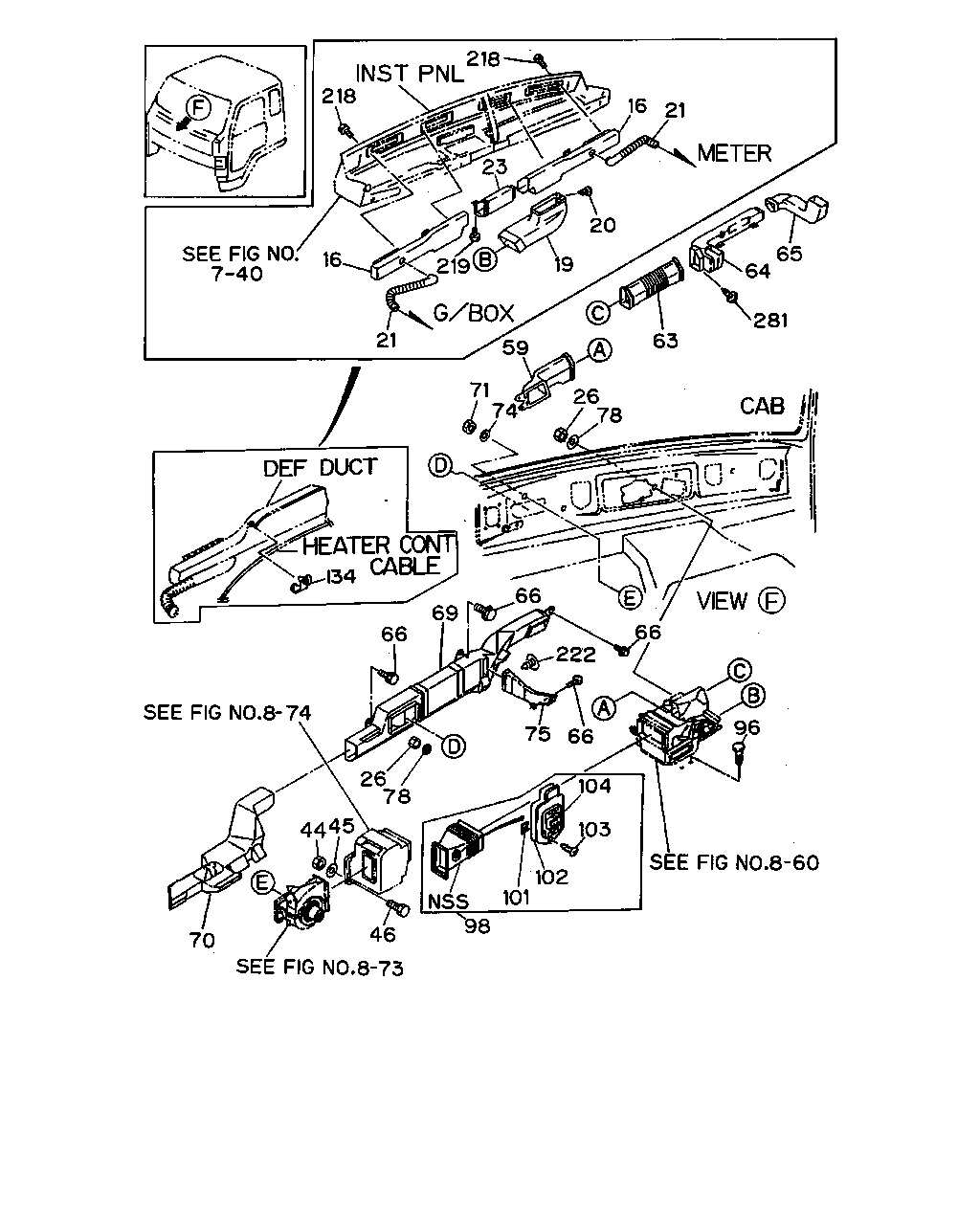

çizim 26756
218 218 16 21 20 19 219 23 21 16 59 71 74 26 78 63 64 65 281 66 66 222 66 75 69 66 26 78 45 44 70 46 98 101 102 103 104 96 134
BalonParca AdiParca NoAdetTipApplied Date
16 DUCT ASM; DEFROSTER 1-76377-072-5 01 1 8712-
16 DUCT ASM; DEFROSTER 1-76377-071-6 01 1 8712-
19 DUCT; DEFROSTER,HTR JOINT 1-76377-076-2 01 1 8712-
20 FASTENER; DEFROSTER DUCT,HTR JOINT 1-09987-144-0 01 1 8712-
21 HOSE; DEFROSTER,DRIVER SIDE
WO/URETHANE 		1-76377-085-4 02 1 8712-
23 DUCT ASM; DEFROSTER,JOINT CTR 1-76377-087-4 01 1 8712-
26 NUT; HTR
M6 FLANGE 		1-09984-141-0 03 1 8712-
44 NUT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 8712-
45 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14 		9-09160-606-0 04 1 8712-
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		9-02040-625-0 02 1 8712-9204
46 BOLT; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 		0-20800-625-0 02 1 9205-
59 DUCT; VENT,ASSIST SIDE 1-76377-083-2 01 1 8712-
63 DUCT; VENT,DRIVER JOINT 1-76377-082-5 01 1 8712-
64 DUCT; VENT,DRIVER SIDE 1-76377-080-2 01 1 8712-
65 DUCT; VENT,DRIVER SIDE 1-76377-078-3 01 1 8712-
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 8712-9204
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205-
69 DUCT; ROOM 1-83542-047-0 01 1 8712-
70 DUCT; ROOM 1-83542-044-1 01 1 8712-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		1-09984-141-0 03 1 8712-
74 WASHER; PL,BLOWER UNIT TO DASH
OD=20 		1-09509-047-0 01 1 8712-
74 WASHER; PL,BLOWER UNIT TO DASH
OD=14 		1-09509-048-0 02 1 8712-
75 DUCT; ROOM 1-83542-045-0 01 1 8712-
78 WASHER; PL,HTR UNIT
OD=20 		1-09509-047-0 01 1 8712-
78 WASHER; PL,HTR UNIT
OD=14 		1-09509-048-0 02 1 8712-
96 PLUG; DUMMY,HTR UNIT BRKT
D4.7X11 		1-76378-154-0 02 1 8712-
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83542-048-3 01 1 8712-
101 NUT; RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-047-0 01 1 8712-
102 LINING; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-049-0 01 1 8712-
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-048-0 01 1 8712-
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-028-0 01 1 8712-
134 CLIP; CONT CABLE 1-09987-147-0 01 1 8712-
218 SCREW; DEFROSTER DUCT
M5X14 W/PL WASHER 		5-09981-050-0 04 1 8712-
219 SCREW; DEFROSTER DUCT,CTR
M5X14 W/PL WASHER 		5-09981-050-0 01 1 8712-
222 FASTENER; DUCT
BLACK 		8-94104-935-0 01 1 9408-
281 FASTENER; VENT DUCT,DRIVER SIDE
BLACK 		8-94104-935-0 04 1 9407-
çizim 28160
83 93 86 91 92
BalonParca AdiParca NoAdetTipApplied Date
83 SEAL; COVER,HTR HOLE 1-71997-456-3 01 1 8712-
86 NUT; COVER,HTR HOLE
M6 FLANGE 		1-09984-141-0 03 1 8712-
91 GRILLE ASM; AIR OUTLET,METER CLUSTER 1-76367-050-1 02 1 8712-
92 BUSHING; AIR OUTLET GRILLE,METER CLUST 1-72547-048-1 02 1 8712-
93 COVER; HTR CORE 1-71997-455-3 01 1 8712-8901
93 COVER; HTR CORE 1-71997-891-0 01 1 8902-
