3-55 — BRAKE PIPING; OIL,REAR (#5969) — 77 parça

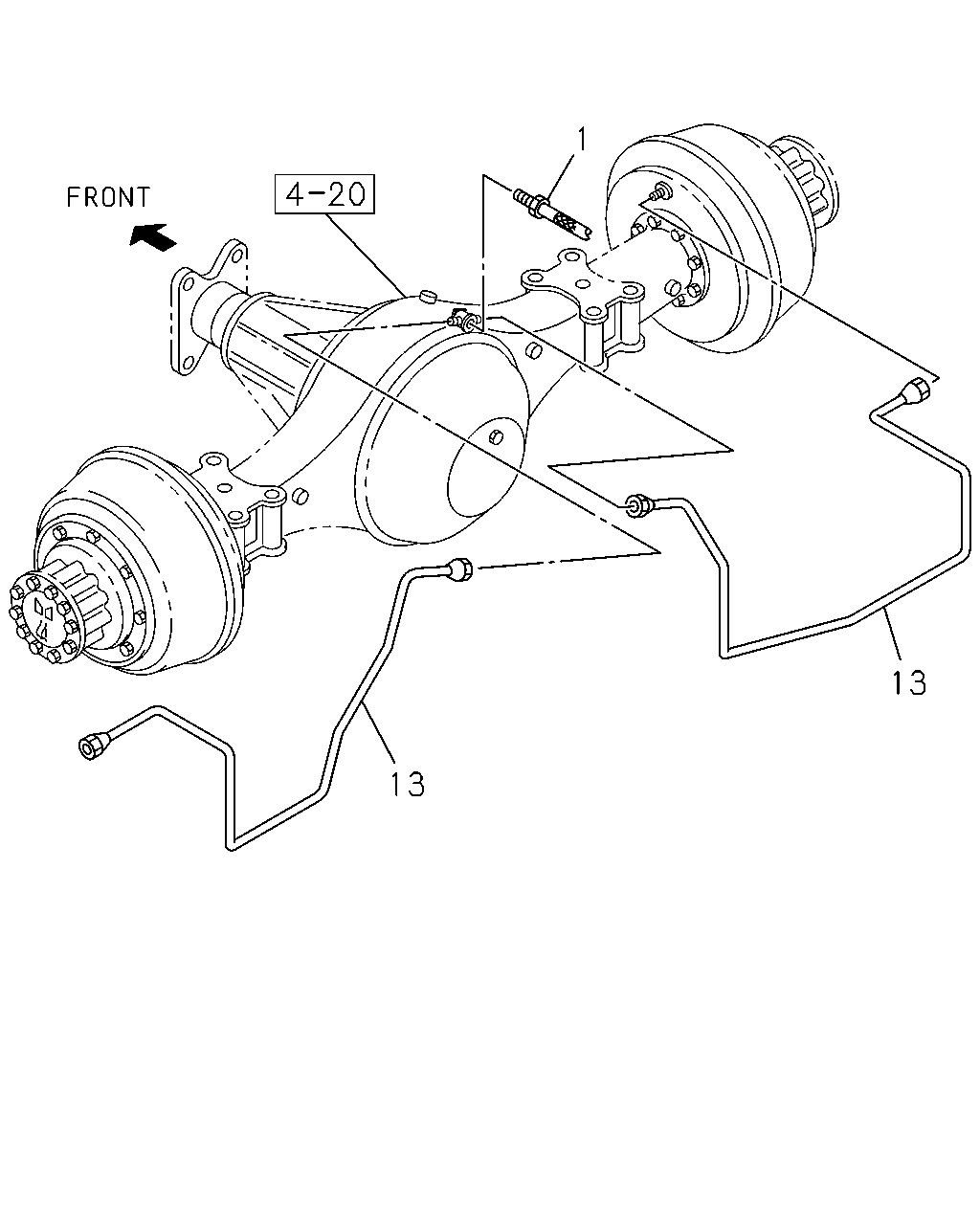

1 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=600	1-09364-131-0	01	1	9606-9609
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=600	1-09364-131-0	01	1	9610-9810
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	9811-0511
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=700	1-09364-203-0	01	1	9610-9810
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47423-327-0	01	1	9606-9810
13	PIPE; BRK,RR AXLE L=858	1-47427-108-0	01	1	9811-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47423-326-0	01	1	9606-9810
13	PIPE; BRK,RR AXLE L=685	1-47427-107-0	01	1	9811-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47423-111-0	01	1	9610-9810
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47423-110-0	01	1	9610-9810

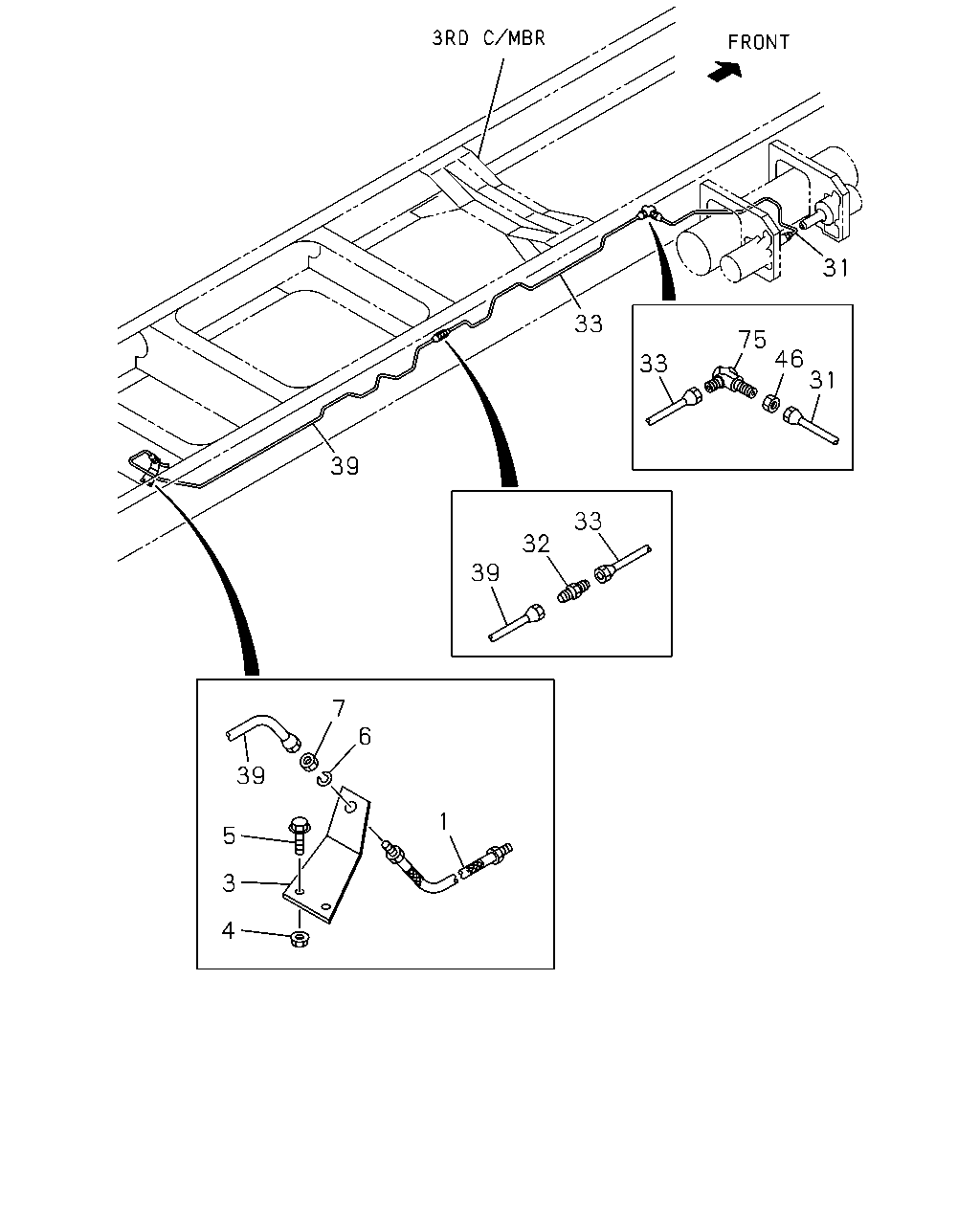

31 33 75 46 31 33 39 33 32 39 7 6 39 1 5 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=600	1-09364-131-0	01	1	9606-9609
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=600	1-09364-131-0	01	1	9610-9810
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	9811-0511
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=700	1-09364-203-0	01	1	9610-9810
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9606-
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9606-9810
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9811-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9811-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9606-
31	PIPE; OIL,AIR MASTER TO UNION L=459	1-47425-326-0	01	1	9606-9810
31	PIPE; OIL,AIR MASTER TO UNION L=415	1-47428-489-0	01	1	9811-
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9811-0607
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION L=1565 SERVICED BY L=1620	1-47426-356-0	01	1	9811-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) L=2061 SERVICED BY L=2200	1-47434-396-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2061 SERVICED BY L=2200	1-47434-396-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) L=2531 SERVICED BY L=2650	1-47434-399-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2531 SERVICED BY L=2650	1-47434-399-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) L=3043 SERVICED BY L=3200	1-47434-401-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=3043 SERVICED BY L=3200	1-47434-401-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	9811-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> L=3143 SERVICED BY L=3200	1-47426-365-0	01	1	9610-9810
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9606-
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	9606-0607
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-

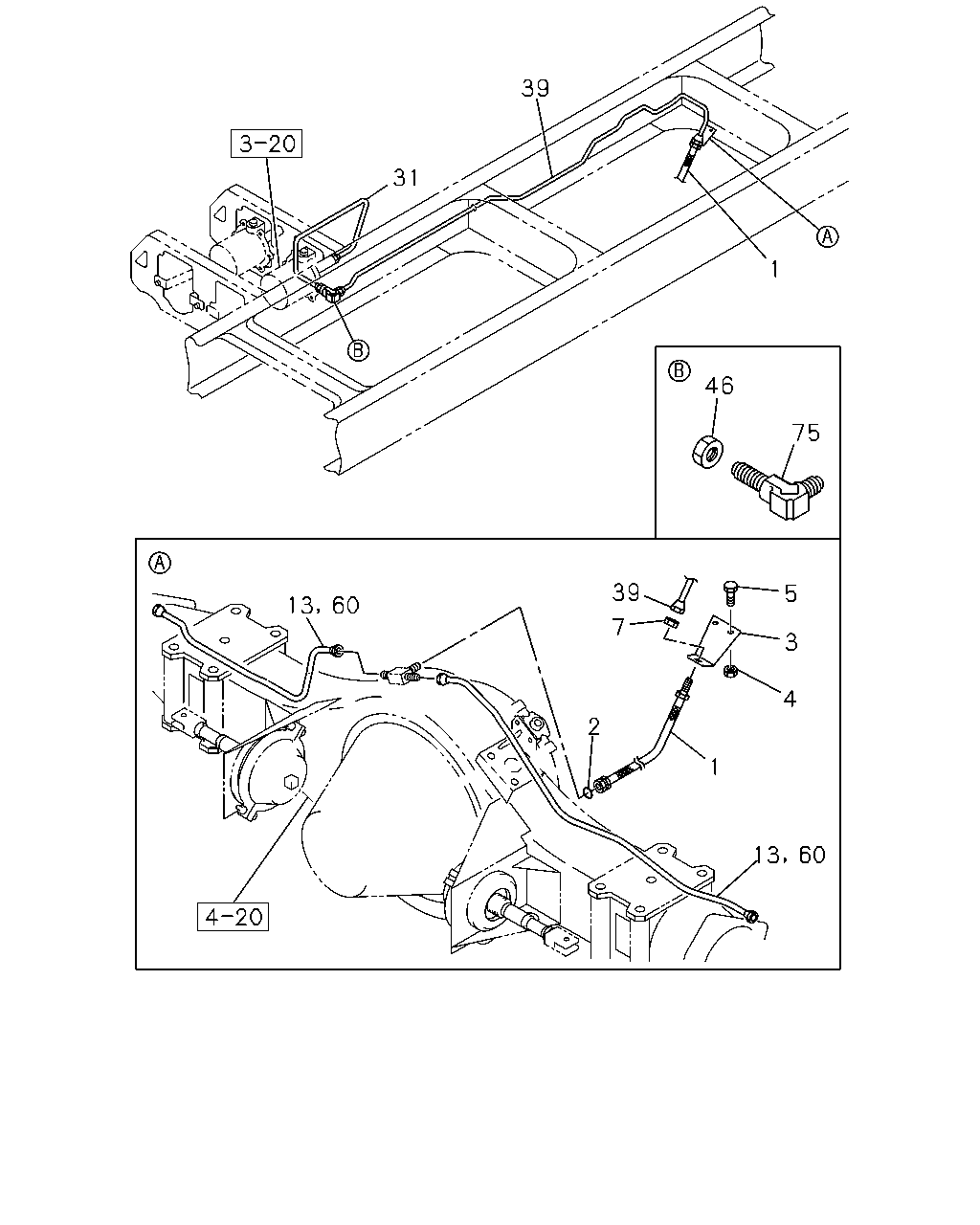

39 31 7 1 46 75 39 5 13 60 7 3 4 2 1 13 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=600	1-09364-131-0	01	1	9606-9609
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=600	1-09364-131-0	01	1	9610-9810
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	9811-0511
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=700	1-09364-203-0	01	1	9610-9810
2	GASKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> ID=9 OD=17	9-09920-472-0	01	1	9610-9810
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9606-
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9606-9810
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9811-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9606-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47423-327-0	01	1	9606-9810
13	PIPE; BRK,RR AXLE L=858	1-47427-108-0	01	1	9811-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7 14.5" HYPOID(W1H),FINAL GEAR 39/8 14.5" HYPOID(W1U)	1-47423-326-0	01	1	9606-9810
13	PIPE; BRK,RR AXLE L=685	1-47427-107-0	01	1	9811-
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47423-111-0	01	1	9610-9810
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H)	1-47423-110-0	01	1	9610-9810
31	PIPE; OIL,AIR MASTER TO UNION L=459	1-47425-326-0	01	1	9606-9810
31	PIPE; OIL,AIR MASTER TO UNION L=415	1-47428-489-0	01	1	9811-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) L=2061 SERVICED BY L=2200	1-47434-396-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2061 SERVICED BY L=2200	1-47434-396-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) L=2531 SERVICED BY L=2650	1-47434-399-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2531 SERVICED BY L=2650	1-47434-399-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) L=3043 SERVICED BY L=3200	1-47434-401-0	01	1	9606-9609
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=3043 SERVICED BY L=3200	1-47434-401-0	01	1	9610-9810
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	9811-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> L=3143 SERVICED BY L=3200	1-47426-365-0	01	1	9610-9810
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9606-
60	PIPE ASM; BRK FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49161-116-0	01	1	9610-9810
60	PIPE ASM; BRK FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49161-115-0	01	1	9610-9810
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	9606-0607
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
