◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#5968) — 55 parça

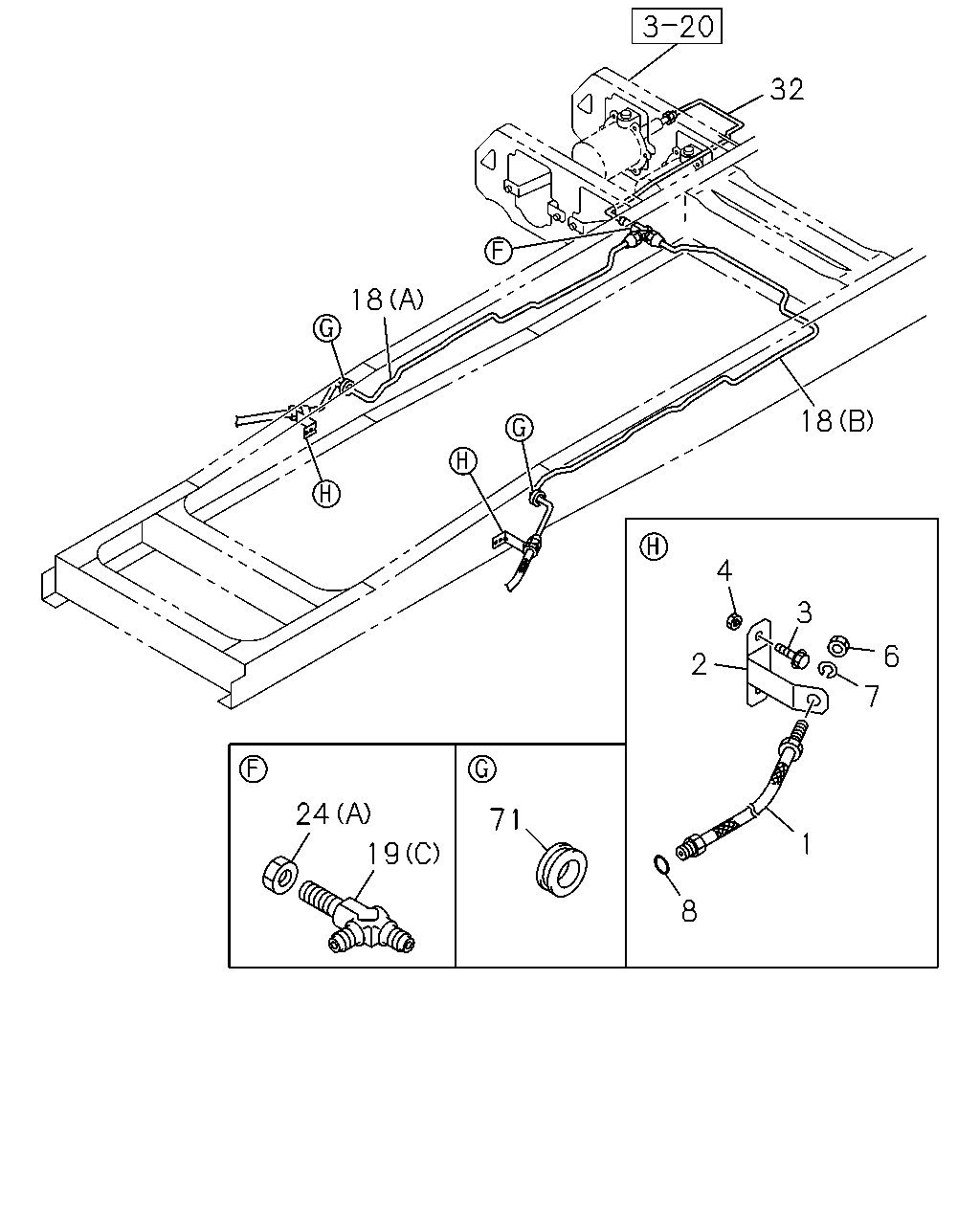

çizim 42292
32 18 18 4 3 6 2 7 24 71 1 19 8
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=475 		1-09364-189-0 02 1 9606-9609
1 HOSE; FLEX,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=475 		1-09364-189-0 02 1 9610-9810
1 HOSE; FLEX,FRT BRK
L=480 		0-05312-480-0 02 1 9811-
1 HOSE; FLEX,FRT BRK
HEAVY DUTY PACKAGE TRUCK<RD2> L=650 		1-09364-200-0 02 1 9610-9810
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 9606-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28680-820-0 04 1 9606-9810
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9811-0512
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 9811-0602
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9606-
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9811-0603
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9606-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2540 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9609
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2540 SERVICED BY L=2650 		1-47434-399-0 01 1 9610-9810
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2724 SERVICED BY L=2900 		1-47426-364-0 01 1 9811-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1655 SERVICED BY L=1820 		1-47434-394-0 01 1 9606-9810
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1751 SERVICED BY L=1820 		1-47426-358-0 01 1 9811-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2693 SERVICED BY L=2900 		1-47434-400-0 01 1 9610-9810
19 UNION; OIL PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 9606-9810
19 UNION; OIL PIPE
(C) M12 3WAY 		9-09228-906-1 01 1 9811-0607
19 UNION; OIL PIPE
(C) M12 3WAY 		0-92138-906-0 01 1 0608-
19 UNION; OIL PIPE
(B) M12 		9-09228-306-1 01 1 9606-9810
24 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 9606-
24 NUT; UNION,OIL PIPE
(B) M12 		9-99111-412-0 01 1 9606-9810
32 PIPE; OIL,AIR MASTER TO UNION
L=489 		1-47425-042-0 01 1 9606-9810
32 PIPE; OIL,AIR MASTER TO UNION
L=950 		1-47428-529-0 01 1 9811-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9606-

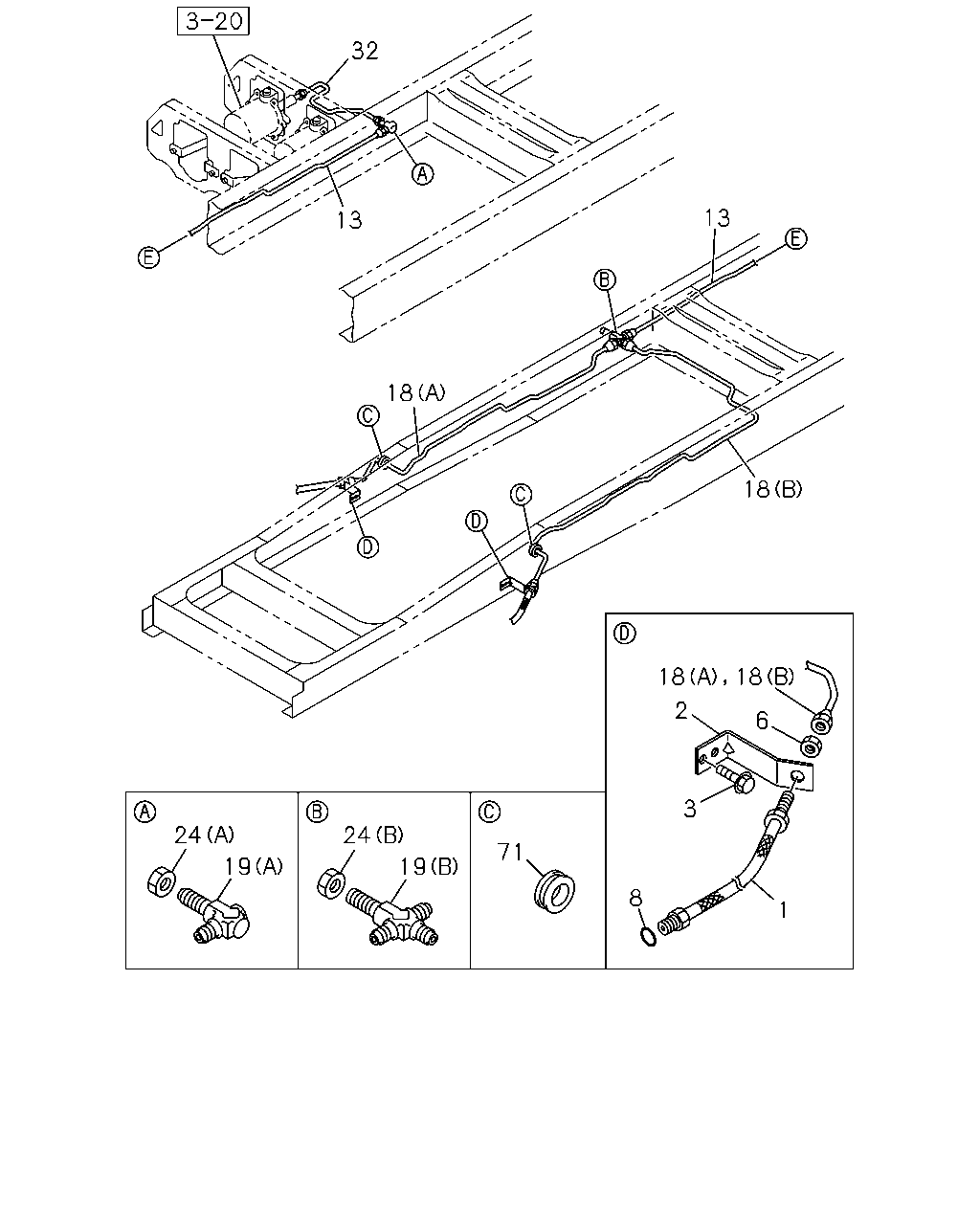

çizim 42612
32 13 13 18 18 18 18 2 6 3 24 24 71 19 19 8 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=475 		1-09364-189-0 02 1 9606-9609
1 HOSE; FLEX,FRT BRK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=475 		1-09364-189-0 02 1 9610-9810
1 HOSE; FLEX,FRT BRK
L=480 		0-05312-480-0 02 1 9811-
1 HOSE; FLEX,FRT BRK
HEAVY DUTY PACKAGE TRUCK<RD2> L=650 		1-09364-200-0 02 1 9610-9810
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 9606-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28680-820-0 04 1 9606-9810
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9811-0512
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9606-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9606-
13 PIPE; OIL,UNION TO UNION
L=1100 SERVICED BY L=1200 		1-47434-388-0 01 1 9606-9810
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2540 SERVICED BY L=2650 		1-47434-399-0 01 1 9606-9609
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2540 SERVICED BY L=2650 		1-47434-399-0 01 1 9610-9810
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2724 SERVICED BY L=2900 		1-47426-364-0 01 1 9811-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1655 SERVICED BY L=1820 		1-47434-394-0 01 1 9606-9810
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1751 SERVICED BY L=1820 		1-47426-358-0 01 1 9811-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2693 SERVICED BY L=2900 		1-47434-400-0 01 1 9610-9810
19 UNION; OIL PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 9606-9810
19 UNION; OIL PIPE
(C) M12 3WAY 		9-09228-906-1 01 1 9811-0607
19 UNION; OIL PIPE
(C) M12 3WAY 		0-92138-906-0 01 1 0608-
19 UNION; OIL PIPE
(B) M12 		9-09228-306-1 01 1 9606-9810
24 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 9606-
24 NUT; UNION,OIL PIPE
(B) M12 		9-99111-412-0 01 1 9606-9810
32 PIPE; OIL,AIR MASTER TO UNION
L=489 		1-47425-042-0 01 1 9606-9810
32 PIPE; OIL,AIR MASTER TO UNION
L=950 		1-47428-529-0 01 1 9811-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9606-
