Isuzu WW
▶
TRUCKS
▶
FVR
▶
11408 - FVR(LHD)EURO1
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶

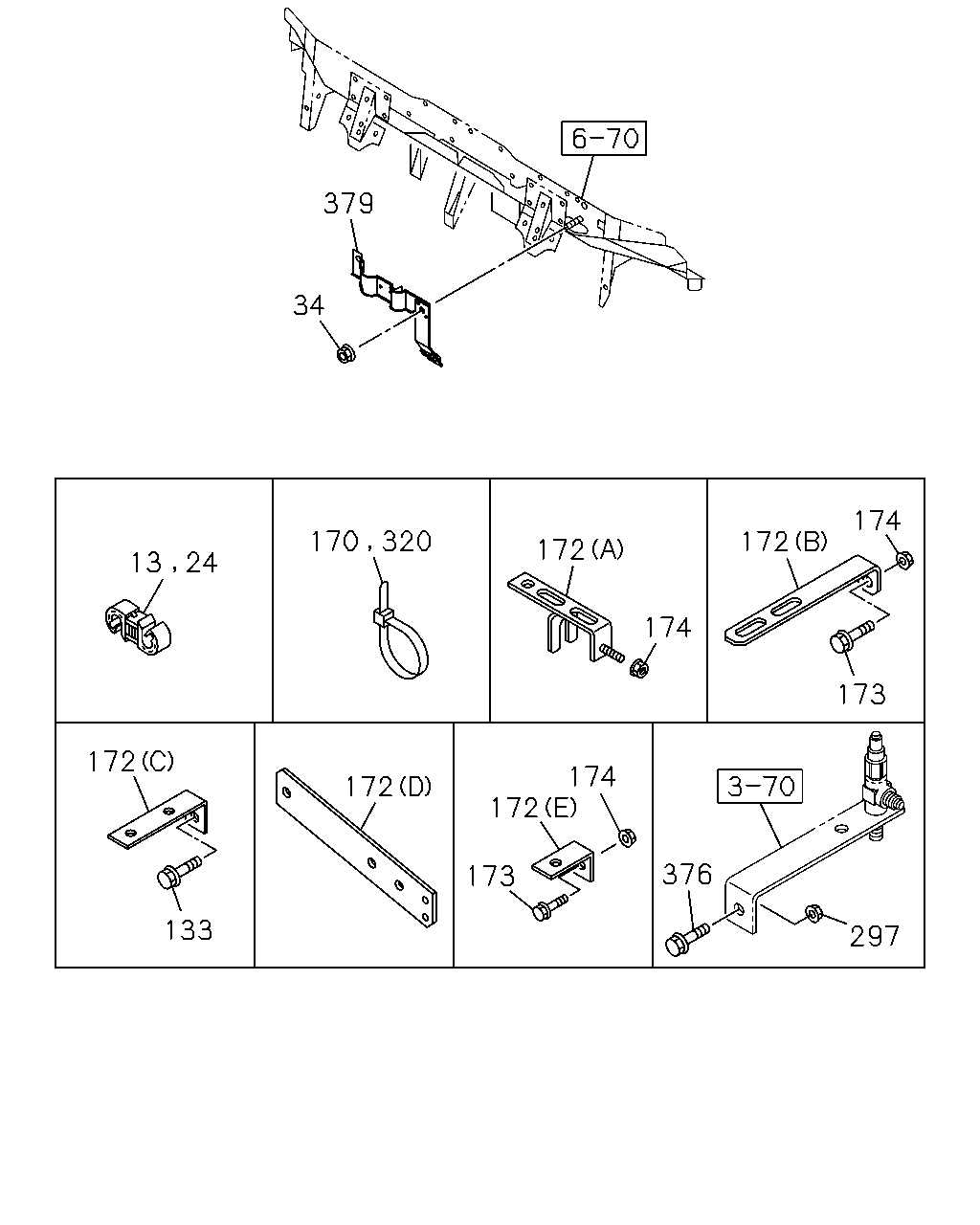

3-78 — FIXING PARTS; AIR PIPING
(#59676) — 20 parça
379
34
174
172
172
174
173
172
174
172
172
376
173
133
297
13
24
170
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
1110-
24
CLIP; PIPE
AIR DRYER<PS7> ID=6.35 & 15
1-09709-276-1
04
1
1110-
24
CLIP; PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15
1-09709-276-1
03
1
1110-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1110-
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1110-
133
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1110-
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
27
1
1110-
172
BRACKET; TUBE CLIP
(A)
8-98177-873-0
03
1
1110-
172
BRACKET; TUBE CLIP
(B) L=150 H=30
1-47477-629-2
01
1
1110-
172
BRACKET; TUBE CLIP
(C) L=60 H=30
1-47477-716-1
01
1
1110-
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1110-
172
BRACKET; TUBE CLIP
(E) L=65 B=25
8-98135-584-0
01
1
1110-
173
BOLT; CLIP BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1110-
173
BOLT; CLIP BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1110-
173
BOLT; CLIP BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1110-
174
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
06
1
1110-
297
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1110-
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
1110-
376
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1110-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
1110-
