3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#59674) — 24 parça
◀

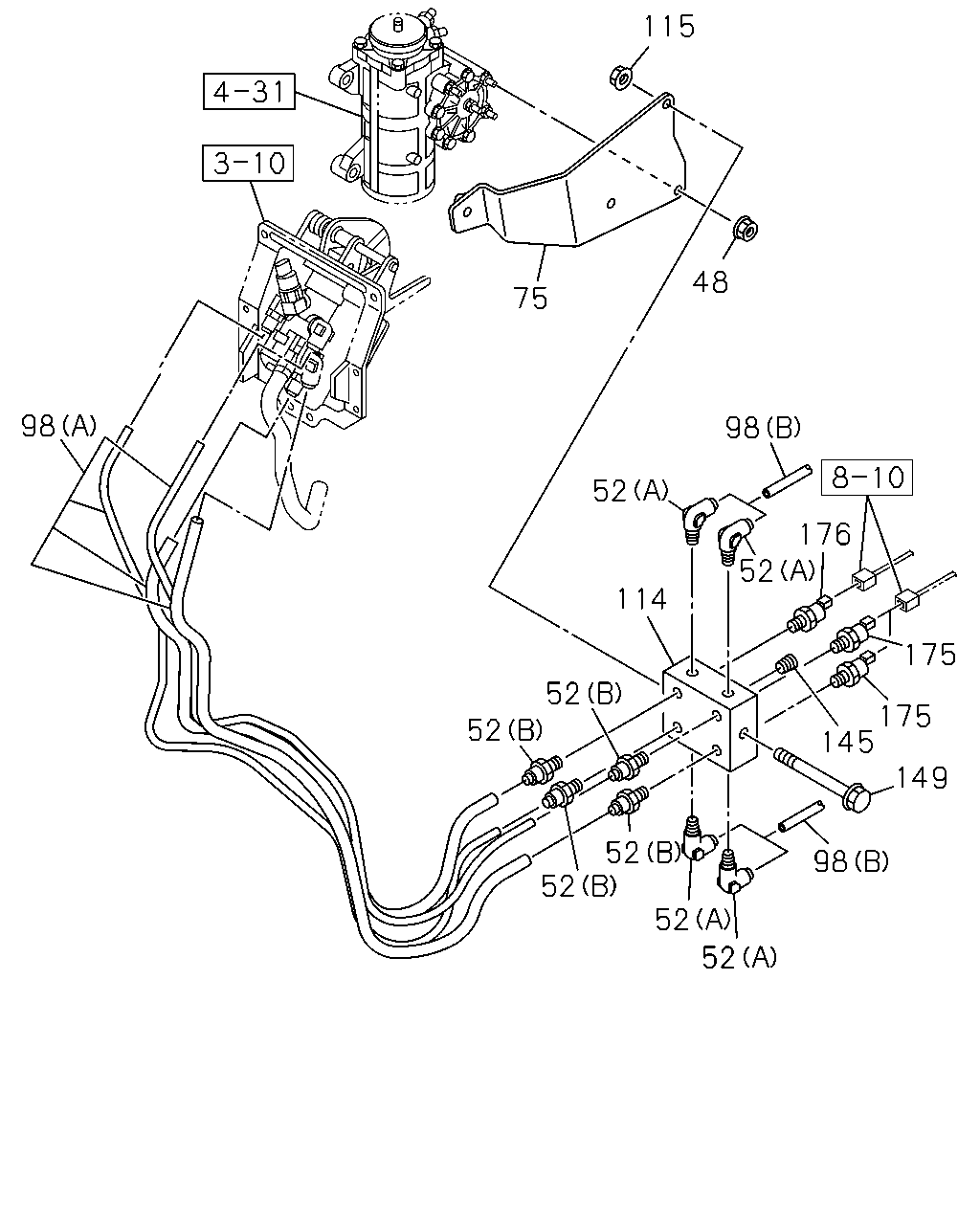

[375A] CAB UNDER (15 parça)

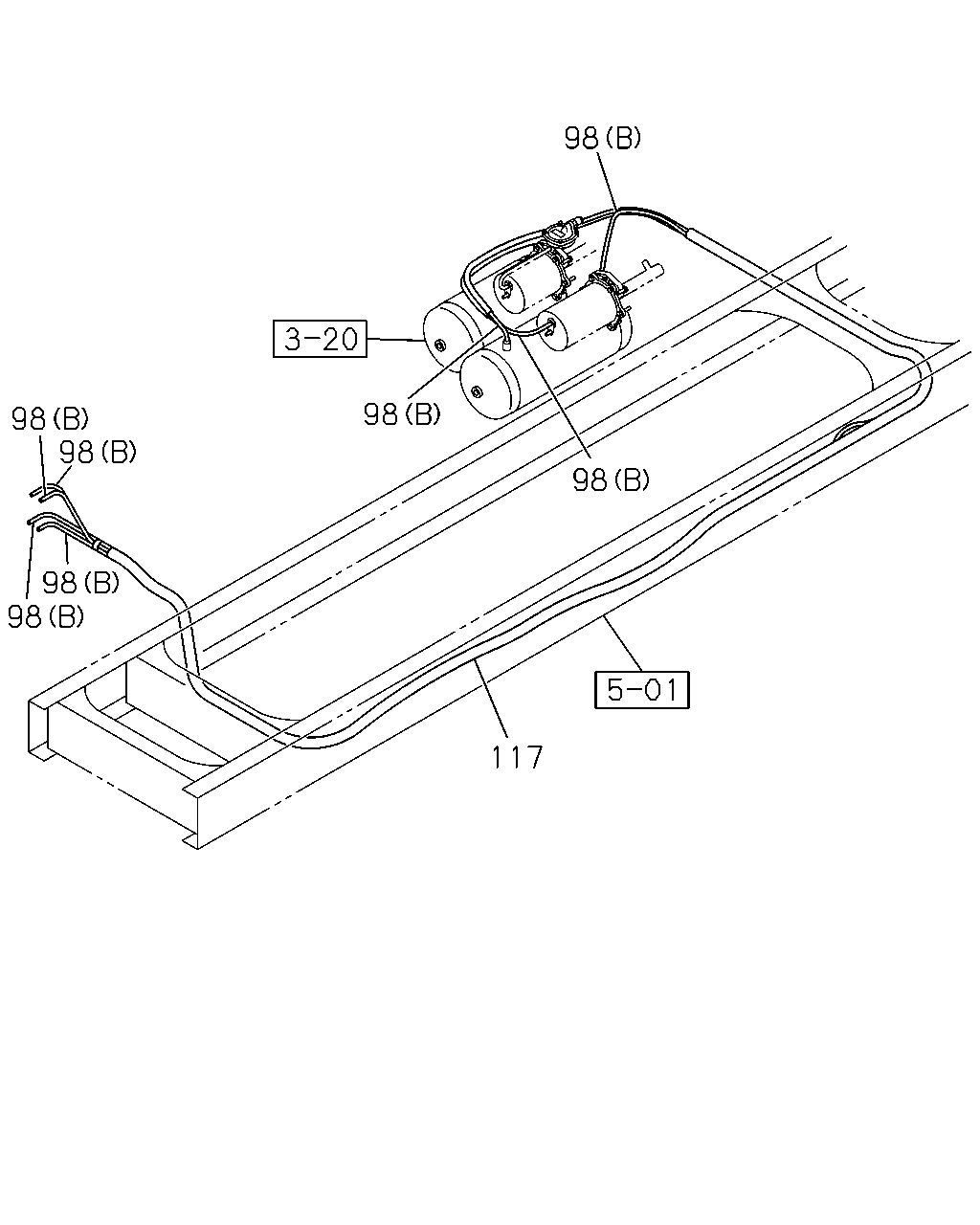

[375A] FRAME SIDE (9 parça)
▶
115
48
75
98
98
52
176
52
114
175
52
52
175
145
149
52
52
98
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
M10 FLANGE
0-91180-210-0
02
1
1110-
52
CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
04
1
1110-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1110-
75
BRACKET; UNION
8-98126-944-0
01
1
1110-
98
TUBE; NYLON
(A)
8-98146-120-0
01
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
1110-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1110-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1110-
145
PLUG
PT1/4
9-99204-513-0
01
1
1110-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1110-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1110-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1110-
98
98
98
98
98
98
98
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
(A)
8-98146-120-0
01
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
1-87411-034-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
1110-
