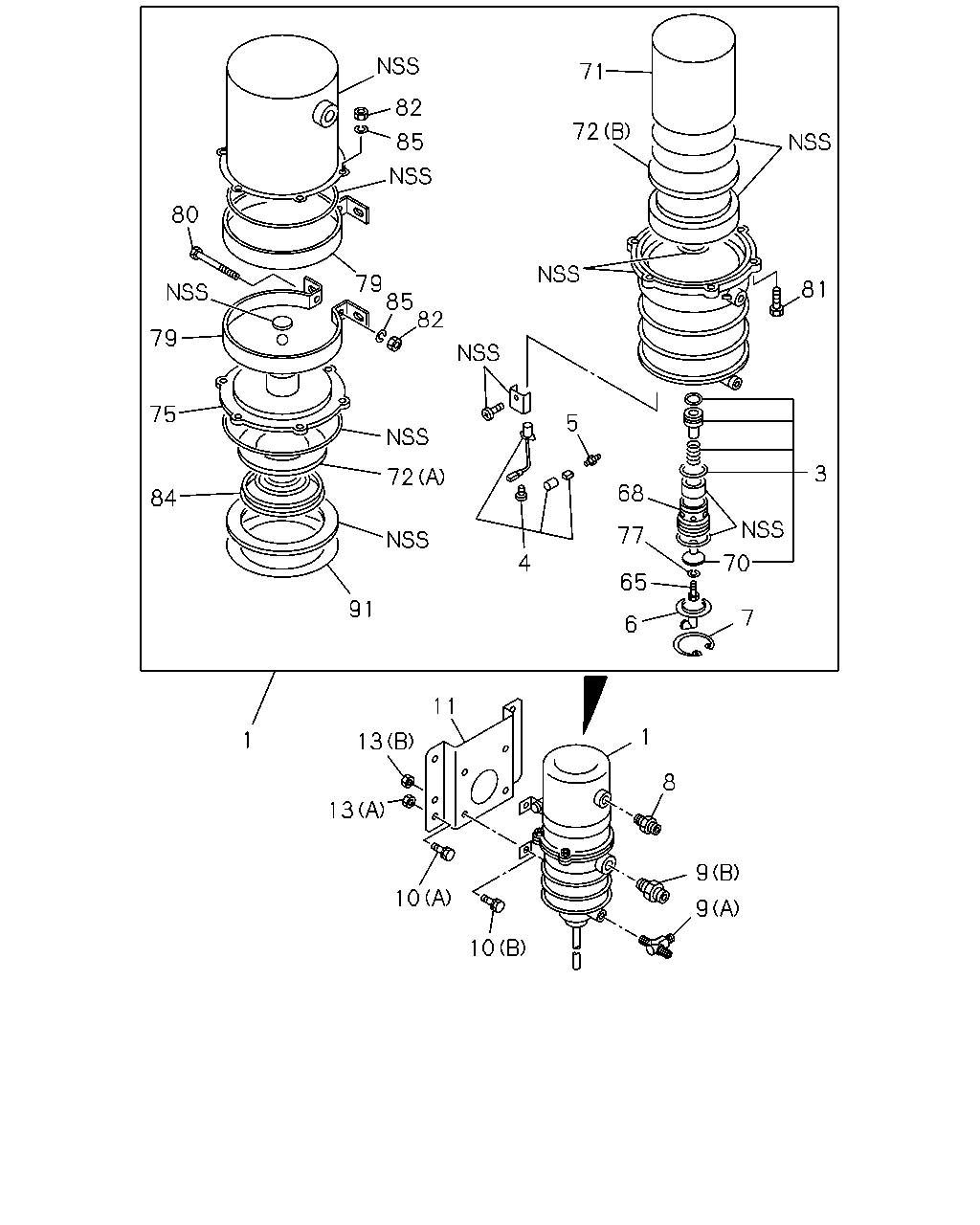

1 |
DRYER; AIR
AIR DRYER(PS7)
|
1-48190-091-1 |
01 |
1 |
9606-9810 |
| |
3 |

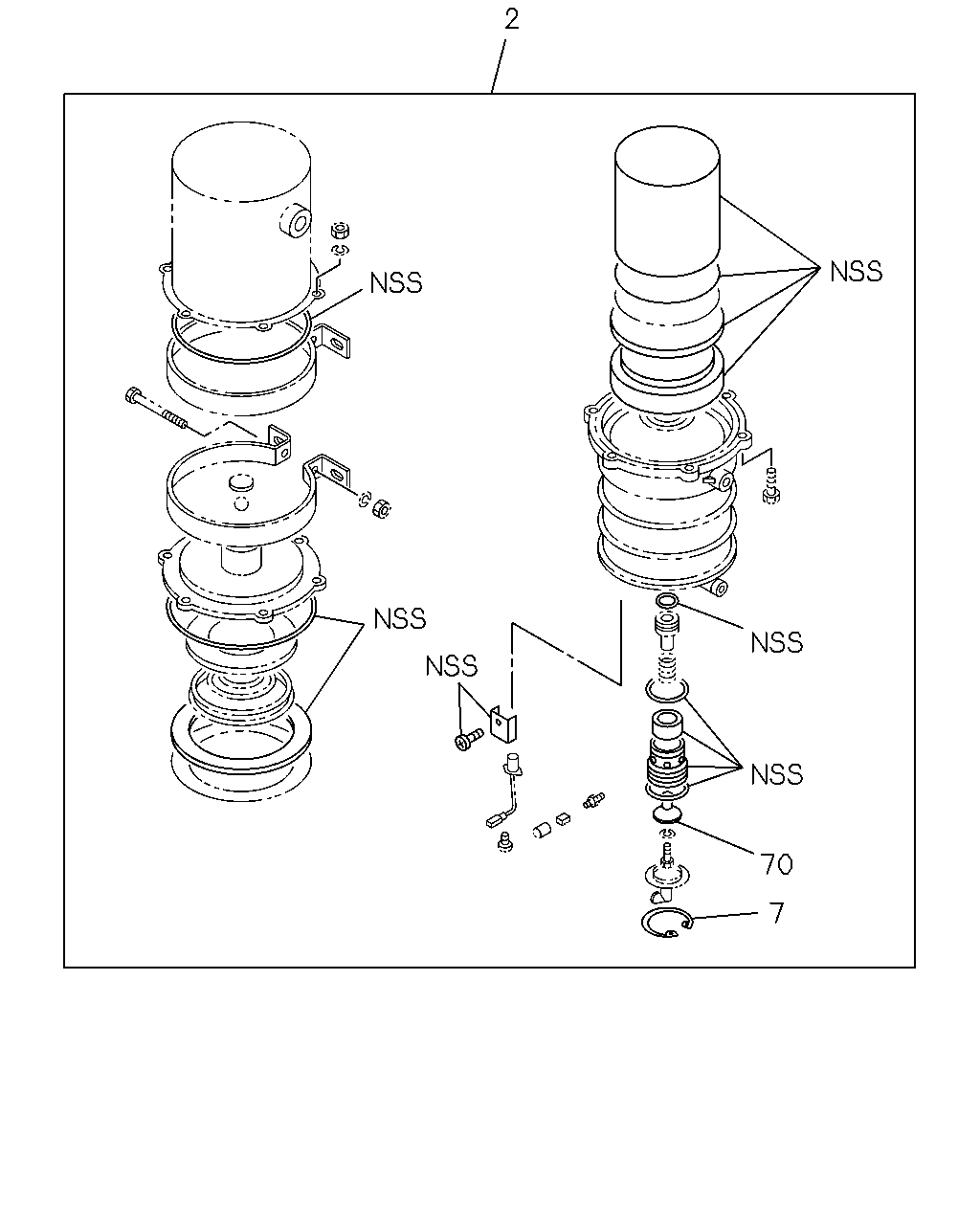

PISTON KIT; AIR DRYER
AIR DRYER(PS7)
|
1-85576-084-0 |
01 |
1 |
9606-9810 |
| |
4 |
THERMOSTAT KIT; AIR DRYER
AIR DRYER(PS7)
|
1-85576-121-0 |
01 |
1 |
9606-9810 |
| |
5 |
HEATER ASM; AIR DRYER
AIR DRYER(PS7)
|
1-48199-200-0 |
01 |
1 |
9606-9810 |
| |
6 |
COVER; EXH,AIR DRYER
AIR DRYER(PS7)
|
1-48199-132-0 |
01 |
1 |
9606-9810 |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER(PS7)
|
1-48199-100-0 |
01 |
1 |
9606-9810 |
| |
8 |
CONNECTOR; OUT,AIR DRYER
AIR DRYER(PS7)
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
9606-9810 |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER(PS7)
(A)
M12X2 & PT1/4 3WAY
|
1-09656-230-1 |
01 |
1 |
9606-9810 |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
AIR DRYER(PS7)
(B)
FLARE M22 PT1/2
|
9-09231-815-1 |
01 |
1 |
9606-9810 |
| |
10 |
BOLT; AIR DRYER
AIR DRYER(PS7)
(A)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9606-9810 |
| |
10 |
BOLT; AIR DRYER
AIR DRYER(PS7)
(B)
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
04 |
1 |
9606-9810 |
| |
11 |
BRACKET; AIR DRYER
AIR DRYER(PS7)
|
1-48195-057-0 |
01 |
1 |
9606-9810 |
| |
13 |
NUT; AIR DRYER
AIR DRYER(PS7)
(A)
M10
|
9-09110-510-0 |
02 |
1 |
9606-9810 |
| |
13 |
NUT; AIR DRYER
AIR DRYER(PS7)
(B)
M10
|
9-09110-510-0 |
04 |
1 |
9606-9810 |
| |
65 |
BOLT; PURGE VLV
AIR DRYER(PS7)
|
1-48199-102-0 |
01 |
1 |
9606-9810 |
| |
68 |
BODY; VALVE
AIR DRYER(PS7)
|
1-48199-216-0 |
01 |
1 |
9606-9810 |
| |
70 |
VALVE; AIR DRYER
AIR DRYER(PS7)
|
1-48199-105-0 |
01 |
1 |
9606-9810 |
| |
71 |
CASE; INNER,AIR DRYER
AIR DRYER(PS7)
|
1-48199-099-0 |
01 |
1 |
9606-9810 |
| |
72 |
PLATE; FILTER,AIR DRYER
AIR DRYER(PS7)
(A)
|
1-48199-097-0 |
01 |
1 |
9606-9810 |
| |
72 |
PLATE; FILTER,AIR DRYER
AIR DRYER(PS7)
(B)
|
1-48199-098-0 |
01 |
1 |
9606-9810 |
| |
75 |
COVER; CASE,AIR DRYER
AIR DRYER(PS7)
|
1-48199-201-0 |
01 |
1 |
9606-9810 |
| |
77 |
WASHER; LK,VALVE
AIR DRYER(PS7)
|
1-48199-103-0 |
01 |
1 |
9606-9810 |
| |
79 |
BRACKET; AIR DRYER
AIR DRYER(PS7)
|
1-48199-209-0 |
02 |
1 |
9606-9810 |
| |
80 |
BOLT; BRKT
AIR DRYER(PS7)
|
1-48199-212-0 |
02 |
1 |
9606-9810 |
| |
81 |
BOLT; CASE,AIR DRYER
AIR DRYER(PS7)
|
1-48199-208-0 |
06 |
1 |
9606-9810 |
| |
82 |
NUT; CASE,AIR DRYER
AIR DRYER(PS7)
|
1-48199-211-0 |
08 |
1 |
9606-9810 |
| |
84 |
SPRING; AIR DRYER
AIR DRYER(PS7)
|
1-48199-092-0 |
01 |
1 |
9606-9810 |
| |
85 |
WASHER; CASE,AIR DRYER
AIR DRYER(PS7)
|
1-48199-024-0 |
08 |
1 |
9606-9810 |
| |
91 |
GUIDE; CASE,AIR DRYER
AIR DRYER(PS7)
|
1-48199-091-0 |
01 |
1 |
9606-9810 |
