3-46 — AIR DRYER
(#59669) — 24 parça
◀

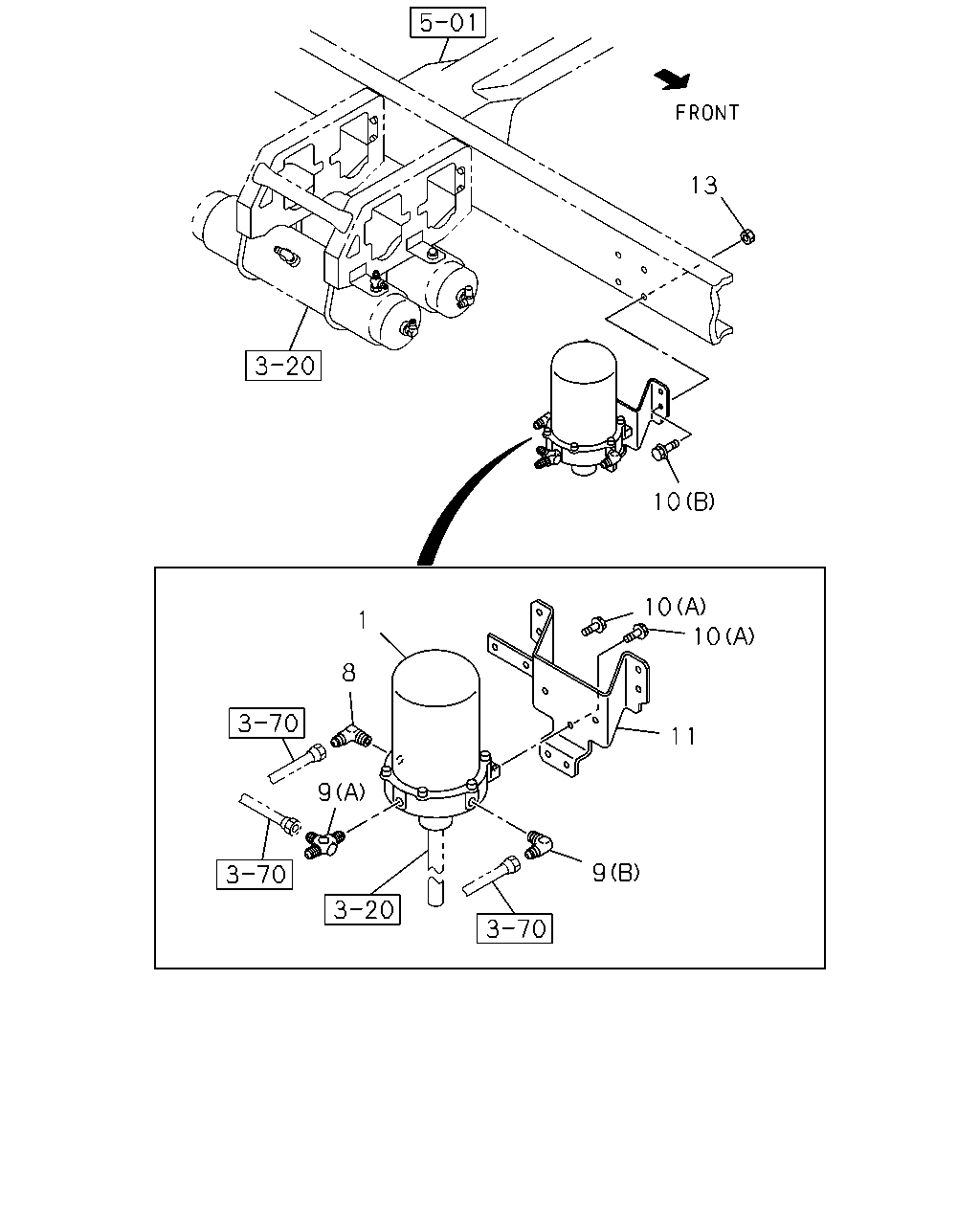

[346A] FIXING (8 parça)

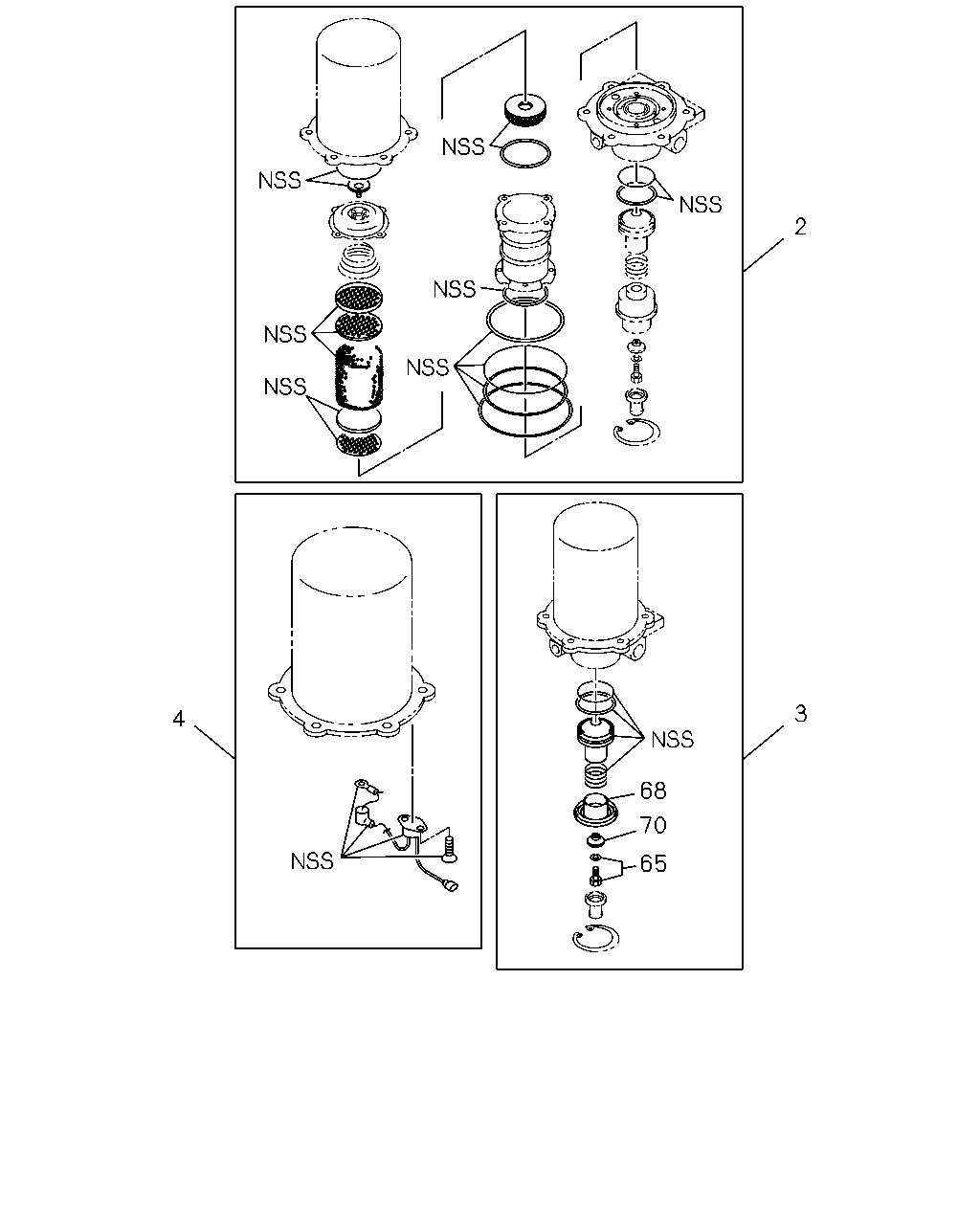

[346A] REPAIR AND PISTON,THERMOSTAT KIT (6 parça)

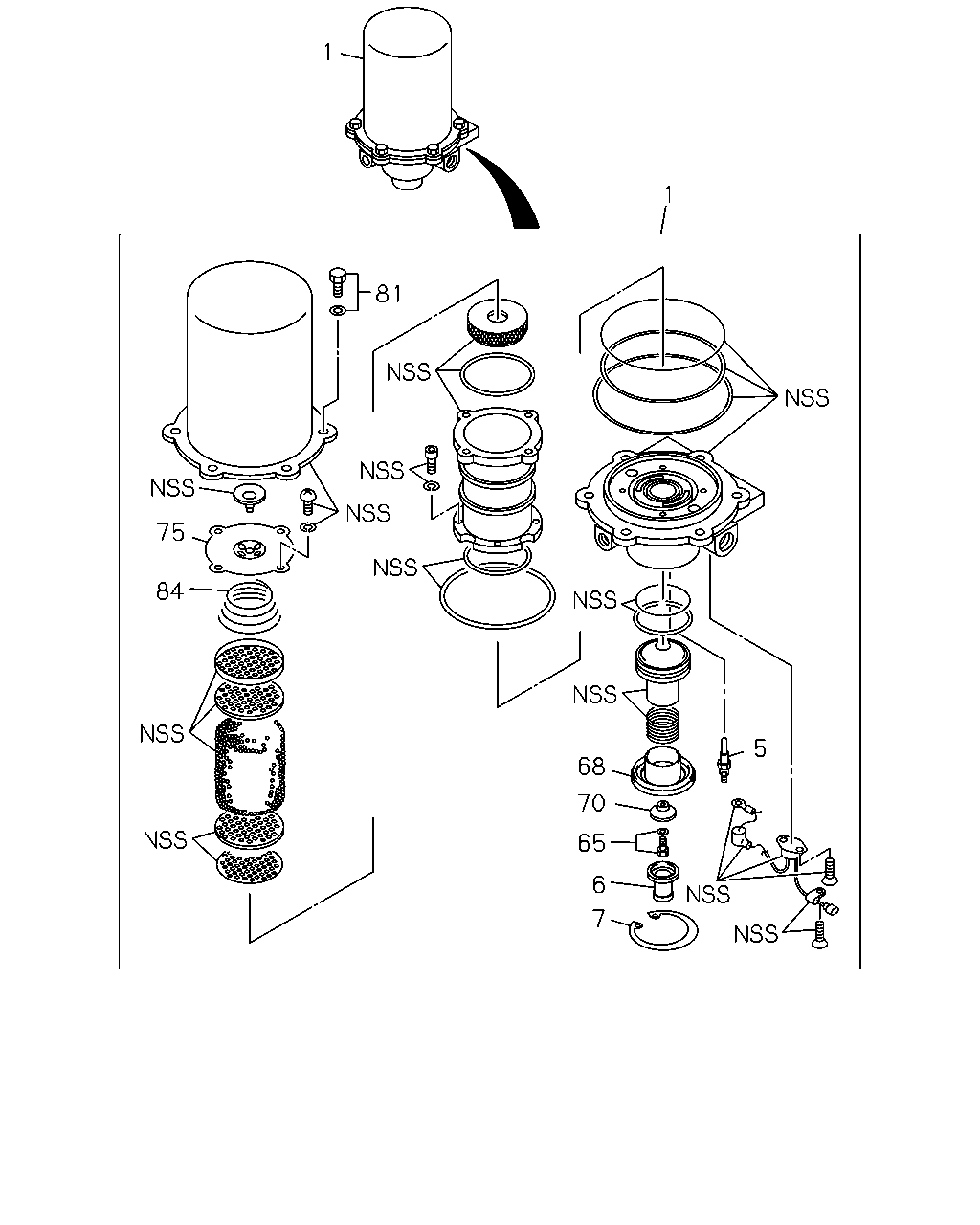

[346A] COMPONENT (10 parça)
▶
13
10
10
10
1
8
11
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-210-1
01
1
1110-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1110-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1110-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1110-
10
BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X20 FLANGE
0-28051-020-0
03
1
1110-
10
BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X35 FLANGE
0-28651-035-0
02
1
1110-
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
8-98120-190-0
01
1
1110-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
1110-
2
3
4
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-217-0
01
1
1110-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-193-0
01
1
1110-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-218-0
01
1
1110-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1110-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1110-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1110-
1
1
81
75
84
5
68
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-210-1
01
1
1110-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
01
1
1110-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-404-0
01
1
1110-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-403-0
01
1
1110-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1110-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1110-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1110-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-427-0
01
1
1110-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-436-0
06
1
1110-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-425-0
01
1
1110-
