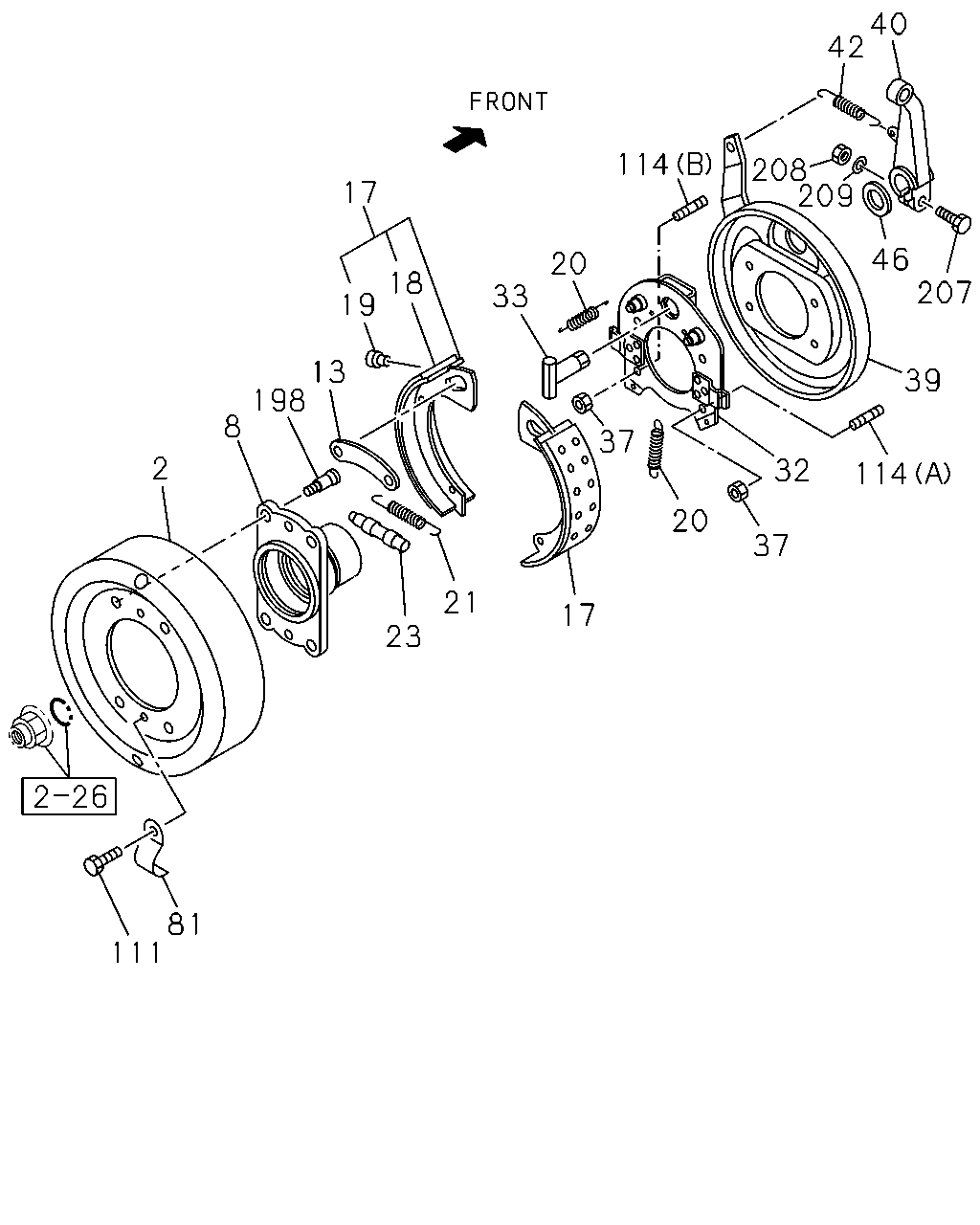

3-08 — PARKING BRAKE (#59661) — 27 parça

40 42 114 208 209 17 46 207 20 18 33 19 13 198 39 8 37 2 32 114 20 37 21 17 23 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK	1-46211-019-0	01	1	1110-
8	FLANGE; PARKING BRK	8-98153-193-0	01	1	1110-
13	BRACE; PARKING BRK	9-46239-002-0	01	1	1110-
17	SHOE; PARKING BRK	1-46220-022-1	02	1	1110-
18	LINING; BRK,PARKING	1-46225-023-0	02	1	1110-
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1110-
19	RIVET; LINING,PARKING BRK	1-09732-058-0	32	1	1110-
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	1110-
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	1110-
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	1110-
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	1110-
33	SHAFT; CAM,PARKING BRK	1-46251-010-0	01	1	1110-
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1110-
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	1110-
40	LEVER; CM/SHF,PARKING BRK	1-46252-046-0	01	1	1110-
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	1110-
46	WASHER; LEVER	9-09855-362-0	01	1	1110-
81	COVER; CHECK HOLE,PARKING BRK	1-46219-030-0	02	1	1110-
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1110-
114	STUD; SUPPORT PLATE (A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1110-
114	STUD; SUPPORT PLATE (B) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1110-
198	BOLT; KNURL M16X55	8-98023-172-0	04	1	1110-
207	BOLT; LEVER	8-98061-595-0	01	1	1110-
208	NUT; LEVER M10	0-91111-510-0	01	1	1110-
209	WASHER; SP,LEVER ID=10.2	0-91510-510-0	01	1	1110-

130 197

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	130	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1110-
	197	BRACKET; CENTER BRAKE CABLE	8-98009-002-1	01	1	1110-
