Sayfa 3-34 - Isuzu EPC

3-34 — BRAKE VALVE; AIR (#5965) — 311 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	REPAIR KIT; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-85576-182-0	01	1	9610-9810

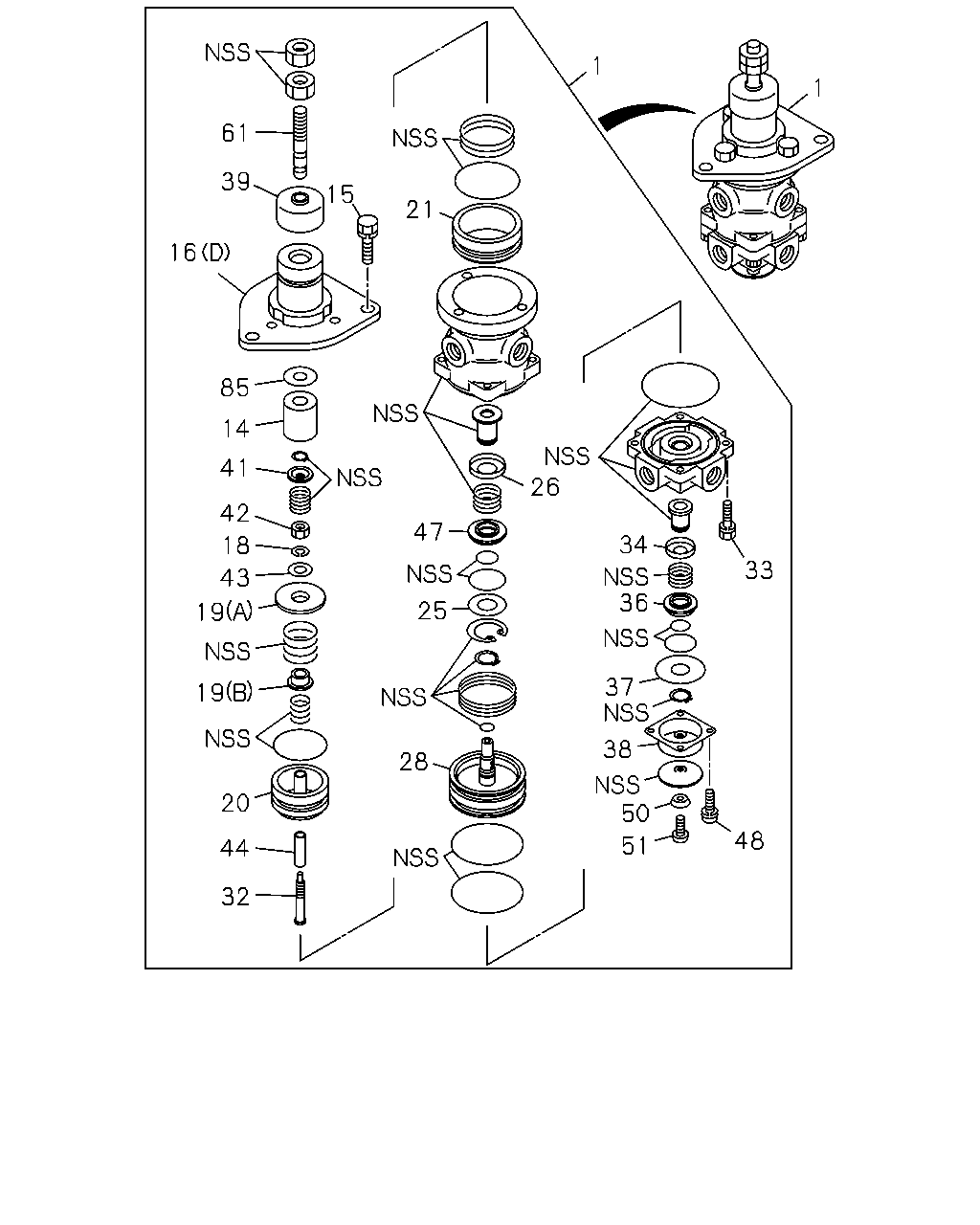

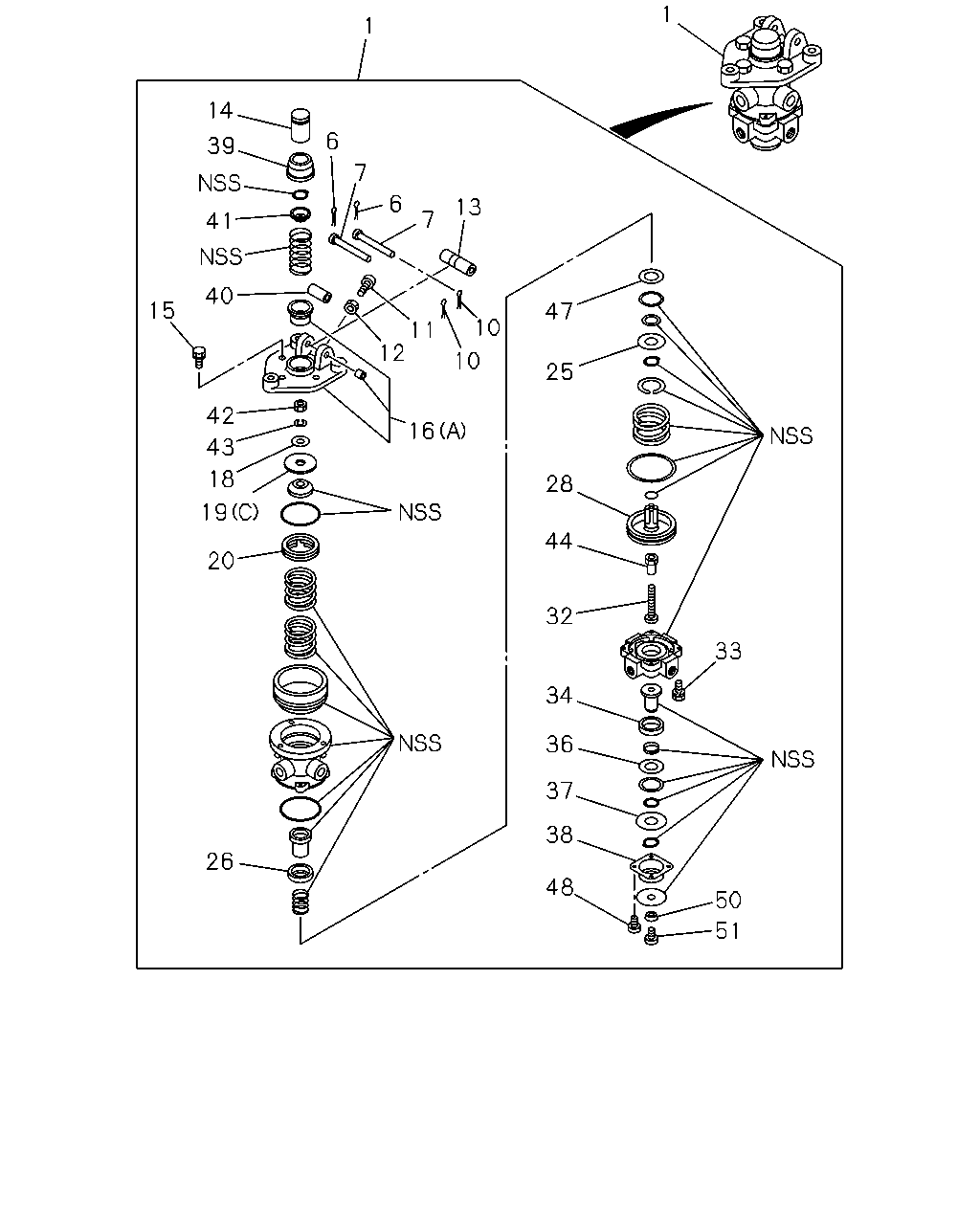

1 1 14 6 39 7 6 13 7 41 40 15 47 10 11 12 10 25 42 16 43 18 28 19 44 20 32 33 34 36 37 38 26 48 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-625-2	01	1	9606-9609
1	VALVE; BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-625-2	01	1	9610-9810
1	VALVE; BRK	1-48100-726-6	01	1	9811-
1	VALVE; BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-773-0	01	1	9610-9810
6	PIN; PEDAL,SIDE,BRK VLV	1-48119-083-0	02	1	9606-9609
6	PIN; PEDAL,SIDE,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-083-0	02	1	9610-9810
7	PIN; PEDAL,BRK VLV	1-48119-082-0	02	1	9606-9609
7	PIN; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-082-0	02	1	9610-9810
7	PIN; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-244-0	02	1	9610-9810
10	PIN; SPLIT,BRK VLV	1-48119-087-0	02	1	9606-9609
10	PIN; SPLIT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-087-0	02	1	9610-9810
11	SCREW; SET,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-245-0	01	1	9610-9810
11	SCREW; SET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-088-0	01	1	9610-9810
12	NUT; SCREW,PEDAL,BRK VLV	1-48119-089-0	01	1	9606-9609
12	NUT; SCREW,PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-089-0	01	1	9610-9810
12	NUT; SCREW,PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	9-88510-123-0	01	1	9610-9810
13	ROLLER; PEDAL,BRK VLV	1-48119-257-0	01	1	9606-9609
13	ROLLER; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-257-0	01	1	9610-9810
13	ROLLER; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-243-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-316-0	01	1	9606-9609
14	PLUNGER; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-316-0	01	1	9610-9810
14	PLUNGER; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-383-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	9811-
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9606-9609
15	BOLT; PLATE,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-232-0	03	1	9610-9810
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	9811-
15	BOLT; PLATE,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48219-039-0	03	1	9610-9810
16	PLATE; MTG,BRKT VLV (A)	1-48119-261-2	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-48119-261-2	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (B)	1-73997-771-1	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-73997-771-1	01	1	9610-9810
16	PLATE; MTG,BRKT VLV HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48119-268-0	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (D)	1-48119-364-2	01	1	9811-
18	WASHER; LK,SEAT,BRK VLV	1-48129-156-0	01	1	9606-9609
18	WASHER; LK,SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-156-0	01	1	9610-9810
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	9811-
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9606-9609
19	SEAT; SPRING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48129-172-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (A)	1-48119-321-0	01	1	9811-
19	SEAT; SPRING,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-48123-041-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (B)	1-48119-339-1	01	1	9811-
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9606-9609
20	PISTON; UPR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-263-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-381-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	9811-
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9606-9609
25	WASHER; PISTON,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-149-0	01	1	9610-9810
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9811-
25	WASHER; PISTON,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-138-0	01	1	9610-9810
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9606-9609
26	RETAINER; VLV,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48122-003-0	01	1	9610-9810
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9811-
28	PISTON; LWR,BRK VLV	1-48123-050-0	01	1	9606-9609
28	PISTON; LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-050-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-140-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	9811-
32	SCREW; BRK VLV	1-48121-039-0	01	1	9606-9609
32	SCREW; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48121-039-0	01	1	9610-9810
32	SCREW; BRK VLV	1-48119-323-0	01	1	9811-
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9606-9609
33	BOLT; BODY,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-068-0	04	1	9610-9810
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9811-
33	BOLT; BODY,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-213-0	04	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9606-9609
34	RETAINER; VLV,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48122-010-0	01	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9811-
34	RETAINER; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-144-0	01	1	9610-9810
36	RETAINER; GASKET,BRK VLV	1-48129-169-0	01	1	9606-9609
36	RETAINER; GASKET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-169-0	01	1	9610-9810
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	9811-
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9606-9609
37	WASHER; VLV LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-166-0	01	1	9610-9810
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9811-0405
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	0406-
37	WASHER; VLV LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-080-0	01	1	9610-9810
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9606-9609
38	COVER; EXH,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-217-0	01	1	9610-9810
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9811-0405
38	COVER; EXH,BRK VLV	1-48119-597-0	01	1	0406-
39	BOOT; PLUNGER,BRK VLV	1-48119-079-0	01	1	9606-9609
39	BOOT; PLUNGER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-079-0	01	1	9610-9810
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	9811-
40	PIPE; PLATE,BRK VLV	1-48119-086-0	01	1	9606-9609
40	PIPE; PLATE,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-086-0	01	1	9610-9810
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9606-9609
41	PLATE; STEM,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-167-0	01	1	9610-9810
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9811-
42	NUT; SPR SEAT,BRK VLV	1-48129-157-0	01	1	9606-9609
42	NUT; SPR SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-157-0	01	1	9610-9810
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	9811-
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9606-9609
43	WASHER; SPR SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-170-0	01	1	9610-9810
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9811-
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9606-9609
44	SLEEVE; PISTON,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-171-0	01	1	9610-9810
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	9811-
47	RETAINER; GASKET,BRK VLV	1-48129-147-0	01	1	9606-9609
47	RETAINER; GASKET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-147-0	01	1	9610-9810
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	9811-
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9606-9609
48	BOLT; COVER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-216-0	04	1	9610-9810
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9811-0405
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9606-9609
50	WASHER; RET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-112-0	01	1	9610-9810
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9811-0405
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9606-9609
51	SCREW; FORMING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-111-0	01	1	9610-9810
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9811-0405

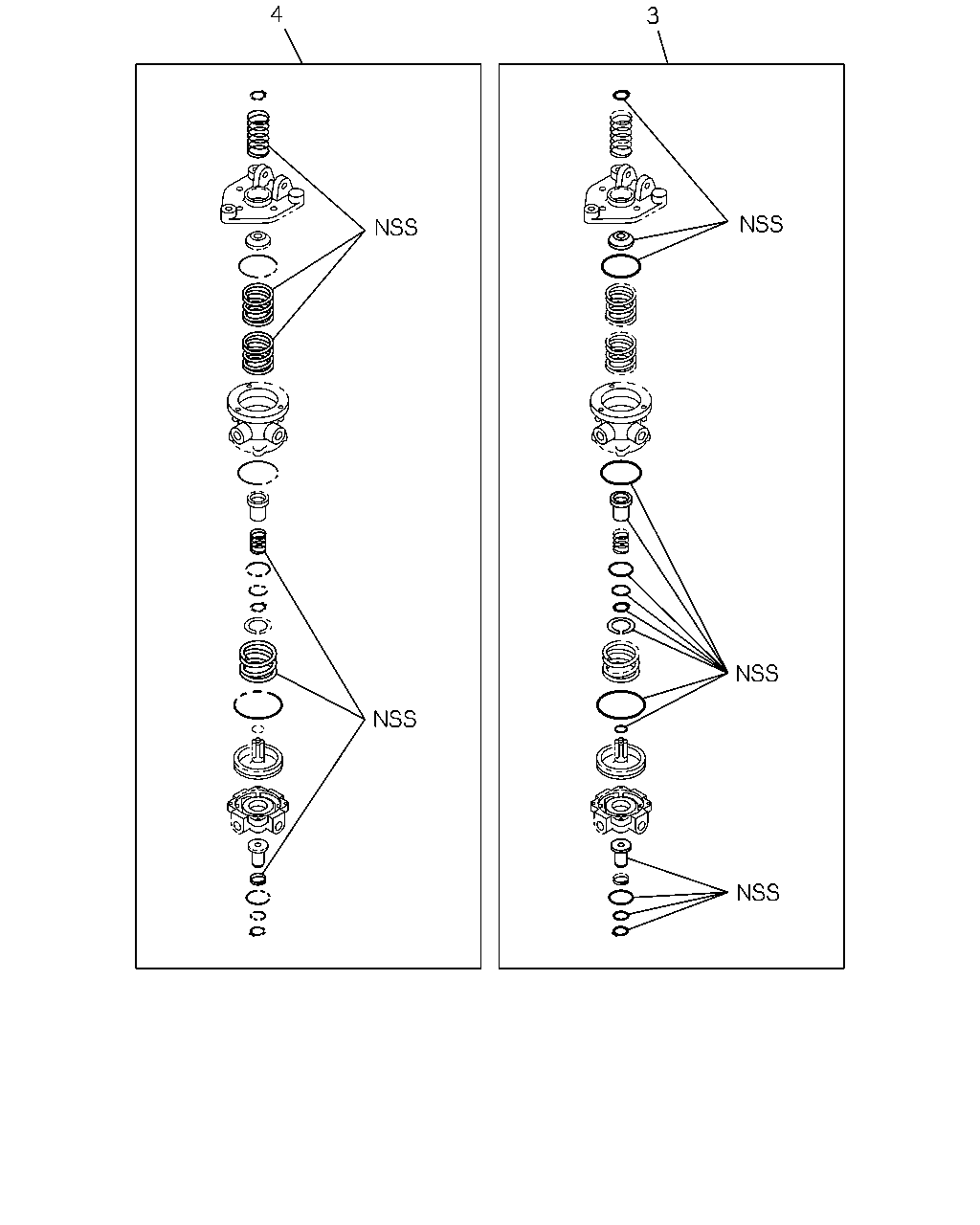

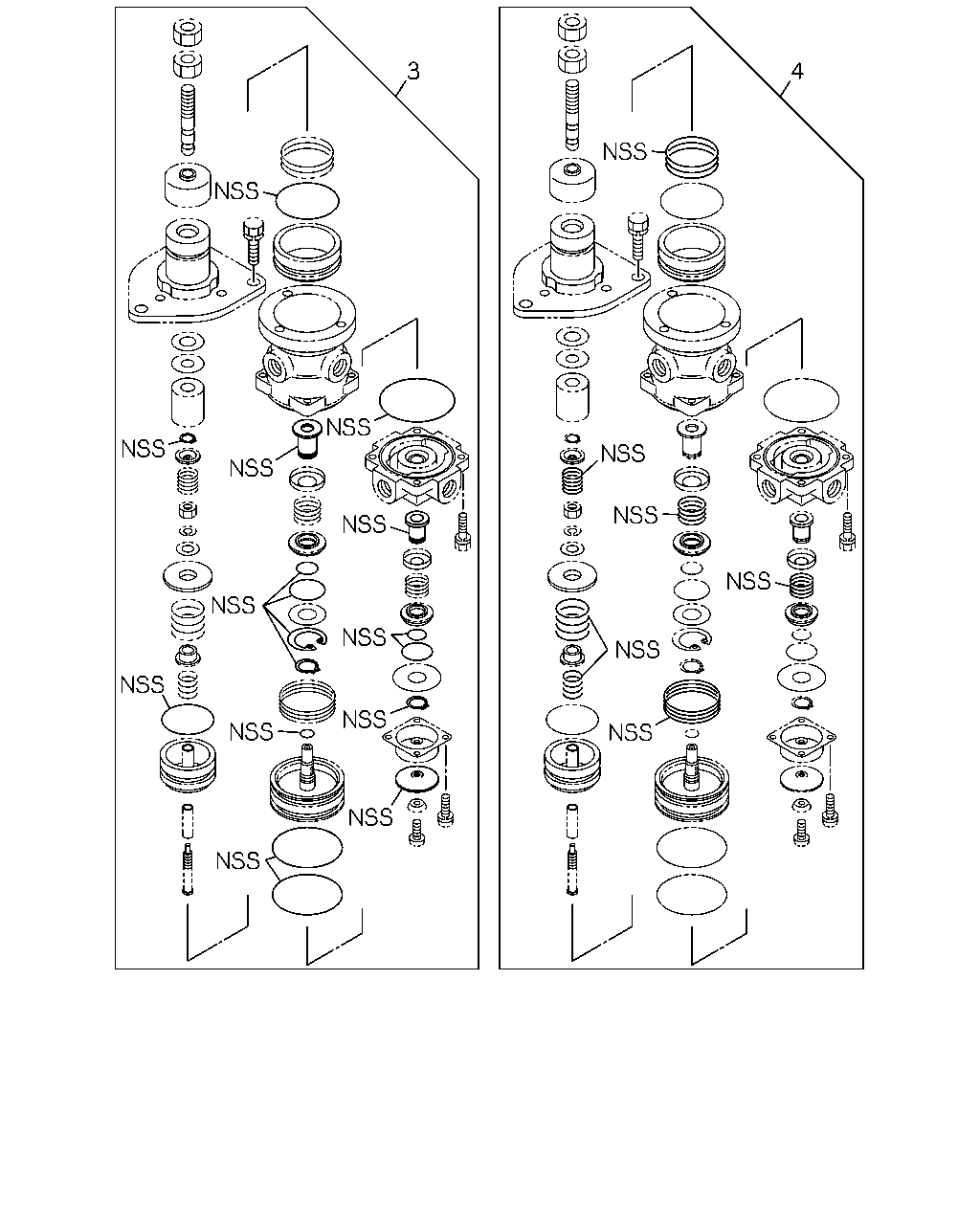

3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9606-9609
3	REPAIR KIT; RUBBER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-85576-049-0	01	1	9610-9810
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-177-0	01	1	9811-0405
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-391-0	01	1	0406-
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9606-9609
4	REPAIR KIT; SPRING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-85576-050-0	01	1	9610-9810
4	REPAIR KIT; SPRING,BRK VLV	1-85576-176-0	01	1	9811-

16 1 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-625-2	01	1	9606-9609
1	VALVE; BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-625-2	01	1	9610-9810
1	VALVE; BRK	1-48100-726-6	01	1	9811-
1	VALVE; BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-773-0	01	1	9610-9810
5	COVER; PEDAL,BRK VLV	8-94204-810-0	01	1	9606-9609
5	COVER; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-94204-810-0	01	1	9610-9810
5	COVER; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-333-0	01	1	9610-9810
8	PEDAL; BRK VLV	1-47311-105-0	01	1	9606-9609
8	PEDAL; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47311-105-0	01	1	9610-9810
8	PEDAL; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-332-0	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (A)	1-48119-261-2	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-48119-261-2	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (B)	1-73997-771-1	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-73997-771-1	01	1	9610-9810
16	PLATE; MTG,BRKT VLV HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48119-268-0	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (D)	1-48119-364-2	01	1	9811-

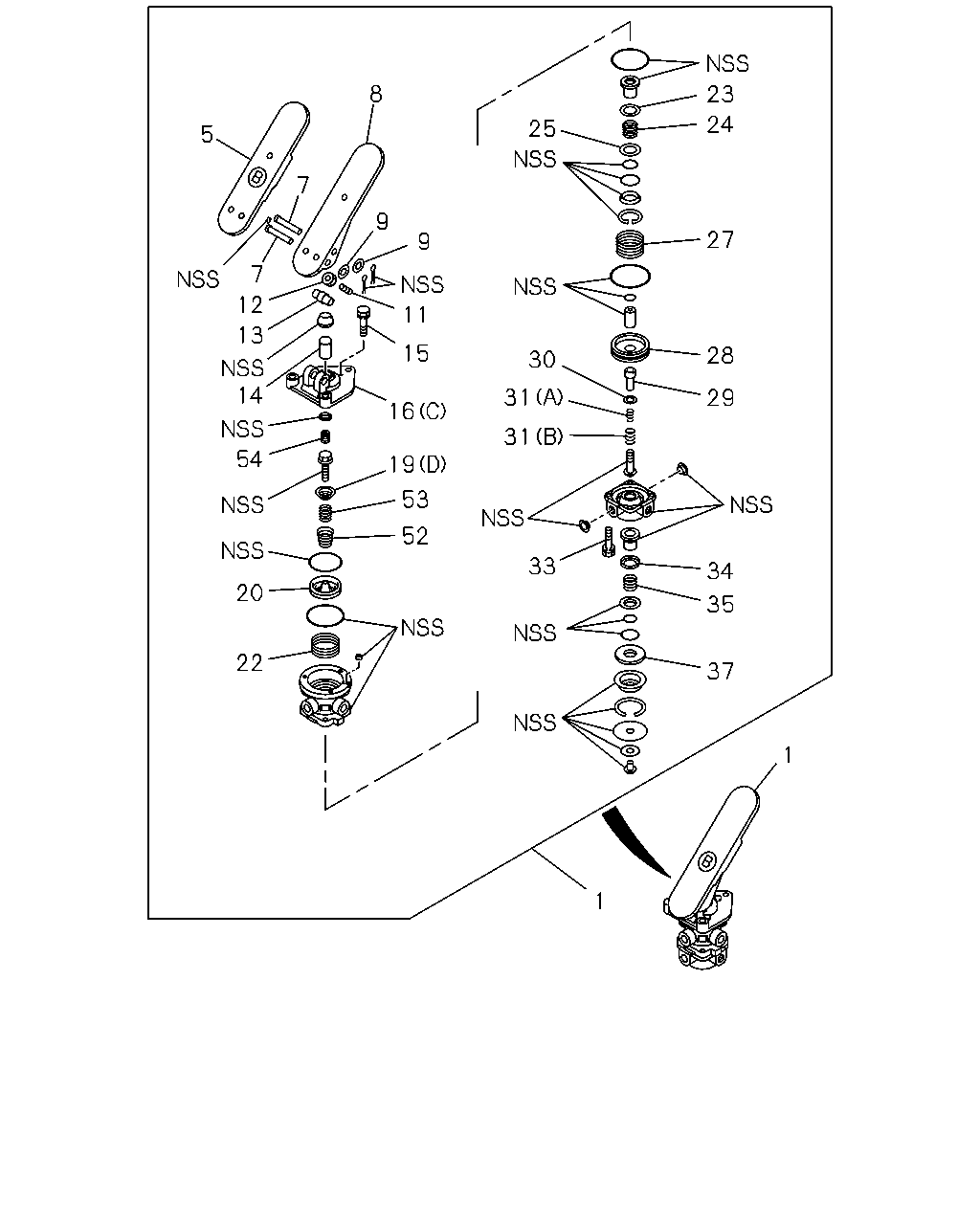

8 23 24 25 5 7 9 27 9 7 12 11 13 15 28 30 14 31 29 16 31 54 19 53 52 33 34 20 35 22 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-625-2	01	1	9606-9609
1	VALVE; BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-625-2	01	1	9610-9810
1	VALVE; BRK	1-48100-726-6	01	1	9811-
1	VALVE; BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-773-0	01	1	9610-9810
5	COVER; PEDAL,BRK VLV	8-94204-810-0	01	1	9606-9609
5	COVER; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-94204-810-0	01	1	9610-9810
5	COVER; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-333-0	01	1	9610-9810
7	PIN; PEDAL,BRK VLV	1-48119-082-0	02	1	9606-9609
7	PIN; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-082-0	02	1	9610-9810
7	PIN; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-244-0	02	1	9610-9810
8	PEDAL; BRK VLV	1-47311-105-0	01	1	9606-9609
8	PEDAL; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47311-105-0	01	1	9610-9810
8	PEDAL; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-332-0	01	1	9610-9810
9	WASHER; PIN,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-106-0	02	1	9610-9810
11	SCREW; SET,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-245-0	01	1	9610-9810
11	SCREW; SET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-088-0	01	1	9610-9810
12	NUT; SCREW,PEDAL,BRK VLV	1-48119-089-0	01	1	9606-9609
12	NUT; SCREW,PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-089-0	01	1	9610-9810
12	NUT; SCREW,PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	9-88510-123-0	01	1	9610-9810
13	ROLLER; PEDAL,BRK VLV	1-48119-257-0	01	1	9606-9609
13	ROLLER; PEDAL,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-257-0	01	1	9610-9810
13	ROLLER; PEDAL,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-243-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-316-0	01	1	9606-9609
14	PLUNGER; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-316-0	01	1	9610-9810
14	PLUNGER; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-383-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	9811-
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9606-9609
15	BOLT; PLATE,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-232-0	03	1	9610-9810
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	9811-
15	BOLT; PLATE,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48219-039-0	03	1	9610-9810
16	PLATE; MTG,BRKT VLV (A)	1-48119-261-2	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-48119-261-2	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (B)	1-73997-771-1	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-73997-771-1	01	1	9610-9810
16	PLATE; MTG,BRKT VLV HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48119-268-0	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (D)	1-48119-364-2	01	1	9811-
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9606-9609
19	SEAT; SPRING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48129-172-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (A)	1-48119-321-0	01	1	9811-
19	SEAT; SPRING,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-48123-041-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (B)	1-48119-339-1	01	1	9811-
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9606-9609
20	PISTON; UPR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-263-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-381-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	9811-
22	SPRING; PISTON,LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-071-0	01	1	9610-9810
23	WASHER; UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-145-0	01	1	9610-9810
24	SPRING; UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-018-0	01	1	9610-9810
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9606-9609
25	WASHER; PISTON,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-149-0	01	1	9610-9810
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9811-
25	WASHER; PISTON,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-138-0	01	1	9610-9810
27	SPRING; PISTON,LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-055-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV	1-48123-050-0	01	1	9606-9609
28	PISTON; LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-050-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-140-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	9811-
29	SLEEVE; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-083-1	01	1	9610-9810
30	WASHER; SLEEVE,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-082-0	01	1	9610-9810
31	SPRING; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-48123-032-0	01	1	9610-9810
31	SPRING; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-48123-033-0	01	1	9610-9810
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9606-9609
33	BOLT; BODY,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-068-0	04	1	9610-9810
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9811-
33	BOLT; BODY,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-213-0	04	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9606-9609
34	RETAINER; VLV,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48122-010-0	01	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9811-
34	RETAINER; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-144-0	01	1	9610-9810
35	SPRING; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-019-0	01	1	9610-9810
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9606-9609
37	WASHER; VLV LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-166-0	01	1	9610-9810
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9811-0405
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	0406-
37	WASHER; VLV LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-080-0	01	1	9610-9810
52	SPRING; PISTON,OUTER,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-074-0	01	1	9610-9810
53	SPRING; PISTON,INNER,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-068-0	01	1	9610-9810
54	SPRING; PISTON,UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-067-0	01	1	9610-9810

4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-049-0	01	1	9606-9609
3	REPAIR KIT; RUBBER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-85576-049-0	01	1	9610-9810
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-177-0	01	1	9811-0405
3	REPAIR KIT; RUBBER,BRK VLV	1-85576-391-0	01	1	0406-
4	REPAIR KIT; SPRING,BRK VLV	1-85576-050-0	01	1	9606-9609
4	REPAIR KIT; SPRING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-85576-050-0	01	1	9610-9810
4	REPAIR KIT; SPRING,BRK VLV	1-85576-176-0	01	1	9811-

1 1 61 39 15 21 16 85 14 41 26 42 47 34 18 33 36 43 25 19 37 19 38 28 50 20 48 51 44 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-625-2	01	1	9606-9609
1	VALVE; BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-625-2	01	1	9610-9810
1	VALVE; BRK	1-48100-726-6	01	1	9811-
1	VALVE; BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-48100-773-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-316-0	01	1	9606-9609
14	PLUNGER; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-316-0	01	1	9610-9810
14	PLUNGER; BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-383-0	01	1	9610-9810
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	9811-
15	BOLT; PLATE,BRK VLV	1-48119-232-0	03	1	9606-9609
15	BOLT; PLATE,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-232-0	03	1	9610-9810
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	9811-
15	BOLT; PLATE,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48219-039-0	03	1	9610-9810
16	PLATE; MTG,BRKT VLV (A)	1-48119-261-2	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-48119-261-2	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (B)	1-73997-771-1	01	1	9606-9609
16	PLATE; MTG,BRKT VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-73997-771-1	01	1	9610-9810
16	PLATE; MTG,BRKT VLV HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48119-268-0	01	1	9610-9810
16	PLATE; MTG,BRKT VLV (D)	1-48119-364-2	01	1	9811-
18	WASHER; LK,SEAT,BRK VLV	1-48129-156-0	01	1	9606-9609
18	WASHER; LK,SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-156-0	01	1	9610-9810
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	9811-
19	SEAT; SPRING,BRK VLV (C)	1-48129-172-0	01	1	9606-9609
19	SEAT; SPRING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-48129-172-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (A)	1-48119-321-0	01	1	9811-
19	SEAT; SPRING,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-48123-041-0	01	1	9610-9810
19	SEAT; SPRING,BRK VLV (B)	1-48119-339-1	01	1	9811-
20	PISTON; UPR,BRK VLV	1-48119-263-0	01	1	9606-9609
20	PISTON; UPR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-263-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-381-0	01	1	9610-9810
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	9811-
21	BUSHING; UPR BODY	1-48119-317-0	01	1	9811-
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9606-9609
25	WASHER; PISTON,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-149-0	01	1	9610-9810
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	9811-
25	WASHER; PISTON,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-138-0	01	1	9610-9810
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9606-9609
26	RETAINER; VLV,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48122-003-0	01	1	9610-9810
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9811-
28	PISTON; LWR,BRK VLV	1-48123-050-0	01	1	9606-9609
28	PISTON; LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48123-050-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-140-0	01	1	9610-9810
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	9811-
32	SCREW; BRK VLV	1-48121-039-0	01	1	9606-9609
32	SCREW; BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48121-039-0	01	1	9610-9810
32	SCREW; BRK VLV	1-48119-323-0	01	1	9811-
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9606-9609
33	BOLT; BODY,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-068-0	04	1	9610-9810
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	9811-
33	BOLT; BODY,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-213-0	04	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9606-9609
34	RETAINER; VLV,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48122-010-0	01	1	9610-9810
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	9811-
34	RETAINER; VLV,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-144-0	01	1	9610-9810
36	RETAINER; GASKET,BRK VLV	1-48129-169-0	01	1	9606-9609
36	RETAINER; GASKET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-169-0	01	1	9610-9810
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	9811-
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9606-9609
37	WASHER; VLV LWR,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-166-0	01	1	9610-9810
37	WASHER; VLV LWR,BRK VLV	1-48129-166-0	01	1	9811-0405
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	0406-
37	WASHER; VLV LWR,BRK VLV HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-080-0	01	1	9610-9810
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9606-9609
38	COVER; EXH,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-217-0	01	1	9610-9810
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9811-0405
38	COVER; EXH,BRK VLV	1-48119-597-0	01	1	0406-
39	BOOT; PLUNGER,BRK VLV	1-48119-079-0	01	1	9606-9609
39	BOOT; PLUNGER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-079-0	01	1	9610-9810
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	9811-
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9606-9609
41	PLATE; STEM,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-167-0	01	1	9610-9810
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	9811-
42	NUT; SPR SEAT,BRK VLV	1-48129-157-0	01	1	9606-9609
42	NUT; SPR SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-157-0	01	1	9610-9810
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	9811-
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9606-9609
43	WASHER; SPR SEAT,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-170-0	01	1	9610-9810
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9811-
44	SLEEVE; PISTON,BRK VLV	1-48129-171-0	01	1	9606-9609
44	SLEEVE; PISTON,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-171-0	01	1	9610-9810
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	9811-
47	RETAINER; GASKET,BRK VLV	1-48129-147-0	01	1	9606-9609
47	RETAINER; GASKET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-147-0	01	1	9610-9810
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	9811-
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9606-9609
48	BOLT; COVER,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48119-216-0	04	1	9610-9810
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9811-0405
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9606-9609
50	WASHER; RET,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-112-0	01	1	9610-9810
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9811-0405
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9606-9609
51	SCREW; FORMING,BRK VLV EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48129-111-0	01	1	9610-9810
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9811-0405
61	ROD; PUSH,BRK VLV	1-48119-363-0	01	1	9811-
85	WASHER; PUSH ROD	1-48119-366-0	01	1	9811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
