3-33 — AIR MASTER (#5964) — 73 parça

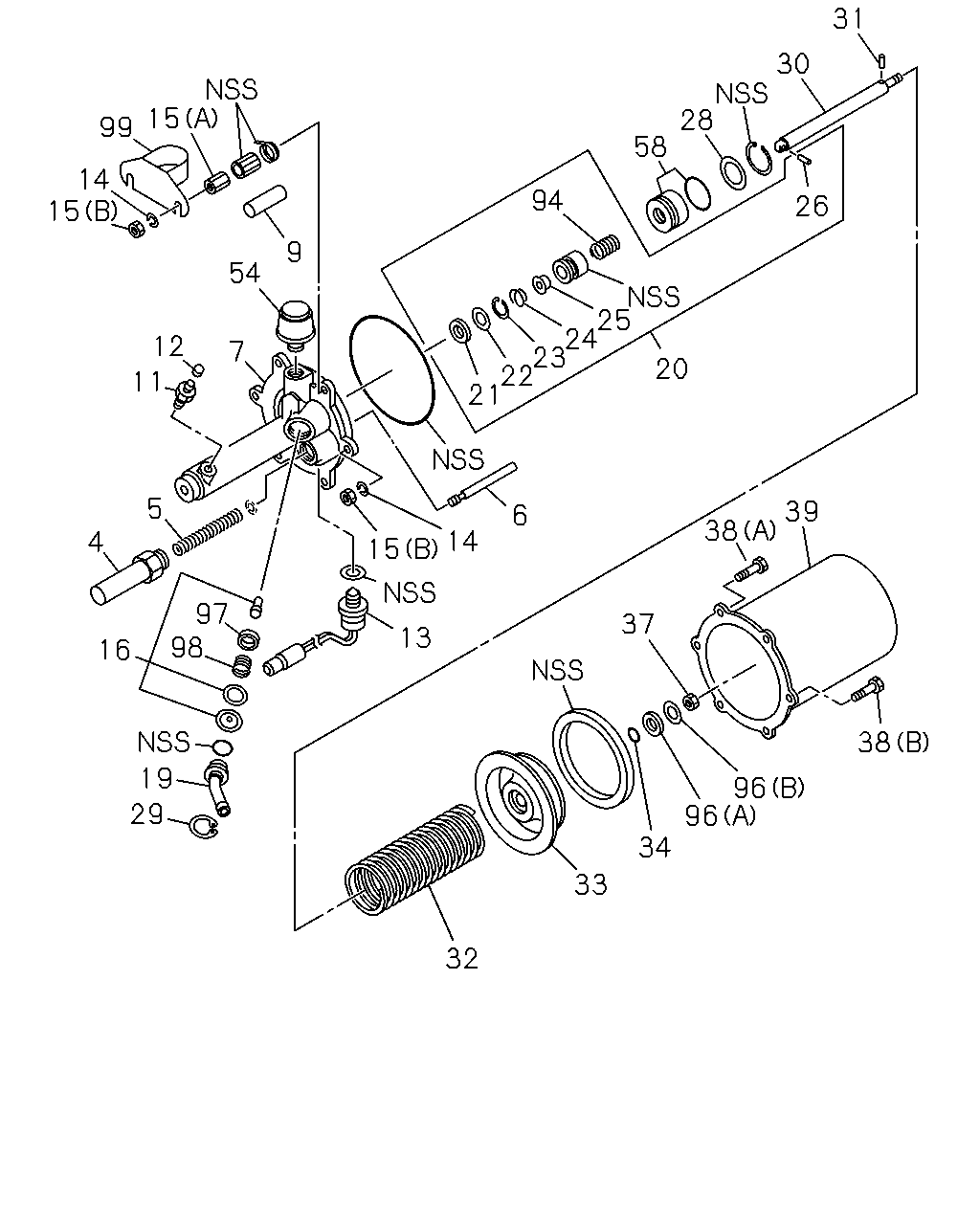

çizim 6591
31 30 28 15 99 58 14 15 94 26 9 54 25 24 23 22 21 12 7 20 11 5 39 6 38 14 15 4 97 98 37 13 16 38 19 96 96 29 34 33 32
BalonParca AdiParca NoAdetTipApplied Date
4 RETAINER; PUSH ROD,WARNING SW,AIR MAST
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-052-0 01 1 -
5 SPRING; PUSH ROD,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47824-021-0 01 1 -
6 ROD; PUSH,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-048-0 01 1 -
7 PLATE; END,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, F = 1-47800-469-1 		1-47811-109-0 01 1 -
7 PLATE; END,AIR MASTER
ASM PART: C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1 		1-47811-110-0 01 1 -
9 PROTECTOR; END PLATE,AIR MASTER
ASM PART: E = 1-47800-468-1, F = 1-47800-469-1 		1-44569-165-0 01 1 -
11 PLUG; CAP,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-83331-704-0 01 1 -
12 PROTECTOR; CAP,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-83335-044-0 01 1 -
13 SWITCH; WARNING,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2 		1-47819-151-0 01 1 -
13 SWITCH; WARNING,AIR MASTER
ASM PART: E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-168-0 01 1 -
14 WASHER; END PLATE TO SHELL,AIR MASTER
ID=10.2 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-09150-510-0 06 1 -
15 NUT; END PLATE TO SHELL,AIR MASTER
(A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-134-0 02 1 -
15 NUT; END PLATE TO SHELL,AIR MASTER
(B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-83315-080-0 06 1 -
16 VALVE ASM
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47842-009-0 01 1 -
19 CONNECTOR; END PLATE,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47849-032-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-021-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47821-027-0 01 1 -
21 GASKET; CUP
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-009-0 01 1 -
22 RING; PISTON,HYDRAULIC
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-011-0 01 1 -
23 RING; RET
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-46366-111-0 01 1 -
24 SPRING; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47824-017-0 01 1 -
25 SEAL; VALVE
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-024-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-039-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2 		1-47829-058-0 01 1 -
28 WASHER; OIL SEAL,HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-164-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-057-0 01 1 -
30 ROD; PUSH,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47825-022-0 01 1 -
31 PIN; STRAIGHT
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-054-0 01 1 -
32 SPRING; CYL SHELL,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47824-020-0 01 1 -
33 PLATE; PISTON,SHELL,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47822-006-0 01 1 -
34 GASKET
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2 		5-44529-005-0 01 1 -
34 GASKET
ID=11.0 ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-09561-111-0 01 1 -
37 NUT; PUSH ROD,SHELL,AIR MASTER
M12 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-99111-412-0 01 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-154-0 02 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-83315-078-0 04 1 -
39 SHELL; CYL,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47811-107-0 01 1 -
54 COVER; EXH,END PLATE,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-039-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-056-0 01 1 -
94 SPRING; PISTON
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-059-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-032-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-053-0 01 1 -
97 RETAINER; VALVE
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47824-023-0 01 1 -
98 SPRING; VALVE
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2 		1-47824-024-0 01 1 -
98 SPRING; VALVE
ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47843-006-0 01 1 -
99 BRACKET; AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47819-128-0 01 1 -

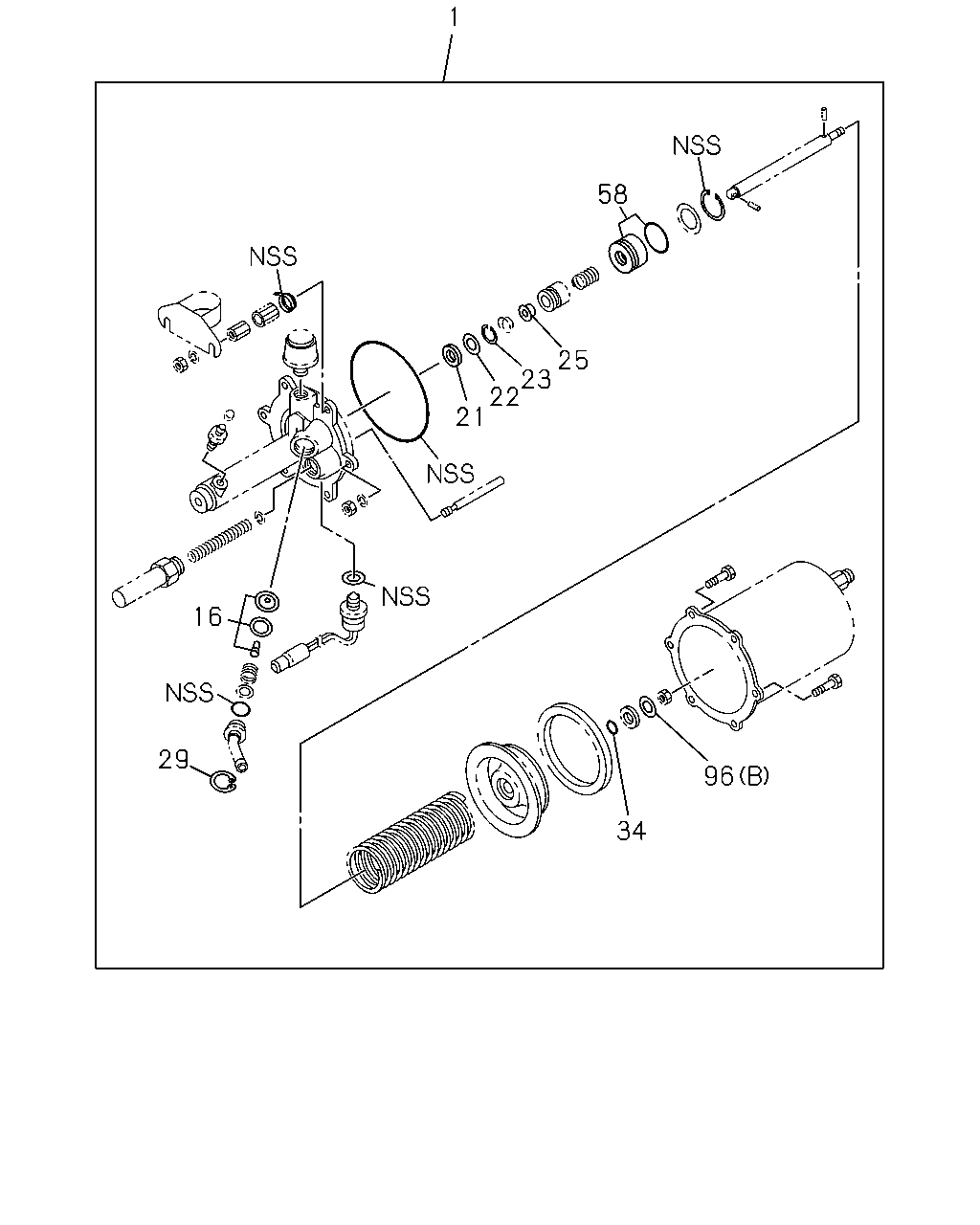

çizim 42526
1 58 25 23 22 21 16 29 96 34
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47810-046-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47810-047-0 01 1 -
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-87520-206-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-87520-207-1 01 1 -
16 VALVE ASM
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47842-009-0 01 1 -
21 GASKET; CUP
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-009-0 01 1 -
22 RING; PISTON,HYDRAULIC
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-011-0 01 1 -
23 RING; RET
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-46366-111-0 01 1 -
25 SEAL; VALVE
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-024-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-057-0 01 1 -
34 GASKET
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2 		5-44529-005-0 01 1 -
34 GASKET
ID=11.0 ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-09561-111-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-056-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-032-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-053-0 01 1 -

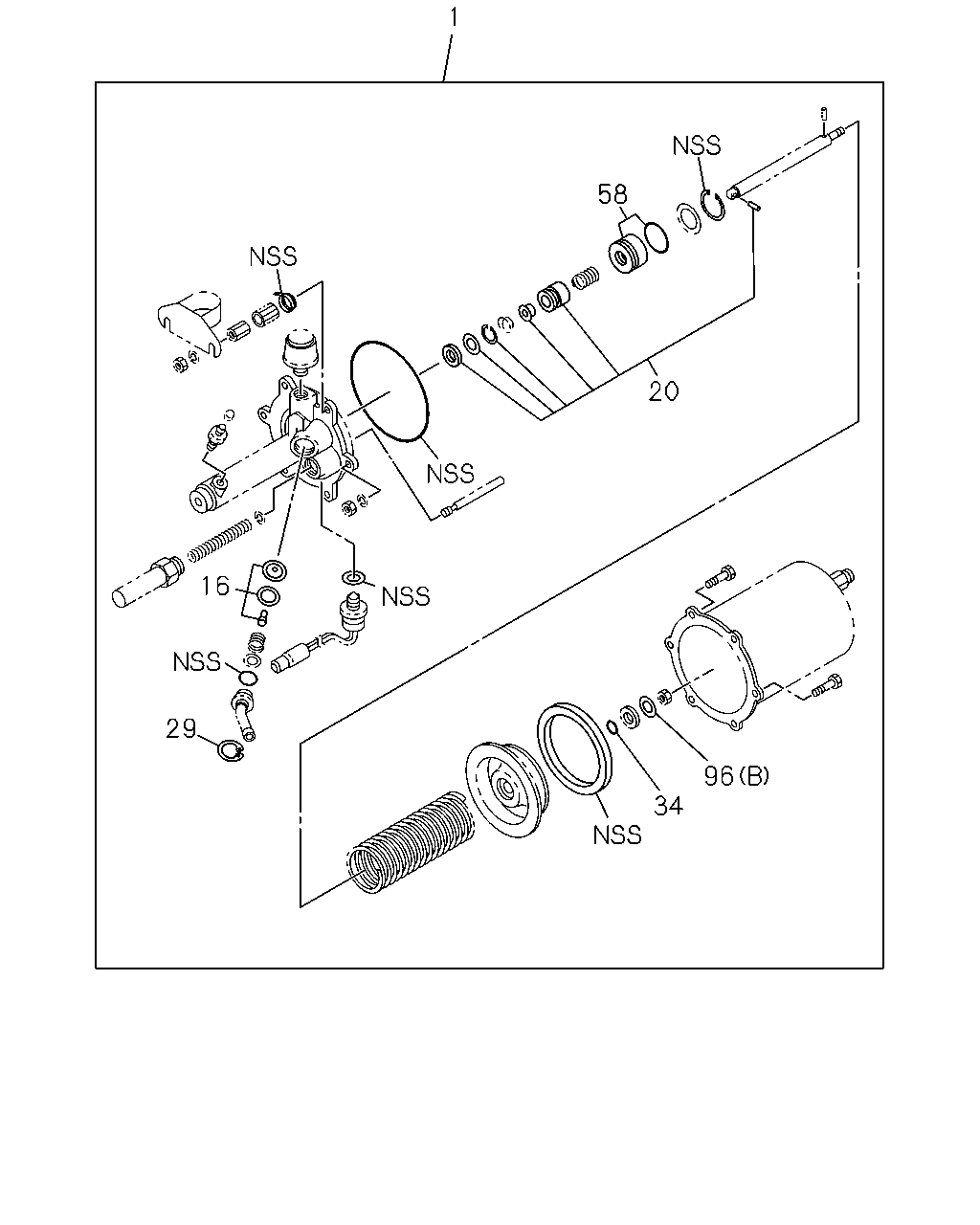

çizim 43052
1 58 20 16 29 96 34
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47810-046-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47810-047-0 01 1 -
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-87520-206-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-87520-207-1 01 1 -
16 VALVE ASM
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47842-009-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47821-021-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: B = 1-47800-395-2, C = 1-47800-396-2 		1-47821-027-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-057-0 01 1 -
34 GASKET
ASM PART: A = 1-47800-382-2, D = 1-47800-397-2 		5-44529-005-0 01 1 -
34 GASKET
ID=11.0 ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-468-1, F = 1-47800-469-1 		9-09561-111-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-056-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-032-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-468-1, F = 1-47800-469-1 		1-47829-053-0 01 1 -
