Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#59638) — 176 parça

223 50 476 206 407 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	0710-	●
50	VALVE ASM; HTR	8-98080-999-2	01	1	0712-		●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0710-0711	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0712-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0710-0711	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0712-	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	0810-	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0810-		●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0710-0711	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0712-	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-758-0	01	1	0712-		●
476	SCREW; VALVE M5X16 HEX SOCKET	8-98062-675-0	01	1	0710-0711	●
476	SCREW; VALVE M5X16 HEX SOCKET	8-98062-675-0	01	1	0712-	●	●

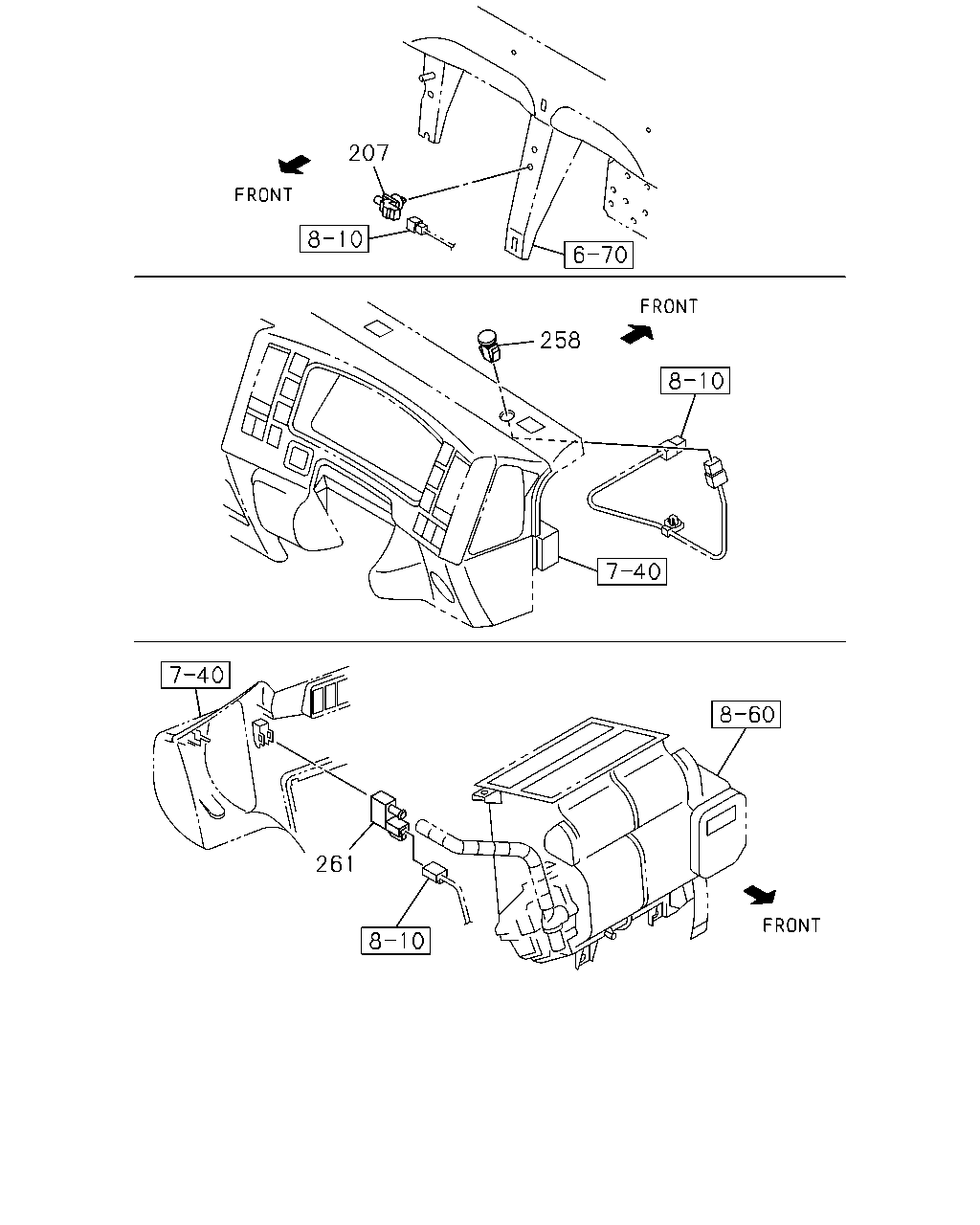

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
207	SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68)	8-98008-687-0	01	1	0710-	●
258	SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0710-	●
261	SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0710-	●

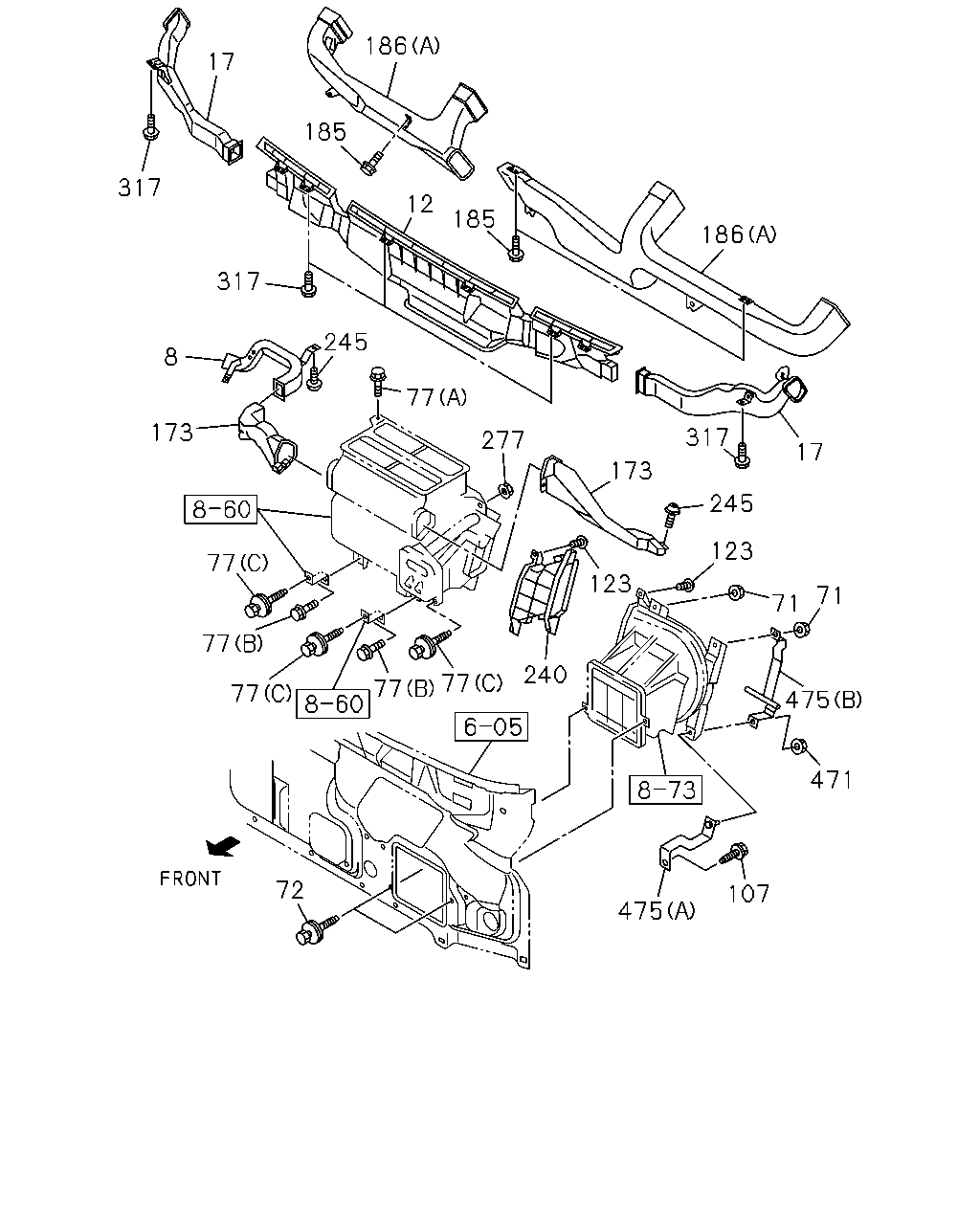

186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 123 71 71 77 240 77 77 77 475 471 72 107 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0710-0711	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0712-1410	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-499-1	01	1	0712-1410		●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-098-0	01	1	1411-	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98290-098-0	01	1	1411-		●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0710-0711	●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0712-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0710-0711	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0712-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98040-018-1	01	1	0802-	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-018-1	01	1	0802-		●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0710-0711	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0712-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98040-013-1	01	1	0802-	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-013-1	01	1	0802-		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	02	1	0712-	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	02	1	0712-		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0710-0711	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0712-	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0712-		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0711	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE	0-28650-620-0	02	1	0710-0711	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE	0-28650-620-0	02	1	0712-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X20 FLANGE	0-28650-620-0	02	1	0712-		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0710-0711	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0712-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0712-		●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0710-0711	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0712-	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0712-		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	04	1	0710-0711	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	04	1	0712-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	04	1	0712-		●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0710-0711	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0712-	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-506-2	01	1	0712-		●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	0710-0711	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98036-922-2	01	1	0712-1410	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98036-922-2	01	1	0712-1410		●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-097-0	01	1	1411-	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98290-097-0	01	1	1411-		●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	05	1	0710-0711	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	05	1	0712-1008	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	05	1	0712-1008		●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	04	1	1009-	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	04	1	1009-		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-489-4	01	1	0710-0711	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-489-4	01	1	0712-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97585-489-4	01	1	0712-		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0710-0711	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0712-1007	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98035-579-2	01	1	0712-1007		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98174-737-0	01	1	1008-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98174-737-0	01	1	1008-		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0710-0711	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0712-0801	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98054-384-0	01	1	0712-0801		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-2	01	1	0802-	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98102-128-2	01	1	0802-		●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-402-1	01	1	0710-0711	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-402-1	01	1	0712-	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-402-1	01	1	0712-		●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0710-0711	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0712-	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	03	1	0712-		●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0712-	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0712-		●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	08	1	0710-0711	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	08	1	0712-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	06	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	02	1	0802-	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	02	1	0802-		●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0712-	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0712-		●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98043-500-1	01	1	0710-0711	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98043-500-1	01	1	0712-	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98043-500-1	01	1	0712-		●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98165-379-0	01	1	1006-1006	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98165-379-0	01	1	1006-1006		●

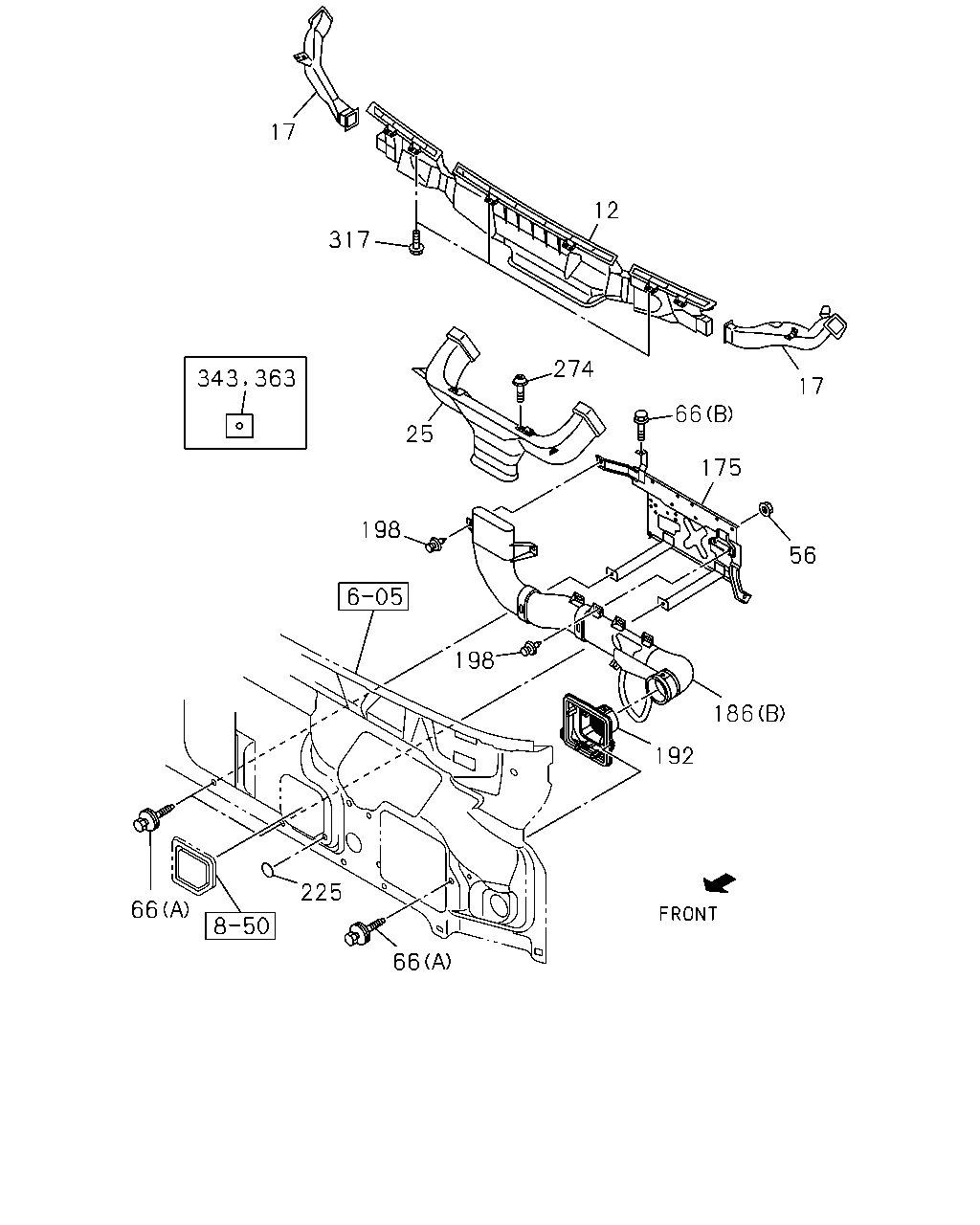

17 12 317 274 17 66 25 175 198 56 198 186 192 225 66 66 343 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0710-0711	●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0712-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0710-0711	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-018-1	01	1	0712-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98040-018-1	01	1	0802-	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-018-1	01	1	0802-		●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0710-0711	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-013-1	01	1	0712-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98040-013-1	01	1	0802-	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-013-1	01	1	0802-		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-365-0	01	1	0710-0711	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-365-0	01	1	0712-0801	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98054-365-0	01	1	0712-0801		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98102-121-0	01	1	0802-	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98102-121-0	01	1	0802-		●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0712-	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0712-		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0711	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0710-0711	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0712-0801	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X22 W/PL WASHER	8-97012-072-0	02	1	0712-0801		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0802-	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0802-		●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-0711	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0712-0801	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0712-0801		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-357-0	01	1	0710-0711	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-357-0	01	1	0712-0801	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98054-357-0	01	1	0712-0801		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98095-350-4	01	1	0802-0908	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98095-350-4	01	1	0802-0908		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98140-759-0	01	1	0909-	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98140-759-0	01	1	0909-		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-489-4	01	1	0710-0711	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-489-4	01	1	0712-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97585-489-4	01	1	0712-		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0710-0711	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0712-1007	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98035-579-2	01	1	0712-1007		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98174-737-0	01	1	1008-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98174-737-0	01	1	1008-		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0710-0711	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-384-0	01	1	0712-0801	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98054-384-0	01	1	0712-0801		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-128-2	01	1	0802-	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98102-128-2	01	1	0802-		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-386-0	01	1	0710-0711	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-386-0	01	1	0712-0801	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98054-386-0	01	1	0712-0801		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98090-393-2	01	1	0802-	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98090-393-2	01	1	0802-		●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	0710-0711	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	0712-0801	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	04	1	0712-0801		●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	05	1	0802-	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	05	1	0802-		●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	0710-0711	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK	1-76798-019-0	01	1	0712-	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0712-		●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	02	1	0710-0711	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	02	1	0712-	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	02	1	0712-		●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	08	1	0710-0711	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	08	1	0712-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING	0-72180-516-0	06	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING	0-72180-516-0	02	1	0802-	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING	0-72180-516-0	02	1	0802-		●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0710-0711	●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0712-0801	●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97856-616-0	02	1	0712-0801		●
363	SEAL; DUCT,COOL BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0710-0711	●
363	SEAL; DUCT,COOL BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0712-0801	●
363	SEAL; DUCT,COOL BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97856-616-0	02	1	0712-0801		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
