◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#59637) — 170 parça

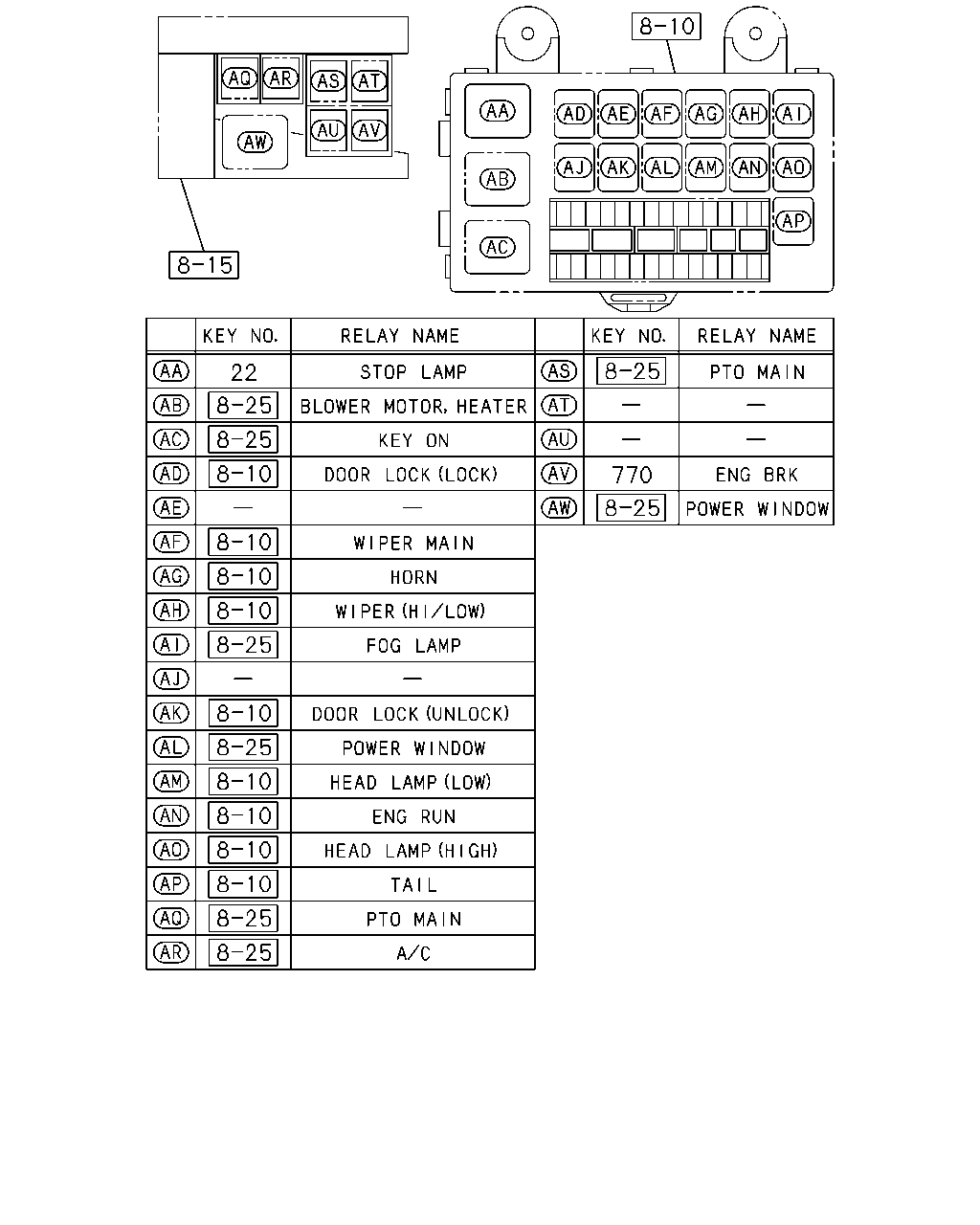

çizim 146978
22 770
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710-0711 ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ●
770 RELAY; ENG BRK
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0711 ●
770 RELAY; ENG BRK
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ●

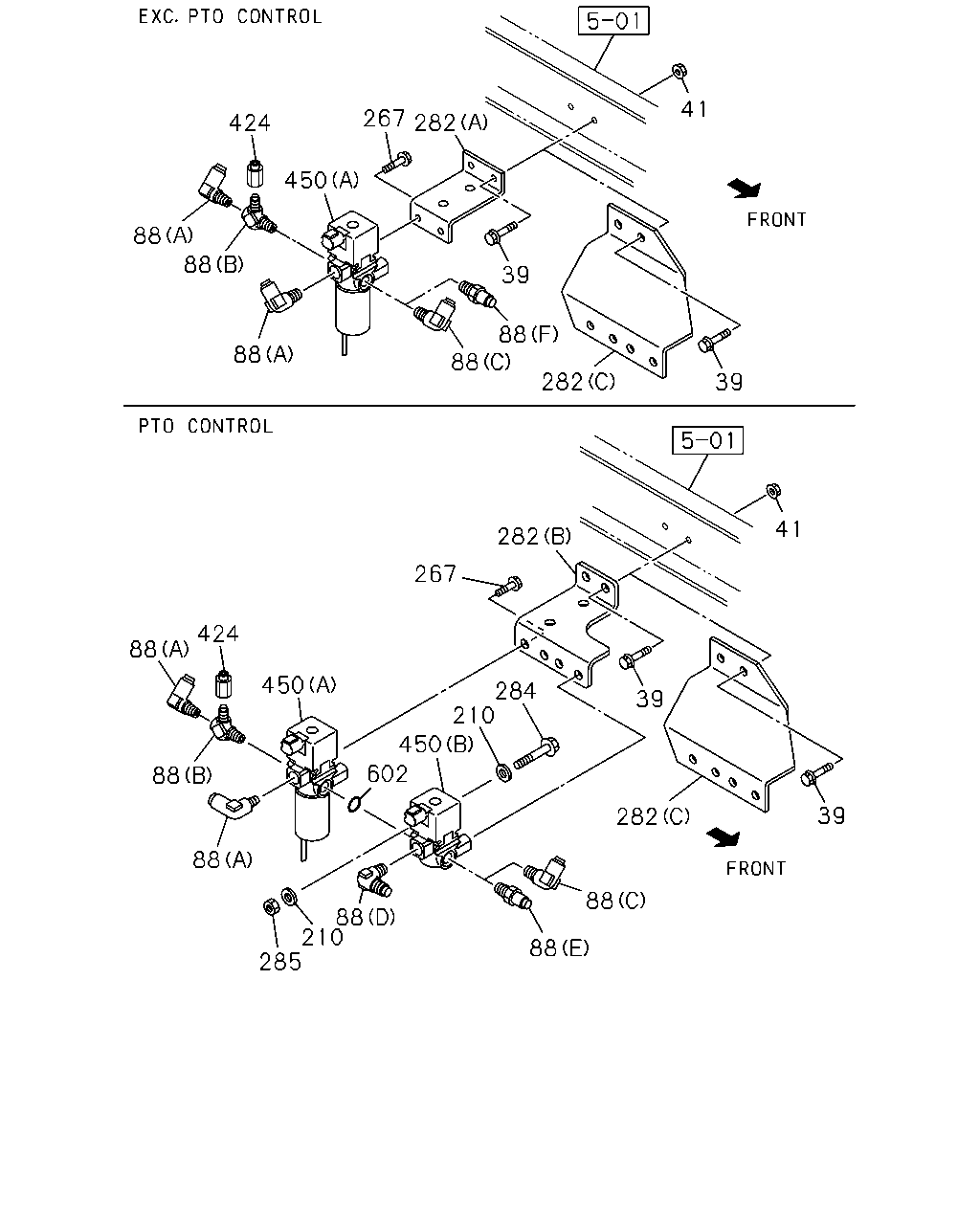

çizim 146981
41 267 282 424 450 88 88 39 88 88 88 282 39 41 282 267 424 88 450 284 210 450 39 602 88 39 282 88 88 88 210 285 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
39 BOLT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710-0711 ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0712- ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-1111 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (E) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (E) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0710 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-1111 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0710 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0803-1111 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0801 ● ●
88 CONNECTOR; MAG VLV
EXC. H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0803-1111 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0803-1111 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0710-0711 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0801 ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803-1111 ● ●
267 BOLT; VLV TO BRKT
EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0801 ● ●
267 BOLT; VLV TO BRKT
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0803-1111 ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0710-0711 ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0712-0801 ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0803-1111 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0710-0711 ●
282 BRACKET; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0712-0801 ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-0 01 1 0712-0801 ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		1-47471-374-0 01 1 0802-0802 ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0803-0906 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0907-1004 ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111 ●
282 BRACKET; MAG VLV
(C) 		8-98114-298-0 01 1 0803-1111 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0710-0711 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0712-0801 ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0803-1111 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0712-0801 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803-1111 ● ●
424 ADAPTER
EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0710 ●
424 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
424 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0801 ● ●
424 ADAPTER
EXC. H.S.A SYSTEM<6EP> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-0802 ● ●
424 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-1111 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0710-0711 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0801 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803-1111 ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0710 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0712-0801 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0801 ● ●
450 VALVE; MAG
EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0710-0711 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0801 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803-1111 ● ●

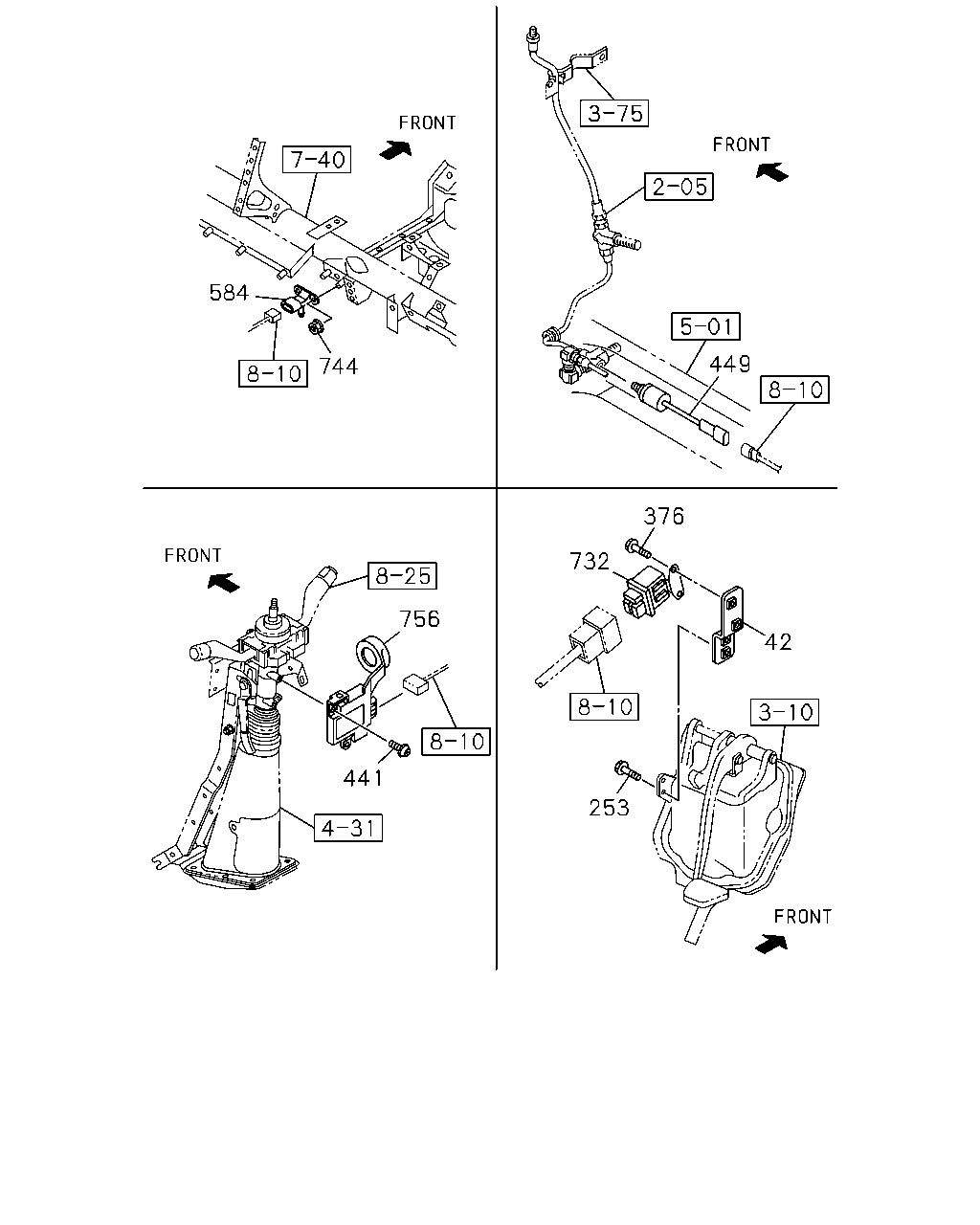

çizim 146986
584 449 744 376 732 756 42 441 253
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 0710-0711 ●
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 0712- ● ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710-0711 ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0712- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710-0711 ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0712- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 0710-0711 ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 0712- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0710-0711 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0712- ● ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 0710-0711 ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 0712- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0712-0712 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ●
çizim 146990
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0711 ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0712 ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 0710-0711 ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0712- ● ●
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 0710-0711 ●
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 0712-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

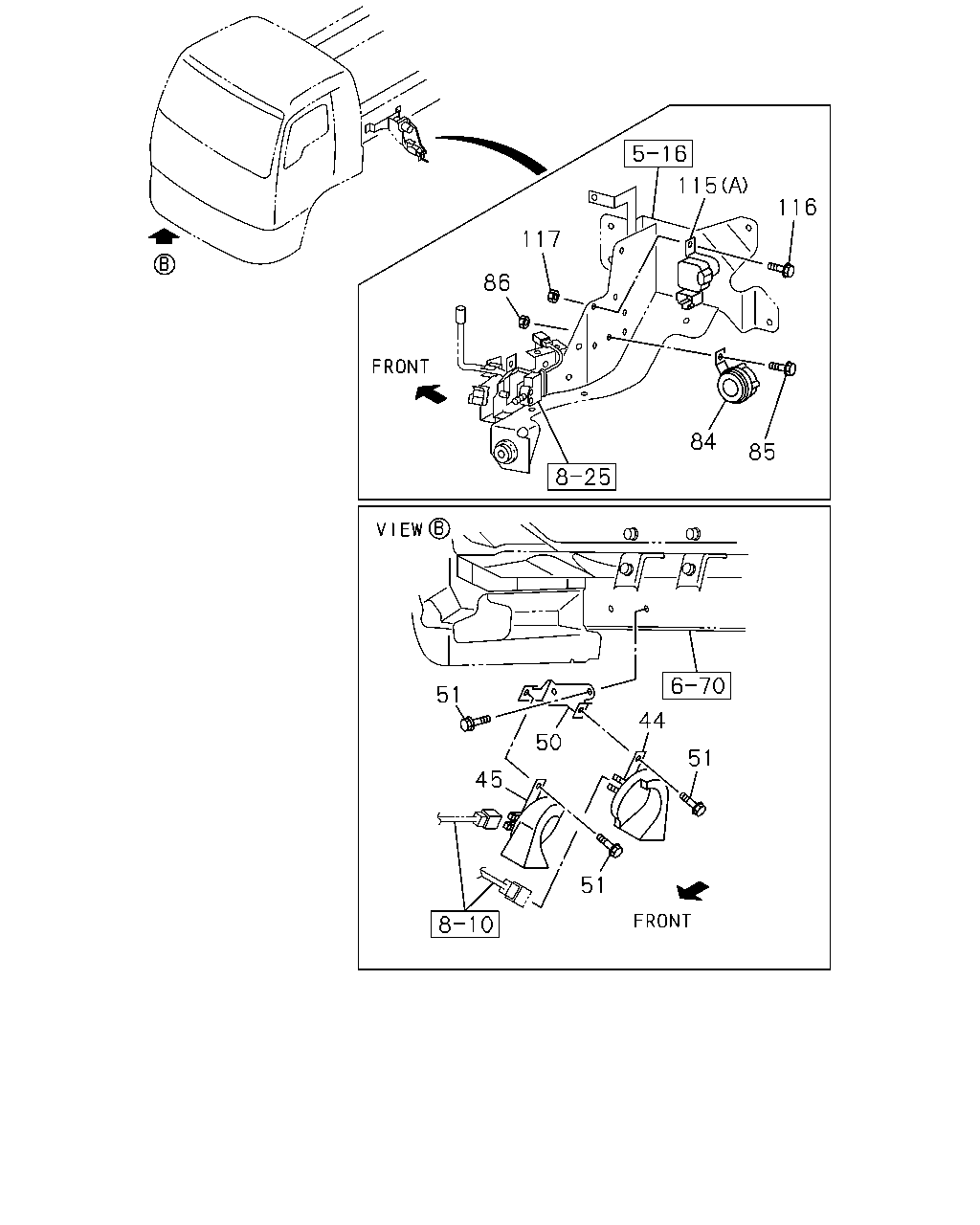

çizim 146993
115 116 117 86 84 85 51 44 50 51 45 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0710-0711 ●
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0712- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0710-0711 ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0712- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 0710-0711 ●
50 BRACKET; HORN 8-97613-300-2 01 1 0712- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0710-0711 ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0712-1001 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0710-0711 ●
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0712- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0711 ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0712 ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-0 01 1 0710-0711 ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0712- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●

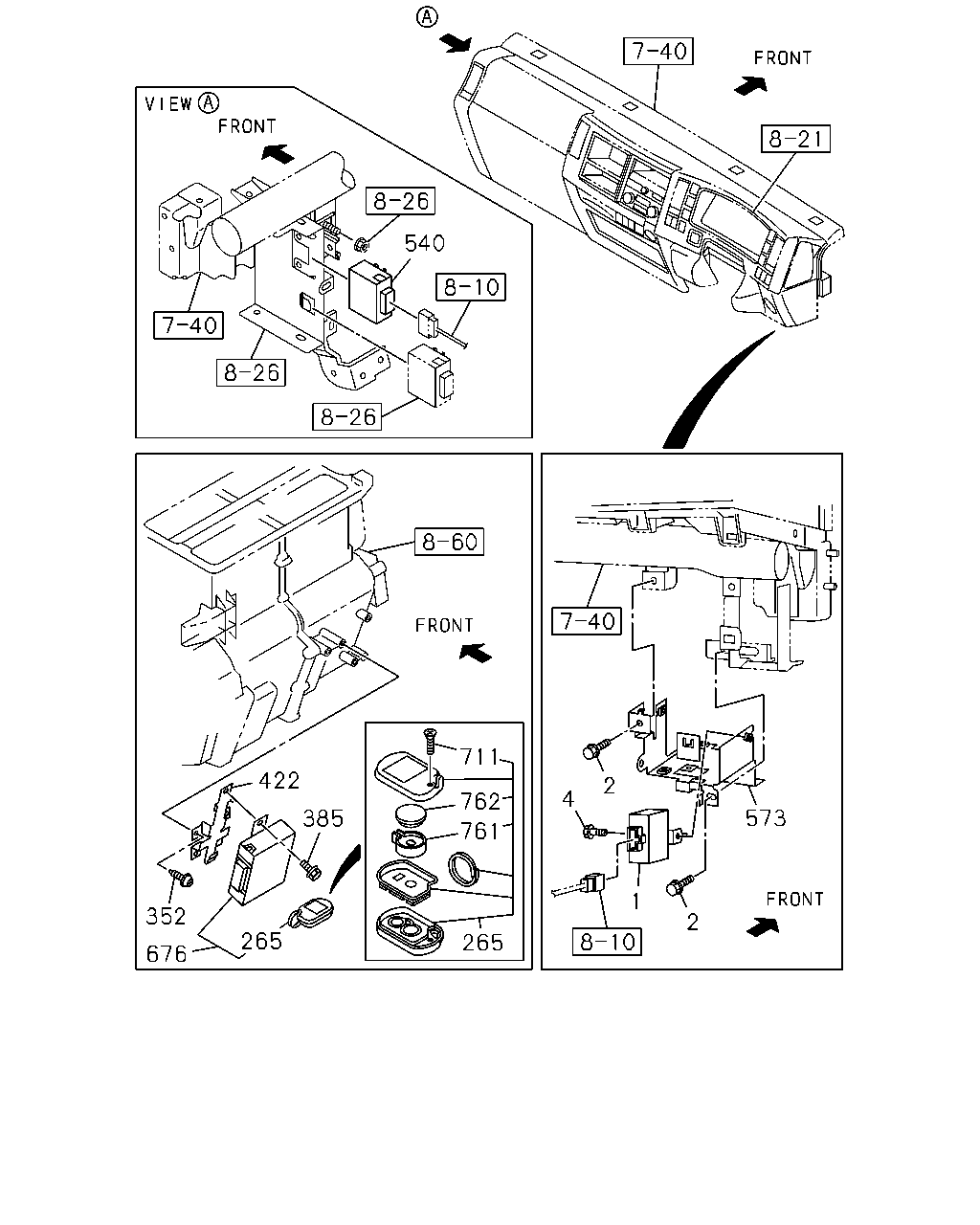

çizim 147020
540 711 422 2 4 762 385 573 761 1 352 2 265 265 676
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0710-0711 ●
1 UNIT; FLASHER 8-98025-533-1 01 1 0712- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-0711 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0712-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING 		0-72180-516-0 02 1 0710-0711 ●
352 SCREW; BRKT
M5X16 TAPPING 		0-72180-516-0 02 1 0712- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0710-0711 ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0712- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0710-0711 ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0712-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0710-0711 ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0712- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0710-0711 ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0712-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-0711 ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0712-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0710-0711 ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0712-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 0710-0711 ●
762 BATTERY 8-98078-061-0 02 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
