◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#59630) — 802 parça
çizim 146934
6 673 535 486 638 536 1
BalonParca AdiParca NoAdetTipApplied Date A B

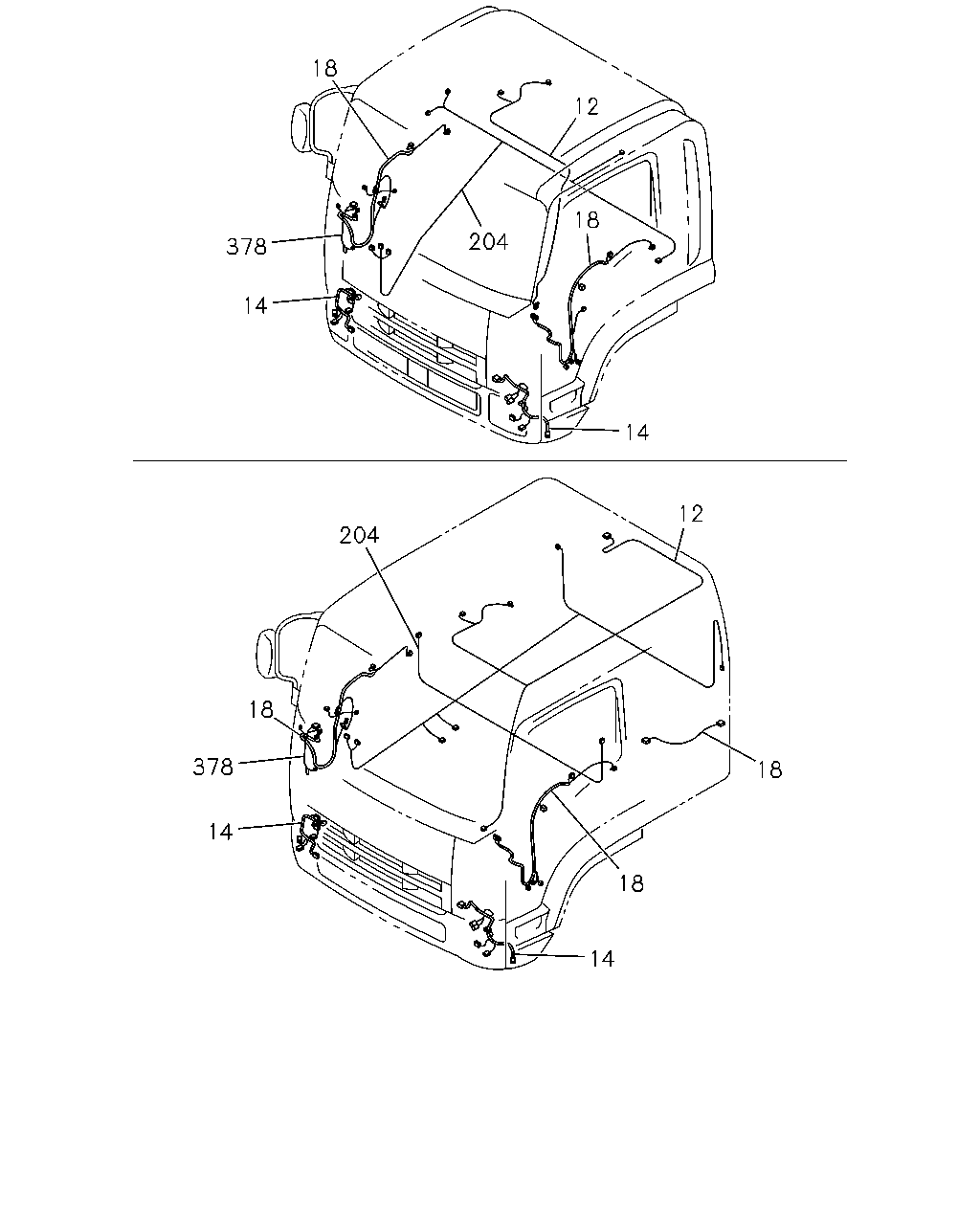

1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1204- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-978-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-064-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-952-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-054-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-973-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-061-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-946-3 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-050-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-953-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-055-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-947-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-051-4 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0907- ●

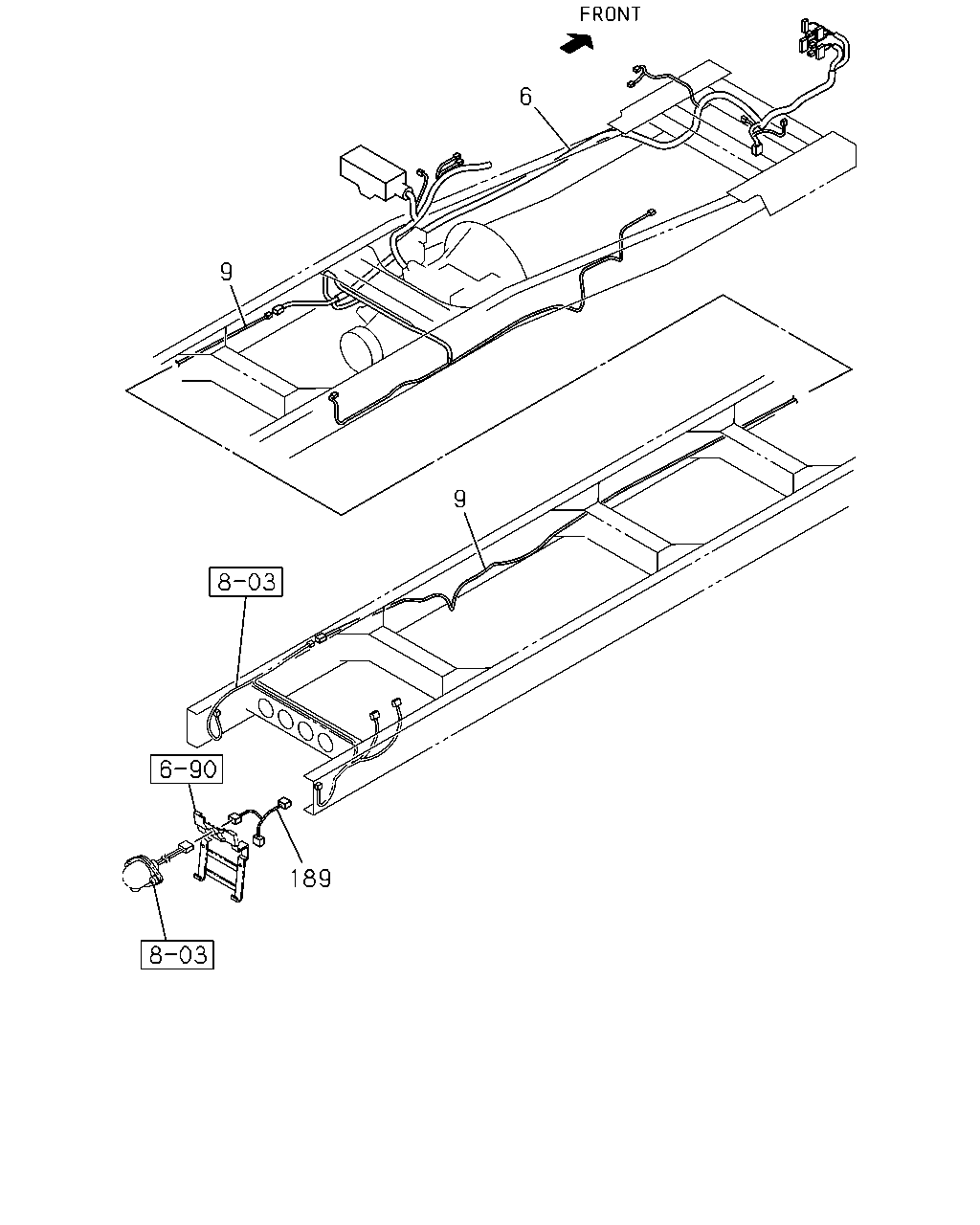

6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0710-0711 ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0712- ● ●
535 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
535 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 0712- ● ●
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 0710-0711 ●
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 0712- ● ●
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 0710-0711 ●
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 0712-0801 ● ●
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 0802- ●

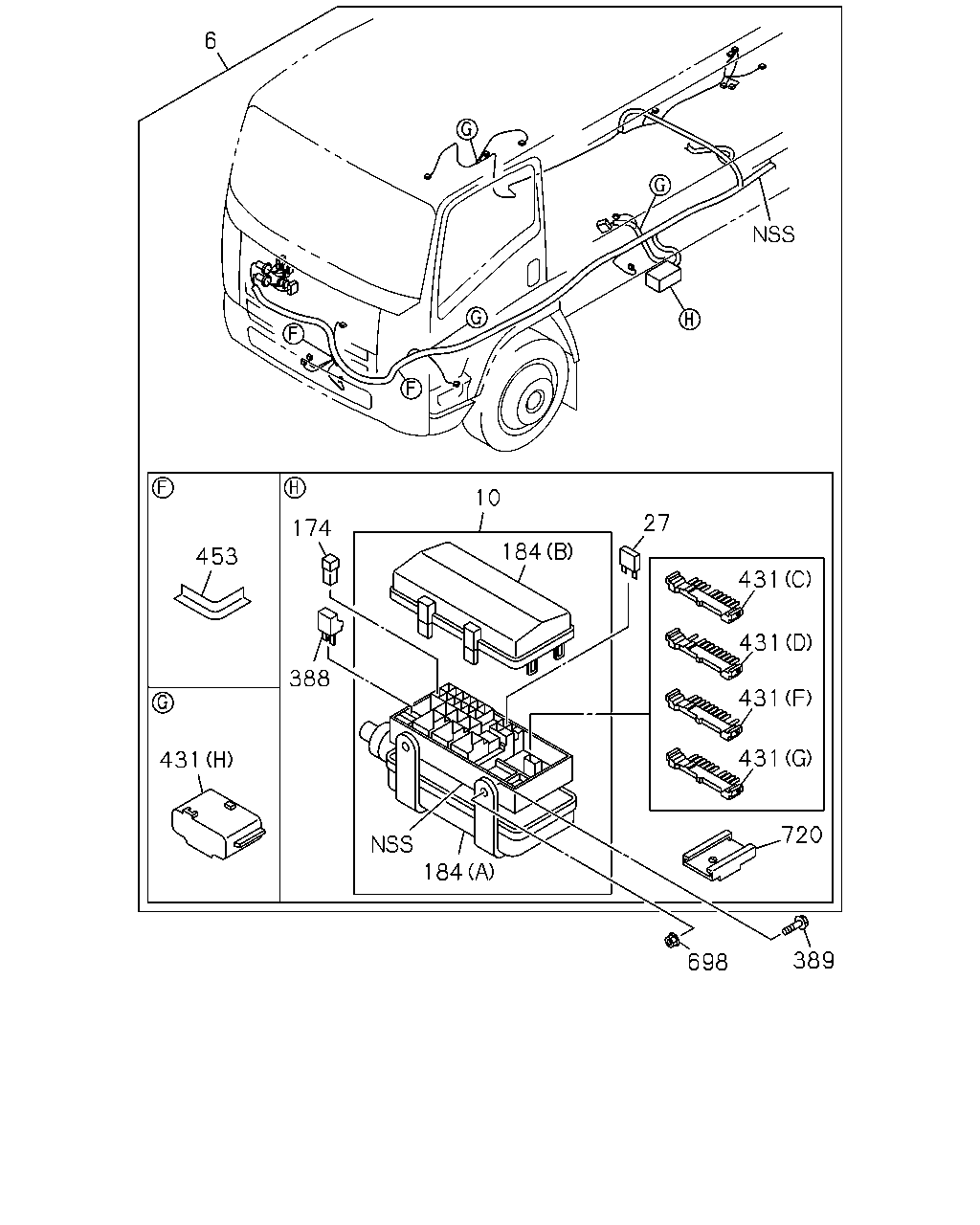

çizim 146944
6 10 27 174 184 453 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0710-0711 ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0712- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0710-0711 ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0712- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0710-0711 ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0712- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 0710-0711 ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 0712- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0710-0711 ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0712- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0710-0711 ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0712- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0710-0711 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0712-1106 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0710-0711 ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0712- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0710-0711 ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0712- ● ●
388 DIODE; RELAY BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 01 1 0710-0906 ●
388 DIODE; RELAY BOX
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 01 1 0907-0908 ●
388 DIODE; RELAY BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 01 1 0909- ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0710-0711 ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0712- ● ●
388 DIODE; RELAY BOX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 02 1 0710-0906 ●
388 DIODE; RELAY BOX
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 02 1 0907-0907 ●
388 DIODE; RELAY BOX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 4P-1.5A 		8-94381-730-0 02 1 0908- ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0710-0711 ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
MZX6P M/T(RSW) (C) 10P BLUE 		1-82699-598-0 05 1 0710-0712 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 0801- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0710-0711 ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0712- ● ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0710-0711 ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0712- ● ●

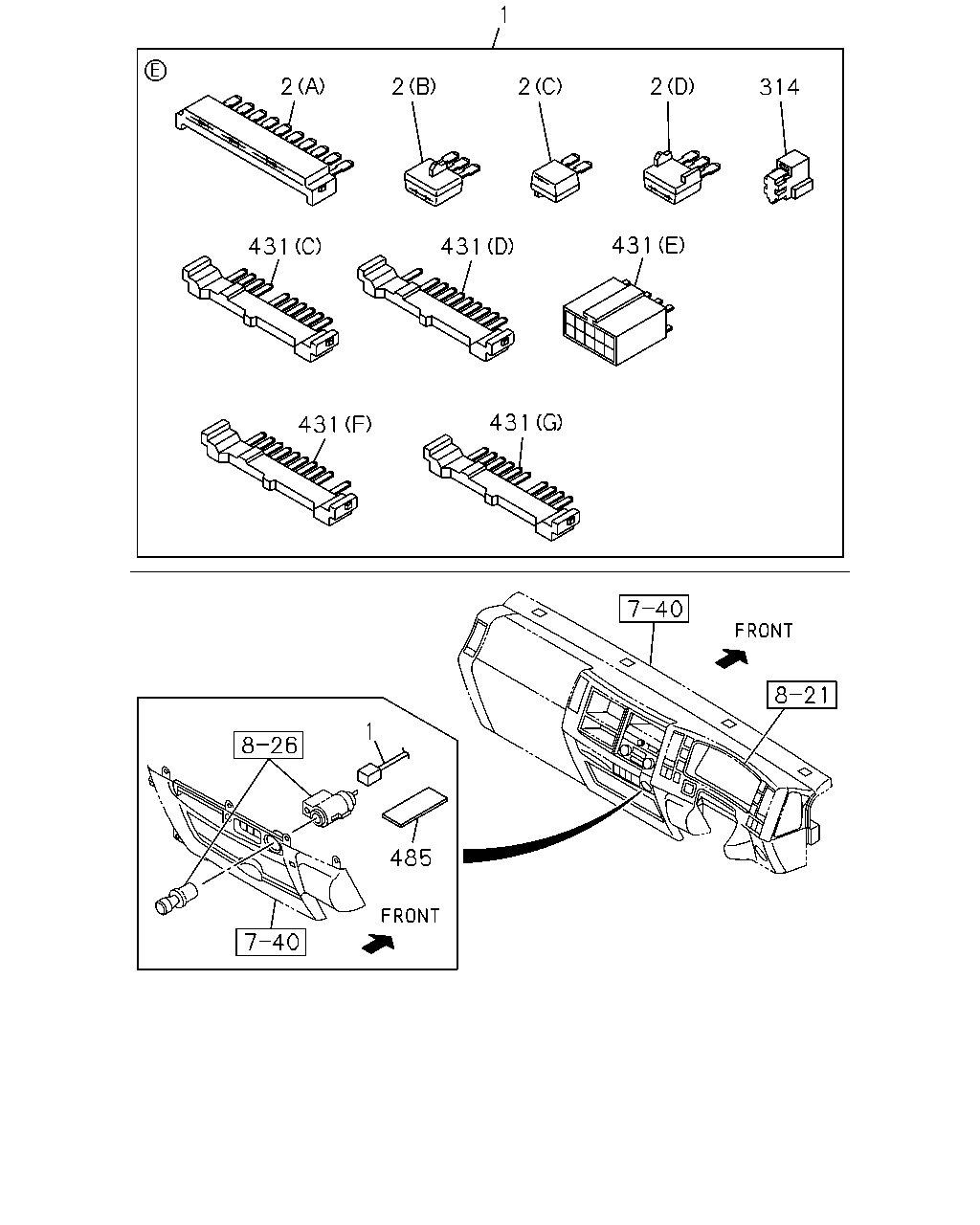

çizim 146946
1 2 2 2 2 314 431 431 431 431 431 1 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1204- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-978-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-064-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-952-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-054-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-973-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-061-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-946-3 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-050-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-953-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-055-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-947-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-051-4 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0907- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0710-0711 ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0712- ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 0710-0711 ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 0712- ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 03 1 0710-0711 ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 03 1 0712- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0710-0711 ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0712- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0710-0711 ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
MZX6P M/T(RSW) (C) 10P BLUE 		1-82699-598-0 05 1 0710-0712 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 0801- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ●
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909- ● ●
çizim 146952
6 595 1 253
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1204- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-978-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-064-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-952-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-054-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-973-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-061-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-946-3 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-050-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-953-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-055-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-947-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-051-4 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0907- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
253 HARNESS; EXT,HORN 8-98074-081-1 01 1 0710-0711 ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0712- ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-488-1 01 1 0710-0711 ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-488-1 01 1 0712- ● ●
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-487-1 01 1 0710-0711 ●
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-487-1 01 1 0712- ● ●

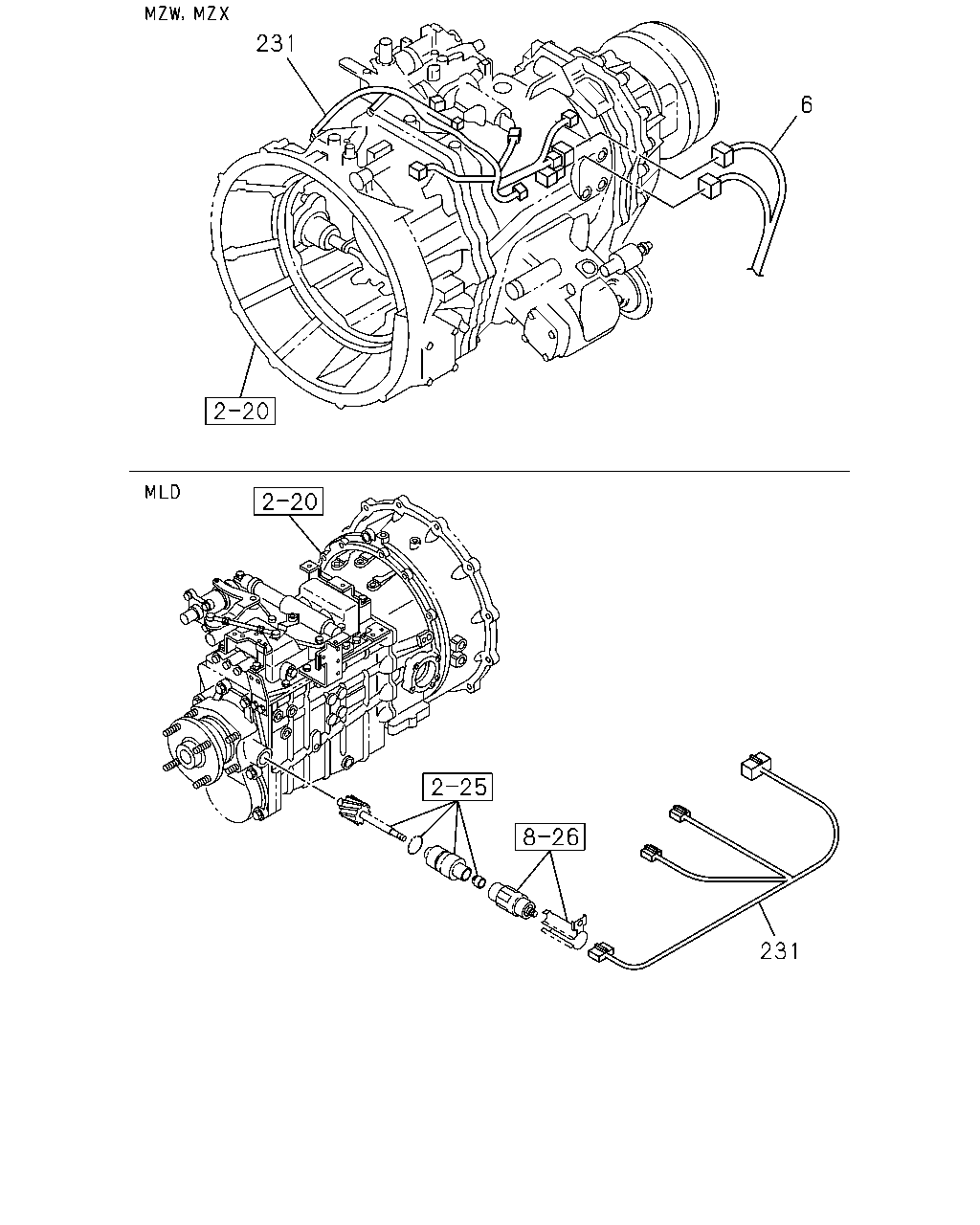

çizim 146954
231 6 231
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-1 01 1 0710-0711 ●
231 HARNESS; TRANS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0712-0906 ● ●
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 0907- ● ●
231 HARNESS; TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-932-0 01 1 0710-0711 ●
231 HARNESS; TRANS
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-932-2 01 1 0712-0906 ● ●
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97618-932-2 01 1 0907- ● ●
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 0806- ● ●

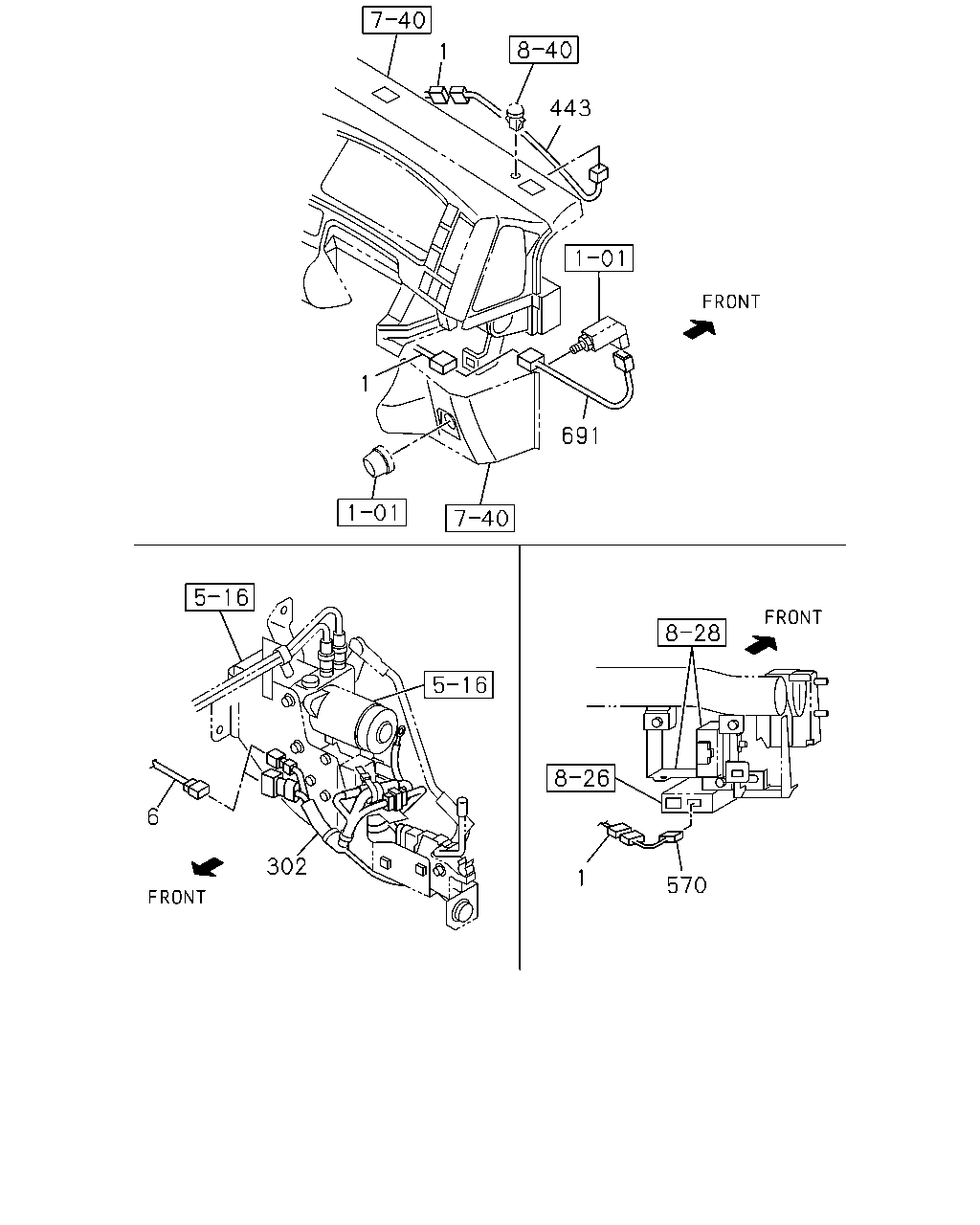

çizim 146956
1 443 1 691 6 302 1 570
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1204- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-978-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-064-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-952-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-054-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-973-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-061-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-946-3 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-050-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-953-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-055-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-947-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-051-4 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0907- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
302 HARNESS; POWER CAB TILT 8-97620-490-1 01 1 0710- ●
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 0712- ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98029-830-0 01 1 0710-0710 ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 0710- ●
570 HARNESS; SPEED SENSOR 8-98058-327-1 01 1 0710-0711 ●
570 HARNESS; SPEED SENSOR 8-98058-327-1 01 1 0712- ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0710-0711 ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0712- ● ●
çizim 146959
18 12 18 204 378 14 14 12 204 18 378 18 14 18 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-98079-072-1 01 1 0710- ●
12 HARNESS; ROOF 8-98085-334-0 01 1 0712- ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307- ● ●
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 0710-0711 ●
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 0712-1306 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1307- ● ●
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> FRONT 		8-98108-439-1 01 1 1203- ● ●
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> FRONT 		8-98108-440-1 01 1 1203- ● ●
18 HARNESS; DOOR
FRONT 		8-98079-076-5 01 1 0710-0711 ●
18 HARNESS; DOOR
FRONT 		8-98079-076-5 01 1 0712-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> FRONT 		8-98079-076-5 01 1 1203- ● ●
18 HARNESS; DOOR
FRONT 		8-98079-079-5 01 1 0710-0711 ●
18 HARNESS; DOOR
FRONT 		8-98079-079-5 01 1 0712-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> FRONT 		8-98079-079-5 01 1 1203- ● ●
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 0712- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-286-1 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-286-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-286-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-297-1 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-297-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-297-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-281-2 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-281-2 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-281-2 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-294-1 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-294-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-294-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-276-1 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-276-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-276-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-291-1 01 1 0710-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-291-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-291-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-303-1 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-303-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-303-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-306-1 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-306-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-306-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-302-1 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-302-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-302-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-305-2 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-305-2 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-305-2 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-301-1 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-301-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-301-1 01 1 0907- ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-304-1 01 1 0712-0805 ●
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-304-1 01 1 0806-0906 ●
204 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-304-1 01 1 0907- ●
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98031-603-1 02 1 0710-0710 ●
378 HARNESS; EXT,MIRROR 8-98031-603-1 02 1 0711-0711 ●
378 HARNESS; EXT,MIRROR 8-98031-603-1 02 1 0712-0901 ● ●
çizim 146962
189 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98069-179-3 01 1 0710-1007 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98168-663-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98148-482-0 01 1 0908-1007 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98168-669-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) 		8-98069-181-0 01 1 0710-1007 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) 		8-98168-665-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98069-180-2 01 1 0712-1007 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98168-664-0 01 1 1008- ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98131-066-0 01 1 1206- ●
189 HARNESS; EXT 8-98131-066-0 01 1 1206- ●
çizim 146963
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0710-0711 ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0712- ● ●
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0710-0711 ●
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0712- ● ●
çizim 146966
594 13 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-97616-796-5 01 1 0710-0711 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-97616-796-8 01 1 0712-0909 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98148-977-0 01 1 0910-1010 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98177-187-0 01 1 1011- ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-97616-797-5 01 1 0710-0711 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-97616-797-8 01 1 0712-0909 ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98148-979-0 01 1 0910-1010 ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-188-0 01 1 1011- ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710-0711 ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712-0802 ● ●
çizim 146968
180 6 180 6 180 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-2 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-210-6 01 1 0801- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-1 01 1 0710-0712 ●
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-212-5 01 1 0801- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-2 01 1 0801-0908 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-940-4 01 1 0909- ●
6 HARNESS; FRAME
WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-2 01 1 0801-0907 ●
6 HARNESS; FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98104-944-4 01 1 0908- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-226-5 01 1 0712- ●
6 HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98069-227-4 01 1 0712- ●
180 HARNESS; CABLE
WHEEL BASE 6500MM(65W) (A) 		8-98104-880-0 01 1 0711-0712 ●
180 HARNESS; CABLE
WHEEL BASE 6500MM(65W) (B) 		8-98104-881-0 01 1 0711-0712 ●
180 HARNESS; CABLE
WHEEL BASE 6500MM(65W) (C) 		8-98104-882-0 01 1 0711-0712 ●
çizim 146983
1 533 431 431 29 610 668 28 41 5 4 693 694 276 280 558 558
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-023-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-970-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-013-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-958-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-026-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-974-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-017-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-963-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-014-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-959-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98188-018-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-964-0 01 1 1204- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-978-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-978-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-064-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-064-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-952-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-952-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-054-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-054-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-973-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-973-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-061-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-061-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98084-946-3 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98084-946-3 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-050-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-050-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-968-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0806-0906 ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-058-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98084-940-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0710-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68) 		8-98085-046-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-953-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-953-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-055-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-055-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-947-2 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-947-2 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0806-0906 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-051-4 01 1 0907-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-051-4 01 1 1110-1203 ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98084-941-2 01 1 0907- ●
1 HARNESS; CAB
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0712-0805 ●
1 HARNESS; CAB
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0806-0906 ●
1 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-047-2 01 1 0907- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0710-0711 ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0712- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0710-0711 ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0710-0711 ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0710-0711 ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0710-0711 ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0712-0801 ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 0802- ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0710-0711 ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0712- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 0710-0711 ●
41 PULLER; FUSE 8-98054-260-0 01 1 0712- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0710-0711 ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0712- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0710-0711 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0710-0711 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0710-0711 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
MZX6P M/T(RSW) (C) 10P BLUE 		1-82699-598-0 05 1 0710-0712 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 0801- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) L=180 		1-09707-162-1 01 1 1206- ●
533 CLIP
L=180 		1-09707-162-1 01 1 1206- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) L=250 		5-09707-030-1 01 1 1206- ●
533 CLIP
L=250 		5-09707-030-1 01 1 1206- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 0802- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98108-678-0 01 1 0802- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 0802- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98108-679-0 01 1 0802- ●
610 NUT; BRKT,FUSE BOX
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
610 NUT; BRKT,FUSE BOX
M6 FLANGE 		0-91180-106-0 04 1 0712-0807 ● ●
668 BRACKET; HARNESS 8-98095-653-1 01 1 0710-0711 ●
668 BRACKET; HARNESS 8-98095-653-2 01 1 0712- ● ●
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0710-0711 ●
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0712- ● ●
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 0710-0711 ●
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
