◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#59619) — 330 parça

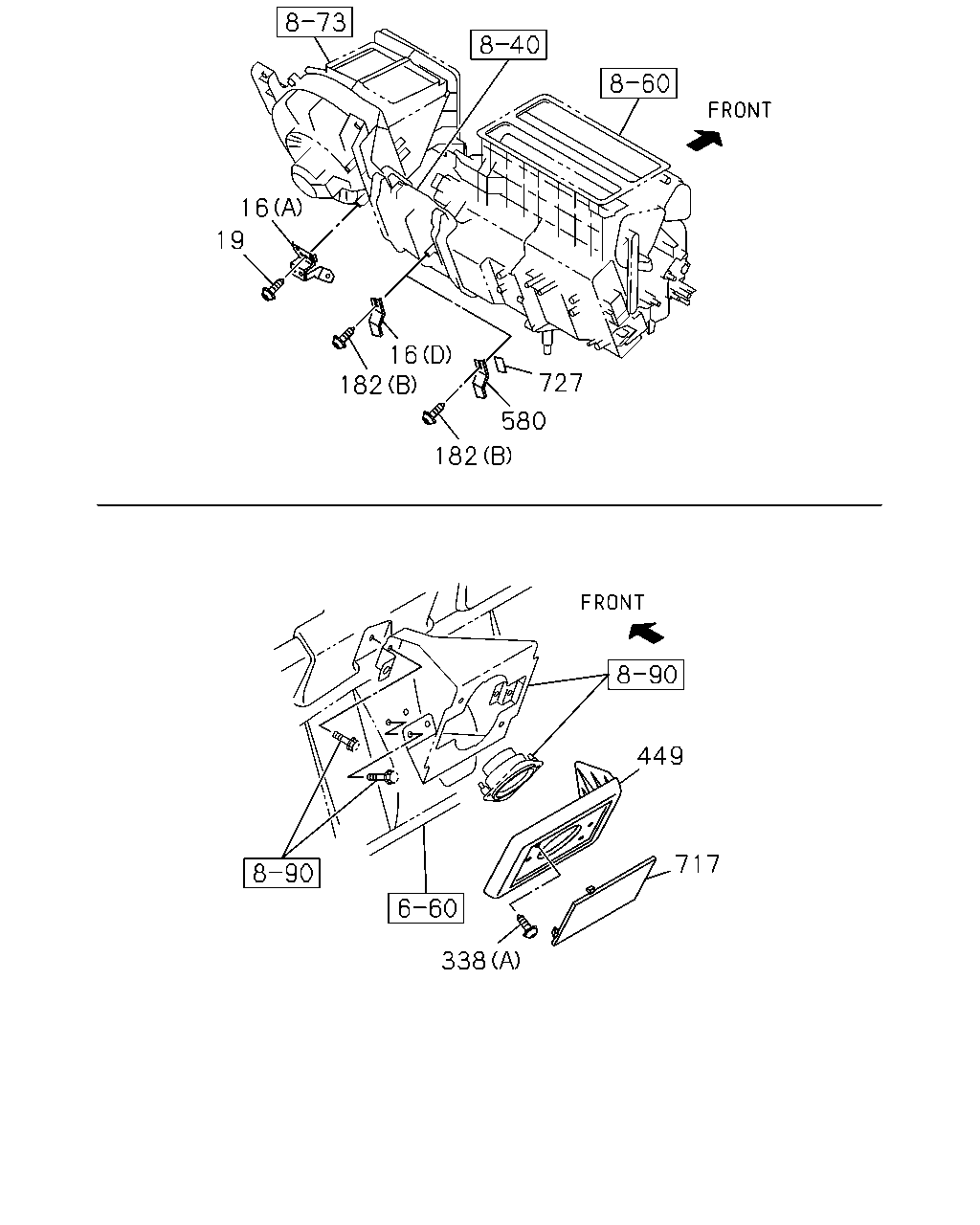

çizim 146924
16 19 16 182 727 580 182 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING 		0-72180-516-0 01 1 0710-0711 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING 		0-72180-516-0 01 1 0712- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING 		0-72180-516-0 01 1 0712- ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0710-0711 ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0712- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710-0711 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0710-0711 ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0712- ● ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1106- ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-528-1 01 1 1106- ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0710-0711 ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0712- ● ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1106- ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1106- ●

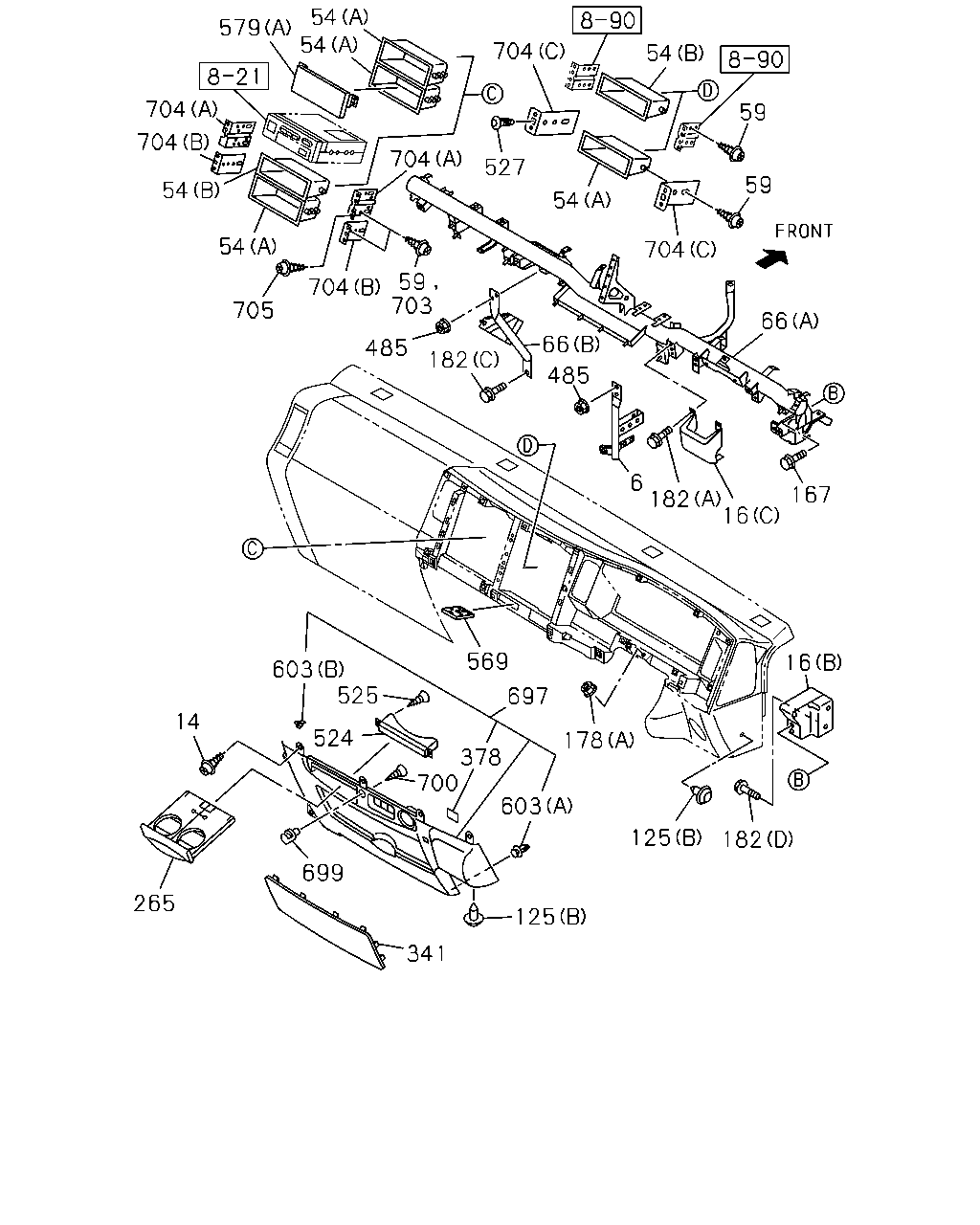

çizim 146928
579 54 54 704 704 54 54 705 704 704 59 703 485 182 66 485 704 54 527 704 54 59 59 66 167 16 182 6 16 182 125 178 697 569 378 603 125 341 700 524 603 525 14 265 699
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0710-0711 ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0712-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING 		0-72180-516-0 04 1 0710-0711 ●
14 SCREW; INST PNL
M5X16 TAPPING 		0-72180-516-0 04 1 0712- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712- ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0712-0712 ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712-0712 ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0712-0909 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-567-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-567-9 01 1 0712-0911 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-700-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-905-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-608-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-971-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-971-9 01 1 0712-0911 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-701-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-609-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0710-0711 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0710-0711 ●
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0712-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0710-0711 ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0712-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0710-0711 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0712- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 03 1 0710-0711 ●
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 03 1 0712- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0710-0711 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0712- ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0712- ●
569 HOLDER; CARD 8-97410-276-0 01 1 0710-0711 ●
569 HOLDER; CARD 8-97410-276-0 01 1 0712- ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710-0711 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0712- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0711 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0710-0711 ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0712-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0710-0711 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0710-0711 ●
700 BOLT; HOOK
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0710-0711 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0712-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0712- ● ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0801- ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 0801- ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 08 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 08 1 0712- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0712- ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0712- ●

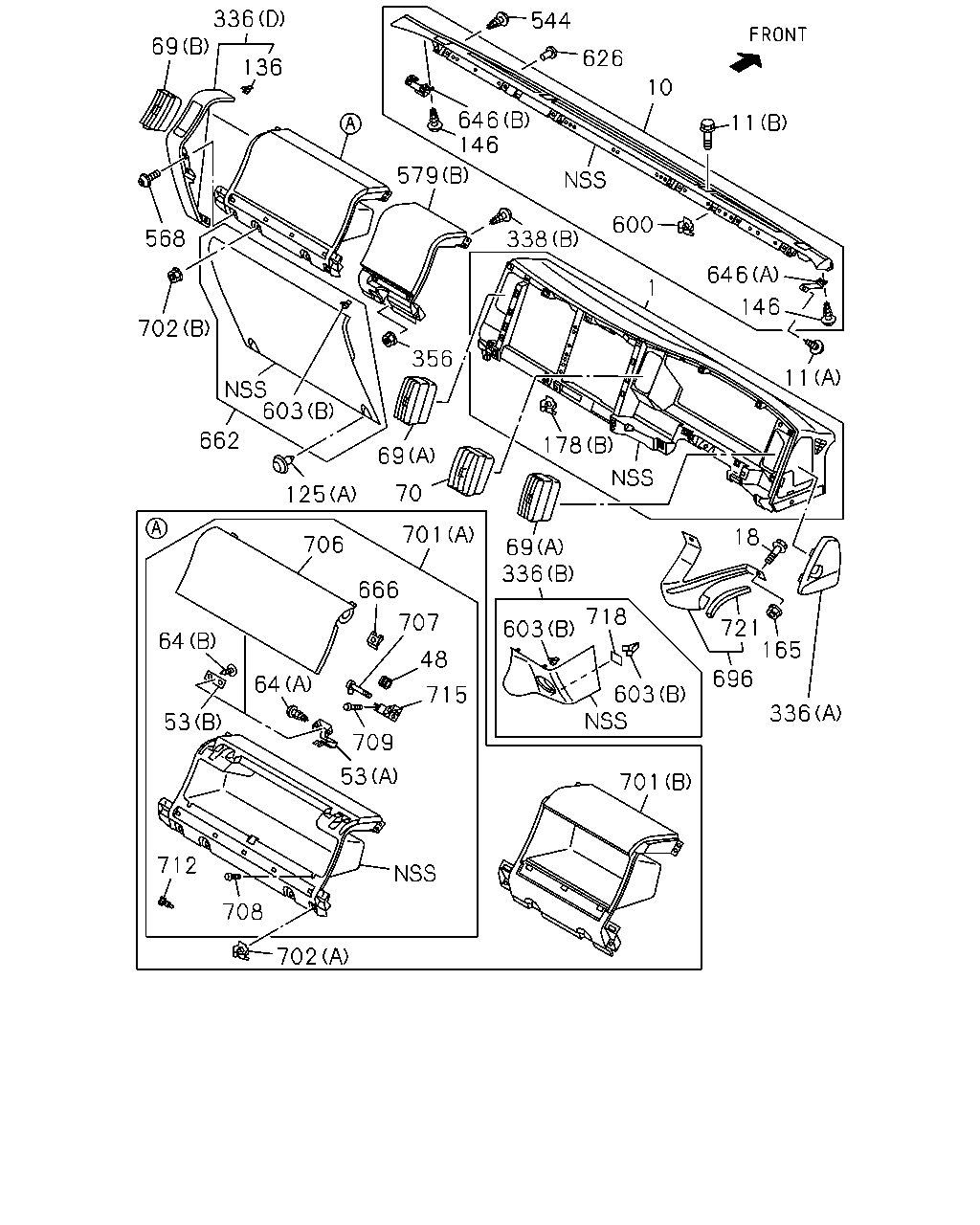

çizim 146933
336 69 579 146 646 626 544 10 11 146 646 600 1 338 136 568 702 603 662 125 69 701 706 707 666 70 178 11 18 721 165 336 696 603 701 718 603 336 48 69 356 64 64 715 709 53 702 708 712 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0710-0711 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0712- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97407-423-9 01 1 0710-0710 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0710-0711 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0712-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-0 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0710-0711 ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0712- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0710-0711 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712- ● ●
18 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 0710-0710 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1005 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1005 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-1 01 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0710-0711 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0710-0711 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0712- ● ●
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0710-0711 ●
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0712- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0710-0711 ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0712- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710-0711 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0710-0711 ●
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0712- ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0710-0711 ●
568 BOLT; COVER
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712- ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710-0711 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0712- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0711 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
600 NUT; PANEL 8-98037-629-0 02 1 0710-0711 ●
600 NUT; PANEL 8-98037-629-0 02 1 0712-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0710-0711 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0712- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-2 01 1 0710-0711 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0712- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0710-0711 ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0712-1005 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0710-0711 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0712- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0710-0711 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0712-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1006- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0710-0711 ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0712-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0805-1005 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0710-0711 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0712- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0710-0711 ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0712-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1005 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-0 02 1 0710-0711 ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0712-1005 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0710-0711 ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0712-1005 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0710-0711 ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0712-1005 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0710-0711 ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0712-1005 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0710-0711 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0712- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0710-0711 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0712- ● ●
çizim 146941
689 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0710-0711 ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0712- ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97043-732-1 06 1 0710-0710 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0710-0711 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0712- ● ●
689 SEAL; INST
OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
