Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

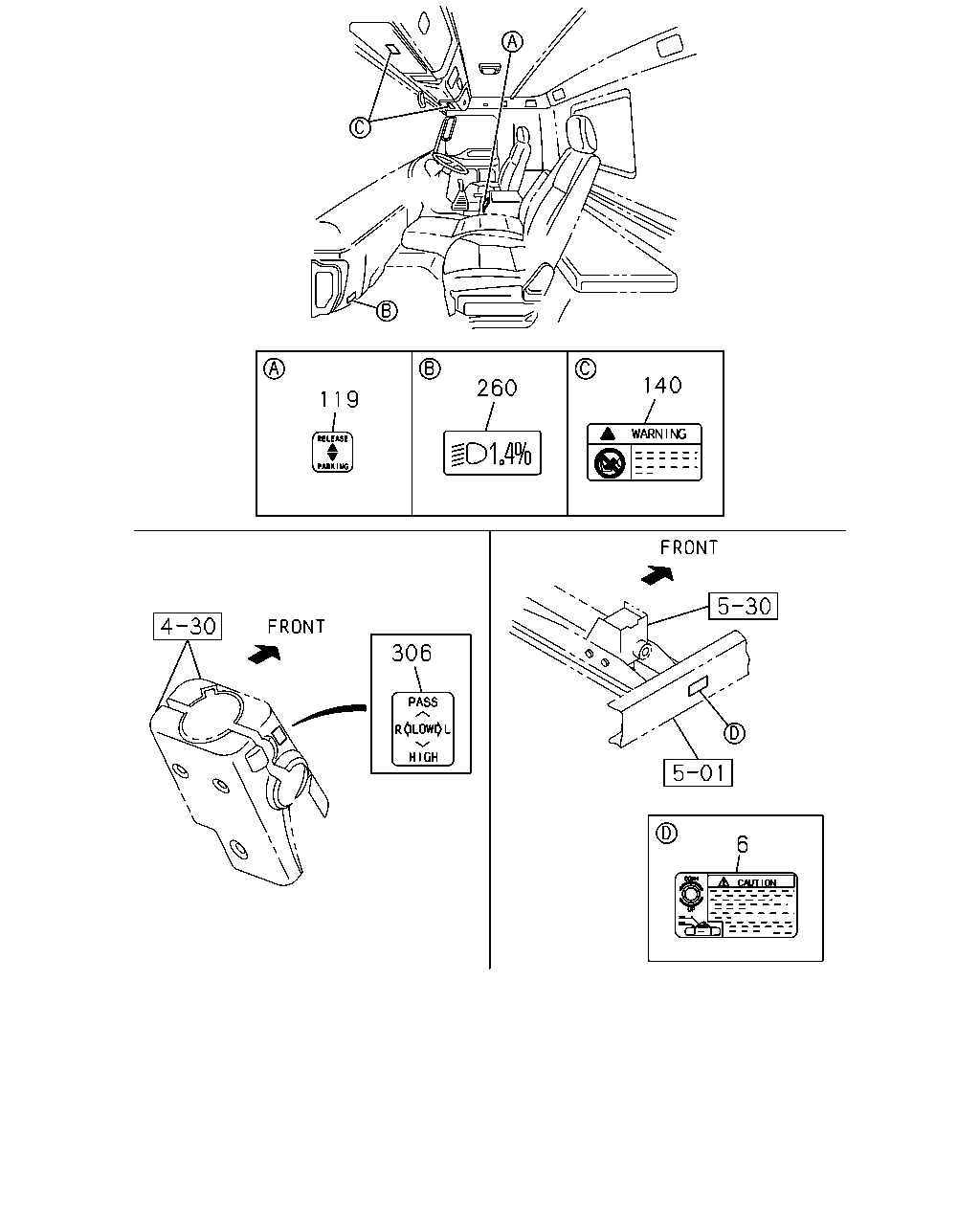

7-10 — CAUTION PLATE AND LABEL (#59616) — 19 parça

140 260 119 306 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	0710-0711	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	0712-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	0712-		●
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	0710-0711	●
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	0712-	●	●
140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	01	1	0710-0711	●
140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	01	1	0712-0712	●	●
140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	0801-	●	●
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	0710-0711	●
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	0712-	●	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	0710-0711	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	0712-	●	●

228 35 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	PLATE; CAUTION,CAB	8-98017-667-1	01	1	0710-	●
35	PLATE; CAUTION,CAB	8-98069-325-0	01	1	0712-		●
49	PLATE; CAUTION,FUSE BOX	8-98060-853-0	01	1	0710-0711	●
49	PLATE; CAUTION,FUSE BOX	8-98060-853-0	01	1	0712-0805	●	●
49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	0806-	●	●
228	PLATE; CAUTION,AIR DRYER	1-85887-935-0	01	1	0710-0711	●
228	PLATE; CAUTION,AIR DRYER	1-85887-935-0	01	1	0712-1001	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
