Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#5961) — 215 parça

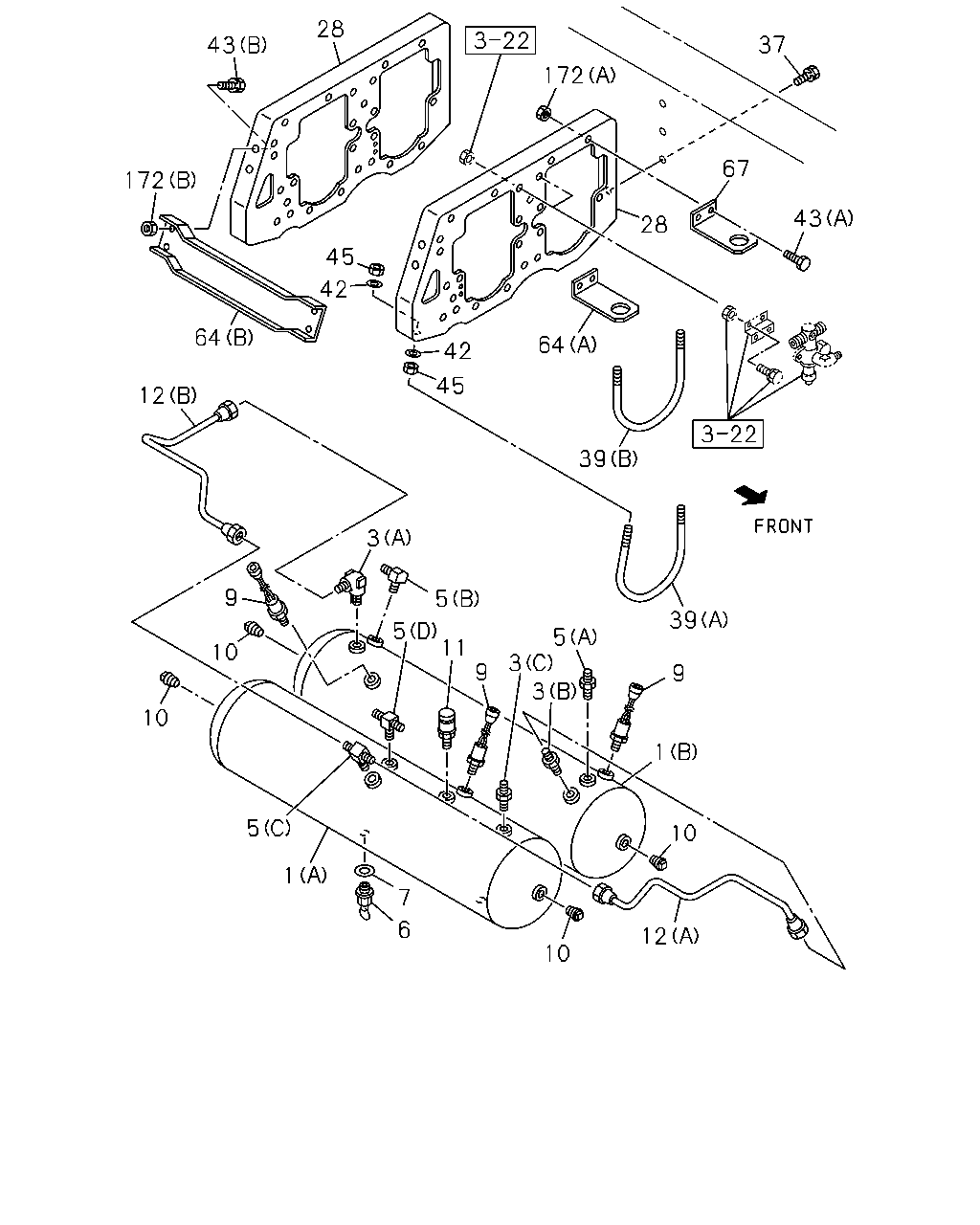

28 37 43 172 67 172 43 28 45 42 64 64 42 45 12 39 3 9 5 5 11 39 5 3 3 10 9 9 10 1 10 5 1 7 6 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-598-0	01	1	0204-
1	TANK ASM; AIR (B)	1-48330-206-1	01	1	9606-9810
1	TANK ASM; AIR (C)	1-48370-299-0	01	1	9811-
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9606-0203
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-2	01	1	9606-9810
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-
3	VALVE; CHECK,AIR TANK AIR DRYER(PS7) (C)	1-48410-182-2	01	1	9606-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER(PS7) (C) M22 & PT3/4	1-48410-136-3	01	1	9606-9810
3	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9811-
5	UNION; AIR TANK (A) M16	1-09650-245-1	01	1	9606-9810
5	UNION; AIR TANK (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9606-9810
5	UNION; AIR TANK (E) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9606-9810
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE(NF8) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9606-9608
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK (A) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9609-9810
5	UNION; AIR TANK (F) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9606-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9606-9810
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	9811-
10	PLUG; AIR TANK PT1/4	9-99204-513-0	04	1	9606-9810
10	PLUG; AIR TANK PT1/4	9-99204-513-0	06	1	9811-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9606-9810
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9811-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9606-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9606-
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9606-9810
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9811-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9606-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9606-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9606-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9606-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28080-820-0	04	1	9606-9810
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	04	1	9811-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9606-9810
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	9811-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9606-0512
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	16	1	0601-
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9606-
64	STAY; AIR TANK,MAIN (A)	8-94301-490-0	01	1	9606-
67	STAY; SUB TANK	1-48317-349-0	01	1	9606-
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9606-9810
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9811-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9606-9810
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9811-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-

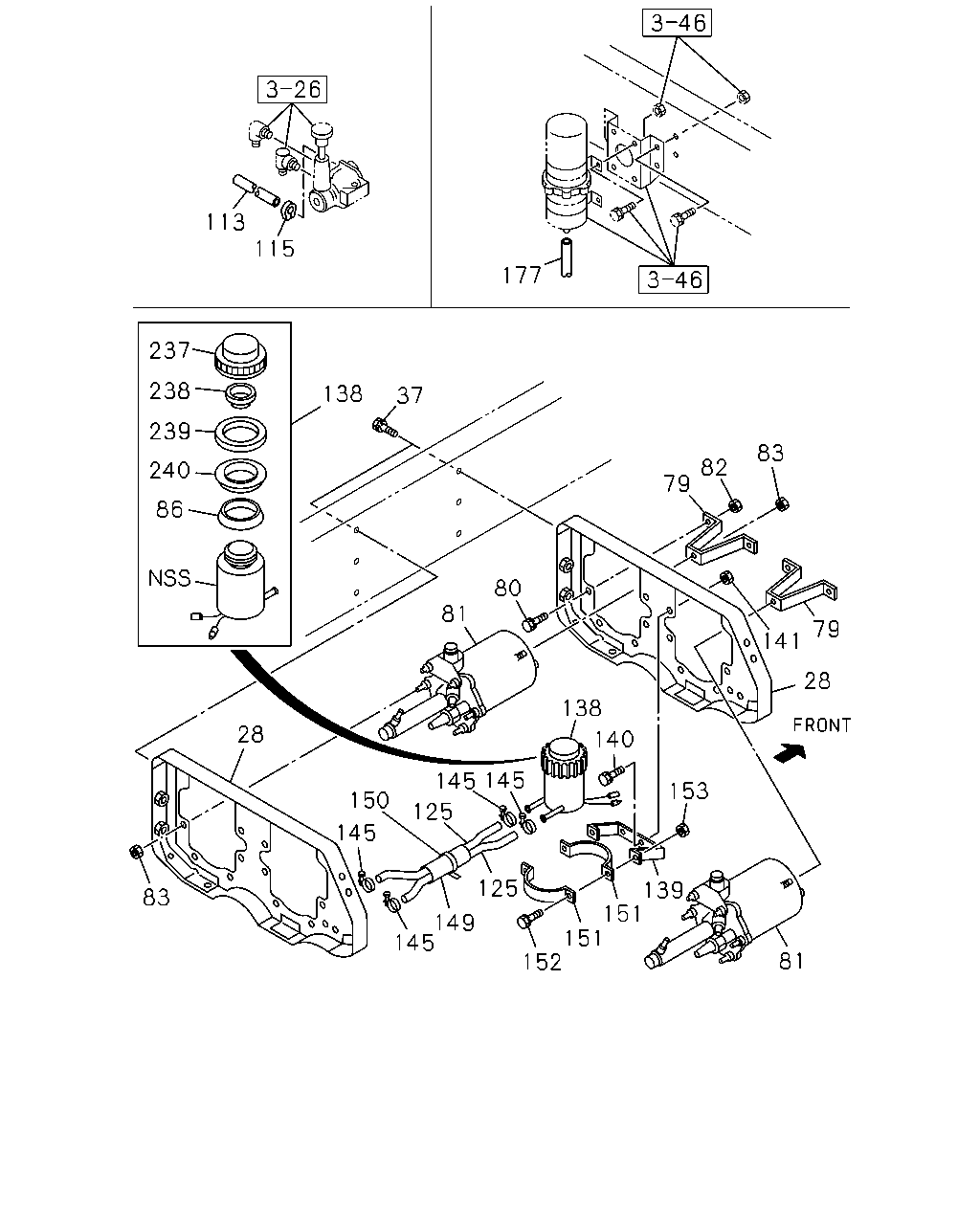

113 115 177 237 238 138 37 239 83 82 240 79 86 80 81 79 141 28 138 28 140 145 145 153 150 125 145 125 139 151 151 152 83 149 145 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9606-9810
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9811-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9606-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9606-
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9606-9810
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0512
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-395-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-396-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-382-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-469-1	01	1	9811-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-397-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-468-1	01	1	9811-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9606-9608
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9609-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9606-9608
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9609-0602
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	9606-
113	HOSE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9606-9810
115	CLIP; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9606-9810
125	HOSE; OIL TANK TO AIR MASTER L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9606-9810
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9811-
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9606-9810
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9811-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9606-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9606-9810
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9606-9810
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9811-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9606-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9606-
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9606-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9606-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28650-825-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9606-0602
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-
177	HOSE; RUBBER,DRAIN AIR DRYER(PS7) L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9606-9810
237	CAP; OIL TANK	1-47525-026-1	01	1	9606-9810
237	CAP; OIL TANK	1-47525-024-0	01	1	9811-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9606-
239	FILTER; DUST	1-47529-017-0	01	1	9606-
240	HOLDER; FILTER	1-47529-018-0	01	1	9606-

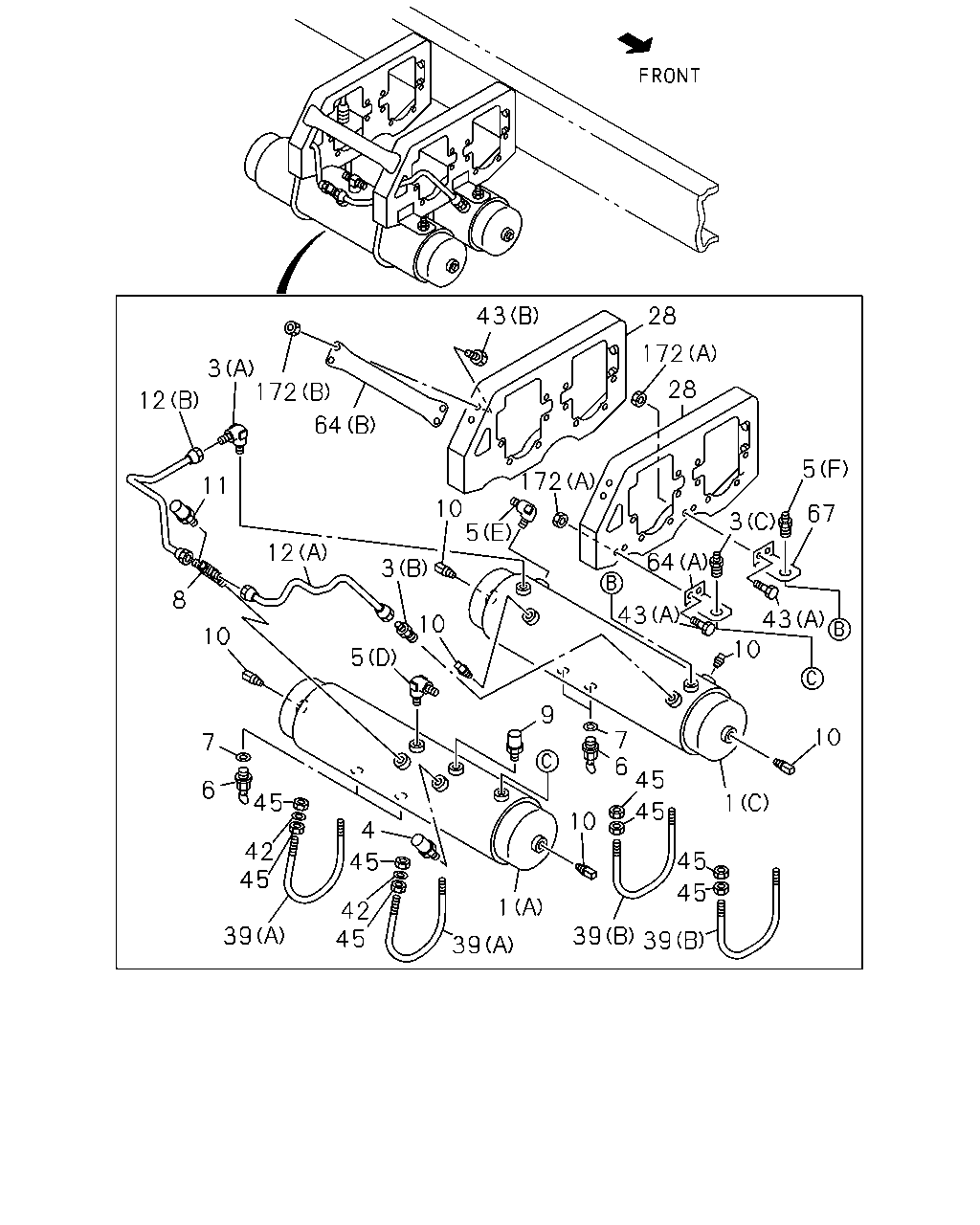

43 28 172 3 172 28 12 64 172 5 11 10 5 67 3 64 12 3 8 43 43 10 10 10 5 9 10 7 6 45 7 6 45 1 45 10 4 42 45 45 45 45 1 42 45 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-598-0	01	1	0204-
1	TANK ASM; AIR (B)	1-48330-206-1	01	1	9606-9810
1	TANK ASM; AIR (C)	1-48370-299-0	01	1	9811-
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9606-0203
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9606-9606
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-2	01	1	9606-9810
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9811-
3	VALVE; CHECK,AIR TANK AIR DRYER(PS7) (C)	1-48410-182-2	01	1	9606-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER(PS7) (C) M22 & PT3/4	1-48410-136-3	01	1	9606-9810
3	VALVE; CHECK,AIR TANK (C) M22 & PT3/4	1-48410-136-3	01	1	9811-
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9811-
5	UNION; AIR TANK (A) M16	1-09650-245-1	01	1	9606-9810
5	UNION; AIR TANK (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9811-
5	UNION; AIR TANK (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9606-9810
5	UNION; AIR TANK (E) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9811-
5	UNION; AIR TANK (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9606-9810
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE(NF8) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9606-9608
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK EXHAUST BRAKE(NF8) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DUALAIR GAUGE<UG2> (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9606-9608
5	UNION; AIR TANK (A) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9609-9810
5	UNION; AIR TANK (F) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9811-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9606-
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9606-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-
8	CONNECTOR; AIR TANK	1-09656-699-0	01	1	9811-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9606-9810
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	9811-
10	PLUG; AIR TANK PT1/4	9-99204-513-0	04	1	9606-9810
10	PLUG; AIR TANK PT1/4	9-99204-513-0	06	1	9811-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9606-9810
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9811-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9606-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9606-
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9606-9810
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9811-
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9606-
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9606-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9606-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28080-820-0	04	1	9606-9810
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	04	1	9811-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9606-9810
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	9811-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9606-0512
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	16	1	0601-
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9606-
64	STAY; AIR TANK,MAIN (A)	8-94301-490-0	01	1	9606-
67	STAY; SUB TANK	1-48317-349-0	01	1	9606-
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9606-9810
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9811-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9606-9810
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9811-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-

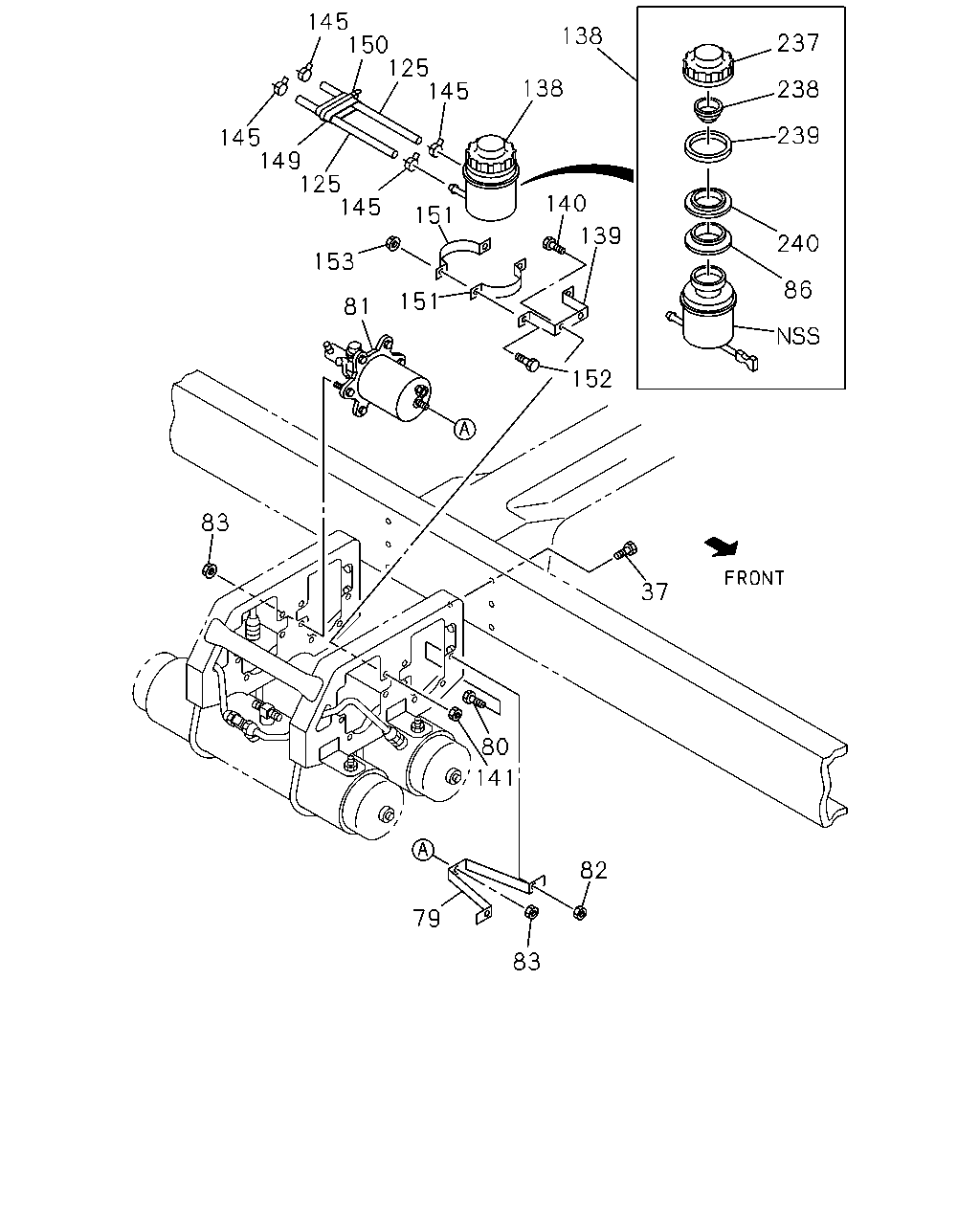

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 139 240 153 86 151 81 152 83 37 80 141 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9606-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9606-
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9606-9810
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0512
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-395-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-396-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-382-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-469-1	01	1	9811-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-397-2	01	1	9606-9810
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-468-1	01	1	9811-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9606-9608
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9609-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9606-9608
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9609-0602
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	9606-
125	HOSE; OIL TANK TO AIR MASTER L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9606-9810
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9811-
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9606-9810
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9811-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9606-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9606-9810
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9606-9810
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9811-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9606-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9606-
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9606-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9606-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28650-825-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9606-0602
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-026-1	01	1	9606-9810
237	CAP; OIL TANK	1-47525-024-0	01	1	9811-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9606-
239	FILTER; DUST	1-47529-017-0	01	1	9606-
240	HOLDER; FILTER	1-47529-018-0	01	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
