Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#59606) — 335 parça

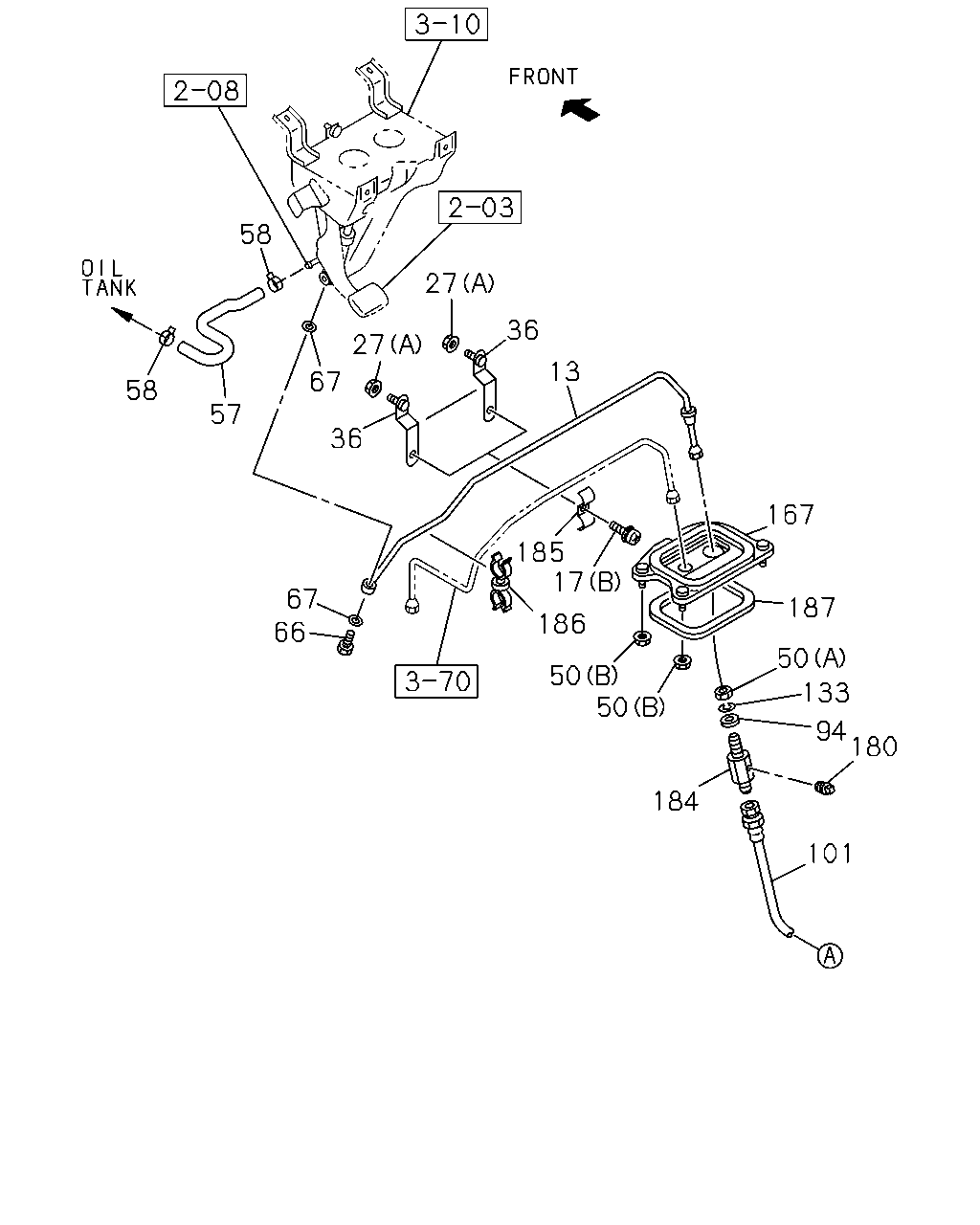

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9510-0210	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0211-		●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
36	BRACKET; CLIP	1-79738-186-1	02	1	9510-0210	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0211-		●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0506-		●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0210	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0210	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0211-0512		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9510-0210	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0211-		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9510-0210	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0211-		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9510-0210	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0211-0805		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0210	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9510-0210	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0211-0605		●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0211-0603		●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-		●
167	BRACKET; UNION	1-79738-204-2	01	1	9510-9911	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	9912-0210	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	0211-		●
180	PLUG; PIPE	9-09204-510-0	01	1	9510-0210	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0211-0804		●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	9510-0210	●	●
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0211-0804		●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-		●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9510-0210	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0211-		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	01	1	9510-9706	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	9707-0210	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0211-		●
187	SEAL; BRKT	1-79738-190-0	01	1	9510-0210	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	0211-		●

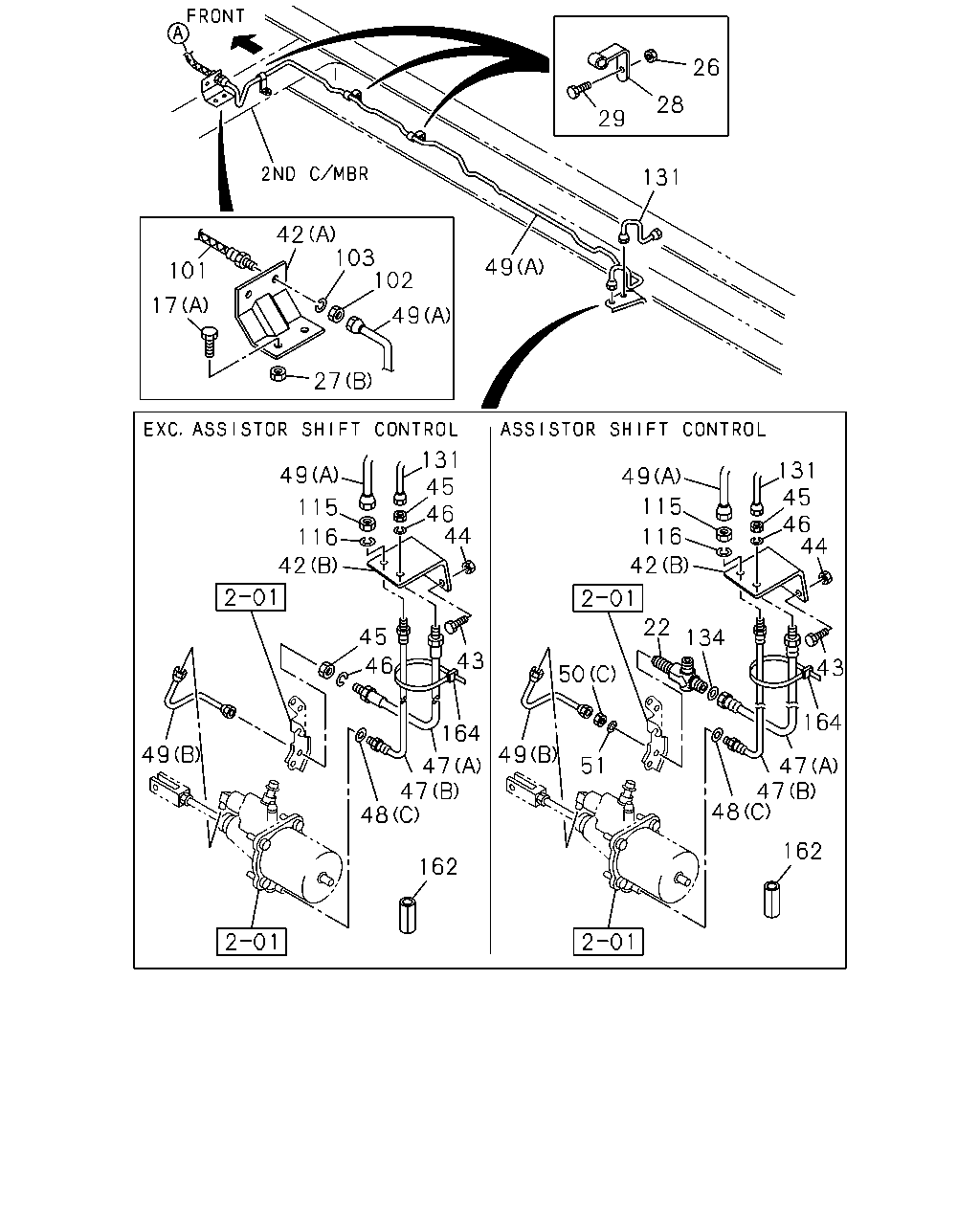

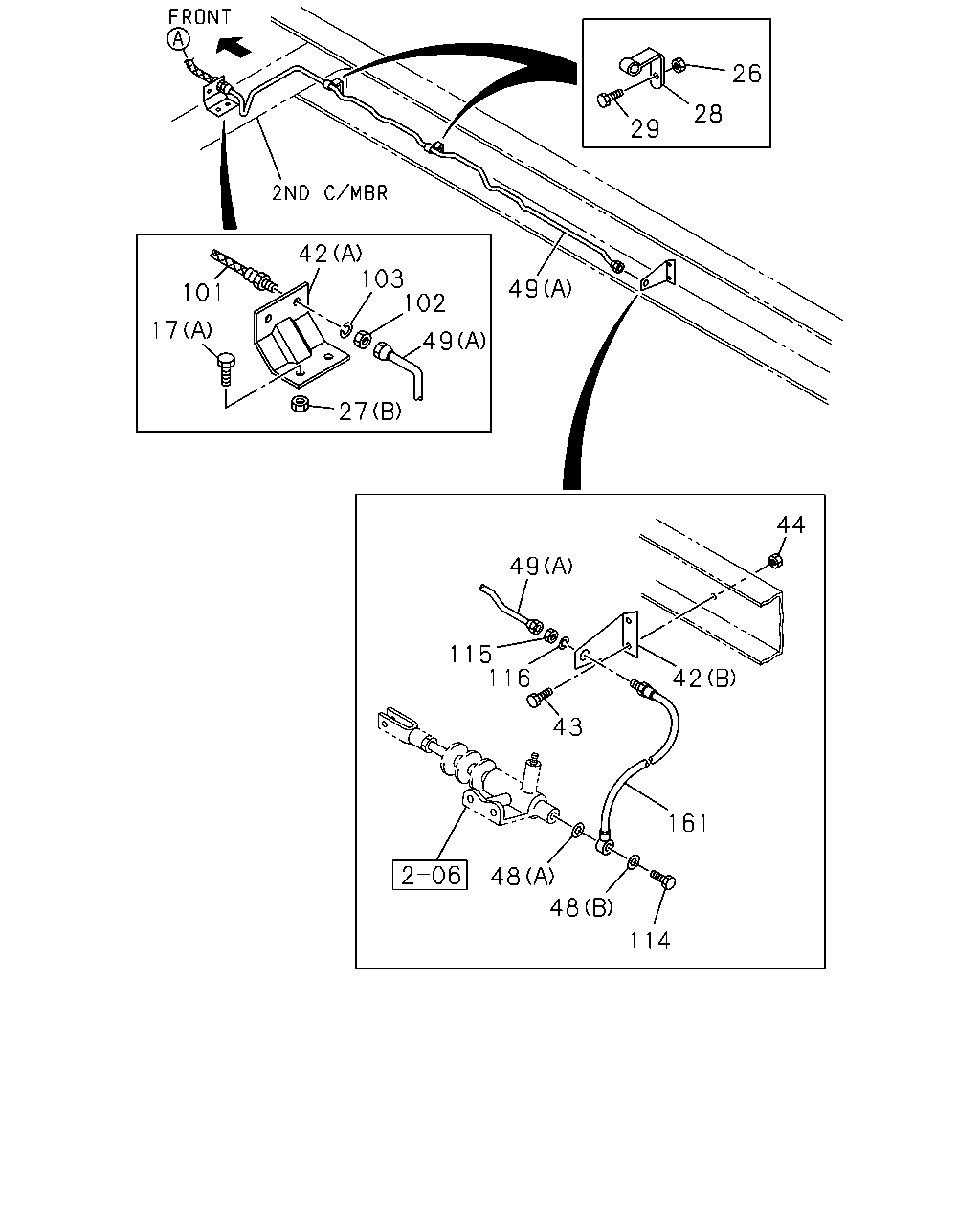

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	06	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	06	1	0603-0611		●
26	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	06	1	0612-		●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9811-0106		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9810	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0106	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	9811-0106		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0210	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0107-0210		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	06	1	0107-0611		●
28	CLIP; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	06	1	0612-		●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9811-0106		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-		●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9810	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9811-0106	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	9811-0106		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0107-0210	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0107-0210		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0211-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	06	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	06	1	0601-0611		●
29	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	06	1	0612-		●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9811-0106		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9810	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9811-0106	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9811-0106		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0107-0210	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0107-0210		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0211-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B)	1-47476-912-1	01	1	0107-0611		●
42	BRACKET; FLEX HOSE,CLU CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B)	1-47476-912-1	01	1	0612-		●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9811-0106		●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0107-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-9810	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9811-0210	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9811-0210		●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0211-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-		●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9510-9810	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9811-0210	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9811-0210		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	0211-		●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-9810	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9811-0210	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9811-0210		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0211-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0506-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=3037 SERVICED BY L=3300	1-47426-398-0	01	1	0107-0611		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=3037 SERVICED BY L=3300	1-47426-398-0	01	1	0612-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2285 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0611		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2285 SERVICED BY L=2400	1-47426-395-0	01	1	0612-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2867 SERVICED BY L=2700	1-47426-396-0	01	1	9811-0106		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (A) L=2867 SERVICED BY L=2700	1-47426-396-0	01	1	0107-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9902-0004		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9803-9810	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9811-0106	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9811-0106		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0211-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9510-9810	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9811-0210	●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9811-0210		●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	0211-		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	9510-9810	●	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	9811-0210	●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=400	1-09364-597-0	01	1	9811-0210		●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=400	1-09364-597-0	01	1	0211-		●

26 28 29 131 42 103 102 49 101 17 49 27 131 45 46 44 131 45 46 44 49 49 115 115 116 116 42 42 22 45 134 43 46 43 50 164 164 49 49 51 47 47 48 47 47 48 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0506-0607		●
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	06	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	06	1	0603-0611		●
26	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	06	1	0612-		●
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	9811-0106		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	04	1	0603-		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9510-9606	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9810	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0106	●
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	9811-0106		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0210	●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0107-0210		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
26	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-108-0	03	1	0603-		●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9510-9606	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	06	1	0107-0611		●
28	CLIP; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	06	1	0612-		●
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	9811-0106		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-		●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9810	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9811-0106	●
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	9811-0106		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0107-0210	●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0107-0210		●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0211-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	06	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	06	1	0601-0611		●
29	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	06	1	0612-		●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	9811-0106		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9810	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9811-0106	●
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	9811-0106		●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0107-0210	●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0107-0210		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0211-0512		●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B)	1-47476-912-1	01	1	0107-0611		●
42	BRACKET; FLEX HOSE,CLU CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B)	1-47476-912-1	01	1	0612-		●
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	9811-0106		●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0107-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9510-9810	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	9811-0210	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	9811-0210		●
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0211-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9510-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9510-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-		●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9811-0106		●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0107-0601		●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0602-		●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	9811-0106		●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0107-0601		●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	02	1	0107-0601		●
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0602-		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9811-0106		●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0107-0601		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0602-0603		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	9811-0106		●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0107-0601		●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	02	1	0107-0601		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0602-0603		●
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	02	1	0604-		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=560	1-09363-689-0	01	1	0107-0611		●
47	HOSE; FLEX,CLU CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=560	1-09363-689-0	01	1	0612-		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B) L=470	1-09364-692-0	01	1	0107-0611		●
47	HOSE; FLEX,CLU CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B) L=470	1-09364-692-0	01	1	0612-		●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=415	1-09364-490-0	01	1	9811-0106		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (B) L=415	1-09364-490-0	01	1	0107-		●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	1-09363-633-0	01	1	9811-0106		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	1-09363-633-0	01	1	0107-		●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=500	1-09363-720-0	01	1	9811-0106		●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=500	1-09363-720-0	01	1	0107-		●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-		●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9510-9810	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9811-0210	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9811-0210		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	0211-		●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9510-9810	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9811-0210	●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	9811-0210		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0211-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0506-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=3037 SERVICED BY L=3300	1-47426-398-0	01	1	0107-0611		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A) L=3037 SERVICED BY L=3300	1-47426-398-0	01	1	0612-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2285 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0611		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2285 SERVICED BY L=2400	1-47426-395-0	01	1	0612-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2867 SERVICED BY L=2700	1-47426-396-0	01	1	9811-0106		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> (A) L=2867 SERVICED BY L=2700	1-47426-396-0	01	1	0107-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	9902-0004		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9510-9802	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9803-9810	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9811-0106	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	9811-0106		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1> (A) L=2260 SERVICED BY L=2400	1-47426-395-0	01	1	0211-		●
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0506-		●
50	NUT; UNION (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0210	●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9510-0210	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0211-0512		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-		●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0506-0603		●
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	9510-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512		●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9510-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9510-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-		●
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-462-0	01	1	9811-0106		●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1>	1-49119-462-0	01	1	0107-		●
134	GASKET AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9811-9912		●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-		●
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0005-		●
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140	5-09707-031-1	01	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
