2-01 — CLUTCH (#59604) — 109 parça

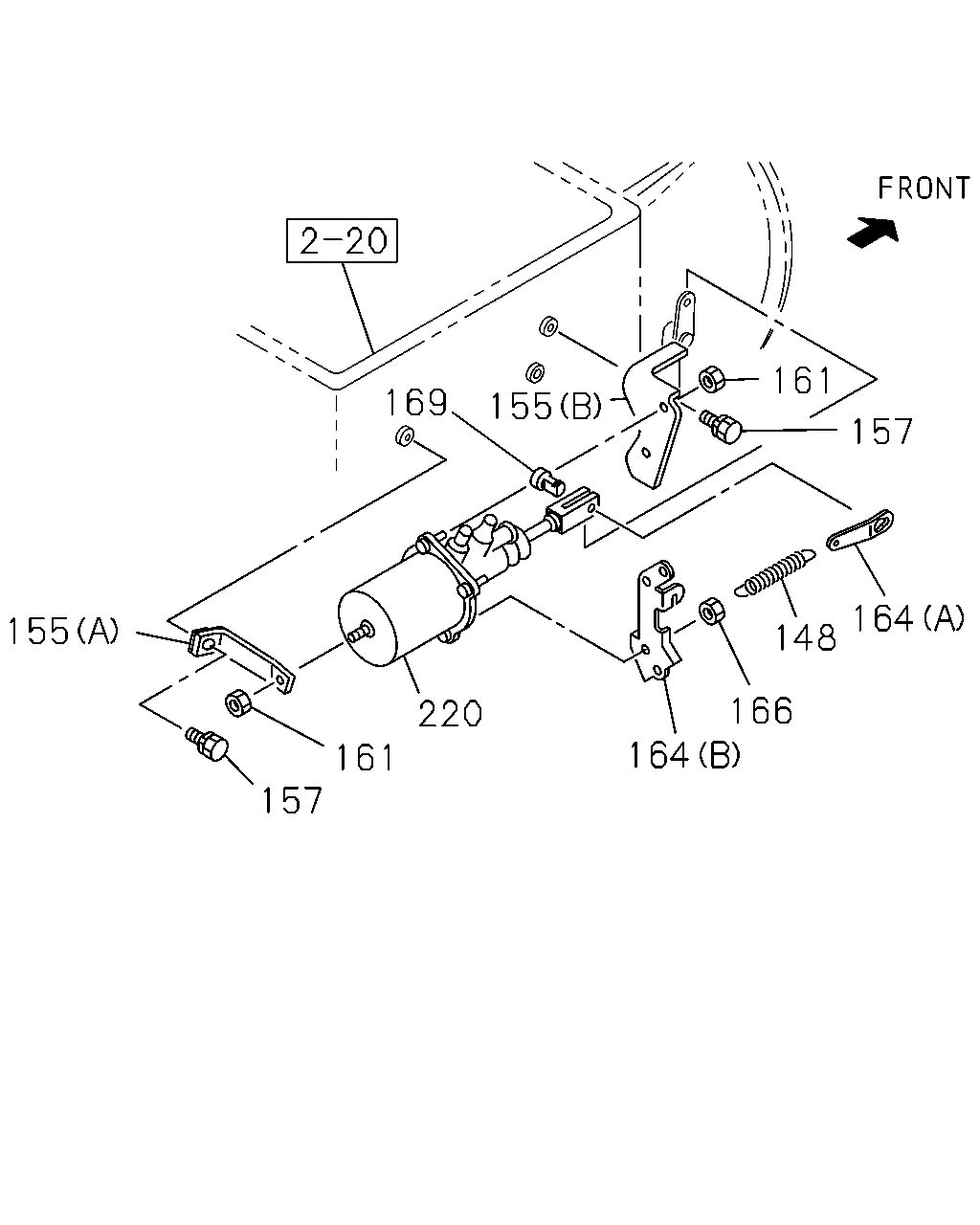

161 155 169 157 164 155 148 166 164 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9811-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9810	●	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9811-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9811-		●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (B)	1-31429-175-2	01	1	9811-	●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (A)	1-31429-176-0	01	1	9811-	●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	03	1	9811-	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9811-0602	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	03	1	0603-	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (A)	1-31426-041-0	01	1	9811-	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (B)	1-47477-789-0	01	1	9811-	●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9811-0602	●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	02	1	0603-	●
169	PIN; JOINT,MINIPACK AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9811-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9811-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-383-3	01	1	9811-	●

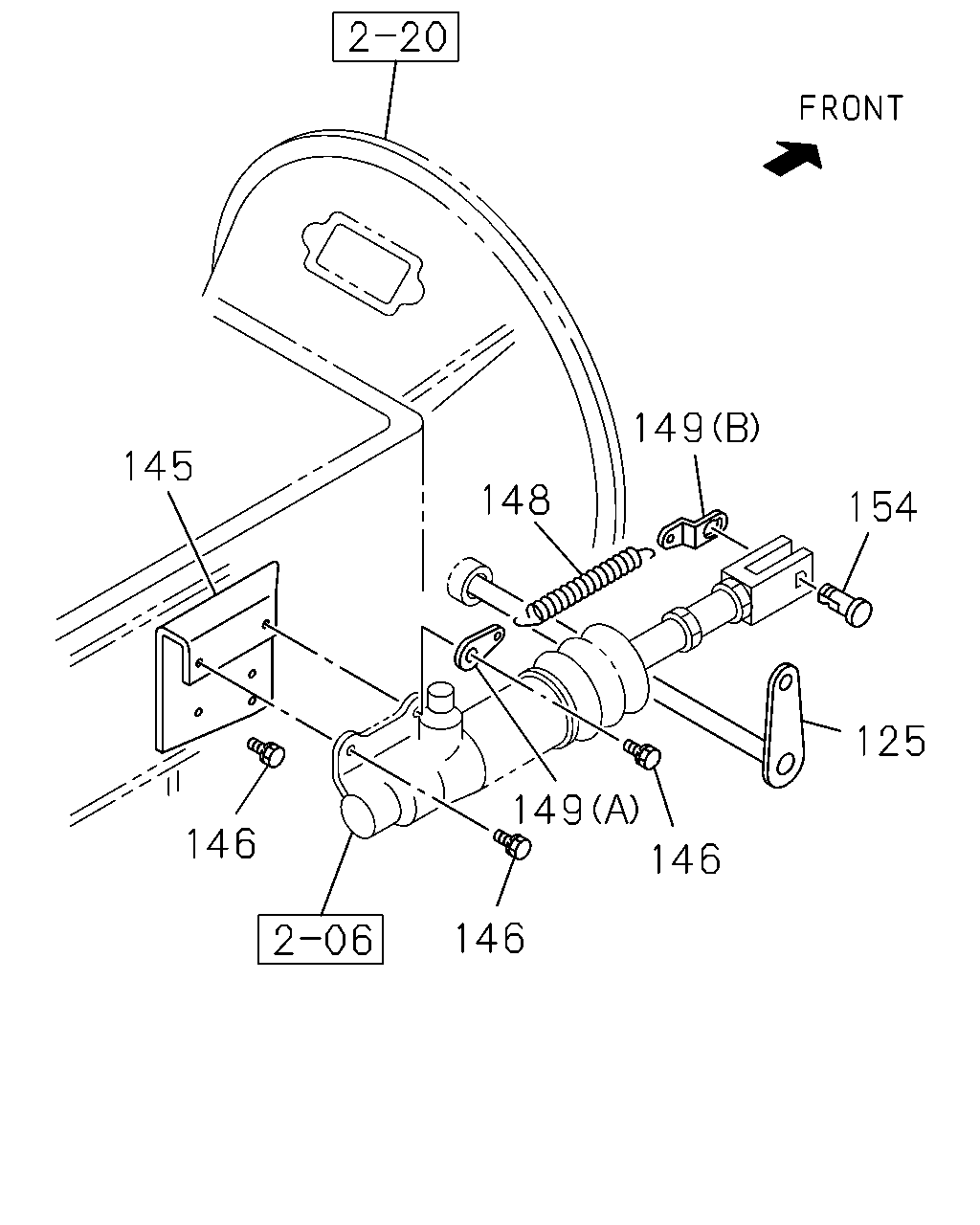

149 145 148 154 125 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-169-1	01	1	9811-	●
125	SHAFT; CLU	1-31342-271-0	01	1	9510-9803	●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-9810	●	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-298-1	01	1	9811-	●
125	SHAFT; CLU	1-31342-298-1	01	1	9811-		●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-052-0	01	1	9510-9803	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	9804-9810	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-058-0	01	1	9811-	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	9811-		●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9510-9810	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	04	1	9811-0512	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9811-0512		●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28151-025-0	04	1	0601-	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28151-025-0	04	1	0601-		●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9811-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9810	●	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9811-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9811-		●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9510-9810	●	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (B)	1-31426-019-1	01	1	9811-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9811-		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9510-9810	●	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (A) T=2.3	1-47324-005-1	01	1	9811-	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9811-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9510-9810	●	●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9811-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9811-		●

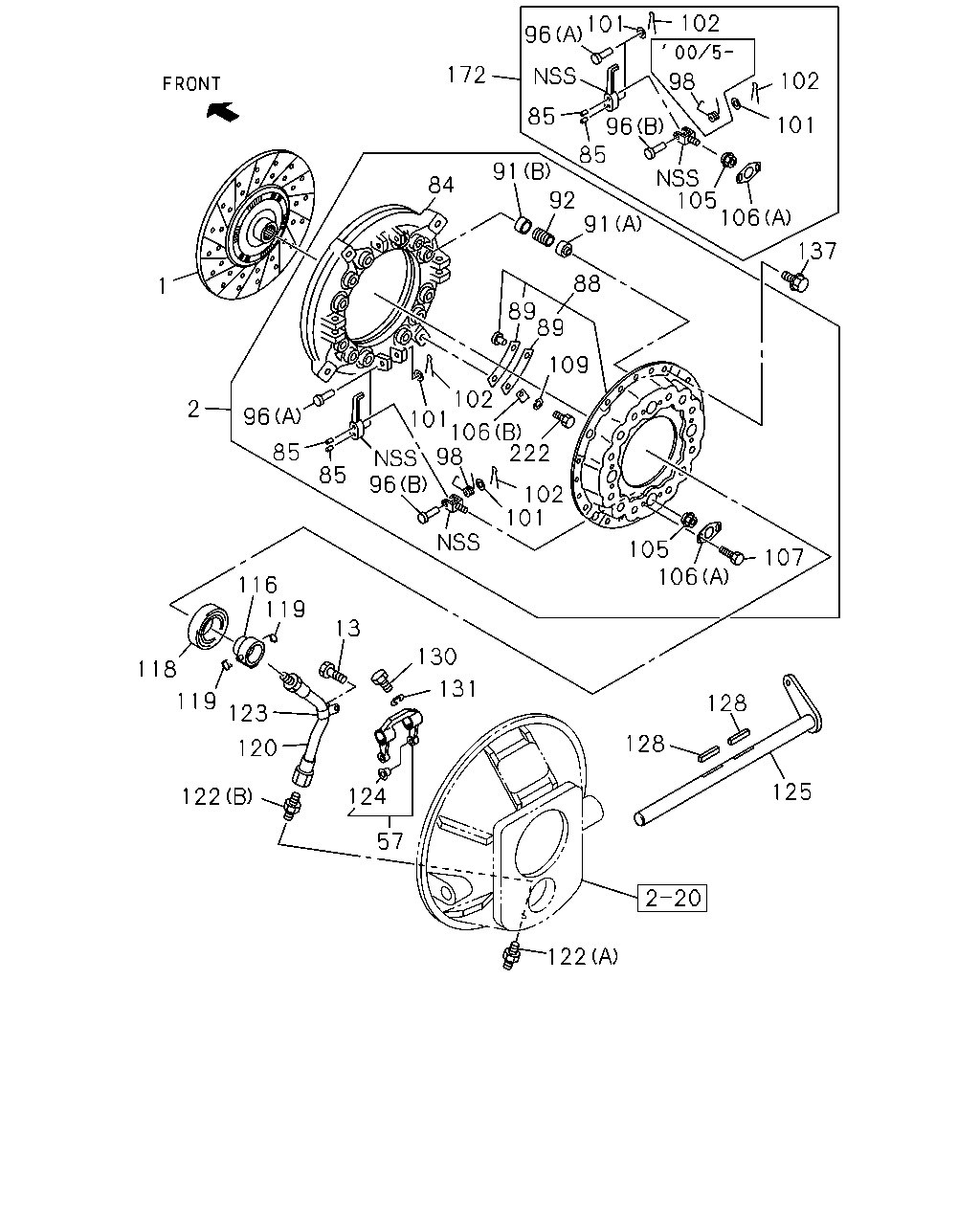

102 101 96 172 102 98 96 85 85 101 91 92 91 105 106 84 137 88 1 89 89 109 102 2 96 101 106 222 96 85 85 102 101 105 106 107 116 119 13 130 118 131 119 128 123 128 120 124 125 122 57 122 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-0105	●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-	●	●
2	PLATE ASM; PRESSURE,CLU 14"	1-31220-291-0	01	1	9510-0109	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-0512	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9510-	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9510-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9510-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-1005	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-1005	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-	●	●
92	SPRING; CLU 14"	1-09580-234-0	12	1	9510-0308	●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005	●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9510-	●	●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	9510-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0109	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	9510-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0308	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9510-0603	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9510-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0111	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	9510-	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	9510-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9510-0003	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9510-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9510-0606	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-169-1	01	1	9811-	●
125	SHAFT; CLU	1-31342-271-0	01	1	9510-9803	●	●
125	SHAFT; CLU	1-31342-298-1	01	1	9804-9810	●	●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-298-1	01	1	9811-	●
125	SHAFT; CLU	1-31342-298-1	01	1	9811-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0512	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9510-0004	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0005-0306	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-	●	●
222	BOLT; STRAP M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-0109	●	●
222	BOLT; STRAP	1-31239-059-0	04	1	0110-	●	●
