Sayfa 1-50 - Isuzu EPC

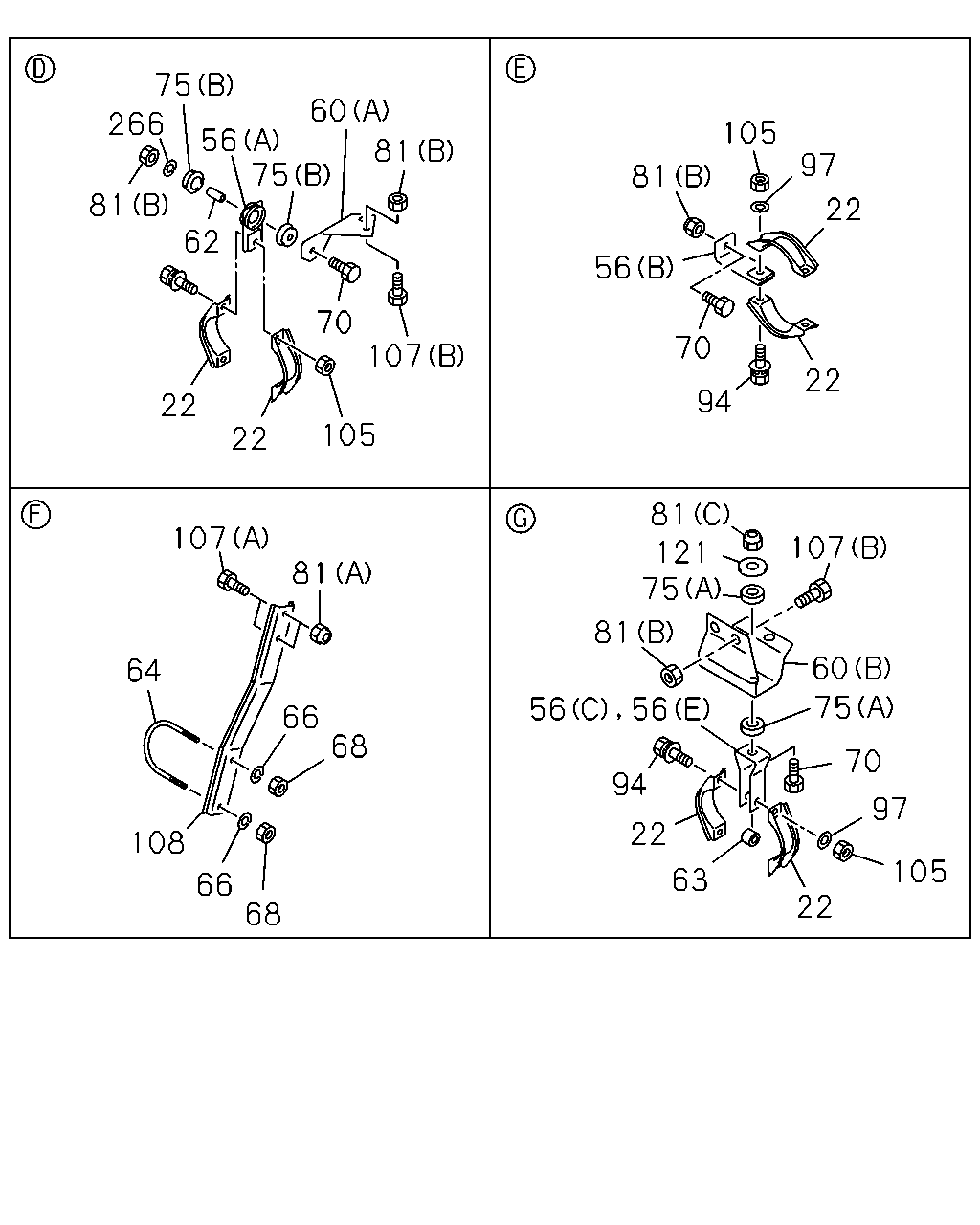

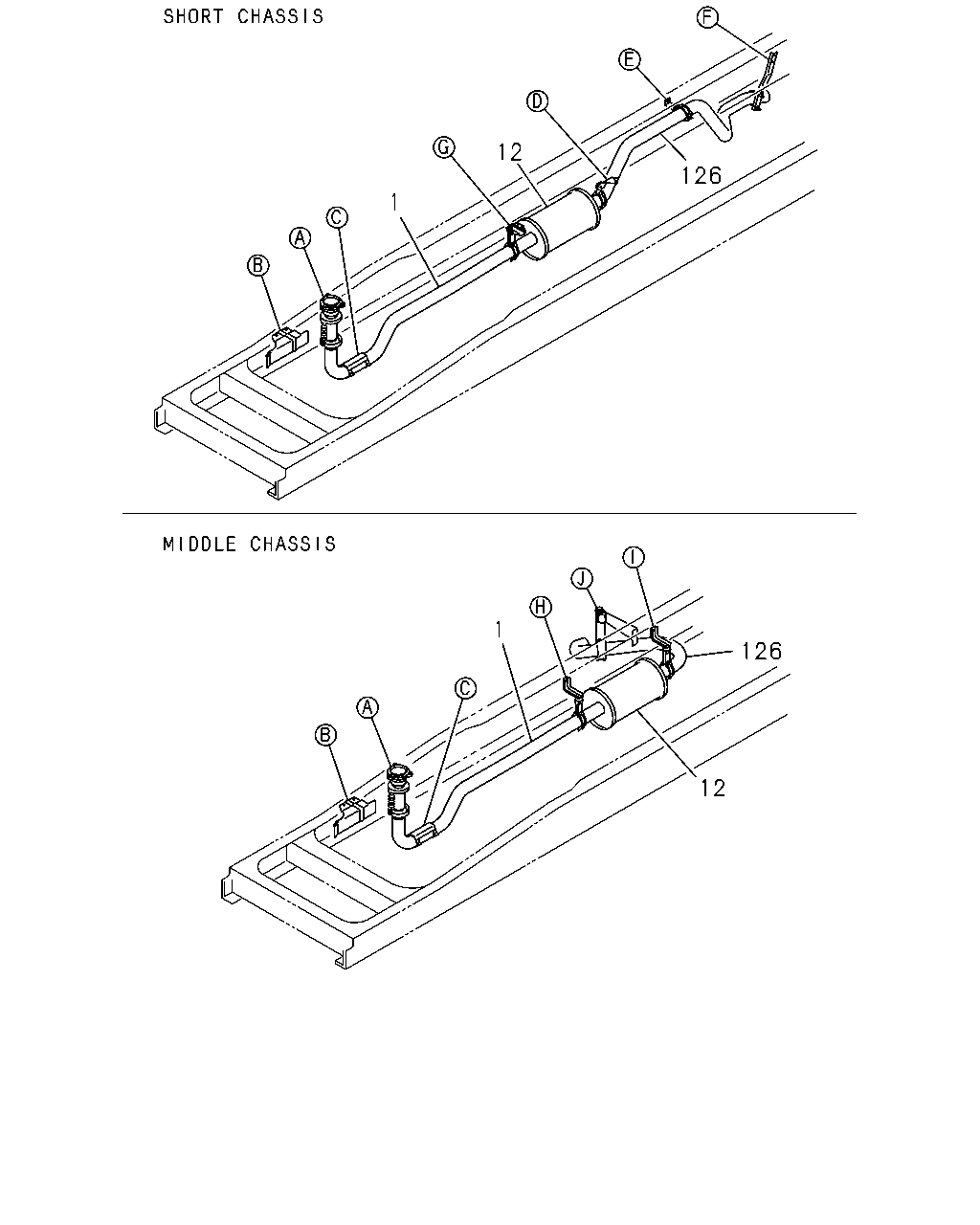

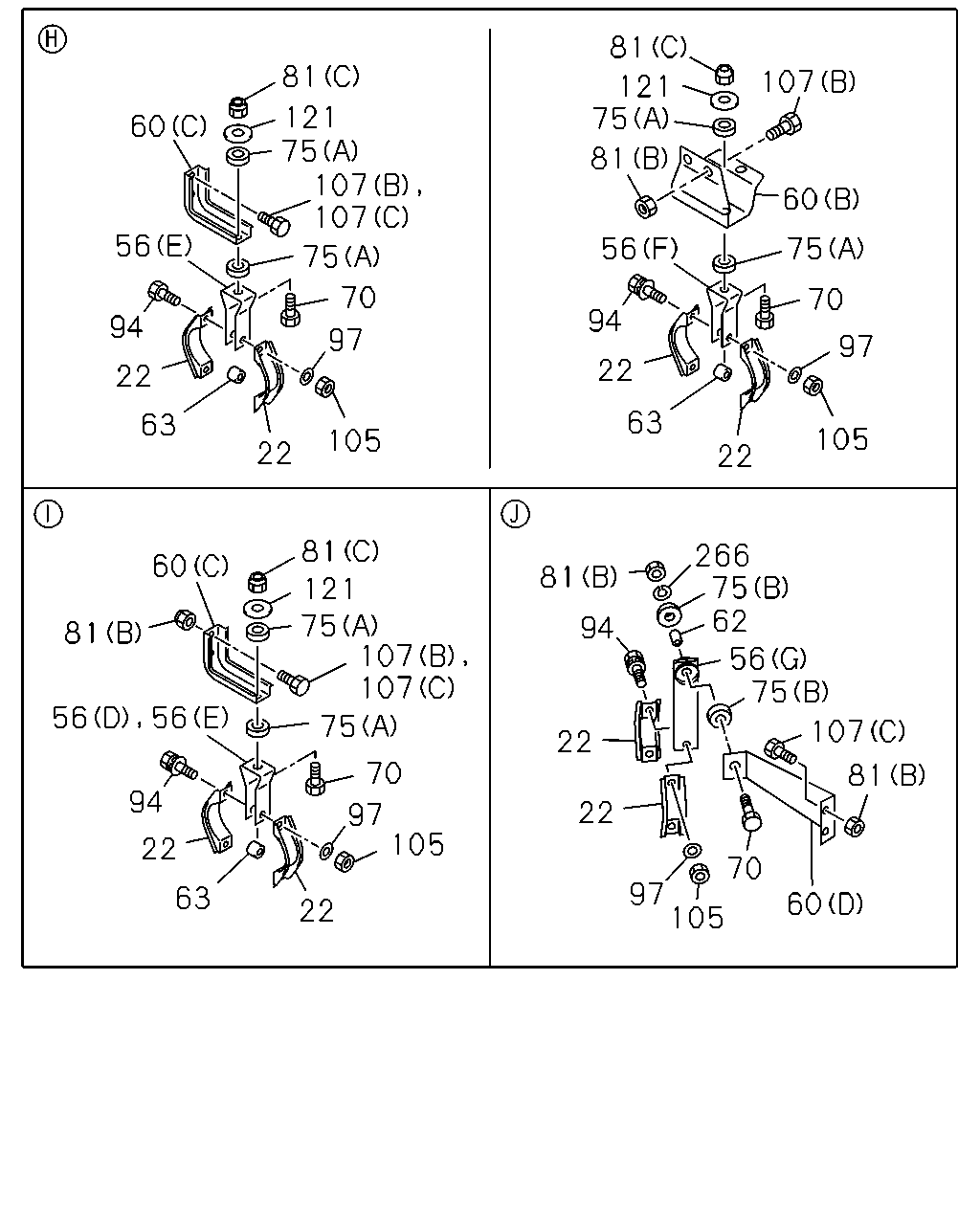

1-50 — EXHAUST PIPE AND SILENCER (#59601) — 661 parça

476 34 1 475 475 36 36 476 5 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	1-22122-646-1	01	1	9510-0210	●	●
1	PIPE; EXH	1-22123-644-0	01	1	0211-		●
5	PROTECTOR; HEAT PARKING BRAKE DRUM 10"(B1T)	1-33659-182-1	01	1	9510-0210	●	●
5	PROTECTOR; HEAT PARKING BRAKE DRUM 10"(B1T)	1-33659-182-1	01	1	0211-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9510-0210	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0211-0410		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-		●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9510-0210	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	0211-		●
354	CLAMP; HEAT PROTECTOR	1-22119-347-0	02	1	9510-9510	●	●
354	CLAMP; HEAT PROTECTOR	1-22119-347-0	02	1	9602-0210	●	●
354	CLAMP; HEAT PROTECTOR	1-22119-347-0	02	1	0211-0301		●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-1	02	1	0306-		●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	9510-0210	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	9510-0210	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0211-		●

75 60 266 105 56 75 81 97 81 81 22 62 56 70 70 107 22 94 22 105 22 81 121 75 107 107 81 81 60 64 75 66 68 70 94 97 22 108 105 63 66 22 68 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0005-0009		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	9510-9510	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	9510-0001	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0002-0004	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0002-0004		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0005-0009		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0010-0210	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9510-9510		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9510-9802		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9510-9802		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9910-0001		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0002-0004	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	0005-0009	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0010-0210	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	9510-0001		●
56	BRACKET; CLAMP,EXH PIPE (B) H=119	1-22139-060-0	01	1	0005-0210		●
56	BRACKET; CLAMP,EXH PIPE (D) H=135	1-22139-054-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=89	1-22131-538-1	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-695-0	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE (C) H=89	1-22139-046-0	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (E) H=112	1-22139-043-0	01	1	9510-9802		●
56	BRACKET; CLAMP,EXH PIPE MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (E) H=112	1-22139-043-0	01	1	9803-9909		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (E) H=112	1-22139-043-0	01	1	9803-9909		●
56	BRACKET; CLAMP,EXH PIPE MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (E) H=112	1-22139-043-0	01	1	9910-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=112	1-22139-043-0	01	1	9910-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=112	1-22139-043-0	01	1	0006-0210		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=125	1-22139-048-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	9510-9802		●
56	BRACKET; CLAMP,EXH PIPE MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	9803-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	0006-		●
56	BRACKET; CLAMP,EXH PIPE (G) L=254	1-22131-527-1	01	1	9510-		●
56	BRACKET; CLAMP,EXH PIPE (B) H=119	1-22139-060-0	02	1	9510-0004		●
60	BRACKET; FRAME TO BRKT HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-676-0	01	1	0002-0004	●
60	BRACKET; FRAME TO BRKT (A)	1-22131-735-0	01	1	9510-0001	●
60	BRACKET; FRAME TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-735-0	01	1	0002-0004	●
60	BRACKET; FRAME TO BRKT (A)	1-22131-735-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	9510-9802	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	9803-0005	●
60	BRACKET; FRAME TO BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9803-0005		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	0006-0210	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	0006-0210		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (C)	1-22151-512-2	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-3	01	1	0006-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C)	1-22151-512-3	01	1	0006-		●
60	BRACKET; FRAME TO BRKT (D)	1-22131-514-0	01	1	9510-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9510-0210	●	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	0211-		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	9510-9802	●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	9510-9802		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	9803-0005	●
63	TUBE; DIST,BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	9803-0005		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0006-0210	●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	0006-0210		●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	0211-		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) L=11	1-22139-026-0	01	1	9510-9802		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	9803-9909		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) L=11	1-22139-026-0	01	1	9803-9909		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	9910-0004		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	9910-0004		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0006-		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	0006-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9510-0004		●
64	U-BOLT; EXH PIPE,RR	1-22139-033-1	01	1	9510-0210	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9510-9606	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9510-9606	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-0210	●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	0205-0210	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0205-0210		●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0211-		●
70	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	01	1	9510-9606	●
70	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	01	1	9607-0210	●
70	BOLT; BRKT M10X60 FLANGE	0-28081-060-0	01	1	9607-9705		●
70	BOLT; BRKT M10X45 FLANGE	0-28081-045-0	01	1	9607-9612	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45 FLANGE	0-28081-045-0	01	1	9607-9612		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	9701-9802	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	9701-9802		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	9803-0005	●
70	BOLT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	9803-0005		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	0006-0204	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0006-0204		●
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	0205-0210		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50 FLANGE	0-28081-050-0	01	1	9607-9612		●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9607-9612		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9701-9802		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50	0-10806-050-0	01	1	9701-9802		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0006-0204		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0006-0204		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0205	●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0205	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0205-0205		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0210	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0205-0210		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X55	0-10806-055-0	01	1	9510-9705	●
70	BOLT; BRKT M10X55	0-10806-055-0	01	1	9706-0204	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9510-0004	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0005-0005	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) OD=30	1-22159-106-1	02	1	0005-0005		●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5000MM(50W) (A) OD=30	1-22159-106-1	02	1	0005-0005		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0006-0210	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) OD=30	1-22159-106-1	02	1	0006-0210		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	02	1	9510-0210	●	●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9510-0004		●
81	NUT; BRKT (A) M8	9-09110-408-0	02	1	9510-9606	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0210	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9510-9606	●	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9510-9606	●
81	NUT; BRKT (B) M10	9-09110-510-0	01	1	9607-0204	●
81	NUT; BRKT (B) M10	9-09110-510-0	03	1	9510-9606	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10	9-09110-510-0	03	1	9510-9606		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9607-9608	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9607-9608		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9609-9802	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9609-9802		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803	●	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-0204	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-0204		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0205-0205		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0206-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9607-9608	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9609-9802	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9609-9802		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9803-9803	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-0205	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-0205		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0206-0210	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0206-0210		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0211-0602		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91180-210-0	03	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9609-9802	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-9803	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9803-0204	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0205-0205	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0205-0205	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0510-0602		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	9510-0004	●	●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0006-0210	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0006-0210		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT (C) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
81	NUT; BRKT (C) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	02	1	9510-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0005-0009		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9510-9612	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9701-0001	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0002-0004	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0005-0009	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0010-0210	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0005-0009		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0010-0210	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	08	1	0005-0210		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	0-91614-510-0	02	1	0901-0907		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9510-9606		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9510-9606		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9510-9606	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9607-9612	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9701-0001	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0002-0004	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	0005-0009	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0010-0210	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9701-9705		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9701-9705		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0005-0009		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0005-0009		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9510-9606	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9607-9612	●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9701-0001	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0002-0004	●
105	NUT; CLAMP M10	9-09110-510-0	06	1	0005-0009	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612	●	●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0005-0009		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9607-9612		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9701-9810		●
107	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9510-9606	●
107	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-0210	●
107	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9802	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9802		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	9803-0205	●
107	BOLT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	9803-0205		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0206-0210	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	0206-0210		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
107	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	03	1	9510-9606	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X25 FLANGE	0-28081-025-0	03	1	9510-9606		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	9607-9802	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	9607-9802		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909	●	●
107	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205	●	●
107	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	0206-0210	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	0206-0210		●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	0211-0512		●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (C) M10X30 FLANGE	0-28651-030-0	03	1	0601-		●
107	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	9510-9606		●
107	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	9607-0512		●
107	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-663-2	01	1	9510-0210	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9510-0004	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005		●
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0006-0210	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32	9-09164-810-0	01	1	0006-0210		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9510-0004		●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9510-9705	●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9706-0204	●	●

12 126 1 1 126 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	1-22122-646-1	01	1	9510-0210	●	●
1	PIPE; EXH	1-22123-644-0	01	1	0211-		●
12	SILENCER ASM; EXH	1-22140-752-0	01	1	9510-9807	●	●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	9808-0205	●	●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210	●	●
12	SILENCER ASM; EXH	1-22141-074-0	01	1	0211-		●
126	PIPE; EXH,RR	1-22126-145-0	01	1	9510-0210	●
126	PIPE; EXH,RR	1-22126-030-1	01	1	9510-		●

81 81 107 121 75 121 75 107 107 60 81 60 56 56 75 75 70 70 94 94 97 97 22 22 63 63 105 105 22 22 81 121 75 107 107 266 75 62 56 75 60 81 94 81 75 107 22 70 81 94 22 97 105 22 70 97 105 63 60 22 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0005-0009		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	9510-9510	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	9510-0001	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0002-0004	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0002-0004		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0005-0009		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0010-0210	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0211-		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9510-9510		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9510-9802		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9510-9802		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE WHEEL BASE 5000MM(50W) ID=80-84	1-22133-233-0	02	1	9803-9909		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9910-0001		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0002-0004	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	0005-0009	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	0010-0210	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	9510-0001		●
56	BRACKET; CLAMP,EXH PIPE (B) H=119	1-22139-060-0	01	1	0005-0210		●
56	BRACKET; CLAMP,EXH PIPE (D) H=135	1-22139-054-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=89	1-22131-538-1	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-695-0	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE (C) H=89	1-22139-046-0	01	1	9510-0210	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (E) H=112	1-22139-043-0	01	1	9510-9802		●
56	BRACKET; CLAMP,EXH PIPE MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (E) H=112	1-22139-043-0	01	1	9803-9909		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (E) H=112	1-22139-043-0	01	1	9803-9909		●
56	BRACKET; CLAMP,EXH PIPE MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (E) H=112	1-22139-043-0	01	1	9910-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=112	1-22139-043-0	01	1	9910-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=112	1-22139-043-0	01	1	0006-0210		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=125	1-22139-048-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	9510-9802		●
56	BRACKET; CLAMP,EXH PIPE MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	9803-0005		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (F) H=67	1-22139-041-0	01	1	0006-		●
56	BRACKET; CLAMP,EXH PIPE (G) L=254	1-22131-527-1	01	1	9510-		●
56	BRACKET; CLAMP,EXH PIPE (B) H=119	1-22139-060-0	02	1	9510-0004		●
60	BRACKET; FRAME TO BRKT HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-676-0	01	1	0002-0004	●
60	BRACKET; FRAME TO BRKT (A)	1-22131-735-0	01	1	9510-0001	●
60	BRACKET; FRAME TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-735-0	01	1	0002-0004	●
60	BRACKET; FRAME TO BRKT (A)	1-22131-735-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	9510-9802	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	9803-0005	●
60	BRACKET; FRAME TO BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	9803-0005		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-534-3	01	1	0006-0210	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	0006-0210		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (B)	1-22151-534-3	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (C)	1-22151-512-2	01	1	9510-9802		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (C)	1-22151-512-2	01	1	9803-9909		●
60	BRACKET; FRAME TO BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-2	01	1	9910-0005		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-512-3	01	1	0006-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C)	1-22151-512-3	01	1	0006-		●
60	BRACKET; FRAME TO BRKT (D)	1-22131-514-0	01	1	9510-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9510-0210	●	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	0211-		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	9510-9802	●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	9510-9802		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	9803-0005	●
63	TUBE; DIST,BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	9803-0005		●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0006-0210	●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	0006-0210		●
63	TUBE; DIST,BRKT WHEEL BASE 5000MM(50W) L=8.5	1-22139-057-0	01	1	0211-		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) L=11	1-22139-026-0	01	1	9510-9802		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	9803-9909		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) L=11	1-22139-026-0	01	1	9803-9909		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	9910-0004		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	9910-0004		●
63	TUBE; DIST,BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0005-0005		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0006-		●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) L=11	1-22139-026-0	01	1	0006-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9510-0004		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	0205-0210	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0205-0210		●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0211-		●
70	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	01	1	9510-9606	●
70	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	01	1	9607-0210	●
70	BOLT; BRKT M10X60 FLANGE	0-28081-060-0	01	1	9607-9705		●
70	BOLT; BRKT M10X45 FLANGE	0-28081-045-0	01	1	9607-9612	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45 FLANGE	0-28081-045-0	01	1	9607-9612		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	9701-9802	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	9701-9802		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	9803-0005	●
70	BOLT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	9803-0005		●
70	BOLT; BRKT M10X45	0-10806-045-0	01	1	0006-0204	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X45	0-10806-045-0	01	1	0006-0204		●
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	0205-0210		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50 FLANGE	0-28081-050-0	01	1	9607-9612		●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9607-9612		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9701-9802		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50	0-10806-050-0	01	1	9701-9802		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) M10X50	0-10806-050-0	01	1	9803-9909		●
70	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	9910-0005		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0006-0204		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0006-0204		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0205	●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0205	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0205-0205		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0205-0210	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0205-0210		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X55	0-10806-055-0	01	1	9510-9705	●
70	BOLT; BRKT M10X55	0-10806-055-0	01	1	9706-0204	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9510-0004	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0005-0005	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) OD=30	1-22159-106-1	02	1	0005-0005		●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5000MM(50W) (A) OD=30	1-22159-106-1	02	1	0005-0005		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0006-0210	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) OD=30	1-22159-106-1	02	1	0006-0210		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	02	1	9510-0210	●	●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9510-0004		●
81	NUT; BRKT (A) M8	9-09110-408-0	02	1	9510-9606	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9607-0210	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9510-9606	●	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9510-9606	●
81	NUT; BRKT (B) M10	9-09110-510-0	01	1	9607-0204	●
81	NUT; BRKT (B) M10	9-09110-510-0	03	1	9510-9606	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10	9-09110-510-0	03	1	9510-9606		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9607-9608	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9607-9608		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9609-9802	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9609-9802		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803	●	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-0204	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-0204		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0205-0205		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0206		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0206-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9607-9608	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9609-9802	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9609-9802		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-9803		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9803-9803	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	9803-0205	●
81	NUT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	9803-0205		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0206-0210	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0206-0210		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0211-0602		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91180-210-0	03	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9609-9802	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9803-9803	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	9803-0204	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0205-0205	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0205-0205	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	02	1	0206-0210		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	02	1	0211-0509		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0510-0602		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0510-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	9510-0004	●	●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005		●
81	NUT; BRKT WHEEL BASE 5000MM(50W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0005-0005		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0006-0210	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (C) M10 LOCK NUT	9-09131-510-0	01	1	0006-0210		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT (C) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
81	NUT; BRKT (C) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
81	NUT; BRKT (C) M10 LOCK NUT	9-09131-510-0	02	1	9510-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0005-0009		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9510-9612	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9701-0001	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0002-0004	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0005-0009	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0010-0210	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9607-9612		●
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9701-9705		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9706-0001		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0002-0004		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0005-0009		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0010-0210	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	08	1	0005-0210		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	0-91614-510-0	02	1	0901-0907		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9510-9606		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9510-9606		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9510-9606	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9607-9612	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9701-0001	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0002-0004	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	0005-0009	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0010-0210	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0211-0812		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0901-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9701-9705		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9701-9705		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9706-0001		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0002-0004		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0005-0009		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0005-0009		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9510-9606	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9607-9612	●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9701-0001	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0002-0004	●
105	NUT; CLAMP M10	9-09110-510-0	06	1	0005-0009	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612	●	●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9607-9612		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9701-0001		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0002-0004		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0005-0009		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0010-0210	●	●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9607-9612		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	9701-9810		●
107	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9510-9606	●
107	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-0210	●
107	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9802	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-9802		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	9803-0205	●
107	BOLT; BRKT MLD7Q M/T(X5K) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	9803-0205		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0206-0210	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	0206-0210		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
107	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	03	1	9510-9606	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X25 FLANGE	0-28081-025-0	03	1	9510-9606		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	9607-9802	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	9607-9802		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909	●	●
107	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9909		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205	●	●
107	BOLT; BRKT MLD7R M/T(X5L),MLD6A M/T(X5N) WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205		●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE	0-28681-030-0	02	1	9910-0205		●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	03	1	0206-0210	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	0206-0210		●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M10X30 FLANGE	0-28681-030-0	03	1	0211-0512		●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) (C) M10X30 FLANGE	0-28651-030-0	03	1	0601-		●
107	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	9510-9606		●
107	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	9607-0512		●
107	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9510-0004	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005		●
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0005		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0006-0210	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) ID=10.5 OD=32	9-09164-810-0	01	1	0006-0210		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9510-0004		●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9510-9705	●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9706-0204	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
