8-28 — CHASSIS ELECTRICAL (#596) — 110 parça

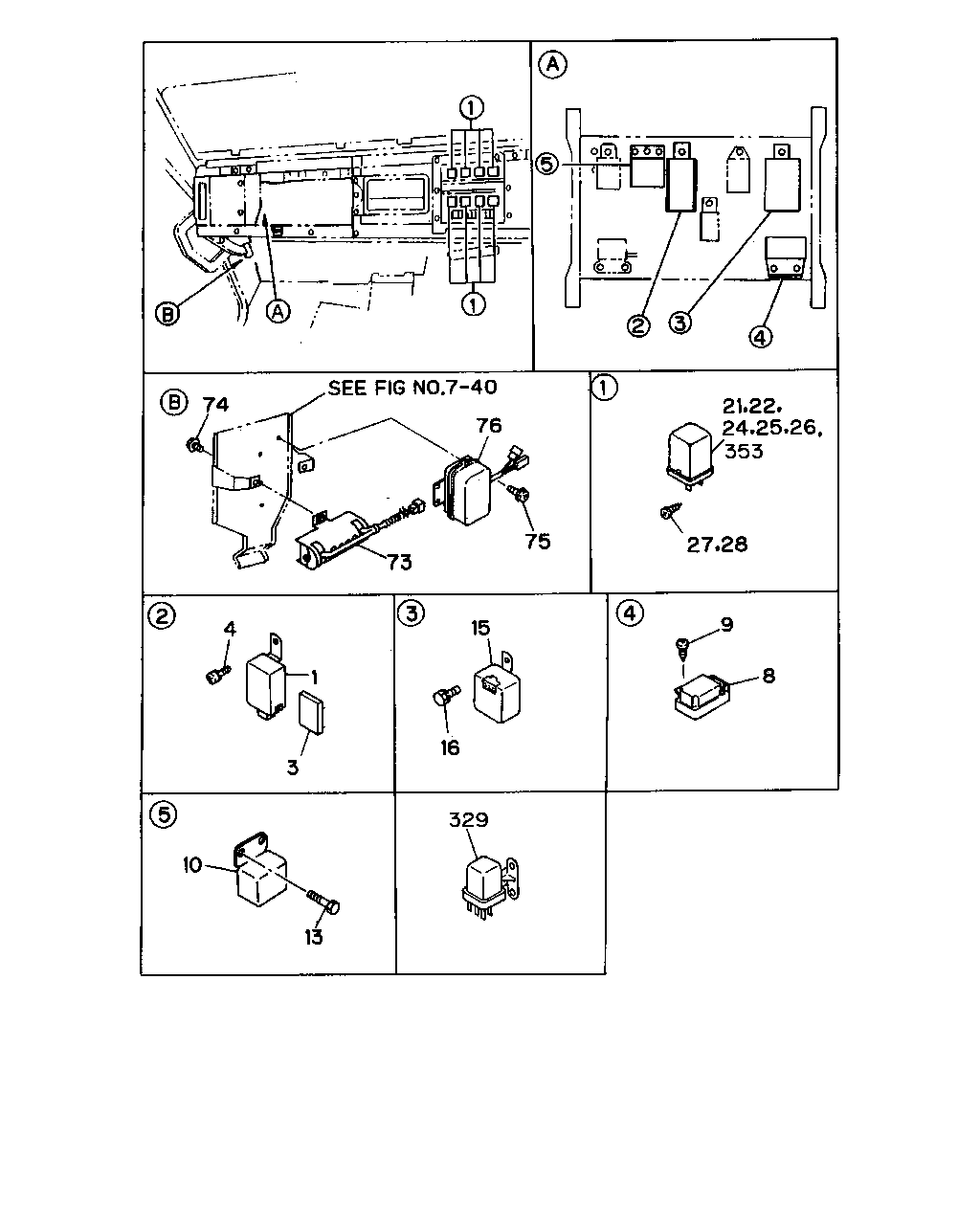

21 22 24 25 26 353 27 28 9 8 329 16 15 13 10 3 1 4 73 75 76 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-034-1	01	1	8712-8906
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-030-0	01	1	8907-
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-034-1	01	1	8907-
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	8712-
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	8712-
8	RELAY; WIPER INTERMITTENT WIPER<C13>	1-82550-095-3	01	1	8712-
9	SCREW; WIPER RELAY INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	8712-
10	DETECTOR ASM; FUEL	1-81553-001-0	01	1	8712-
13	BOLT; FUEL DETECTOR M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	8712-
15	RELAY; STOP & TAIL WARNING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5)	1-82550-143-1	01	1	8712-9201
15	RELAY; STOP & TAIL WARNING	1-82550-143-1	01	1	9202-9306
15	RELAY; STOP & TAIL WARNING EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-82550-214-0	01	1	8712-9201
16	SCREW; RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	8712-
16	SCREW; RELAY FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	8712-
21	RELAY; TRAILER TAIL FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> GREEN	1-82550-146-0	01	1	8907-
22	RELAY; STOP LAMP GREEN	1-82550-146-0	01	1	8712-
24	RELAY; LIGHTING GREEN	1-82550-146-0	02	1	8712-
25	RELAY; TAIL LAMP GREEN	1-82550-146-0	01	1	8712-
26	RELAY; CONSENT GREEN	1-82550-146-0	01	1	8712-
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9307-
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9307-
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-0	01	1	8712-9306
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER	0-74100-514-0	04	1	8712-9306
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9307-
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	8712-9306
329	RELAY; BACK LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-82550-070-0	01	1	8712-9201
353	RELAY; WARNING CHECK EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) GREEN	1-82550-146-0	01	1	8712-9201

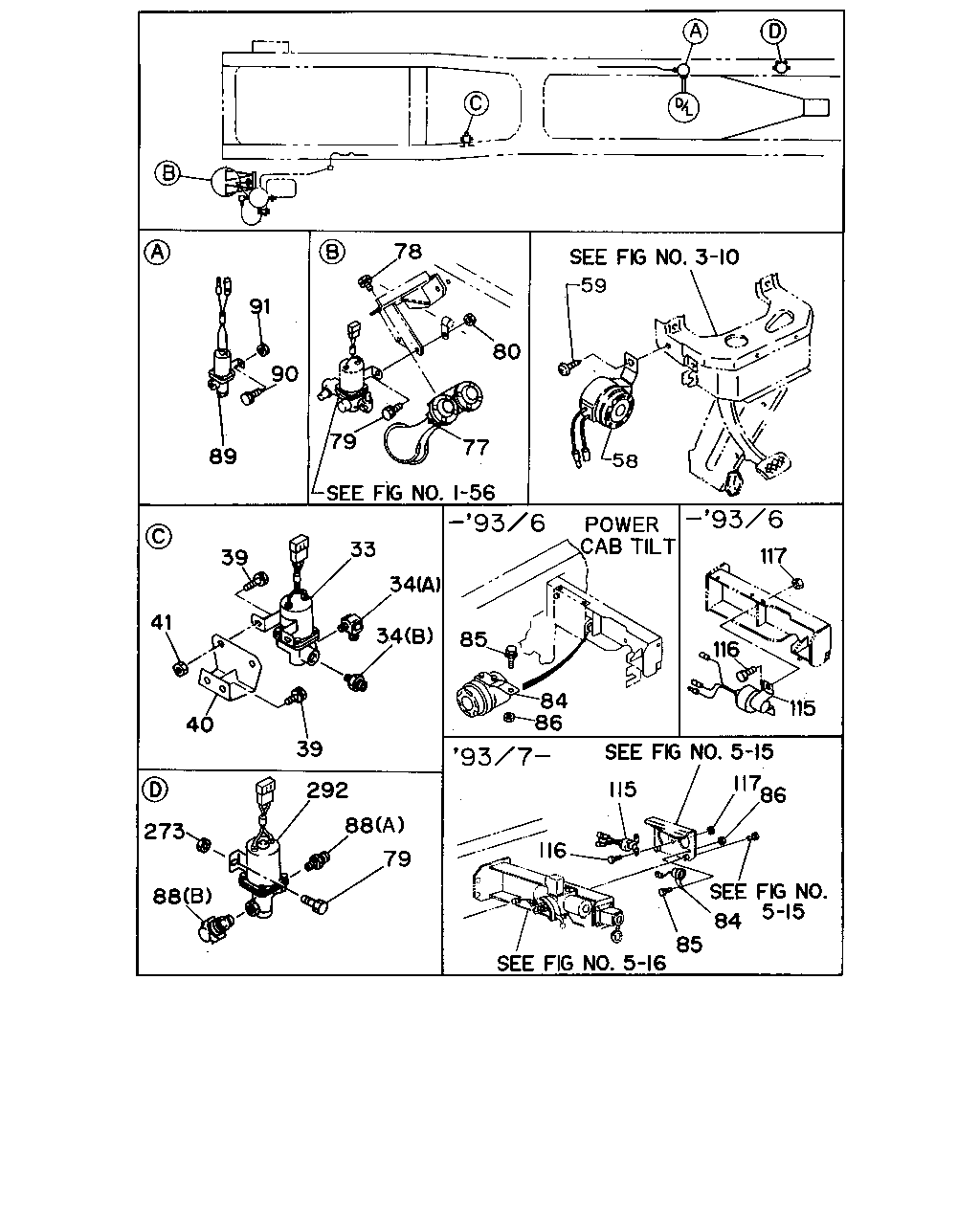

59 58 117 116 115 117 86 115 84 85 116 79 88 292 88 273 40 39 41 39 34 34 33 85 84 86 77 80 78 79 89 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-82563-305-0	01	1	9002-
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9307-
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9307-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M20 & PT1/4	9-09902-386-0	01	1	9307-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-9306
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
39	BOLT; BRKT,MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X30 FLANGE	0-28080-830-0	02	1	9303-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X16 FLANGE	0-28080-816-0	02	1	9303-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9303-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-47475-361-3	01	1	8712-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER<SH5> M8	9-09110-408-0	04	1	8712-
58	BUZZER; AIR PRESSURE WARNING	1-83460-029-0	01	1	8712-
59	SCREW; BUZZER M5X14 W/PL WASHER	5-09981-050-0	01	1	8712-
77	HORN ASM	1-83430-017-0	01	1	8712-
78	BOLT; AIR HORN M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9204
78	BOLT; AIR HORN M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9303-
79	BOLT; MAG VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9204
79	BOLT; MAG VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
79	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-
79	BOLT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
80	NUT; MAG VLV M8	9-09110-408-0	02	1	8712-
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>	1-83460-033-3	01	1	8712-9306
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> NIKKO	1-83460-054-0	01	1	9307-
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	8712-9204
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9306
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28080-820-0	01	1	9307-
86	NUT; BUZZER AUTO CAB TILT<WV2> M8	9-09110-408-0	01	1	8712-
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4	1-09660-573-0	01	1	9307-
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-114-0	01	1	8712-9001
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-361-0	01	1	9002-9105
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-404-0	01	1	9106-
89	VALVE; MAG,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-096-0	01	1	8712-9001
89	VALVE; MAG,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-301-0	01	1	9002-
90	BOLT; MAG VLV M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9001
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9303-
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9303-
91	NUT; MAG VLV M8	9-09110-408-0	02	1	8712-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-034-1	01	1	8712-9306
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-071-0	01	1	9307-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	8712-9204
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9306
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE	0-28080-820-0	02	1	9307-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	8712-
273	NUT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
292	VALVE; MAG SPR BRK NYLON TUBE AIR PIPING<Z29>	1-82563-433-0	01	1	9307-

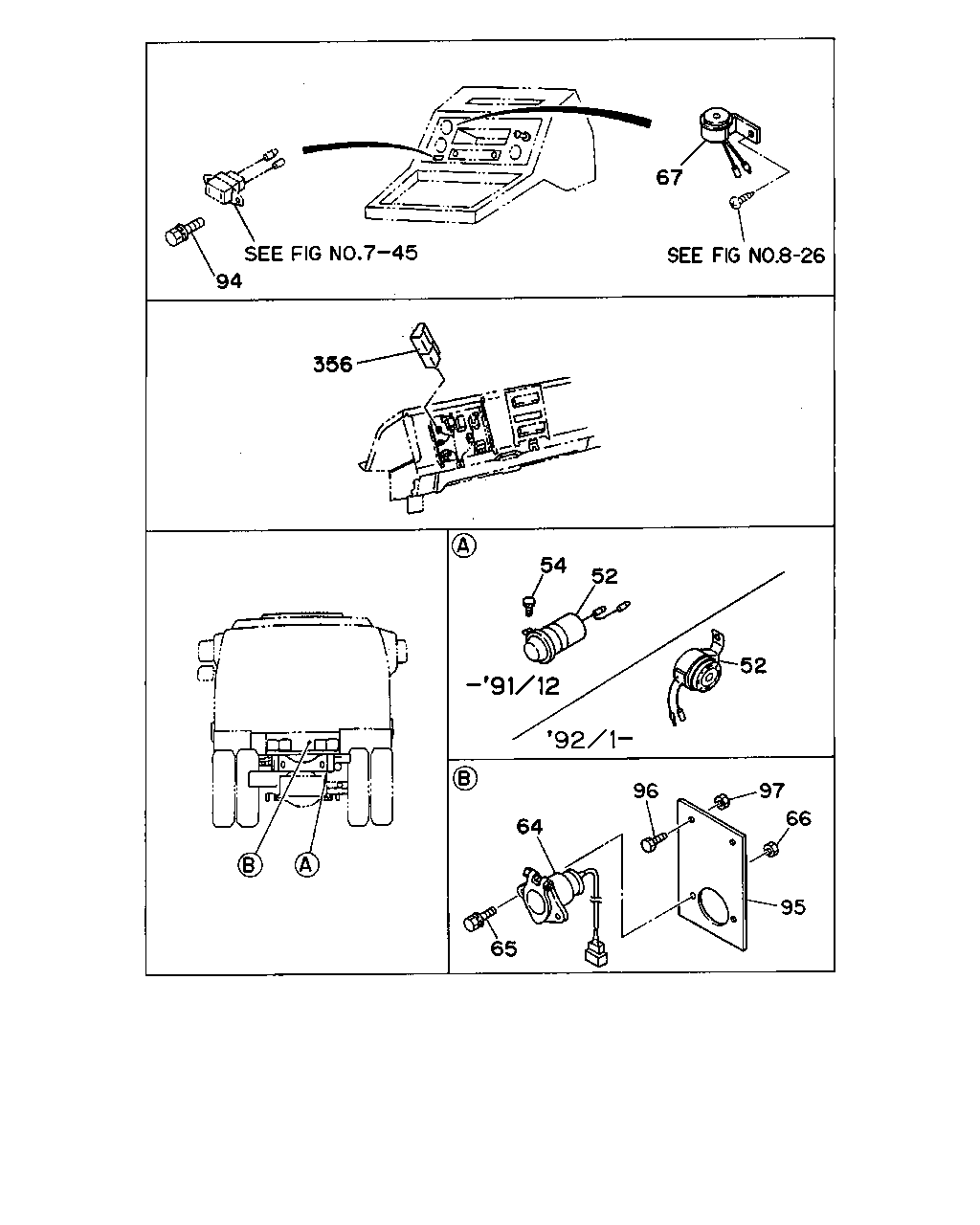

94 356 67 54 52 52 97 66 95 96 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-010-0	01	1	8712-9112
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	8-97061-718-0	01	1	9201-9306
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9307-
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25	9-01911-025-0	01	1	8712-9002
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9006
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 7P	1-82523-014-0	01	1	8907-9001
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 7P	1-82523-019-0	01	1	9002-9011
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 7P	1-82523-014-0	01	1	9012-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	8907-9204
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9306
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8907-
67	BUZZER; ENG OVERRUN EXC. ENGINE OVERRUN BUZZER DELETE<WW6>	1-83460-032-0	01	1	8712-9001
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-
67	BUZZER; ENG OVERRUN EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	8712-
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-82699-387-0	01	1	8907-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8907-9204
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9307-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8907-
356	DIODE; TRAILER HAND BRK FULL TRACTOR TRUCK<RD6> 1.1A 2P	8-94249-985-0	01	1	9302-
