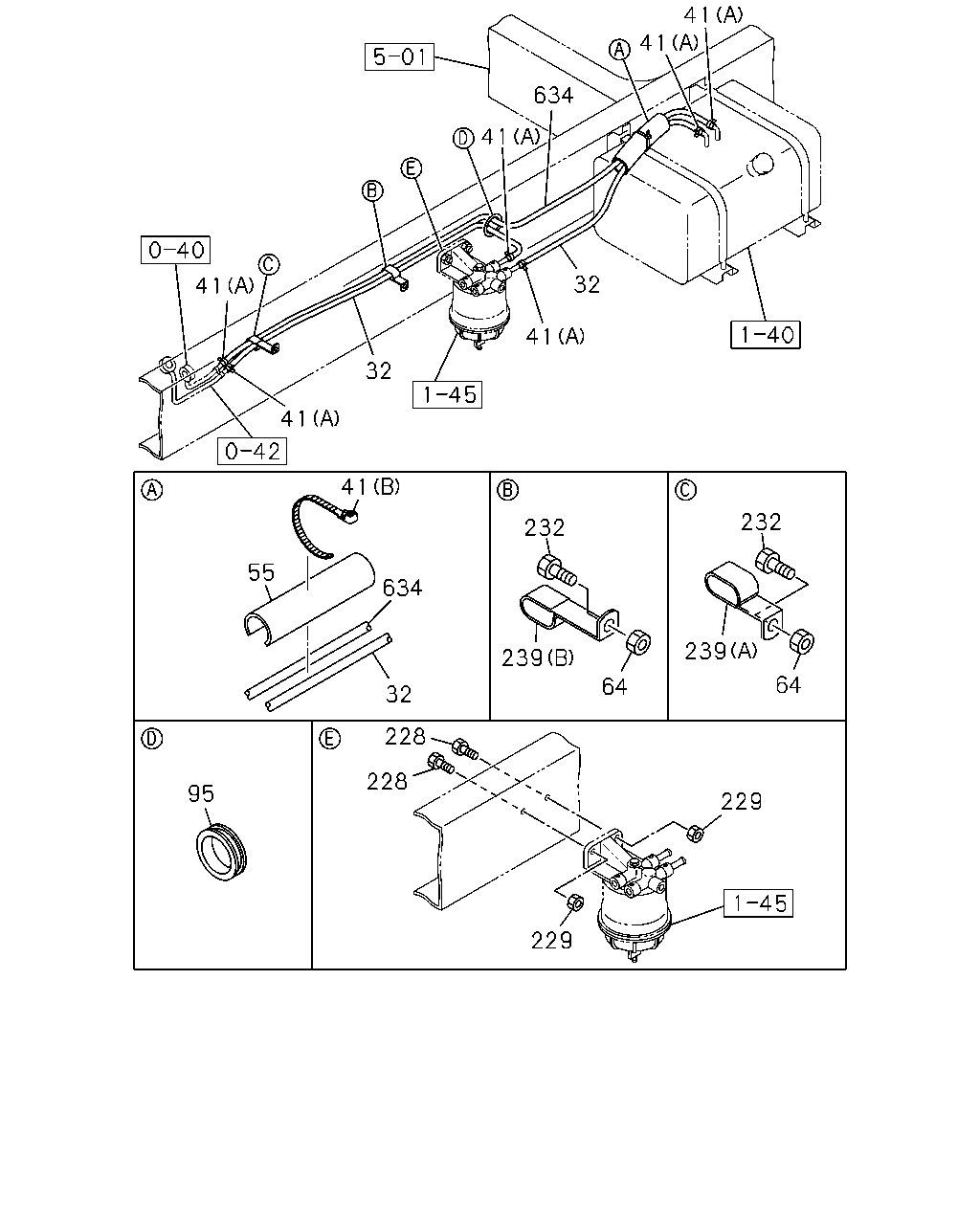

1-41 — FUEL PIPING; CHASSIS (#59599) — 60 parça

41 41 634 41 32 41 41 32 41 41 232 232 55 634 239 239 64 64 32 228 228 95 229 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=560 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●
32	PIPE; DELIVERY,FUEL TANK L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9510-0106	●	●
32	PIPE; DELIVERY,FUEL TANK L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210		●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0211-	●
32	PIPE; DELIVERY,FUEL TANK L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9510-0106	●	●
32	PIPE; DELIVERY,FUEL TANK L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210		●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0211-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9510-0210	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0211-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9510-0210	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0211-	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9510-0210	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0211-	●
64	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
64	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-	●
64	NUT; CLIP M8	9-09110-408-0	03	1	9510-9606	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0106	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0107-0210		●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0107-0210	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-	●
95	BUSHING; PIPE,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17	9-09956-256-2	01	1	0010-0106	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0107-0210		●
95	BUSHING; PIPE,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17	9-09956-256-2	01	1	0107-0210	●
95	BUSHING; PIPE,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=17	9-09956-256-2	01	1	0211-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9510-0009	●	●
95	BUSHING; PIPE,FUEL TANK FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25	1-09332-011-1	01	1	0010-0106	●	●
95	BUSHING; PIPE,FUEL TANK FRAME EQUIPMENT HEAVY DUTY(F03) ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28081-035-0	02	1	9510-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9607-0210	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0211-0512	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9510-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-0210	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●
232	BOLT; CLIP,PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512	●
232	BOLT; CLIP,PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-0106	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	0107-0210		●
232	BOLT; CLIP,PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0107-0210	●
232	BOLT; CLIP,PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●
232	BOLT; CLIP,PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
239	CLIP; FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0107-	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9510-9907	●	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0210	●	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0211-	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9510-0106	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0210		●
239	CLIP; FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0210	●
239	CLIP; FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0211-	●
634	HOSE; RUBBER RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9510-0106	●	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210		●
634	HOSE; RUBBER RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0210	●
634	HOSE; RUBBER RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0211-	●
