◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#59596) — 56 parça

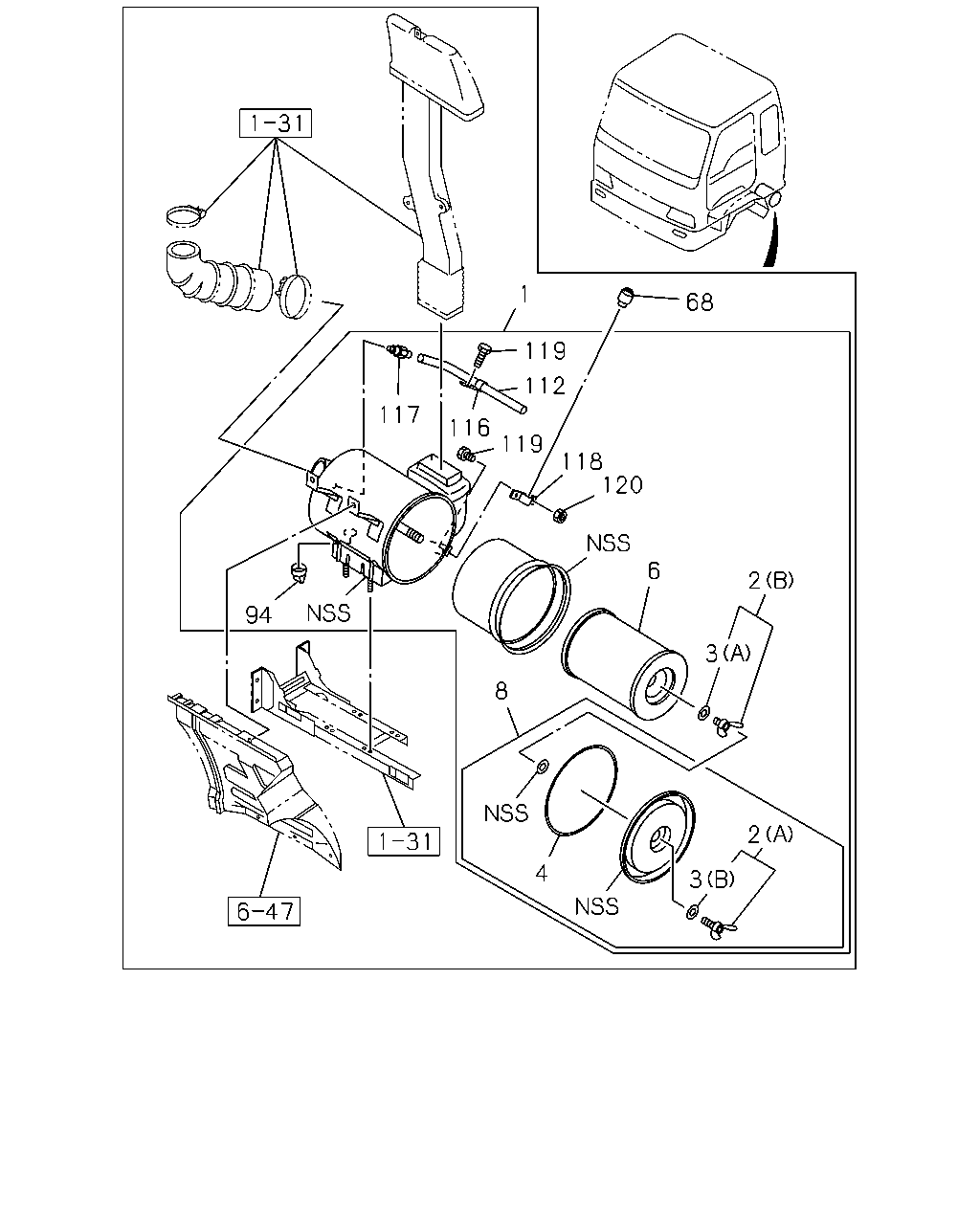

çizim 172916
1 68 119 112 117 116 119 118 120 6 2 94 3 8 2 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802
1 CLEANER ASM; AIR 1-14210-777-4 01 1 9803-
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9510-9802
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9510-9607
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9607
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-

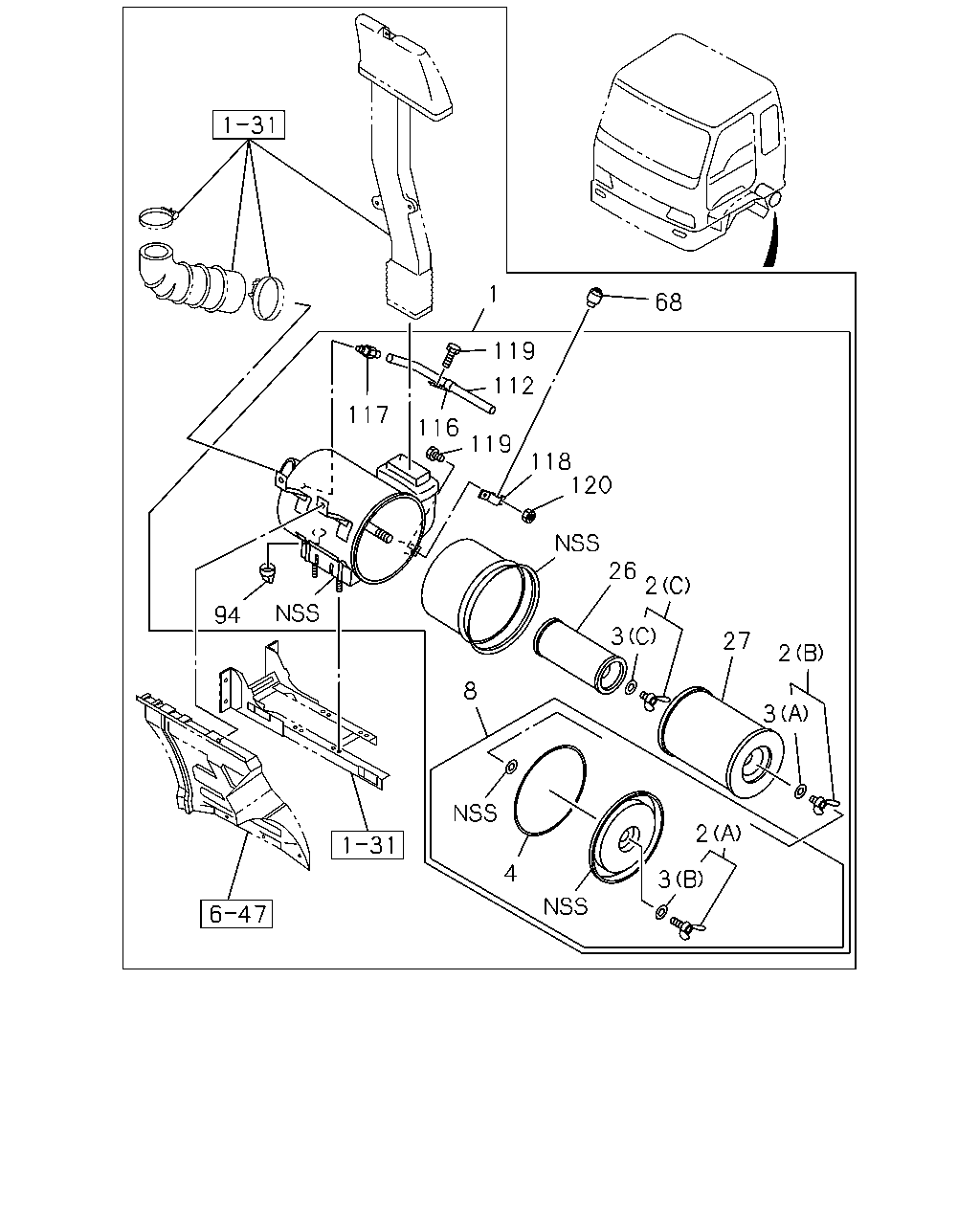

çizim 172920
1 68 119 112 117 116 119 118 120 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-777-3 01 1 9510-9802
1 CLEANER ASM; AIR 1-14210-777-4 01 1 9803-
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-772-2 01 1 9510-9802
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9510-9802
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9803-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9510-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9510-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9510-9802
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9803-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9510-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9510-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9510-
8 COVER ASM; ACL 1-14212-084-0 01 1 9510-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9510-9802
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9803-
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 9803-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9510-9802
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9510-9802
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9803-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 9803-
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9510-9802
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9510-
94 VALVE; VACUATOR 1-14219-192-0 01 1 9510-
112 HOSE; INDICATOR 1-09360-879-0 01 1 9510-9607
112 HOSE; INDICATOR 1-14219-260-0 01 1 9608-
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9510-9607
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9510-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9510-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 03 1 9510-9607
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9510-
