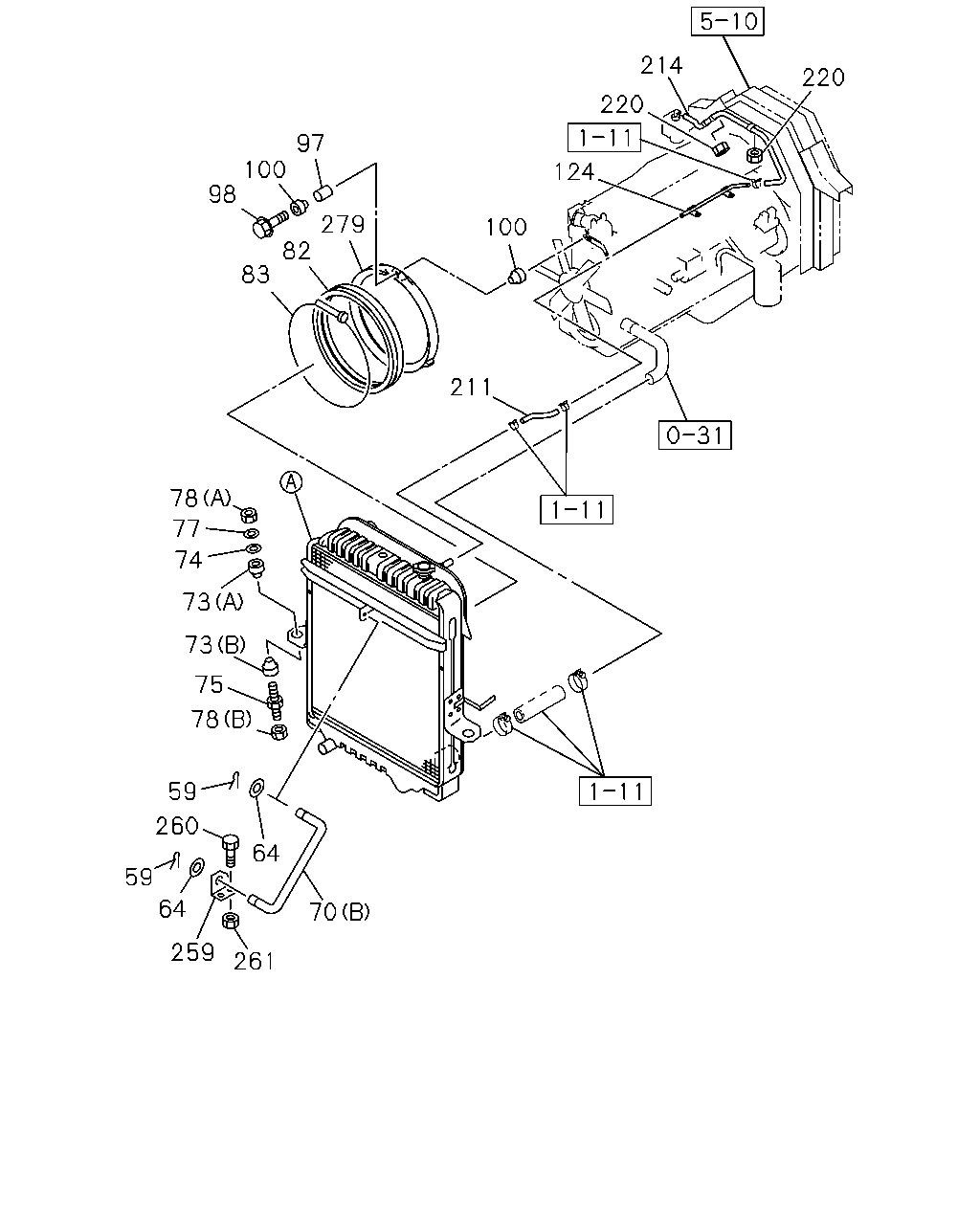

59 |
PIN; SNAP,STAY
|
1-09987-158-1 |
02 |
1 |
9510- |
| |
64 |
WASHER; STAY TO RAD
ID=12.5
|
9-09160-512-0 |
02 |
1 |
9510-0605 |
| |
64 |
WASHER; STAY TO RAD
ID=12.5 OD=22
|
0-91610-512-0 |
02 |
1 |
0606- |
| |
70 |

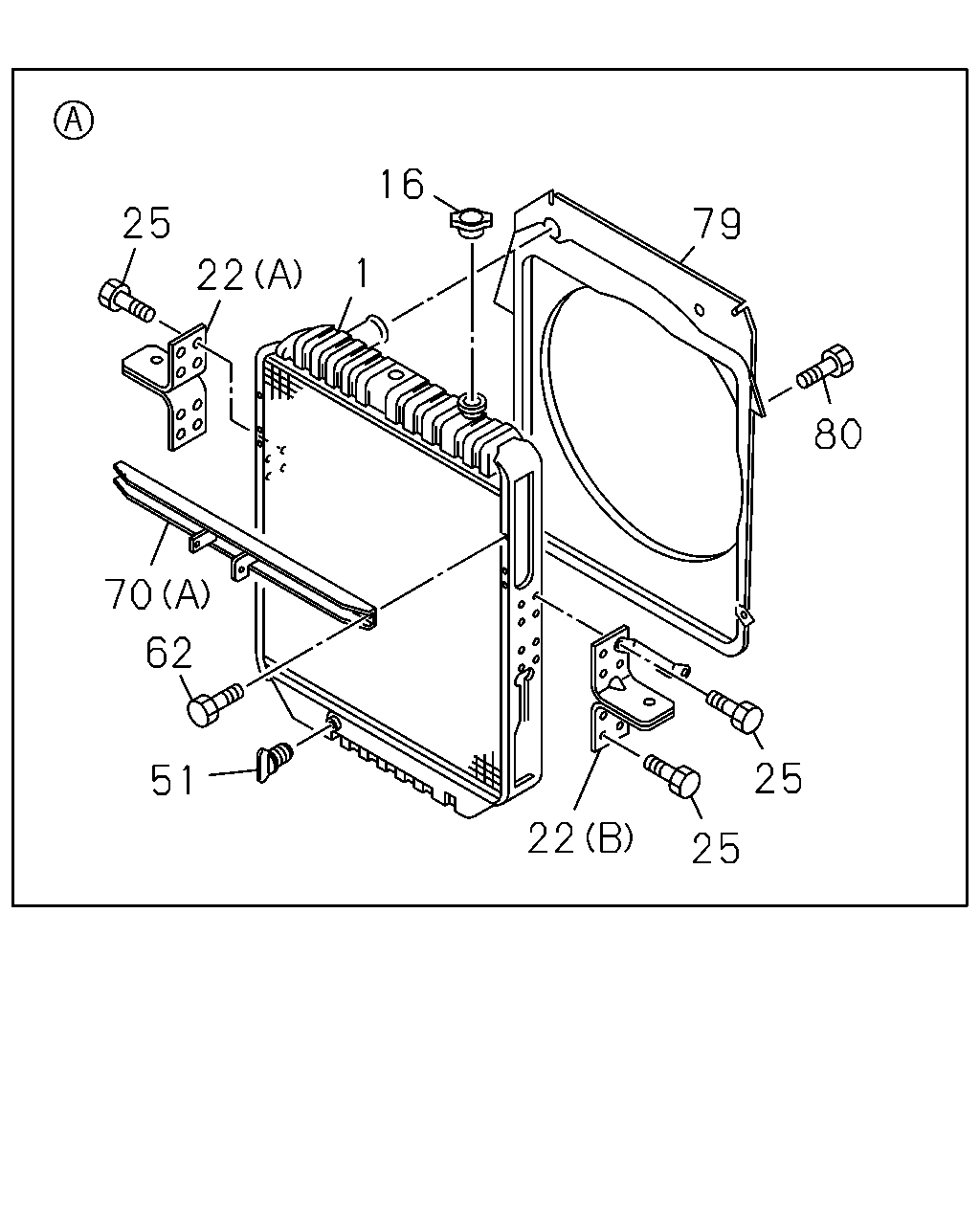

STAY; RAD
(A)
|
1-21522-064-0 |
01 |
1 |
9510- |
| |
70 |
STAY; RAD
(B)
|
1-21522-069-0 |
01 |
1 |
9510- |
| |
73 |
RUBBER; CUSHION,RAD MTG
(A)
T=14
|
1-21467-004-0 |
02 |
1 |
9510- |
| |
73 |
RUBBER; CUSHION,RAD MTG
(B)
T=24
|
1-21467-011-1 |
02 |
1 |
9510- |
| |
74 |
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
|
1-09503-154-1 |
02 |
1 |
9510-9604 |
| |
74 |
WASHER; PL,CUSHION RUBBER
OD=55
|
9-09852-169-0 |
02 |
1 |
9605- |
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
|
1-21466-007-3 |
02 |
1 |
9510- |
| |
77 |
WASHER; LK,CUSHION RUBBER
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9510-9702 |
| |
78 |
NUT; CUSHION RUBBER
(A)
M10 FLANGE
|
5-09440-006-0 |
02 |
1 |
9510- |
| |
78 |
NUT; CUSHION RUBBER
(B)
M12
|
9-99110-512-0 |
02 |
1 |
9510-9702 |
| |
78 |
NUT; CUSHION RUBBER
(B)
M12 FLANGE
|
0-91150-212-0 |
02 |
1 |
9703-0602 |
| |
78 |
NUT; CUSHION RUBBER
(B)
M12 FLANGE
|
0-91180-212-0 |
02 |
1 |
0603- |
| |
82 |
COVER; FAN,RAD
|
1-21559-340-0 |
01 |
1 |
9510-0212 |
| |
82 |
COVER; FAN,RAD
|
1-21559-211-0 |
01 |
1 |
0301- |
| |
83 |
CLIP; FAN COVER
|
1-09707-177-2 |
01 |
1 |
9510- |
| |
97 |
TUBE; DIST,FAN GUIDE
|
9-09651-072-0 |
03 |
1 |
9604- |
| |
98 |
BOLT; RAD FAN GUIDE
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
| |
98 |
BOLT; RAD FAN GUIDE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-0512 |
| |
98 |
BOLT; RAD FAN GUIDE
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0601- |
| |
100 |
RUBBER; MTG
|
1-09337-027-0 |
06 |
1 |
9510-9603 |
| |
100 |
RUBBER; MTG
OD=32
|
8-94395-766-0 |
06 |
1 |
9603- |
| |
124 |
PIPE; WATER,TANK TO RAD
|
8-94396-222-1 |
01 |
1 |
9510-0210 |
| |
124 |
PIPE; WATER,TANK TO RAD
|
8-94394-461-4 |
01 |
1 |
0211- |
| |
211 |
HOSE; RAD TO PIPE
L=290
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9510-0109 |
| |
211 |
HOSE; RAD TO PIPE
L=290
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0110-0210 |
| |
211 |
HOSE; RAD TO PIPE
L=430
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0211- |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>
L=1200
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
0107-0109 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>
L=1200
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0110-0210 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>
L=1300
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0211- |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>
L=1200
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9910-0004 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK>
L=1200
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9510-9603 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71>
L=1300
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9510-9603 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
L=1300
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9604-9909 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71>
L=1300
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
9910-0004 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
L=1300
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
0005-0106 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71>
L=1300
SERVICED BY L=3000
|
0-03257-300-0 |
01 |
1 |
0107-0109 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71>
L=1300
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0110-0210 |
| |
214 |
HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71>
L=1350
SERVICED BY L=3000
|
0-03557-300-0 |
01 |
1 |
0211- |
| |
220 |
NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0107-0602 |
| |
220 |
NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
220 |
NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9910-0004 |
| |
220 |
NUT; CLIP
CAB SUSPENSION RIGID<W71>
M8
|
9-09110-408-0 |
02 |
1 |
9510-9603 |
| |
220 |
NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK>
M8
|
9-09110-408-0 |
03 |
1 |
9510-9603 |
| |
220 |
NUT; CLIP
M8
|
9-09110-408-0 |
02 |
1 |
9604-9606 |
| |
220 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9909 |
| |
220 |
NUT; CLIP
CAB SUSPENSION RIGID<W71>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9910-0004 |
| |
220 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0106 |
| |
220 |
NUT; CLIP
CAB SUSPENSION RIGID<W71>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0107-0602 |
| |
220 |
NUT; CLIP
CAB SUSPENSION RIGID<W71>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603-0812 |
| |
220 |
NUT; CLIP
CAB SUSPENSION RIGID<W71>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0901- |
| |
259 |
BRACKET; RAD STAY
|
1-21523-025-0 |
01 |
1 |
9510-9906 |
| |
259 |
BRACKET; RAD STAY
|
1-21523-028-0 |
01 |
1 |
9907- |
| |
260 |
BOLT; BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
| |
260 |
BOLT; BRKT
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9607-0512 |
| |
260 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
261 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
| |
261 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0602 |
| |
261 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
279 |
BELL MOUTH
|
8-94394-808-2 |
01 |
1 |
9510-0212 |
| |
279 |
BELL MOUTH
|
8-94394-174-1 |
01 |
1 |
0301- |
